Best Factory Price Volumetric Plate Heat Exchanger High Quality Heat Transfer Customized
- Category: Heat Exchanger >>>
- Supplier: Shandong Zhaozhou Import And Export Group Co. Ltd.
Share on (1600256186536):
Product Overview
Description
Product Overview

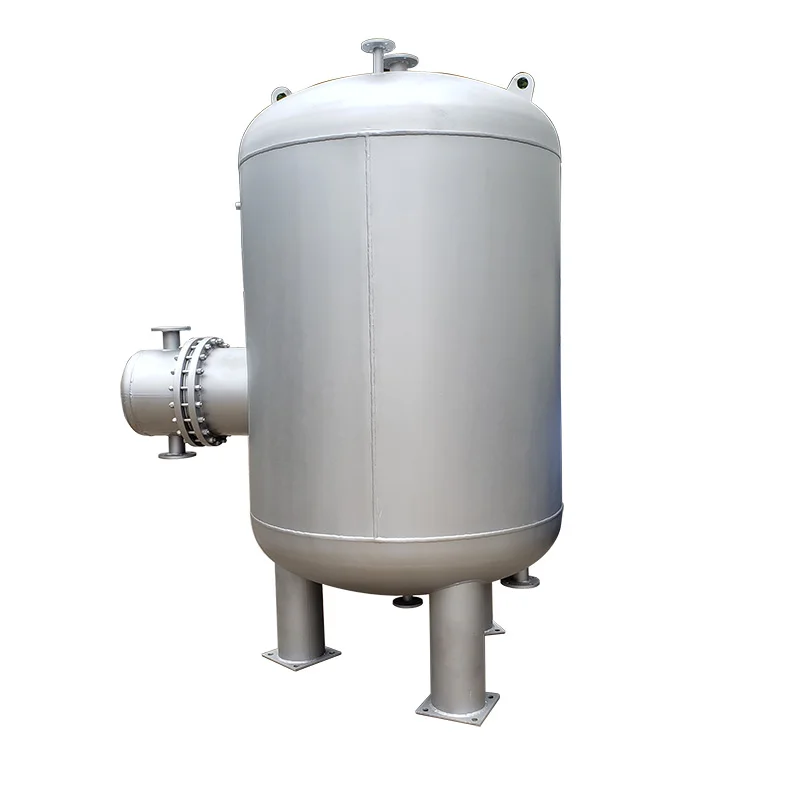

Volumetric Plate Heat Exchanger
The volumetric heat exchanger has a high heat conversion rate and can efficiently convert electrical energy into more
heat. material. In many industrial and civil equipment, efficient heat exchange is required. At this time, it is necessary to
combine the working conditions, choose materials, arrangement forms, and heat exchange methods reasonably. Features: high heat exchange efficiency, low thermal resistance, low thermal inertia, sensitivity, saving materials and space, saving power, low flow resistance, low noise, etc.
Energy-saving volumetric heat exchanger, which makes full use of steam energy, high efficiency and energy saving, is a new type of water heater. Ordinary water heaters generally need to be equipped with water-to-water heat exchangers to reduce the temperature of steam condensate for reuse. The energy-saving heat exchanger condensate outlet temperature is around 45 ℃, or directly back to the boiler room for reuse. This reduces the equipment investment, saves the area of the heat exchanger machine room, and thus reduces the basic construction cost. Therefore, the energy-saving volumetric heat exchanger is very popular among the majority of design and user units
heat. material. In many industrial and civil equipment, efficient heat exchange is required. At this time, it is necessary to
combine the working conditions, choose materials, arrangement forms, and heat exchange methods reasonably. Features: high heat exchange efficiency, low thermal resistance, low thermal inertia, sensitivity, saving materials and space, saving power, low flow resistance, low noise, etc.
Energy-saving volumetric heat exchanger, which makes full use of steam energy, high efficiency and energy saving, is a new type of water heater. Ordinary water heaters generally need to be equipped with water-to-water heat exchangers to reduce the temperature of steam condensate for reuse. The energy-saving heat exchanger condensate outlet temperature is around 45 ℃, or directly back to the boiler room for reuse. This reduces the equipment investment, saves the area of the heat exchanger machine room, and thus reduces the basic construction cost. Therefore, the energy-saving volumetric heat exchanger is very popular among the majority of design and user units
FEATURES AT A GLANCE
1. Descaling Function
2. High efficiency of heat transfer
3. Large water storage
4. Safe and steady water supply
5. Long life span
2. High efficiency of heat transfer
3. Large water storage
4. Safe and steady water supply
5. Long life span
Right elevation
Left elevation
Front elevation
INSTRUCTIONS
1. The tube pass of the volumetric plate heat exchanger is the thermal medium tunnel,and the shell side is the tunnel for heated
water. Thermal medium is steam or high(low)-temperature water.
2. High-quality carbon steel plate is used as its shell material, and users can choose the copper pipes or the stainless steel
pipes as its heating coil.
3. Safety valve is installed on the top of the heat exchanger, whose pressure should be suitable to the highest working pressure
of the heat exchanger. Or an expansion tank shall be designed to be connected with the heat exchanger, in order to discharging
the expanded water.
4. The heat exchanger need to be examined regularly among its using process. Use the thermal shock to descale automatically at
least once a month and drain the water once a week, which could maintain water quality.
5. The specific method of using the thermal shock to descale is : draining the water inside the tube first, then keep passing
through steam, whose inlet pressure is 0.3 MPa, until hear the sounds coming from the heating tube, which indicates the
inflated heating tube. After that, close the steam inlet valve and use the water pipe to squirt the heated tubes, repeat like
this for 3 or 4 times, then you’ll find the fouling products flowing from the sewage outfalls. Finally, fill it up with water
and continue its work.
6. In this heat exchanger, the design pressure of shell side and tube is normally 0.6-1.6 MPa. The temperature of the hot water
outlet would not be higher than 90 centigrade. Tube resistance is below 4mH2 The small tube resistance loss could be
negligible.
7. A temperature-control valve should be installed on the steam inlet tube to control the steam flow and the temperature of hot
water because of the high heat-transfer efficiency of this heat exchanger. Considering the personal security, temperature
control is more necessary particularly for the hot water supply system.
8. Leave a space around the engine.
water. Thermal medium is steam or high(low)-temperature water.
2. High-quality carbon steel plate is used as its shell material, and users can choose the copper pipes or the stainless steel
pipes as its heating coil.
3. Safety valve is installed on the top of the heat exchanger, whose pressure should be suitable to the highest working pressure
of the heat exchanger. Or an expansion tank shall be designed to be connected with the heat exchanger, in order to discharging
the expanded water.
4. The heat exchanger need to be examined regularly among its using process. Use the thermal shock to descale automatically at
least once a month and drain the water once a week, which could maintain water quality.
5. The specific method of using the thermal shock to descale is : draining the water inside the tube first, then keep passing
through steam, whose inlet pressure is 0.3 MPa, until hear the sounds coming from the heating tube, which indicates the
inflated heating tube. After that, close the steam inlet valve and use the water pipe to squirt the heated tubes, repeat like
this for 3 or 4 times, then you’ll find the fouling products flowing from the sewage outfalls. Finally, fill it up with water
and continue its work.
6. In this heat exchanger, the design pressure of shell side and tube is normally 0.6-1.6 MPa. The temperature of the hot water
outlet would not be higher than 90 centigrade. Tube resistance is below 4mH2 The small tube resistance loss could be
negligible.
7. A temperature-control valve should be installed on the steam inlet tube to control the steam flow and the temperature of hot
water because of the high heat-transfer efficiency of this heat exchanger. Considering the personal security, temperature
control is more necessary particularly for the hot water supply system.
8. Leave a space around the engine.
PRODUCT SPECIFICATIONS
Model Type | Tank Diameter (mm) | Tank Height H(mm) | Heat Transfer Area F(m2) | Unit Area Water Yield (kg/h) |
RLS-2-1.0/1.0 | 1200 | 2500 | 9.5 | 8486 |
RLS-3-1.0/1.0 | 1200 | 3470 | 12.1 | 13114 |
RLS-4-1.0/1.0 | 1600 | 2870 | 22.5 | 24171 |
RLS-5-1.0/1.0 | 1600 | 3370 | 25.5 | 27514 |
RLS-6-1.0/1.0 | 1800 | 3270 | 29.4 | 31628 |
RLS-8-1.0/1.0 | 1800 | 4070 | 33.7 | 36257 |
