Product Overview
Description

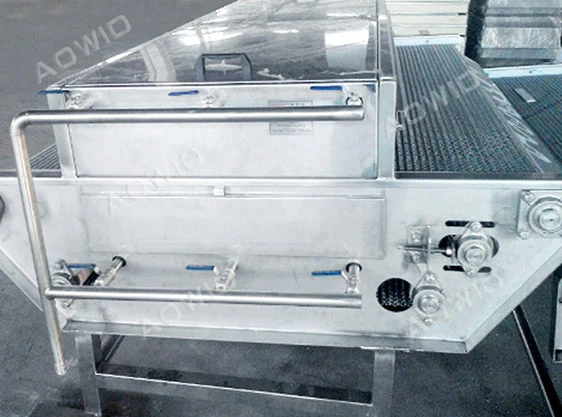

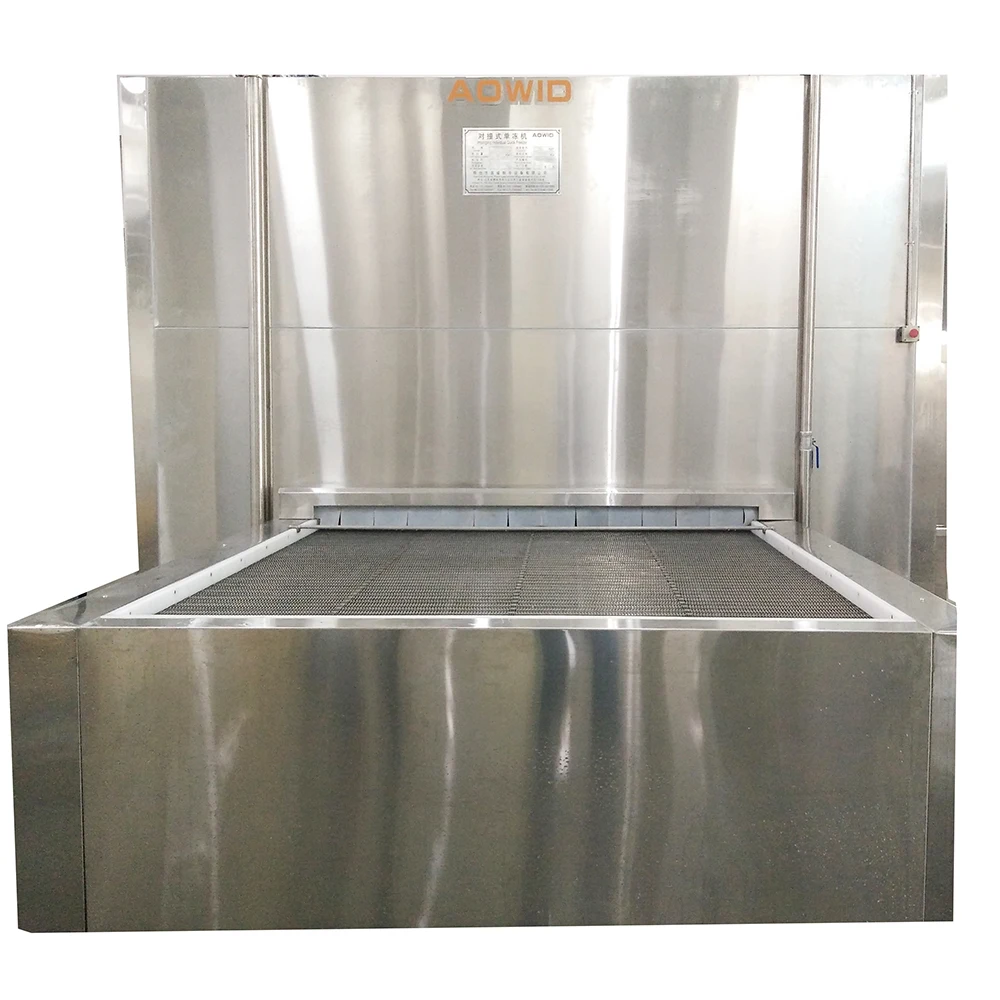

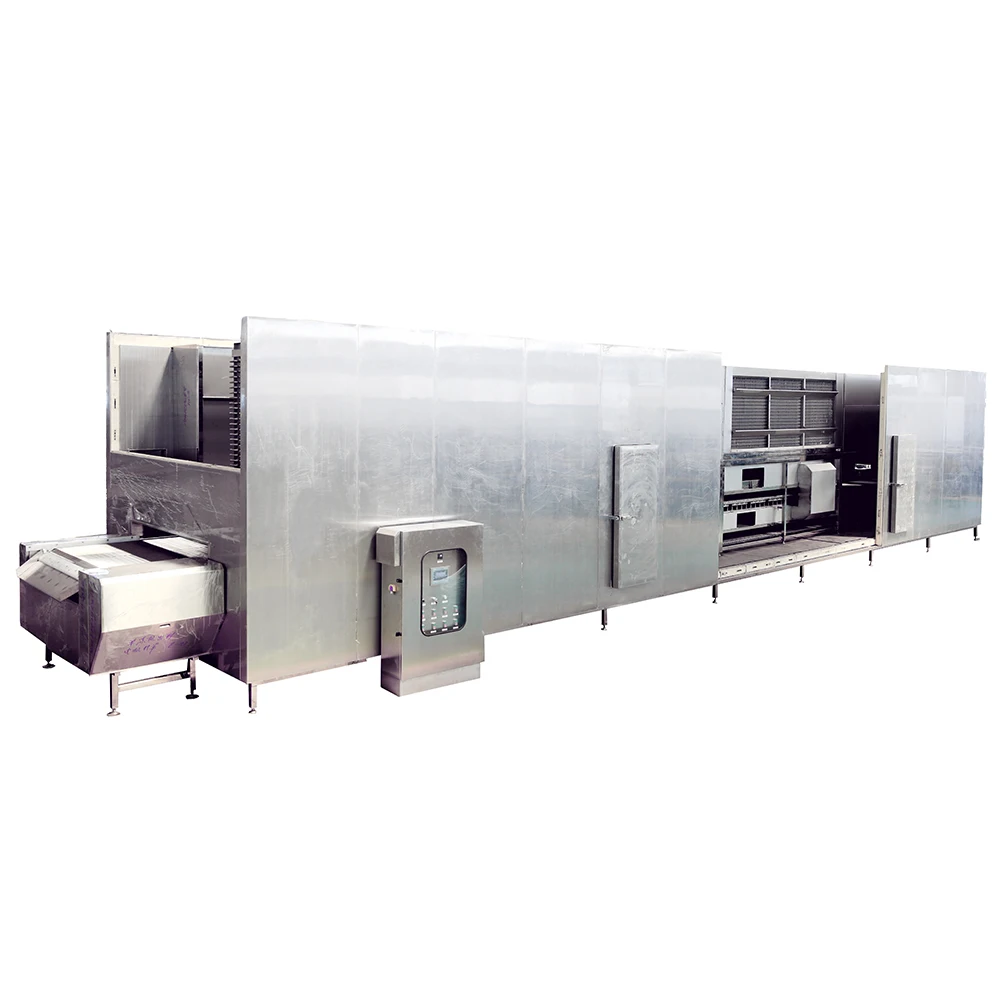

Plate belt impinging individual quick freezer
Unique impinging system, breaking the traditional layout of the distribution structure and the concept of freezing. When the cold air flow through the upper and lower air guider, will change into a uniform vertical high-speed wind knife-type collision cold air flow, frozen goods with the conveyor belt transmission, frozen surface and frozen goods center rapid hot and cold exchange, so ensure the purpose of quick freezing. "Impinging system " with the wind device to ensure that the two-way frozen frozen goods to reduce theloss weight of frozen goods, improve product quality.
Features
The casing plate is stainless steel for double side, hard polyurethane high pressure foaming process.
Conveyor belt is high-quality stainless steel plate, the strength is more than double times with the ordinary plate , small wave, small bending, the operation is stable and reliable.
With the unique patented technology (Patent No.: 200720026378.4), “Impinging direction airflow collision” Air supply device , the high speed air flow and the impinging expansion heat transfer principle can ensure the loss weight and quality of the food.
Centrifugal fan with low noise, high efficiency, the turbine blade is made of stainless steel, and the casing is stainless steel.
Evaporator uses large size and variable space fin, with the best air flow organization form, less frost and long efficient continuous working time.
With well-known brand of electronic components, stainless steel cabinet, waterproof, dedusting, dehumidification design, complying with food processing workshop requirements
Conveyor belt is high-quality stainless steel plate, the strength is more than double times with the ordinary plate , small wave, small bending, the operation is stable and reliable.
With the unique patented technology (Patent No.: 200720026378.4), “Impinging direction airflow collision” Air supply device , the high speed air flow and the impinging expansion heat transfer principle can ensure the loss weight and quality of the food.
Centrifugal fan with low noise, high efficiency, the turbine blade is made of stainless steel, and the casing is stainless steel.
Evaporator uses large size and variable space fin, with the best air flow organization form, less frost and long efficient continuous working time.
With well-known brand of electronic components, stainless steel cabinet, waterproof, dedusting, dehumidification design, complying with food processing workshop requirements
Model | QSDB- 500 | QSDB-750 | QSDB- 1000 | ||
Freezing capability kg | 500 | 750 | 1000 | ||
Effective width of plate belt mm | 1100 | 1500 | 2000 | ||
Cargo-through height mm | 50/100(可调) 50/ 100(Adjustable) | ||||
Input / Output Temperature ℃ | +12/-18 | ||||
Liquid supply temperature ℃ | -42 | ||||
refrigerant | R744 | ||||
Cooling Consumption kW | 100 | 145 | 195 | ||
Installed Power kW | 25.2 | 41.8 | 58 | ||
Defrosting water quantity | 14 | 20 | 27 | ||
Defrosting interval time h | 10-16 | ||||
FAQ
1.What's your advantage?
A: Thte set of heat exchange tube, oval high-frequenay weldaed pipe and thefow af the liquid in the pipe and the pipe outer surlace foma unilarm"wwater film. enhanceci heat tranafer effect Peasonable dicsign all meet the conditions of container transpoert. simple and conwcnient.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to
check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Where are you?
Can I visit you? A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: Within 60 days after we confirm you requirement.
5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, if you have other payment,please contact me.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to
check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Where are you?
Can I visit you? A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: Within 60 days after we confirm you requirement.
5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, if you have other payment,please contact me.
