Гибридная система солнечной энергии 10 кВт/ч, 3 фазы, системы хранения солнечной энергии, 10 кВтч, 20 кВтч, литий ионный аккумулятор для домашнего использования в Германии
- Category: Solar Energy Products >>>
- Supplier: Bluesun,Ess,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
10KW Hybrid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Half cut mono 455w solar panel | 22 pcs | |||
2 | Combiner Box | Optional | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 20kwh | 1set | |||
4 | Hybrid Inverter | 10kva | 1 pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 100m | |||
7 | Connector | Solar Connector | 12 pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
12KW Hybrid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Half cut mono 455w solar panel | 26 pcs | |||
2 | Combiner Box | Optional | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 24kwh | 1set | |||
4 | Hybrid Inverter | 12kva | 1 pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 200m | |||
7 | Connector | Solar Connector | 16 pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
15KW Hybrid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Half cut mono 455w solar panel | 36 pcs | |||
2 | Combiner Box | Optional | 1 pc | |||
3 | Lithium Battery | 20/ 30kwh (customized ) | 1set | |||
4 | Hybrid Inverter | 15kva | 1 pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 100m | |||
7 | Connector | Solar Connector | 12 pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
More details please contact me:
Phone/WhatsApp/Wechat :+86 18110936493
Email: [email protected]
Configuration detail

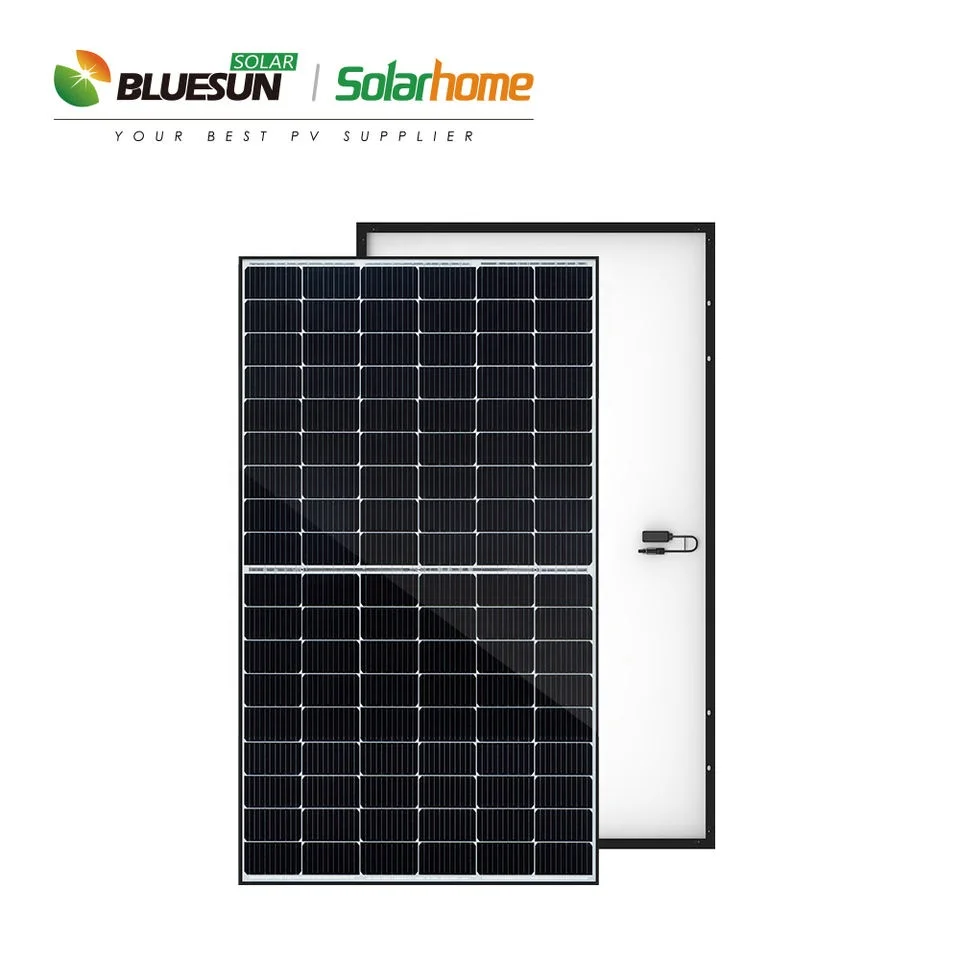

Mono Solar Panel
>Peak Power Watts: BSM455M-72HPH
>Max Power Voltage: 41.7V
>Max Power Current: 10.92A
>Open Circuit Voltage: 49.5V
>Short Circuit Current: 11.66A
>Dimensions:2094*1038*35mm
>Weight: 23.5kg
>Max Power Voltage: 41.7V
>Max Power Current: 10.92A
>Open Circuit Voltage: 49.5V
>Short Circuit Current: 11.66A
>Dimensions:2094*1038*35mm
>Weight: 23.5kg
PV Combiner Box
>Cross Section: 4mm2, 6mm2 Optional
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional.
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional.

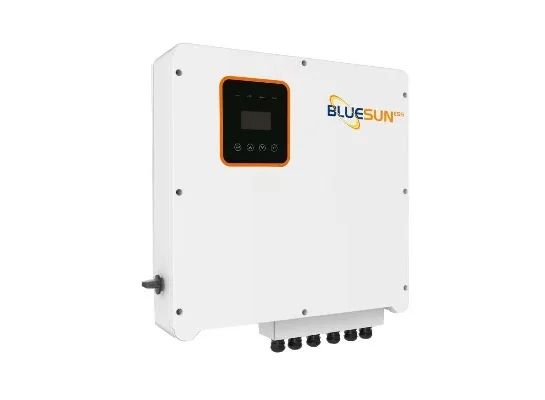

Hybrid Solar Inverter
> Modular & NREL certified PCS P-Q & V-F mode
>Built-in or external transformer offers option for 400Vac connection.
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>10ft/20ft/40ft standard ISO container.
>Built-in or external transformer offers option for 400Vac connection.
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>10ft/20ft/40ft standard ISO container.

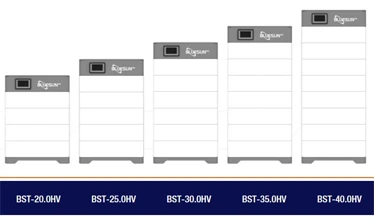

Battery Cabinet
> 2V,12V Gel Battery
Without a battery bank (or a generator) it well be lights out by sunset. A battery bank is essentially a group of batteries wired
together
PV Mounting System
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
PV Tools
>Wire Cable Cutter & Stripper,
>Disassembly Tool
>Disassembly Tool

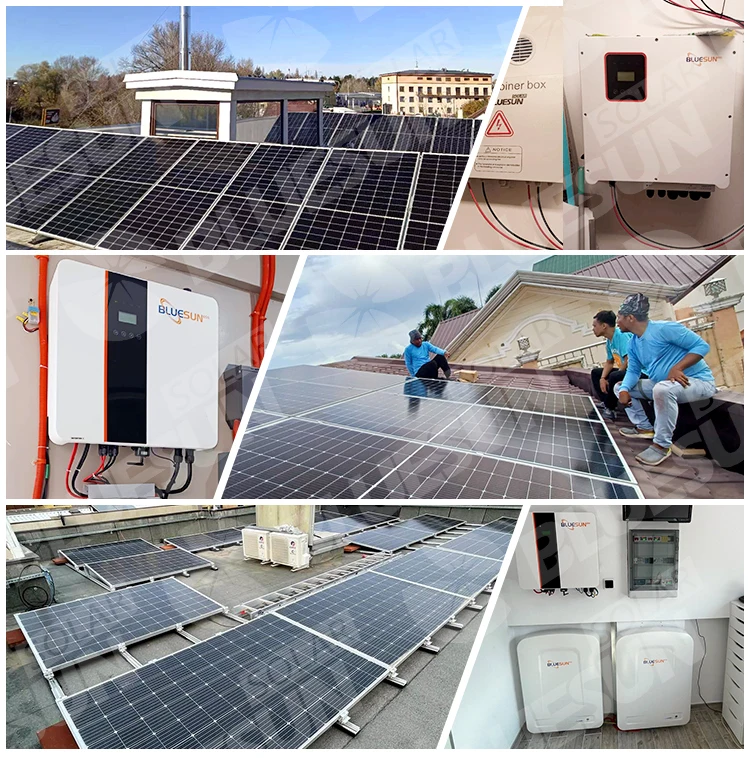

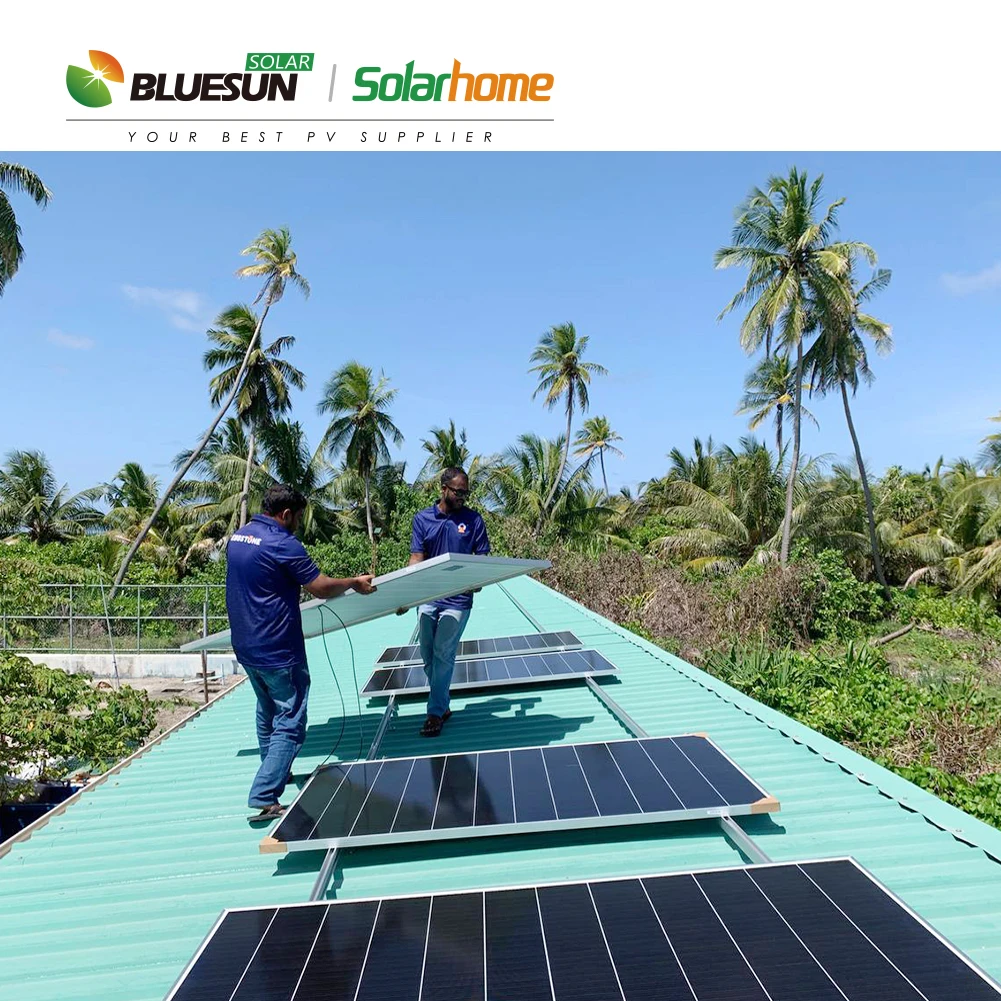

Project

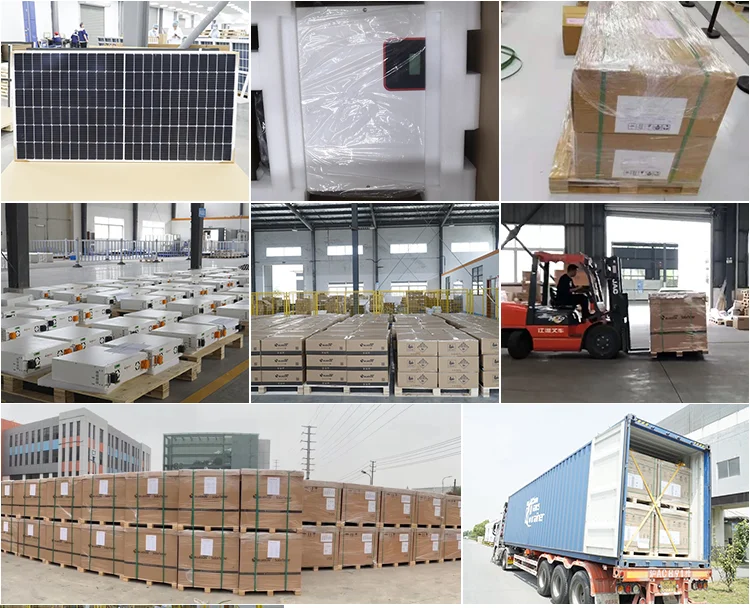

Packing
Company Profile
Bluesun Ess Co., Ltd. is a technology trade Internet company specializing in solar field, headquartered in Hefei city, Anhui Province. The main products includes hybrid energy storage solar inverter, on grid solar inverter, off grid solar inverter and a complete set solar energy solution.
