2000W electric bicycle conversion kit
US $140.00-$145.00
Комплект bafang 750 Вт BBS02 BBS02B, конверсионный Электрический аккумулятор
- Category: Electric Bicycle Kit >>>
- Supplier: Hangzhou Indigo Vehicle Intelligent Technology Co. Ltd.
Share on (1600256382869):
Product Overview
Description
bafang 750W BBS02 BBS02B kit conversion bic elettr con batter
Overseas or Chinese Warehouse
# We have in stock in Spain,Belgium,UK,USA and Australia Warehouse.
# If you want to specify a warehouse, please contact us in advance.
Product Description
Note:
# EU don't need to pay tax, we will pay for the tax. Other countries buyer need to pay tax and if held by Customs buyer need to clear customs and pay for tax.
# If your brake lever is Hydraulic Brake and you choose to ship it from China. We can upgrade the ebrake to brake sensor for free !!!
Dropship could also be supported !!!
Dropship could also be supported !!!
Dropship could also be supported !!!

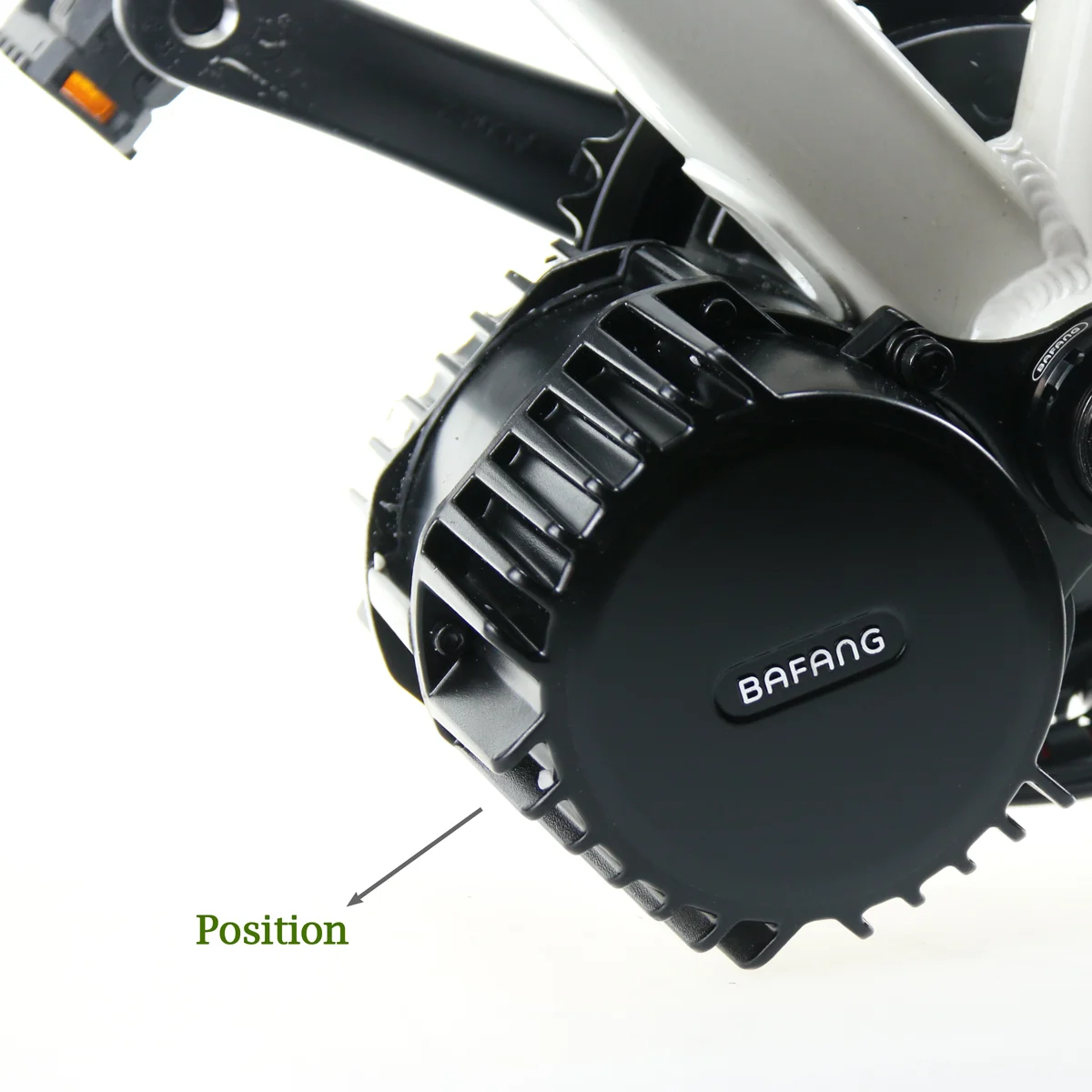

Advantages of bafang mid motor
1. Balanced center of gravity and high safety performance.
2. Riding without resistance when power off.
3. Could be installed on frame easily.
4. Long driving distance, longer cycle life on flat ground.
5. Strong climbing ability with high torque but low noise.
6. Well-known brand and excellent after-sale service.
Main Parameters Sheet | ||||
Power | 500W | 750W | ||
Waterproof level | IP X5 | |||
Anti-corrosion grade (hours) | 96 | |||
Certification | CE / EN 14764 / ROHS | |||
Installation location | Mid Motor | |||
Structure | Gear drive | |||
Max Speed | 35km/h | 45km/h | ||
No-load speed (Rpm) | 120/126 | 140--60 | ||
Load speed (Rpm) | 113/118 | 120--135 | ||
Maximum torque | 100 Nm | 120 Nm | ||
Effectiveness(%) | ≥ 80 | |||
Shaft standard | JIS | |||
Weight (kg) | 4.3 | |||
Noise (dB) | <55 | |||
Operating temperature | -20-45℃ | |||
Electronic brake lever | Yes | |||
Variable speed sensor function | Yes | |||
Headlight drive module (DCV/W) | 6 /3(max) | |||
More Details
500C-Display Parameter | ||
Screen | TFT LCD | |
Nominal Voltage | 24//36/48V | |
Speed Limit | 99Km/h | |
Speed Display | AVG SPEED, MAX SPEED SPEED(Real-time) | |
Mileage Indicator | Odometer, Trip distance Riding time. | |
Kilometer / Mile | Can be exchanged | |
Battery Indicator | Yes | |
Error code Indicator | Yes | |
Certifications | CE/EN15194/ROHS | |
Battery Main Parameters | ||||||||
Product name | Polly e-bike battery | |||||||
Size | 368 * 90 * 113 mm | |||||||
Voltage | 48 V | |||||||
Capacity | 13A | |||||||
Fit for motor | 750W | |||||||
Max cell space | 91 Cells | |||||||
Configuration | 13S5P | |||||||
Cells Type | 18650 | |||||||
Certificate | ROHS,CE | |||||||
Way of Charge | CC/CV | |||||||
Discharge Temperature | -15-65℃ | |||||||
Future | Smart BMS,Balance Charging,LED Indicator for capacity level, DC charge socket, 5pin discharge socket, Lock for safe. | |||||||

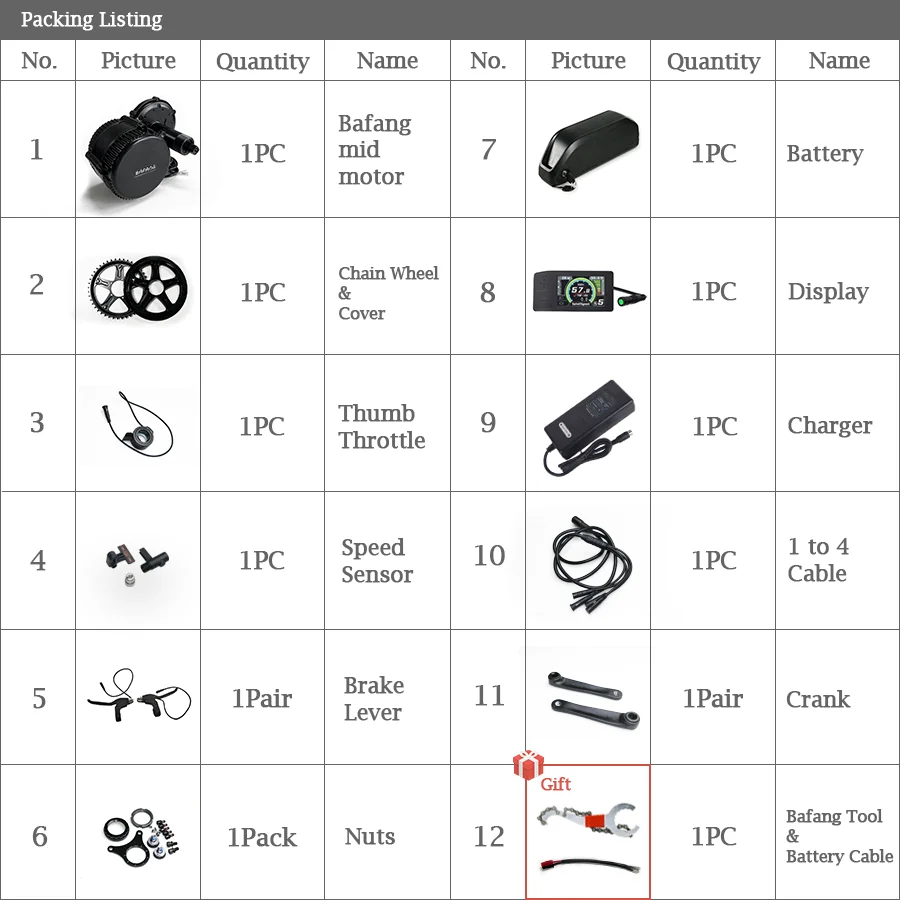

Component List | ||||||||
1*Bafang Motor | ||||||||
1*Display | ||||||||
1*Chain Wheel & Chain Cover | ||||||||
1*Thumb Throttle | ||||||||
2*Cranks | ||||||||
1* Cables(1 to 4) | ||||||||
1*Spend Sensor & Magnets | ||||||||
1*Brake Lever | ||||||||
1*Nuts | ||||||||
1*Bafang Tool | ||||||||
1*Battery | ||||||||

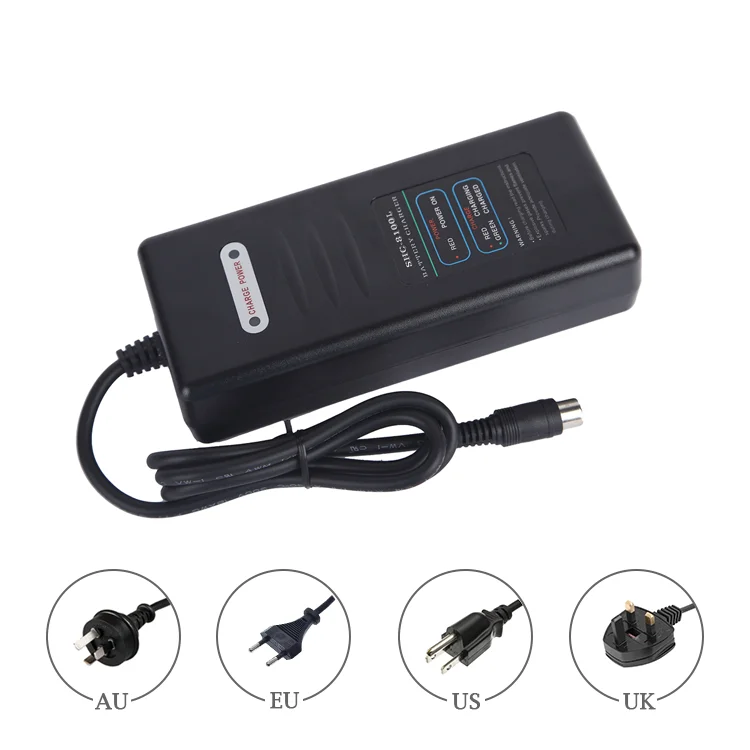

1*Charger (US/UK/AU/EU) | ||||||||
1*Motor Battery Connection Cable | ||||||||
Warranty | ||||
It' not valid for any damage due to wrong operation | ||||
Product | Warranty Time | Condition | ||
Motor | 12 Months | 12 months quality warranty | ||
Battery | 12 Months | 12 months quality warranty | ||
Accessories | 30 Days | 30 days quality warranty | ||
Battery Charger | 18 Months | 18 months quality warranty | ||
