High Effciency Automatic Pipe Self Aligned Welding Rotator Customized Turning Rolls Metal Technical Dimensions
- Category: >>>
- Supplier: Shandong Zhaozhou Import And Export Group Co. Ltd.
Share on (1600256402294):
Product Overview
Description
Company Introduction
Zhaozhou Group consists of 5 sub companies: Dezhou Zhaozhou Import and Export Trading Co.
Ltd., Dezhou Zhemai Electric Factory, Dezhou Xinyi Heat Exchanger Equipment Co. Ltd., Dezhou Luda Environmental Technology Co., Ltd., Dezhou Pangda Furniture Co., Ltd.. Established with 13 producing workshops, Zhaozhou Group is a scientific research, design, development, production, sales and installation set in one-scale enterprises. Our company is a garden-type and modern enterprise with all-round development in technology、industry and trade.
Ltd., Dezhou Zhemai Electric Factory, Dezhou Xinyi Heat Exchanger Equipment Co. Ltd., Dezhou Luda Environmental Technology Co., Ltd., Dezhou Pangda Furniture Co., Ltd.. Established with 13 producing workshops, Zhaozhou Group is a scientific research, design, development, production, sales and installation set in one-scale enterprises. Our company is a garden-type and modern enterprise with all-round development in technology、industry and trade.
Adhering to our operating philosophy of "Treat market as the orientation, technology as the lifeline, management as the basis, customer as the focus" , the Group has constantly realized the technical innovation and quality escalation. Based on its cutting-edge technology, superior performance, reliable quality and perfect after-sales service system, our products provide water supply guarantee for users. Our products remained a popular choice among users domestic and overseas since they first came onto the market.
Insisting on the purpose of "quality first, users first, credibility first", Zhaozhou provides customers with more reliable water supply system solutions and perfect services based on the principle of "from society to society ". Zhaozhou will always work with you committed to create a great future!
Insisting on the purpose of "quality first, users first, credibility first", Zhaozhou provides customers with more reliable water supply system solutions and perfect services based on the principle of "from society to society ". Zhaozhou will always work with you committed to create a great future!
Product Overview

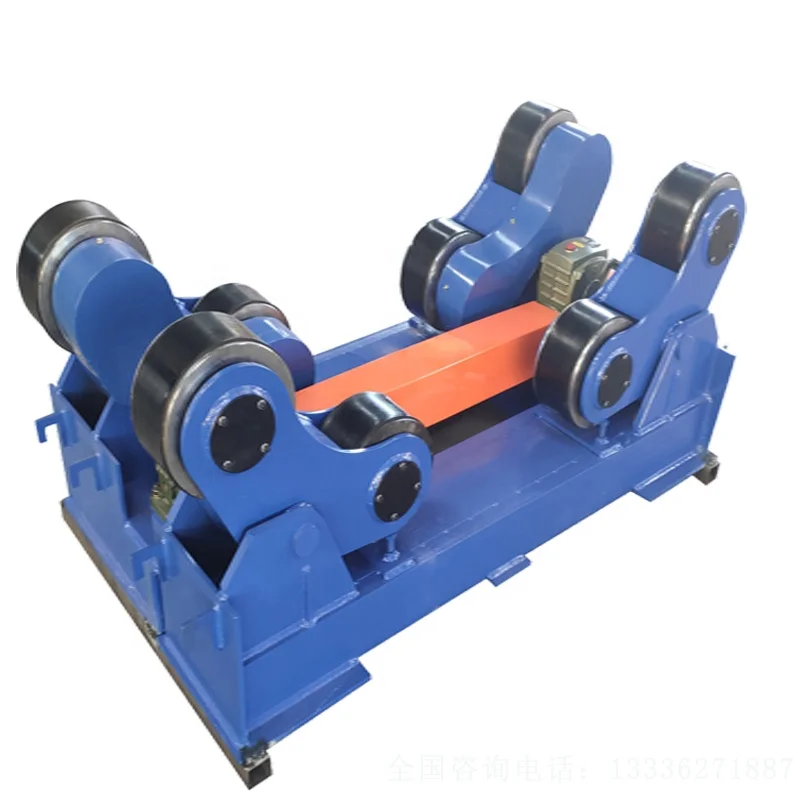

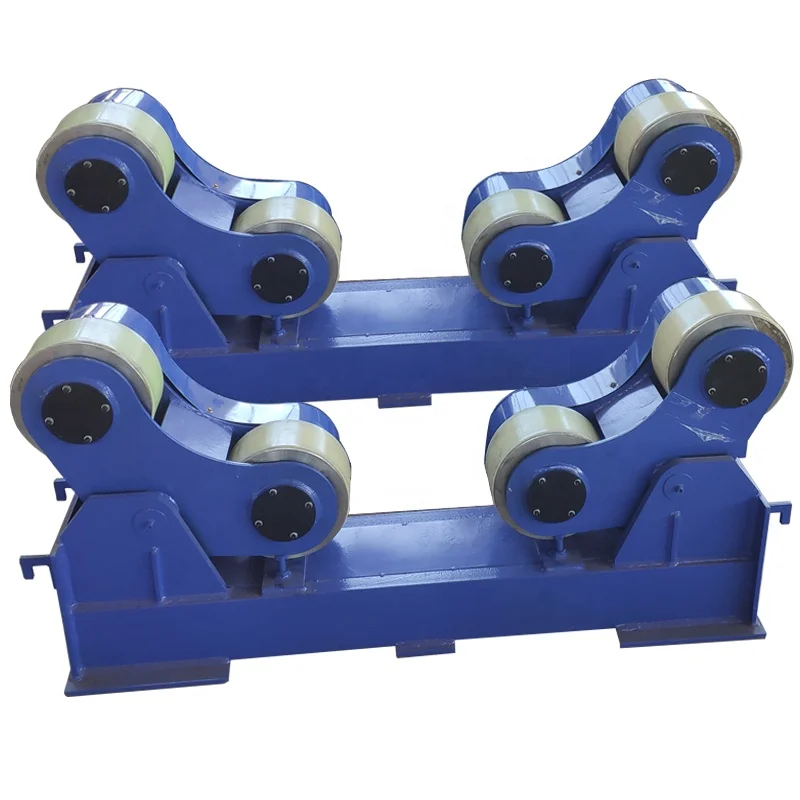

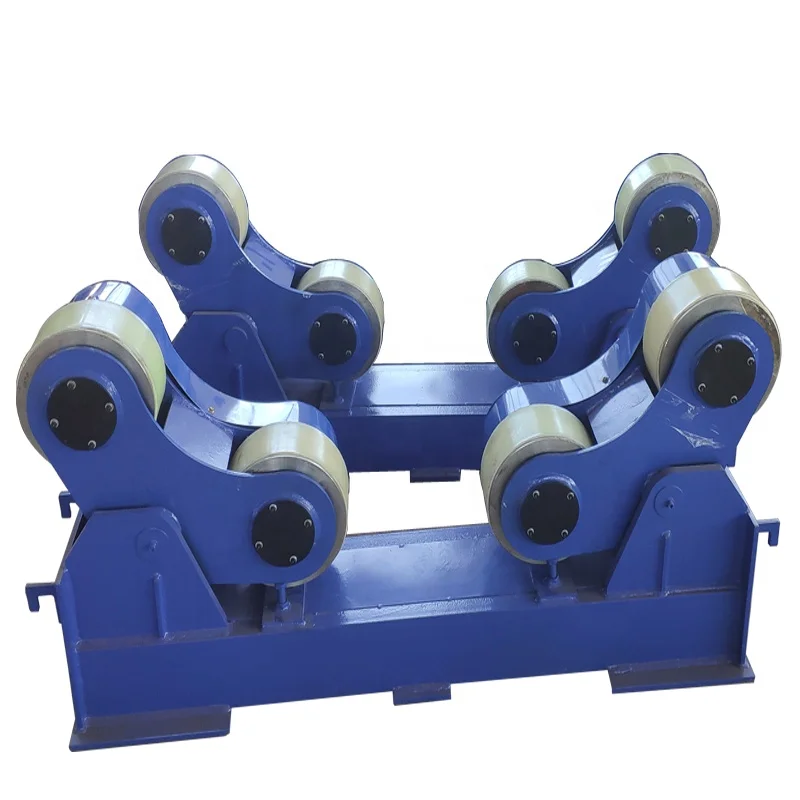

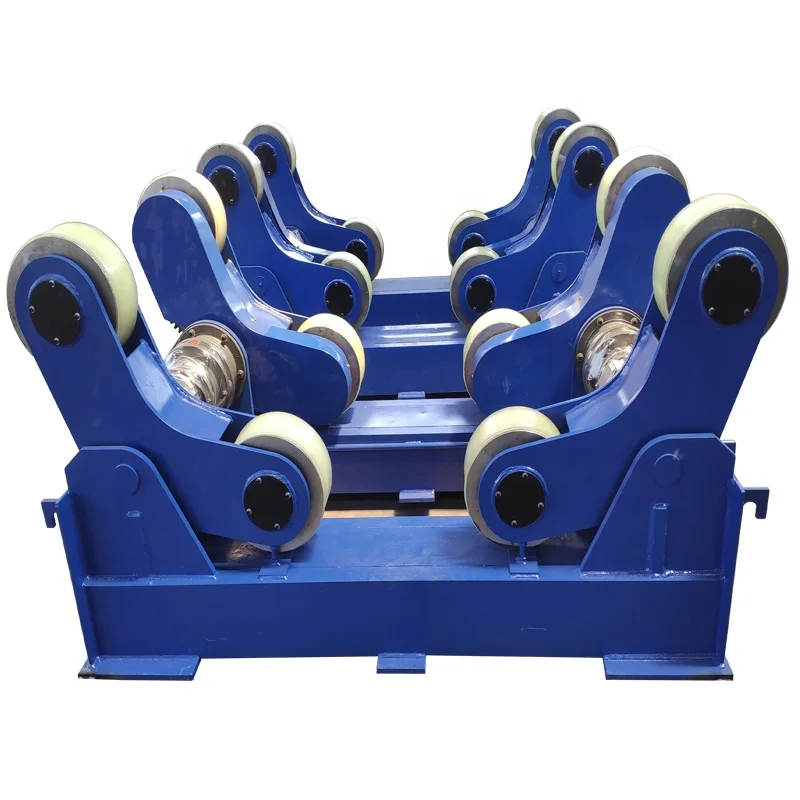

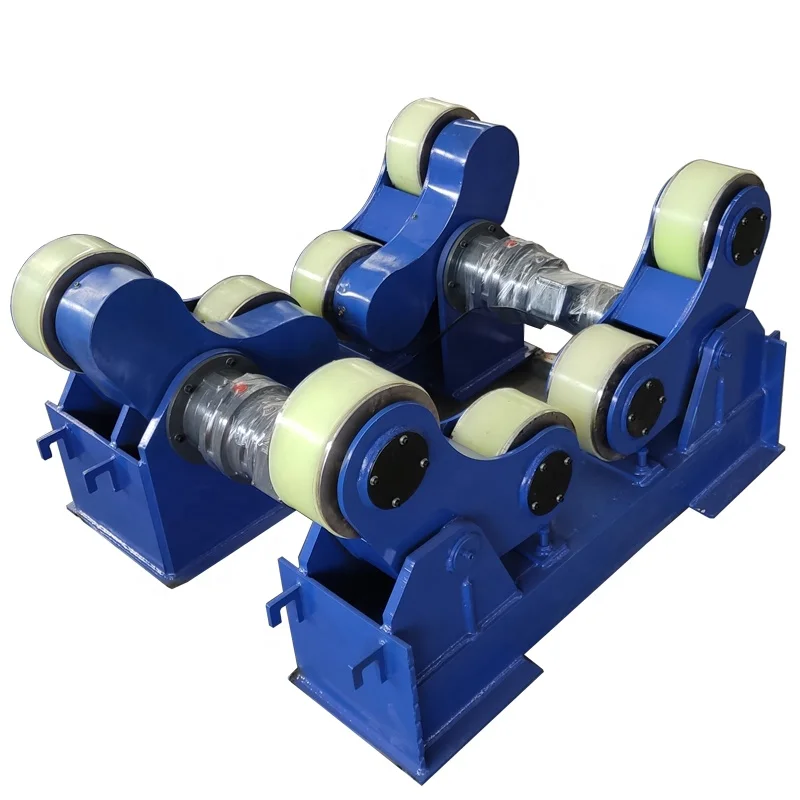

Self Alignment Welding Turning Rolls
The working way of rollers is that an active frame, two motors, and a reducer controlled by the same ac motor driver realize the two motors' stepless speed change and synchronization operation. The motor drives the main driving wheel working through the drive system. The workpiece is put on the primary and secondary wheels, when the primary wheel running, the friction between the workpiece and primary wheel can drive the workpiece rotating. the friction between the rotating workpiece and secondary wheel can drive the secondary wheel running. Each swing arms of the self-adjusting roller can drive the workpiece to adjust the diameter by itself so that the labor power is saved much and the work efficiency is increased.
FEATURES AT A GLANCE
HIGH EFFICIENCY
SMALL OCCUPATION
LOW RESISTANCE LOSS
WIDE APPLICATION
CLEAN CONVENIENT
ADAPTABLE
SAVE ENERGY
SMALL OCCUPATION
LOW RESISTANCE LOSS
WIDE APPLICATION
CLEAN CONVENIENT
ADAPTABLE
SAVE ENERGY
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model Type | Capacity | Weldment Diameter | Linear Speed | Center Distance |
ZT1-5T | 5T | 350~2500 mm | 60-1000 mm/min | 960 mm |
ZT1-10T | 10T | 350~2500 mm | 60-1000 mm/min | 960 mm |
ZT1-20T | 20T | 600~4000 mm | 60-1000 mm/min | 1440 mm |
ZT1-30T | 30T | 600~4500 mm | 60-1000 mm/min | 1600 mm |
ZT1-40T | 40T | 600~4500 mm | 60-1000 mm/min | 1700 mm |
ZT1-50T | 50T | 750~5000 mm | 60-1000 mm/min | 1800 mm |
ZT1-60T | 60T | 800~5000 mm | 60-1000 mm/min | 1900 mm |
ZT1-80T | 80T | 900~5500 mm | 60-1000 mm/min | 2000 mm |
ZT1-100T | 100T | 900~5500 mm | 60-1000 mm/min | 2200 mm |
