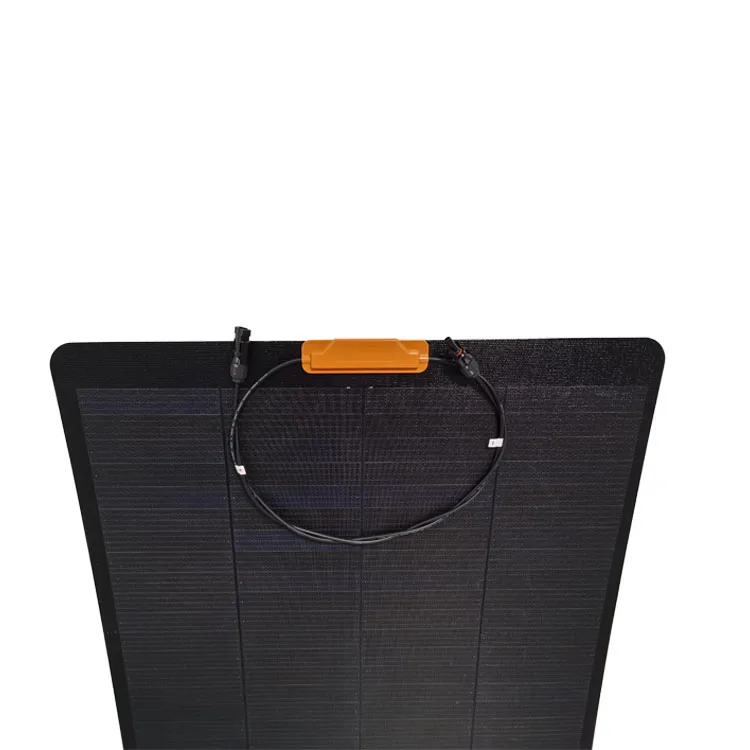

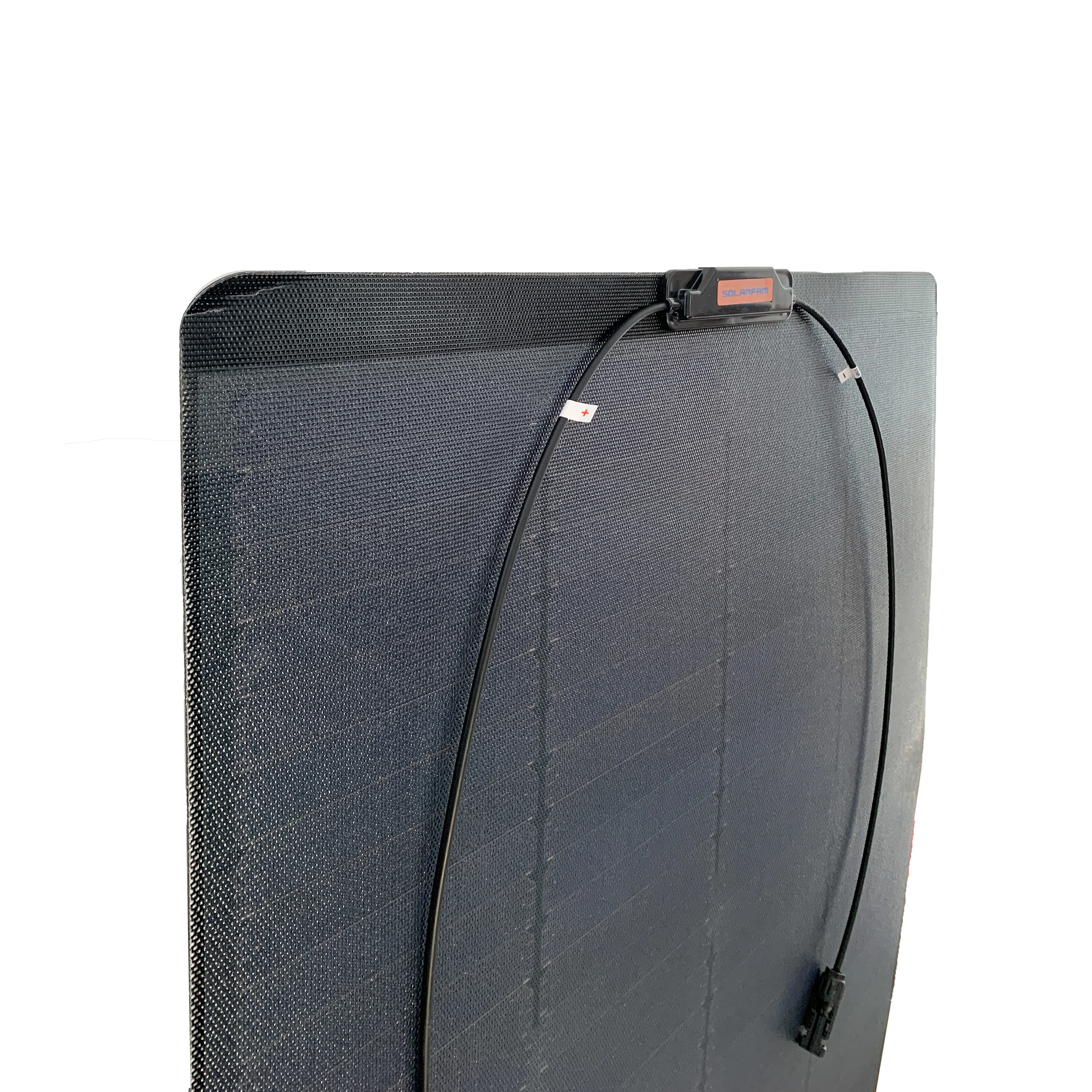

30W 50W 60W 80W thin film flexible solar panel pv 100W 120W 200W flexible monocrystalline solar panel flexible solar panel film
- Category: >>>
- Supplier: Shenzhen Yifang Technology Co. Limited
Share on (1600256455723):
Product Overview
Description
Product Description
30W 50W 60W 80W thin film flexible solar panel pv 100W 120W 200W flexible monocrystalline solar panel flexible solar panel film
Performance:
-Upgraded efficiency and unprecedented flexibility.
-Weakened hot-spot effect, extremely low risk of micro cracks and increased stability by shingle-tech.
-Special connection method lowers the internal resistance and ensures better performance than traditional connection with busbar.

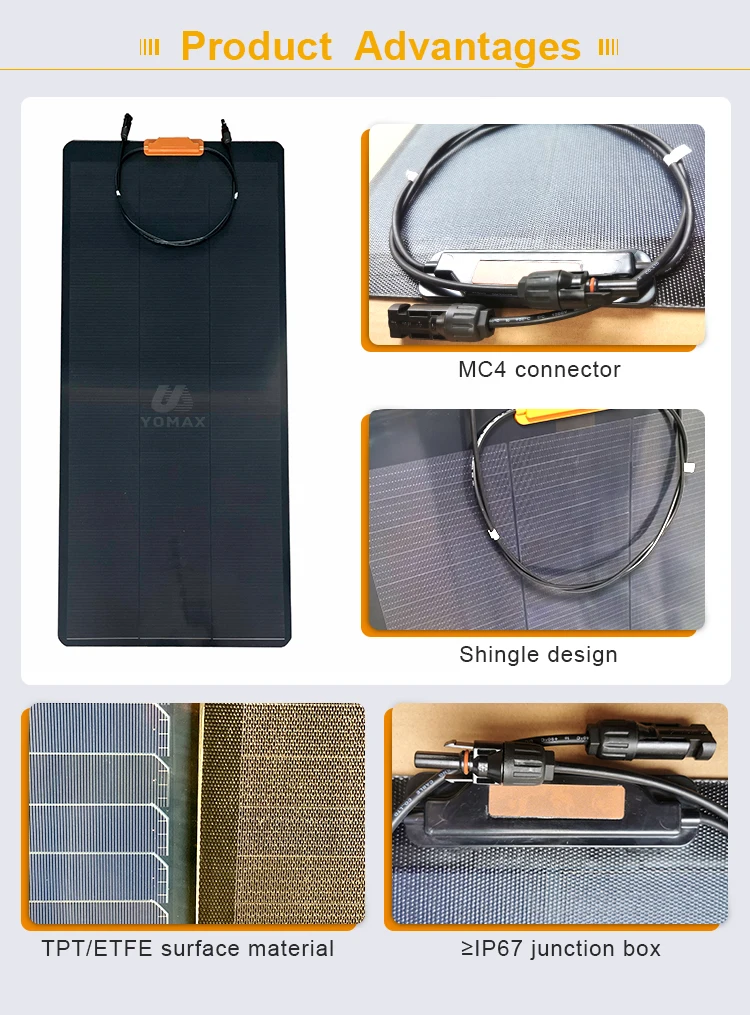

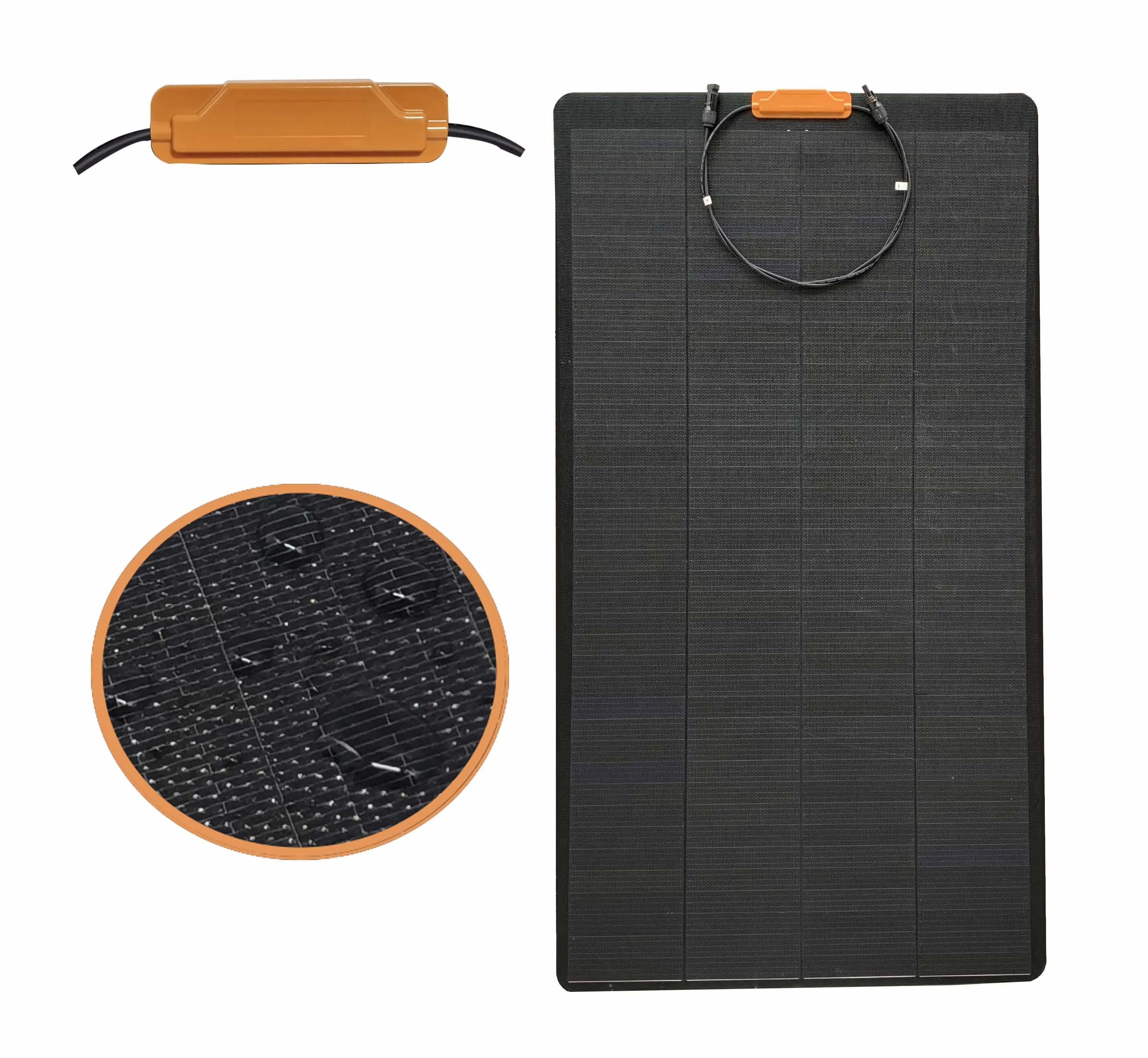

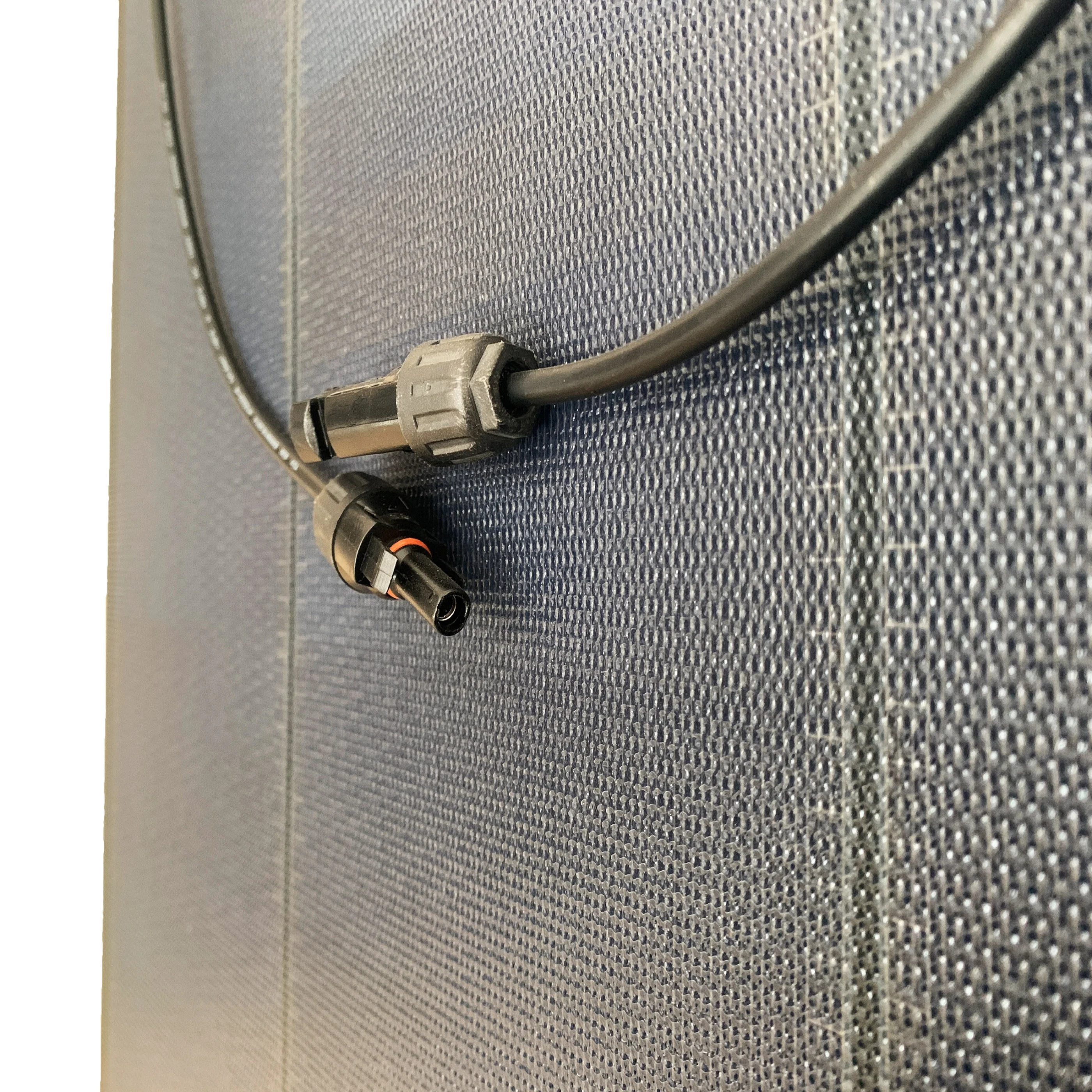

-IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability
Manufacturing:
-Original cell sorting system ensures the best electric cell match
-EL-Testing before packing
-Comprehensive module power testing, 100% positive output tolerance guaranteed
-Upgraded efficiency and unprecedented flexibility.
-Weakened hot-spot effect, extremely low risk of micro cracks and increased stability by shingle-tech.
-Special connection method lowers the internal resistance and ensures better performance than traditional connection with busbar.
-IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability
Manufacturing:
-Original cell sorting system ensures the best electric cell match
-EL-Testing before packing
-Comprehensive module power testing, 100% positive output tolerance guaranteed
Warranty:
-5 years Manufacturer Warranty
-Warranty on Electrical Performance: 5 years 80% of power output
-5 years Manufacturer Warranty
-Warranty on Electrical Performance: 5 years 80% of power output

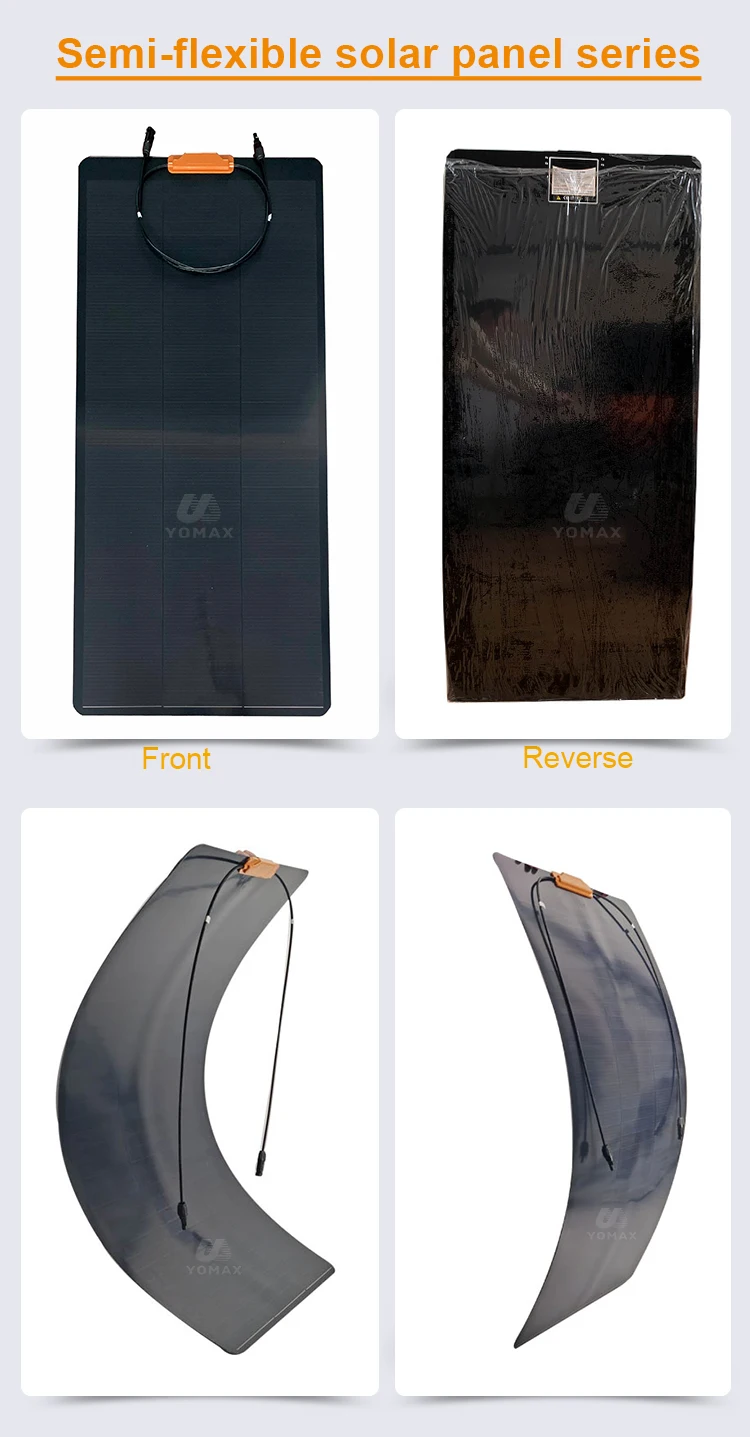

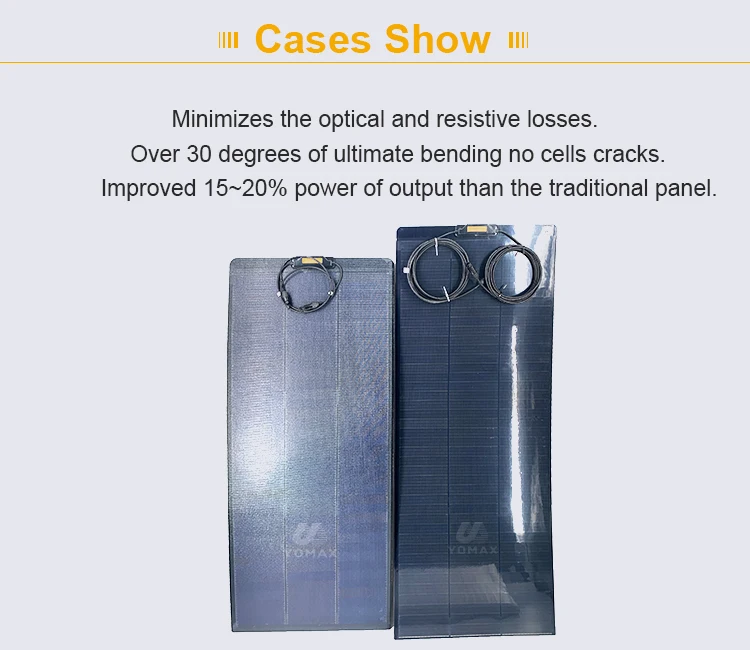

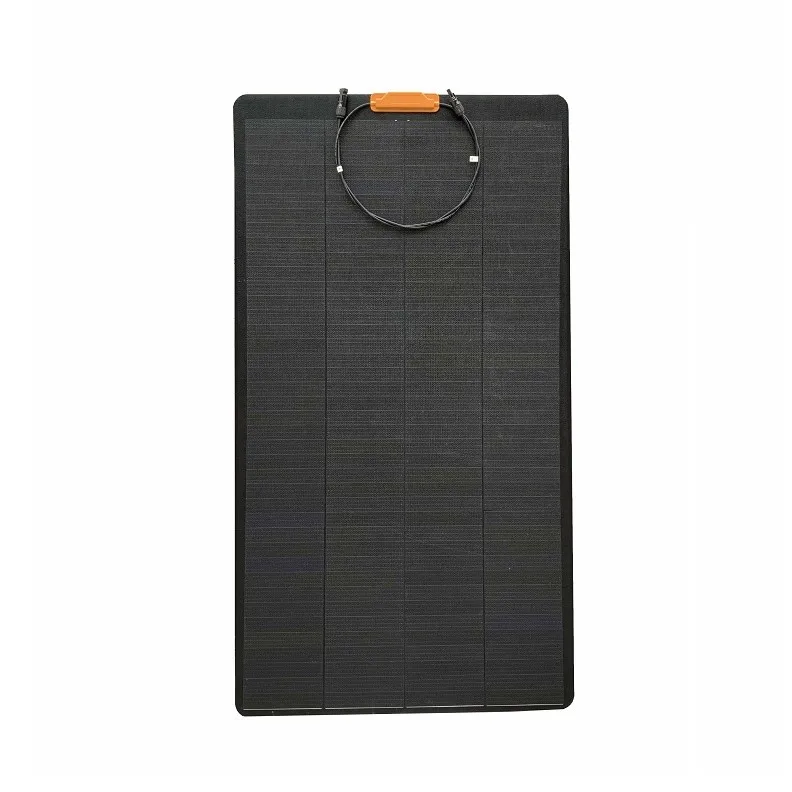

Products Show
Product Parameters
Product Paremeters | ||||||||||
Mechanical Data Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ | ||||||||||
Nominal Power | 30W | 60W | 80W | 100W | 120W | |||||
Cell Type | Monocrystalline | |||||||||
Cell Efficiency | 21.4% | |||||||||
Maximum Power Current (Impp) | 1.6A | 3.03A | 4.16A | 5.51A | 5.74A | |||||
Maximum Power Voltage (Vmpp) | 18.7V | 19.8V | 19.25V | 18.15V | 20.9V | |||||
Open-circuit Voltage (Voc) | 22.1V | 23.4V | 22.75V | 21.45V | 24.7V | |||||
Short-circuit Current (Isc) | 1.71A | 3.21A | 4.41A | 5.84A | 6.09A | |||||
Maximum System Voltage | 100V | |||||||||
Output Tolerance | ±3% | |||||||||
Connector Type | MC4 / MC4 Compatible | |||||||||
Module Structure | ETFE / EVA / Backsheet | |||||||||
Junction box rating | ≥IP67 | |||||||||
Number of Diodes | One | |||||||||
Working Temperature | -40℃~+80℃ | |||||||||
Packaging | ||||||||||
Module Dimensions | 570*350*2mm | 945*350*2mm | 1155*360*2mm | 1050*520*2mm | 1200*520*2mm | |||||
Module Weight | 0.7kg | 1.5kg | 1.9kg | 2.1kg | 2.6kg | |||||
Package | Single Package | |||||||||
Pieces per Pallet | 68 | 36 | 33 | 33 | 33 | |||||
Gross Weight per Pallet | 120kg | 100kg | 120kg | 120kg | 135kg | |||||
Pallet Dimensions | 1200*1100*510mm | 1200*1100*510mm | 1250*1100*510mm | 1200*1100*670mm | 1200*1100*670mm | |||||
Mechanical Data Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ | ||||||
Nominal Power | 150W | 180W | 200W | |||
Cell Type | Monocrystalline | |||||
Cell Efficiency | 21.4% | |||||
Maximum Power Current (Impp) | 7.37A | 8.61A | 9.32A | |||
Maximum Power Voltage (Vmpp) | 20.35V | 20.9V | 21.45V | |||
Open-circuit Voltage (Voc) | 24.05V | 24.7V | 25.35V | |||
Short-circuit Current (Isc) | 7.81A | 9.13A | 9.84A | |||
Maximum System Voltage | 100V | |||||
Output Tolerance | ±3% | |||||
Connector Type | MC4 / MC4 Compatible | |||||
Module Structure | ETFE / EVA / Backsheet | |||||
Junction box rating | ≥IP67 | |||||
Number of Diodes | One | |||||
Working Temperature | -40℃~+80℃ | |||||
Packaging | ||||||
Module Dimensions | 1170*680*2mm | 1260*710*2mm | 1240*835*2mm | |||
Module Weight | 3.3kg | 3.5kg | 4.2kg | |||
Package | Single Package | |||||
Pieces per Pallet | 30 | 30 | 30 | |||
Gross Weight per Pallet | 145kg | 150kg | 170kg | |||
Pallet Dimensions | 1200*1100*840mm | 1300*1100*950mm | 1250*1100*1160mm | |||
