Product Overview

Description



GHL Pharmaceutical High Speed Organic Fertilizer Wet Mixing Granulating Machine Wet Mixing Granulator Rapid Mixer Granulator



Product Description

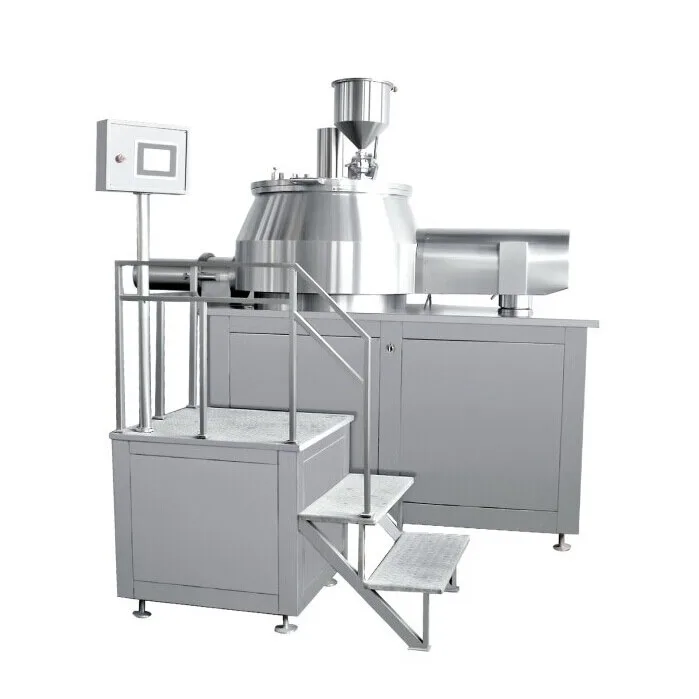

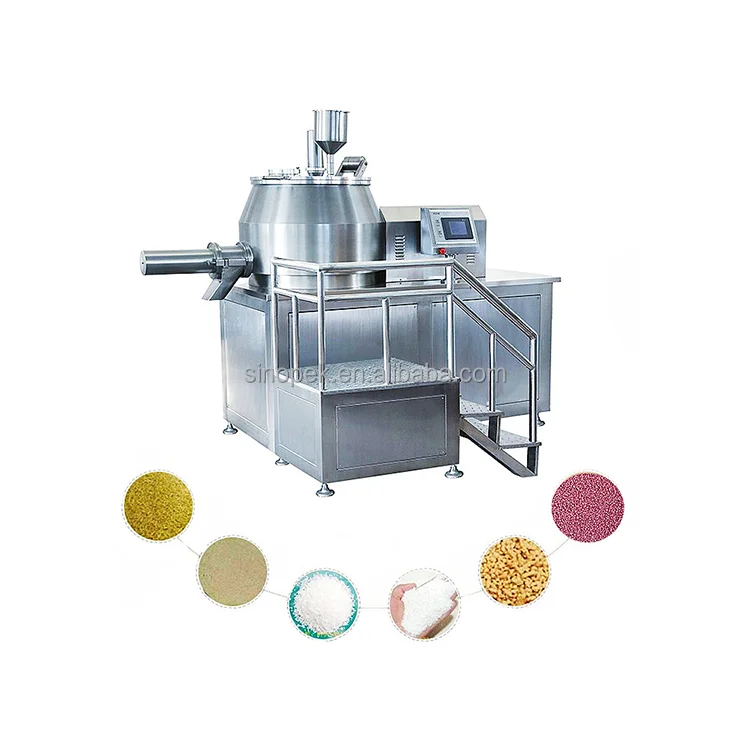

High speed GHL series wet type mixing granulator
The machine is an advanced wet granulator which can effectively mix the target materials to turn out finequality wet granules, and is widely applied by the trades of pharmacy, foodstuff, chemical, powder metallurgy, and dyeing etc.


Model
GHL-5
GHL-15
GHL-50
GHL-200
GHL-400
GHL-800
Capacity (L)
5
15
50
200
400
800
Production capacity (kg/batch)
1
5
15
60
150
250
Stirring power (kw)
1.1
2.2
5.5
11
22
37
Mixing time (min)
0-7
Stirring speed (r/min)
0-600
0-600
0-300
0-200
0-150
0-150
Cutting power (kw)
0.55
0.75
2.2
5.5
11
18.5
Cutting time (min)
0-5
Cutting speed (r/min)
0-2900
Compressed air pressure (Mpa)
0.4-0.6
Amount compressed air (m3/min)
0.3
0.6
0.6
0.9
1.1
1.5

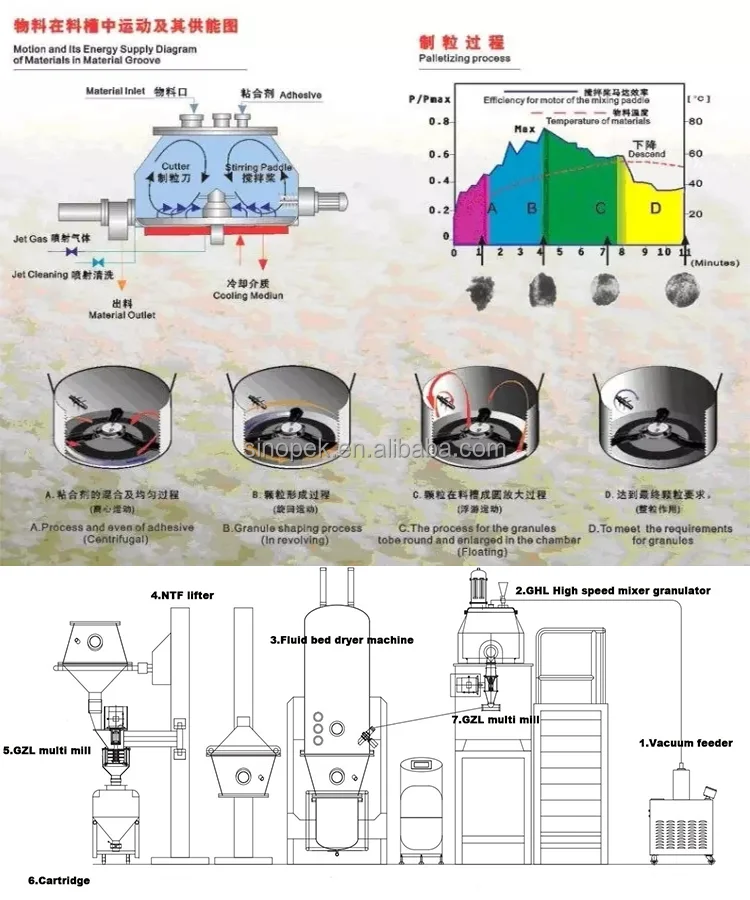

Working Principle

1. The whole process consists of two programs including mixing and granulating.
2. Powder metrical can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hoper is closed. In tahe meanwhile, all materials grow up the shapea of liquid bridge under continuous effects of conical wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen. At last,while opening the hoper outlet, waterish particles are pushed off under the centrifugal effects of blade.
3. These soft particles are formed not dependent on forced extrusion effects, more exactly; these small and uniform particles are mainly formed after continuous cutting under the similar-liquid state. In all, this machine can realize the mutual transformation between different materials.






Main Features:

1. The High speed GHL series wet type mixing granulator adopts a practical horizontal cylinder structure.
2. The driving shaft is euipped with inflatable seal. While washing, the air can be replaces by water.
3. Fluidized granulating processed is used and the final granules are quite round with high fluidity.
4. Compared with traditional technique, this type of machine can reduce 25% of adhesive and also shorten the drying time.
5. For each batch of material, with 2 minutes dry mixing and 1-4 minutes granulating, the efficiency is 4-5 times higher than that of traditional technique.
6. Dry mixing, wet mixing and granulating are finished inside the same sealed container, which is in conformity with the
requirement of GMP.

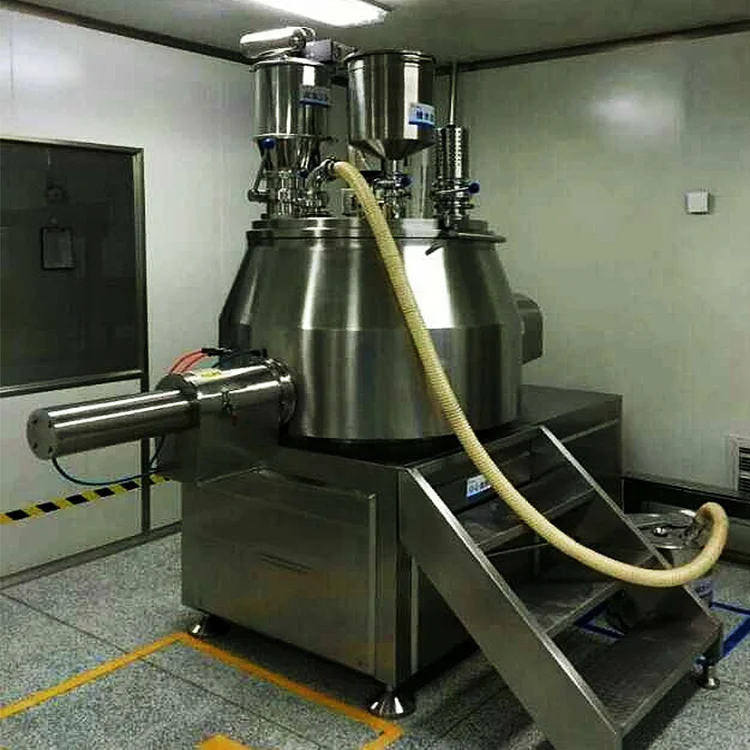

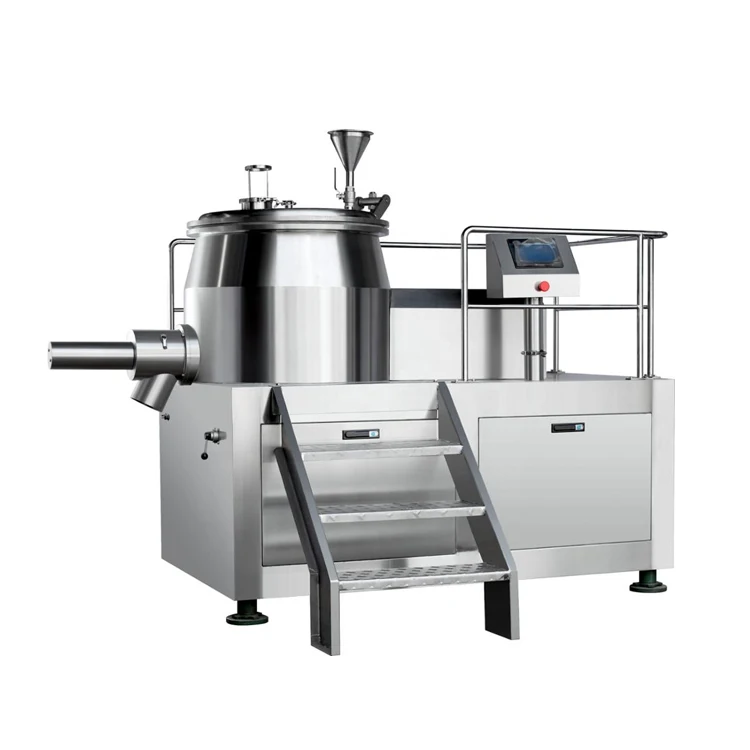

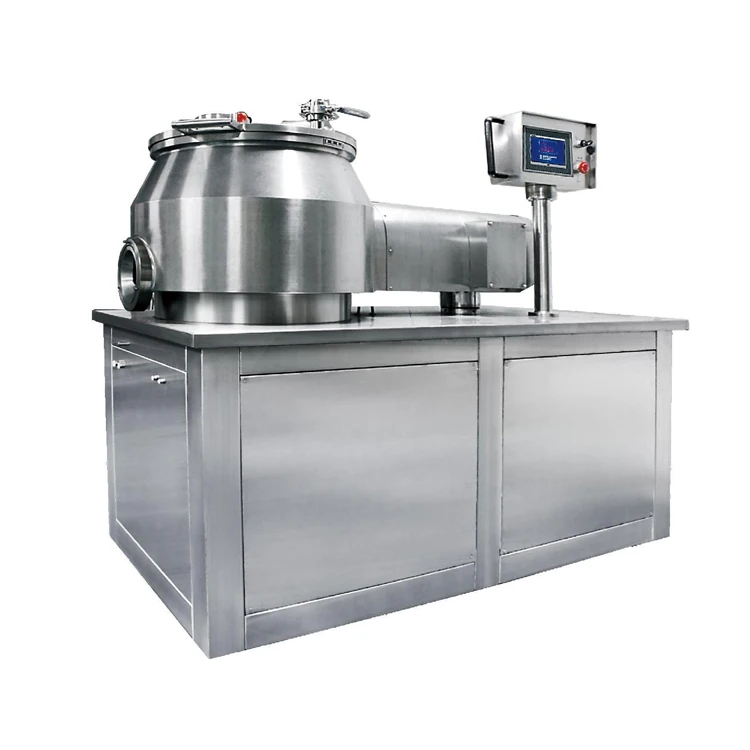

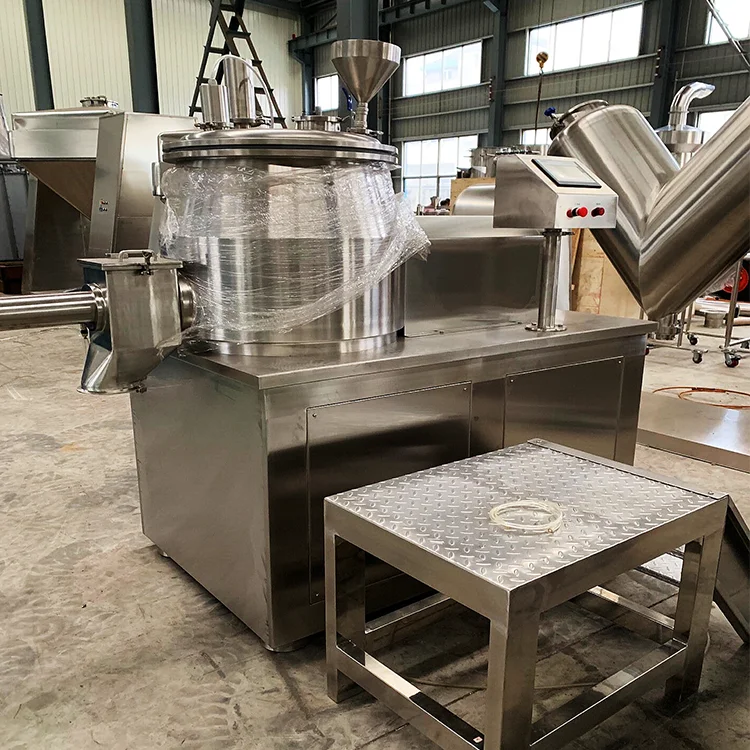

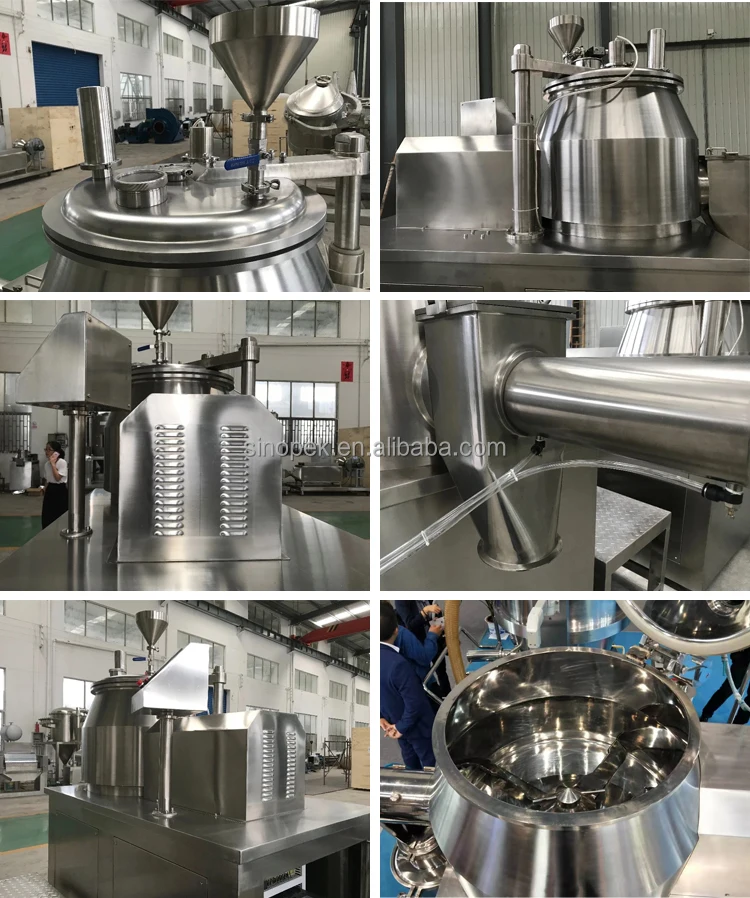

Detailed Images








Our Company




Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.


Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam,Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.


In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.









Exhibition






Packing & Delivery




Our Service & FAQ


Q1:Are you a factory or trading company?
We are the manufacturer, and have been in industry for more than ten years.

Q2:What is your company service?
1.SINOPED provide one-stop service(pre-sale,production,packing&after-sales) and we have independent R&D and
design team to help customer solve pre-sale questions what they concern about.
2.At the same time,we will combine our own equipment to demonstrate to customers at sight. During the equipment production process,we will continue to contact customers,and double confirm question.
3.When machine finish production,we will show customers for final confirmation.
For Package,we will adopt to standard woodencase,also will make waterproof treatment inside.

Q3:What is your company after-sales?
For after-sales,SINOPED provide free parts and parts delivery, when manufacture defects has been detected during normal
operation(vulnerable parts not included) under warranty period.
And SINOPED will arrange engineer to answer customer question for install,debuging,etc all the time. If necessarry,we will arrange video online to guide customer,also will arrange translator that customer can be better understand.

Q4:Do you have quality warranty?
Yes,we provide quality warranty 1 year under normal conditions,and we will provide extra spare parts for new customer. At the time,batch purchase our company equipment,we will provide 2-3 years warranty.

Q5:Can you make products with our brand?
Sure,we are welcome to cooperate as OEM service.
