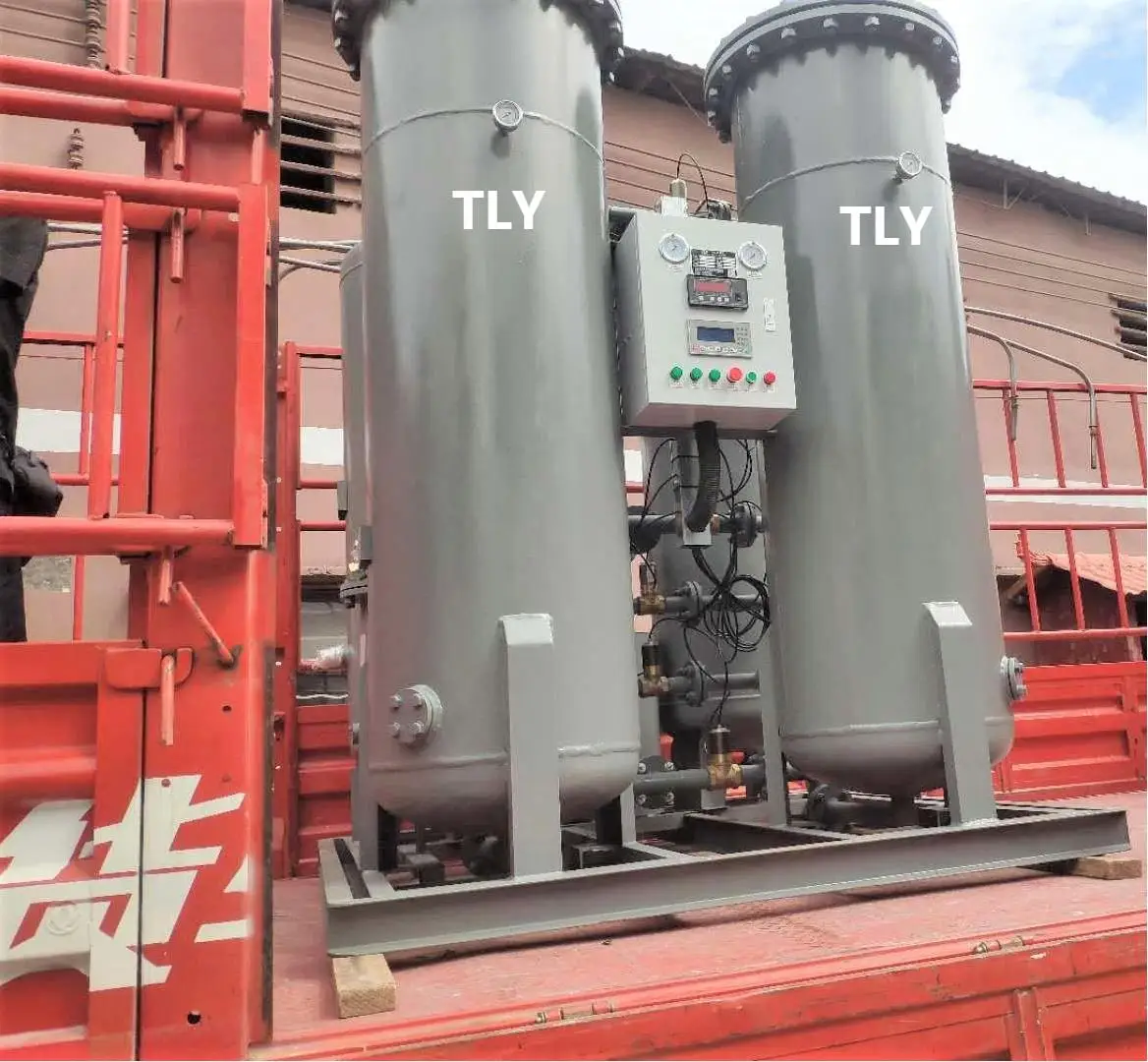

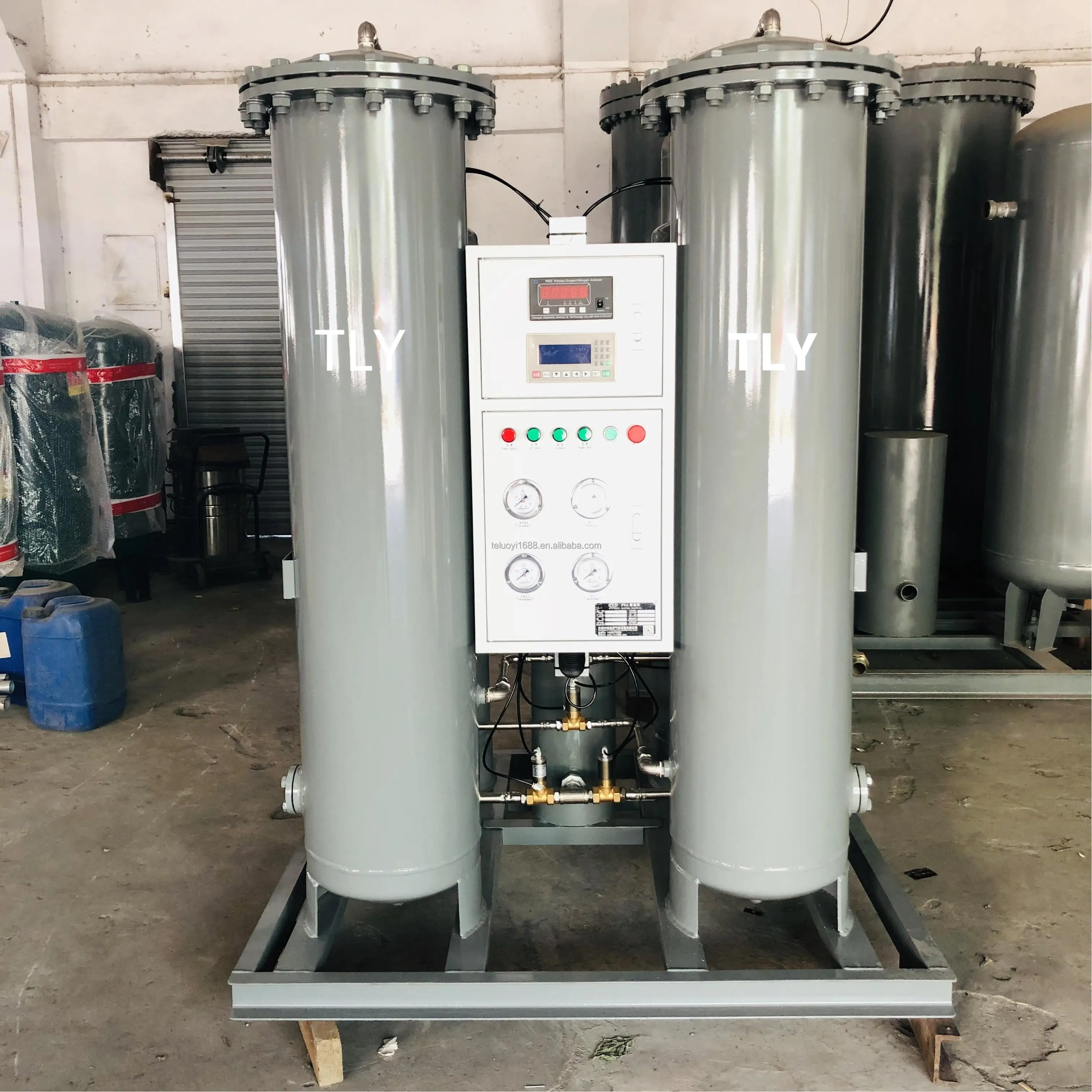

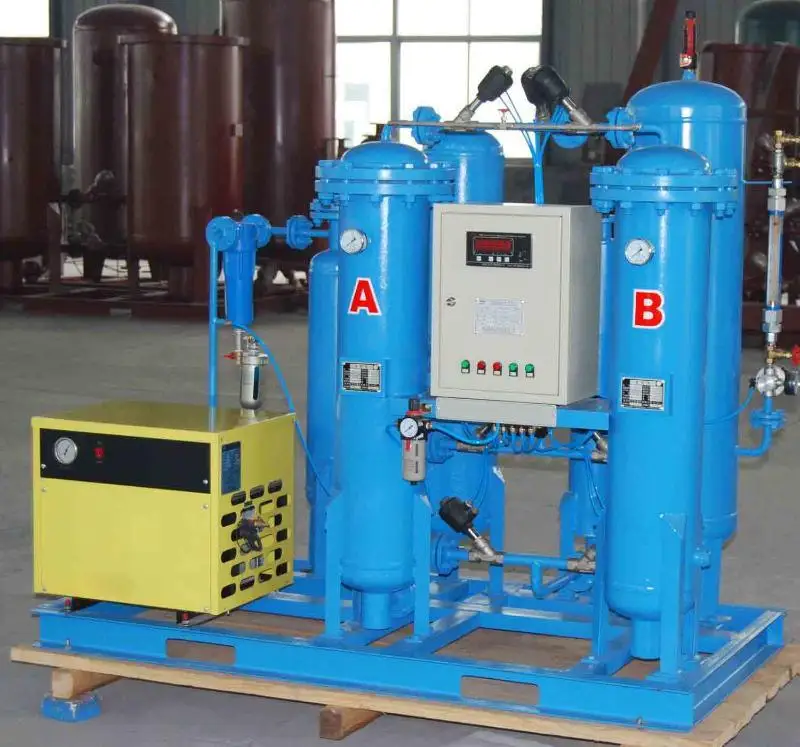

Nitrogen Generation Machine / Psa Generator nitrogen for Hot sale nitrogen plant manufacturer

Product Overview

Description

Product model:	TLY-Y, TLY-G, TLY-S, TLY-H
Specification:	On-site nitrogen production solution can be provided easily
Gas production rate:	1-3000Nm3/h
Nitrogen purity:	95-99.9995%
Nitrogen outlet pressure:	0.01-1.0Mpa(gage pressure, stable and reliable)
Nitrogen outlet dew point:	≤-23~-65℃(atmospheric dew point)



TLY provides One-step N2&O2 gas generation solution. When comparing to the liquid & cylinder N2 purchasing, the ROI is about 4 monthes to 14 monthes!



Working Principle:

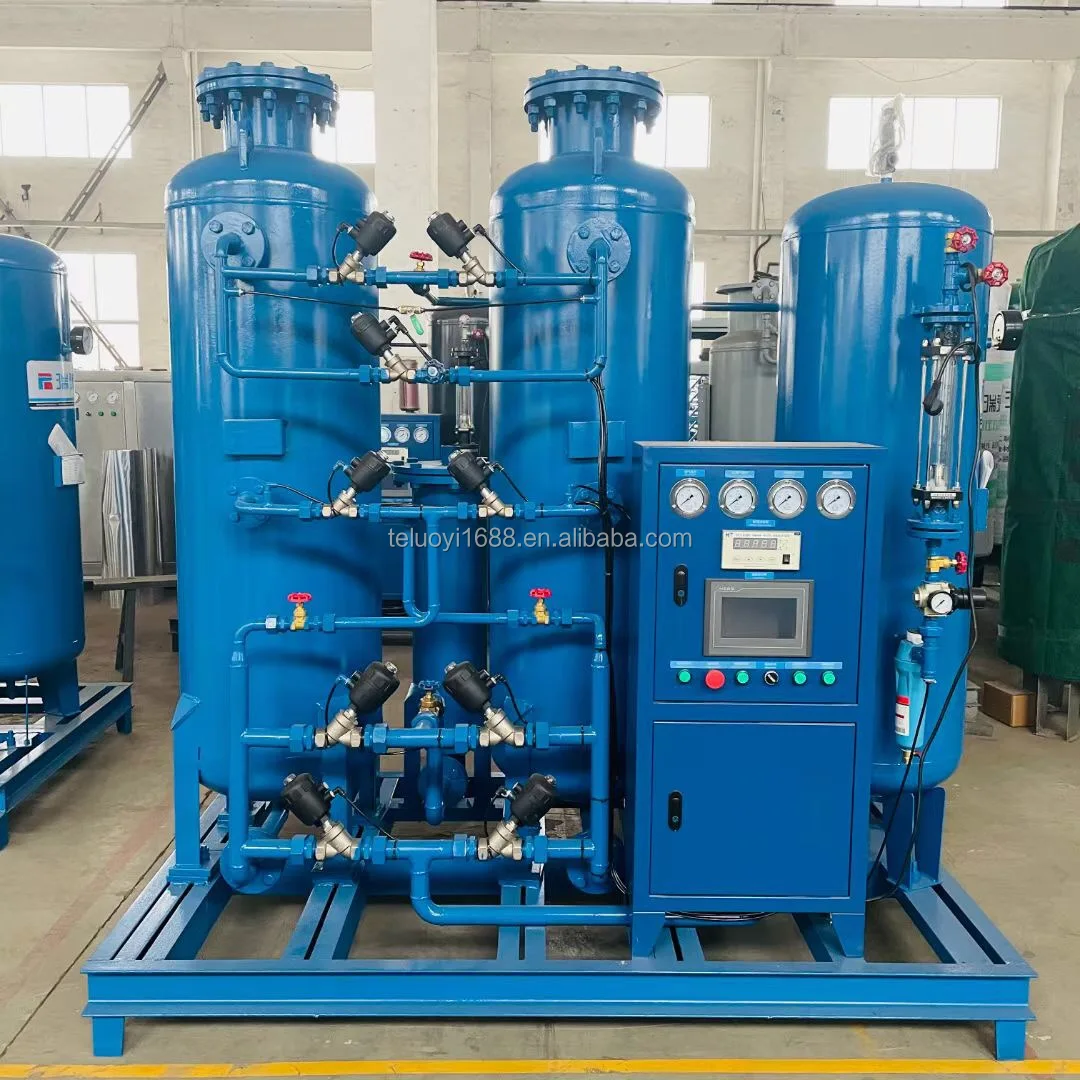

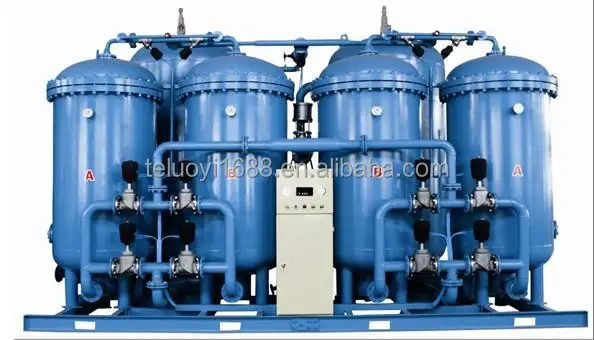

The oxygen and nitrogen generators are constructed according to the principle of operation P.S.A. (Pressure Swing Adsorption) and are composed by a minimum of two absorbers filled up with molecular sieve.The absorbers are crossed alternatively by the compressed air (previously purified in order to eliminate oil, humidity and powders) and produce nitrogen or oxygen. While a container, crossed by the compressed air, produces gas, the other regenerates itself losing to pressure atmosphere the gases previously adsorbed. The process comes repeated in cyclical way. The generators are managed by a PLC.



Features:

- It is an advanced technology with less investment.
- The quality is reliable and both the N2 purity and quantity are stable.
- The unit is supplied in a skid-mounted manner, which can be transported and installed easily.
- It is full automatic control and no need for operators, easy to start-up and shutdown, simplified and convenient maintenance.

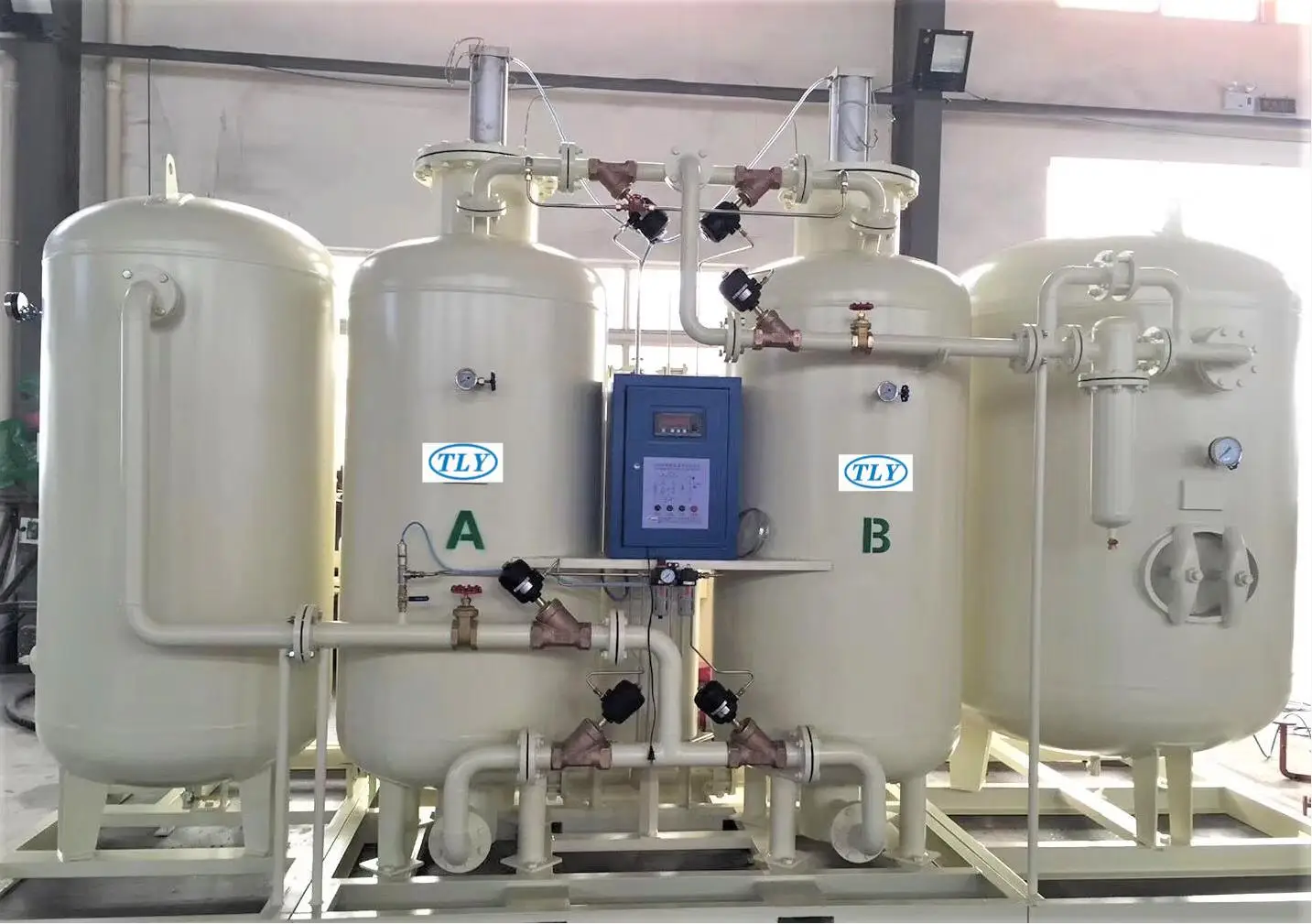

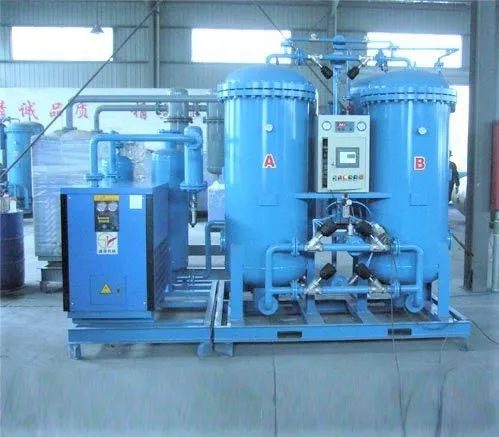

Step 1: Adsorption
Pre filtered compressed air is passed through one CMS filled tank. Oxygen is adsorbed by the CMS and nitrogen comes out as the product gas. After some time of operation, the CMS inside this tank gets saturated with Oxygen and can no longer adsorb.
Step 2: Desorption
When the CMS is saturation in the one tank, the unit automatically switches nitrogen generation to the other tank. The waste gas (oxygen, carbon dioxide, etc.) is discharged into atmosphere.
Step 3: Renew
In order to regenerate the CMS in the tank, part of the Nitrogen produced by the other tank is purged into this tank. This makes quick CMS regeneration and make it available for produce nitrogen in the next cycle.
The above process cycle ensures continous supply of the Nitrogen.

TLY provides one-stop N2 & O2 gas solution, if you have already got all the rest parts, then need to get only the PSA Oxygen Generator Host only.

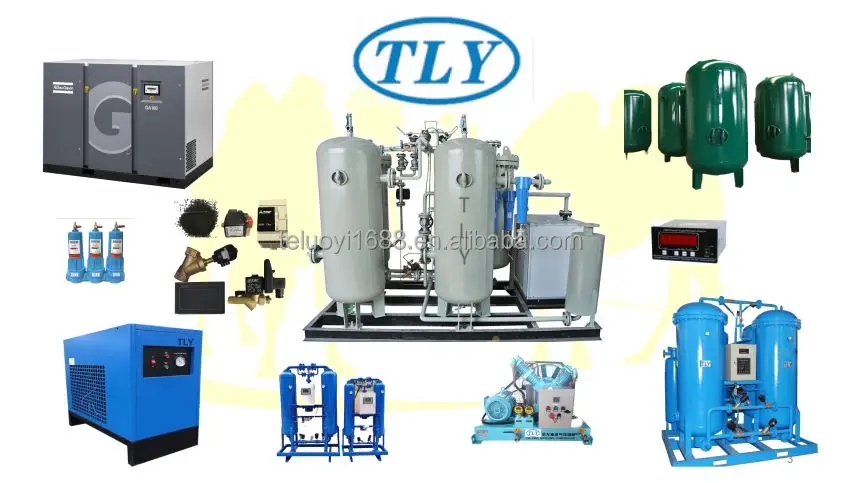

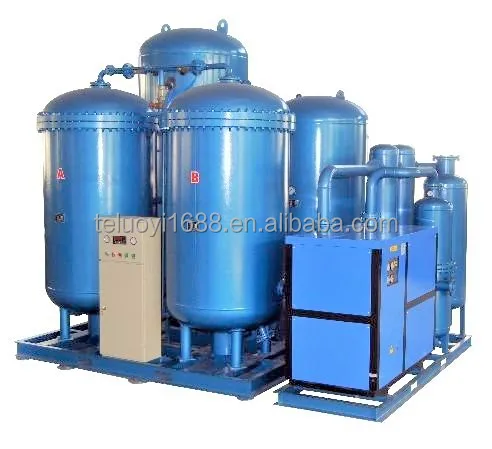

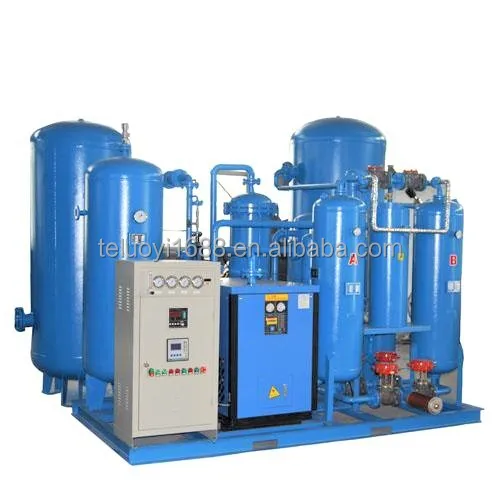

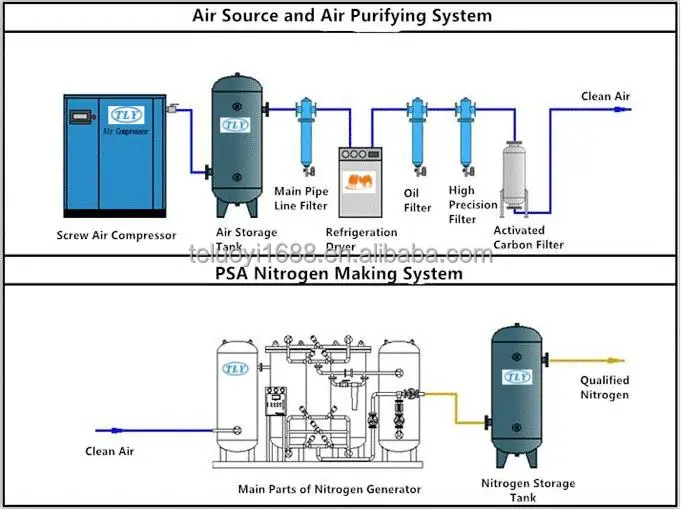

For the full set of the system ,from the raw material of gas collection to the output of the finished N2 gas, we need the following parts:

1. Air Compressor

2. Air Dryer

3. Presicion Air Filter

4. Activated Air Filter

5. PSA Nitrogen Generator

6. Buffer & Storage Tank

7. Booster ( If higher pressure is needed)

8. Others based one customized of demands

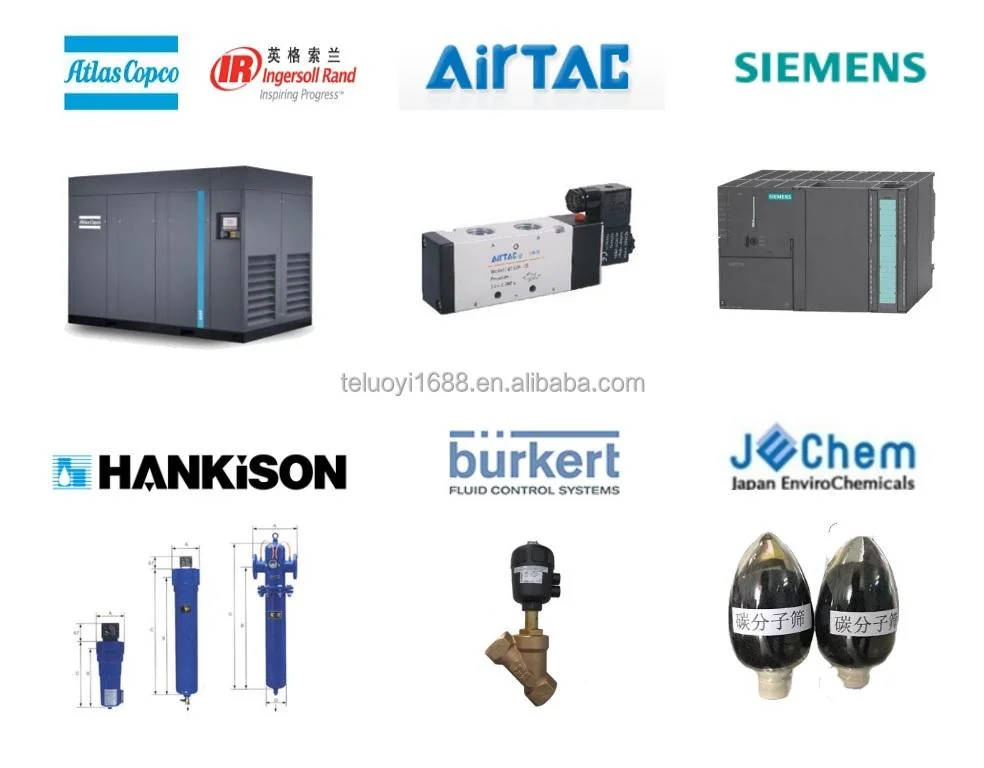

Each part and accessory of PSA nitrogen making machine is paid highly attention by TLY to ensure every key part on the system to do the best performance. TLY awards the parts bid of the valve, instruments etc. to the qualified supplier in the world so as to enable the systems in batches made by TLY to keep on the most competent.

1. Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing ,etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material,copper process, metallic mesh, galvanized wire, semiconductor, etc.

2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.

3. Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

Our Service

1. We have more than10 years manufacture and export experience.
2.Factory and Competitive Price we offer.
3.Various technical index to meet all your needs at our factory.
4.Engineers are available to guide the installation and take care of other problems.
5.We offer OEM&ODM service to meet all your requirements.



Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.

 Quality: Quality of products will be strictly checked and every machine will be test to ensure it works well before packaging.

Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.

File Services: We offer instruction manual and video to teach you how to using and testing machine.

Accessories: We supply spare parts with competitive price after warranty time.
