Vito Negative Pressure Ambulance Vehicle(euro 6 AT) Automatic High Roof Ambulance Car Gasoline
- Category: >>>
- Supplier: Zhuhai Pengyu Automobile Co. Ltd.
Share on (1600257536200):
Product Overview
Description
Specification

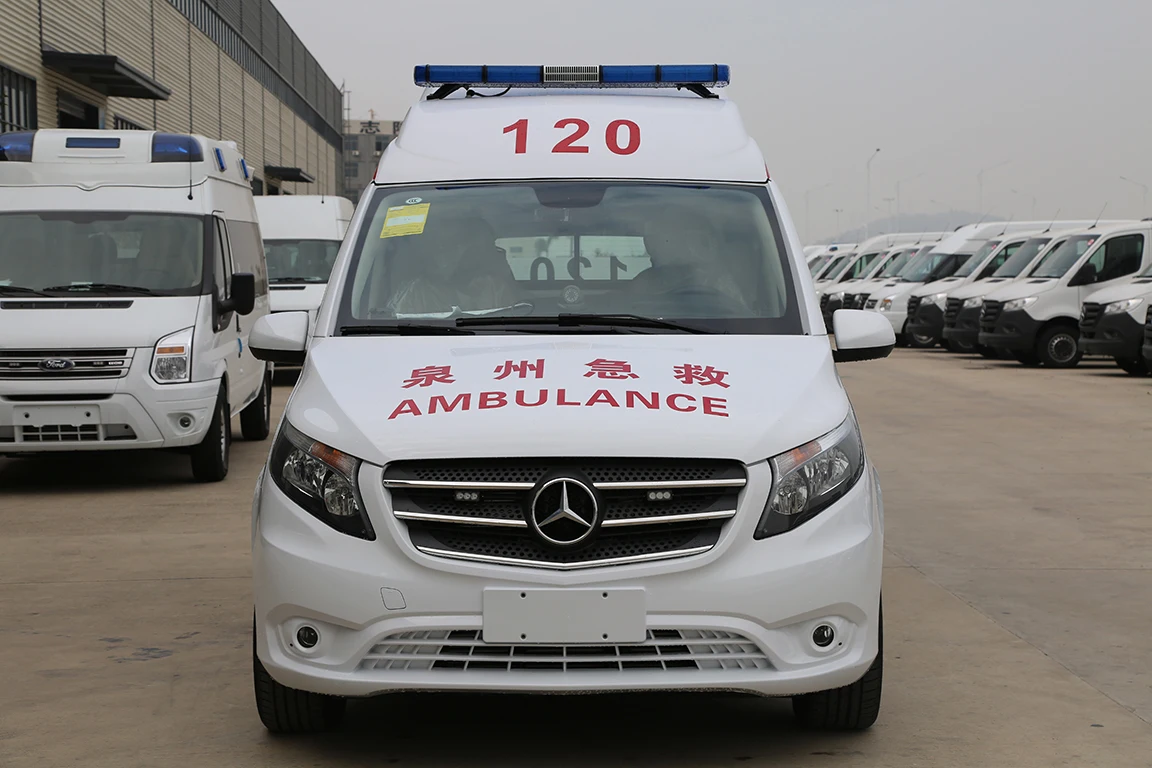

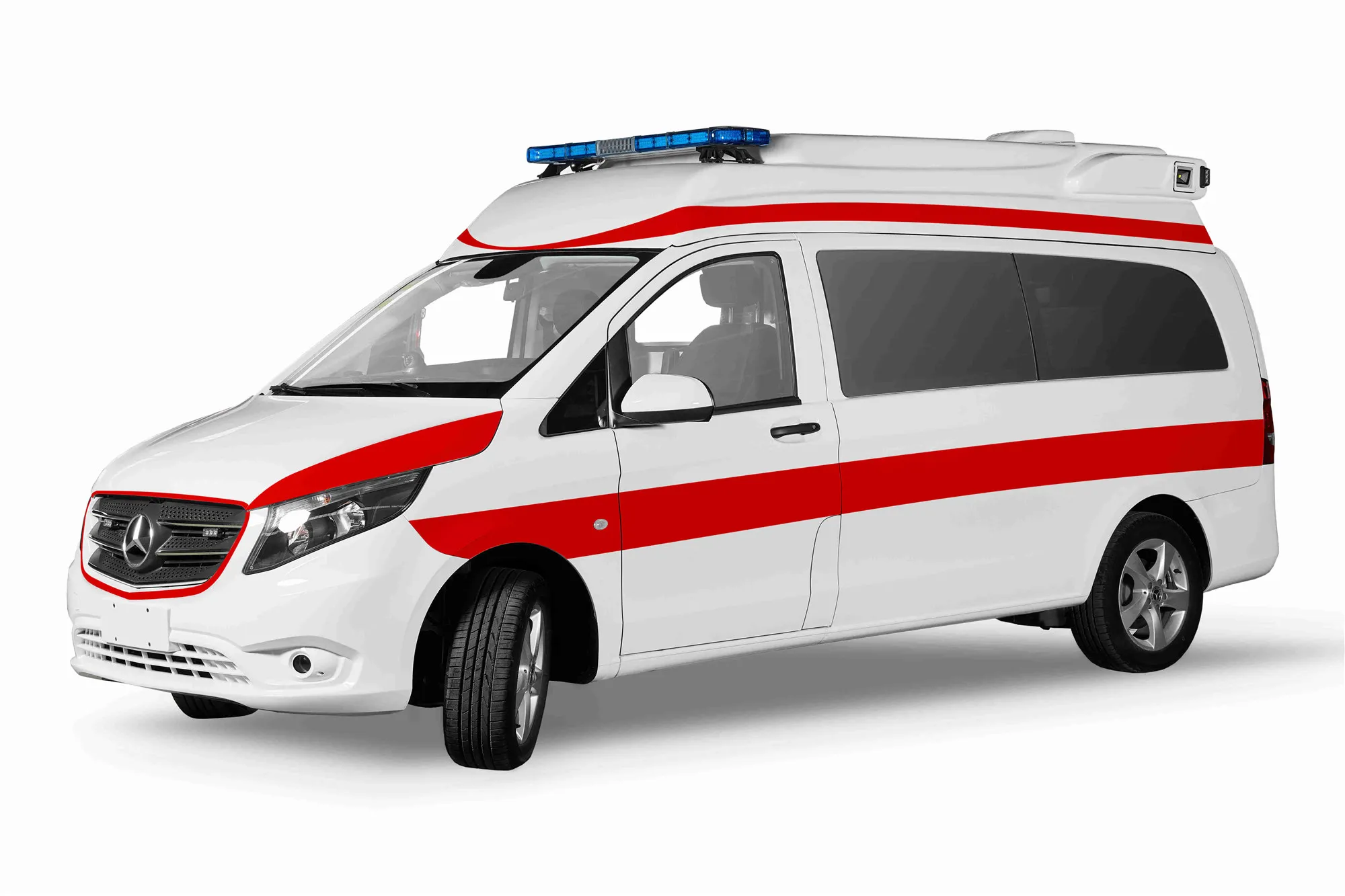

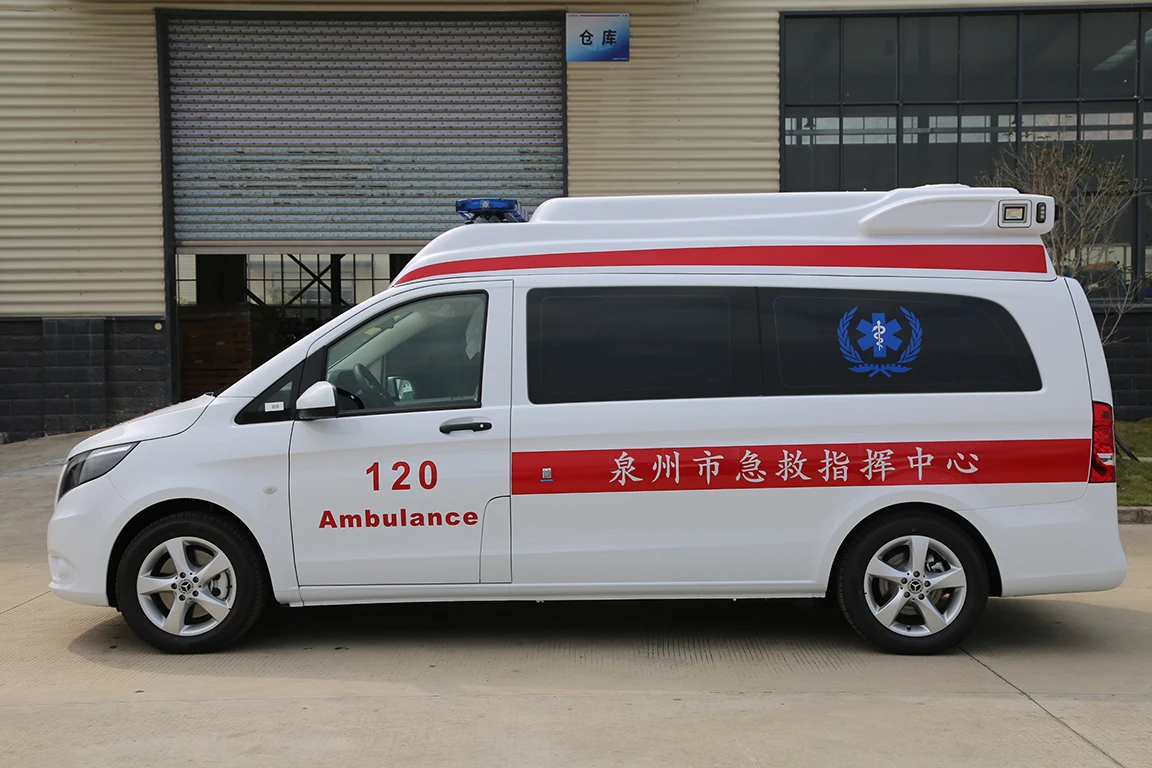

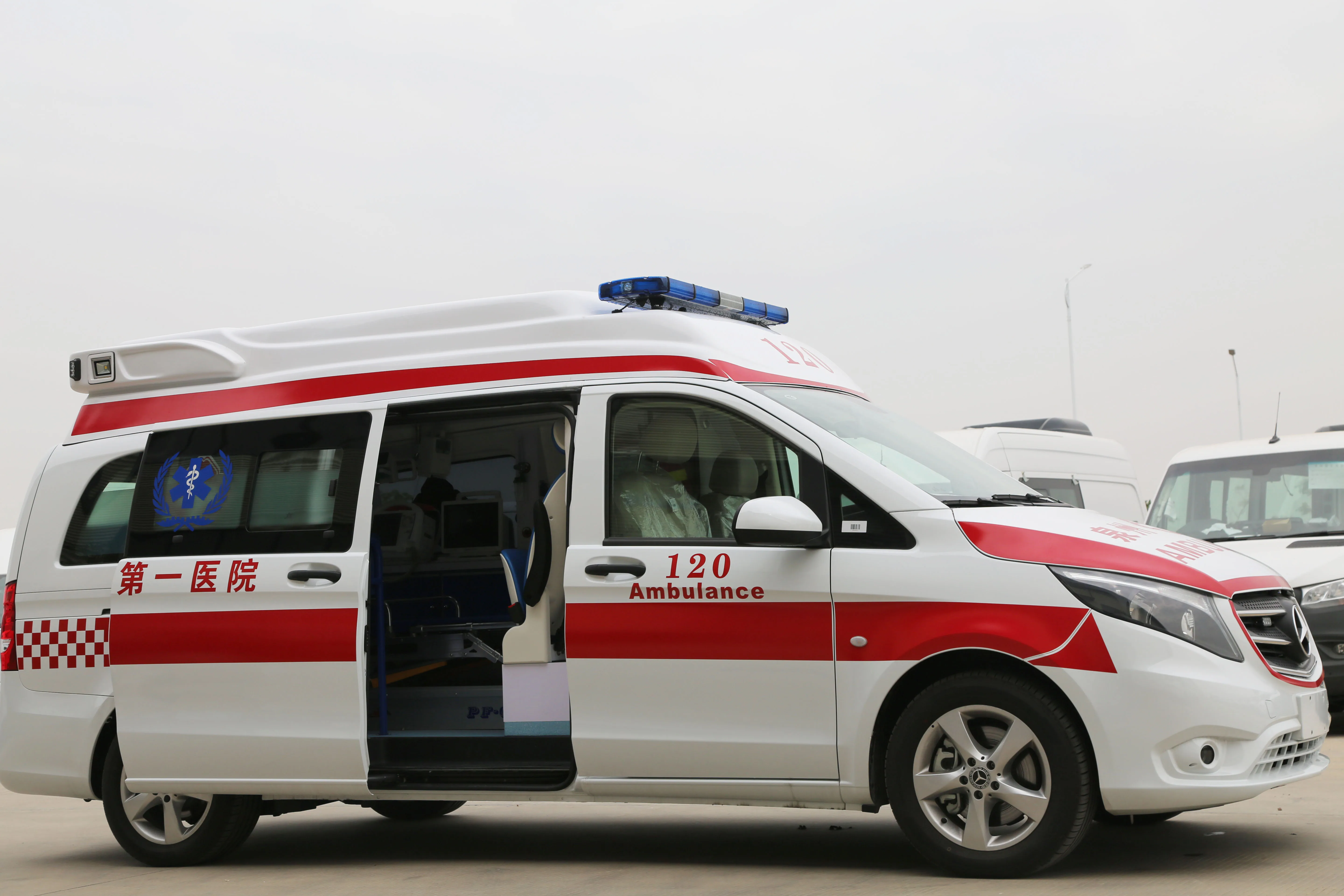

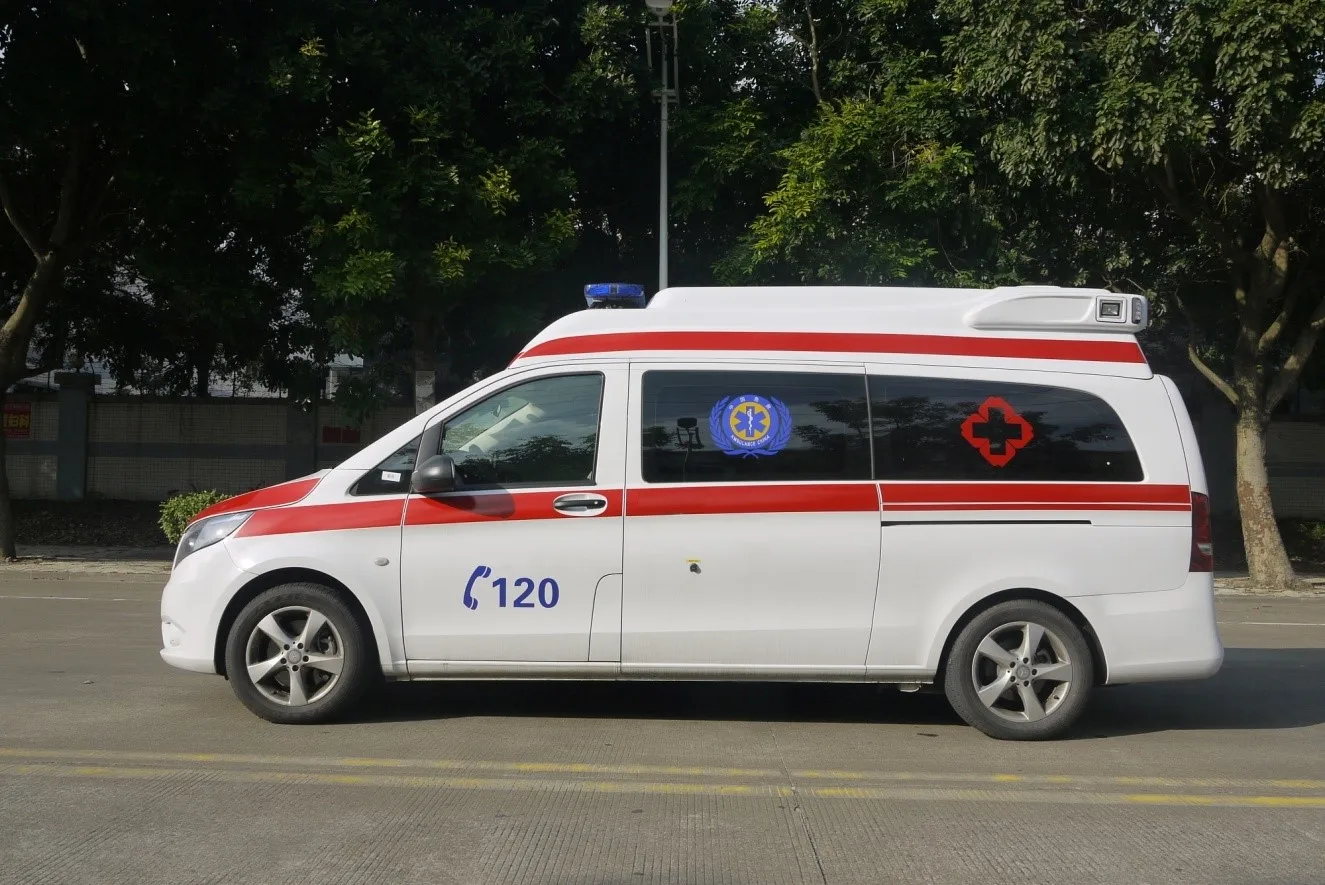

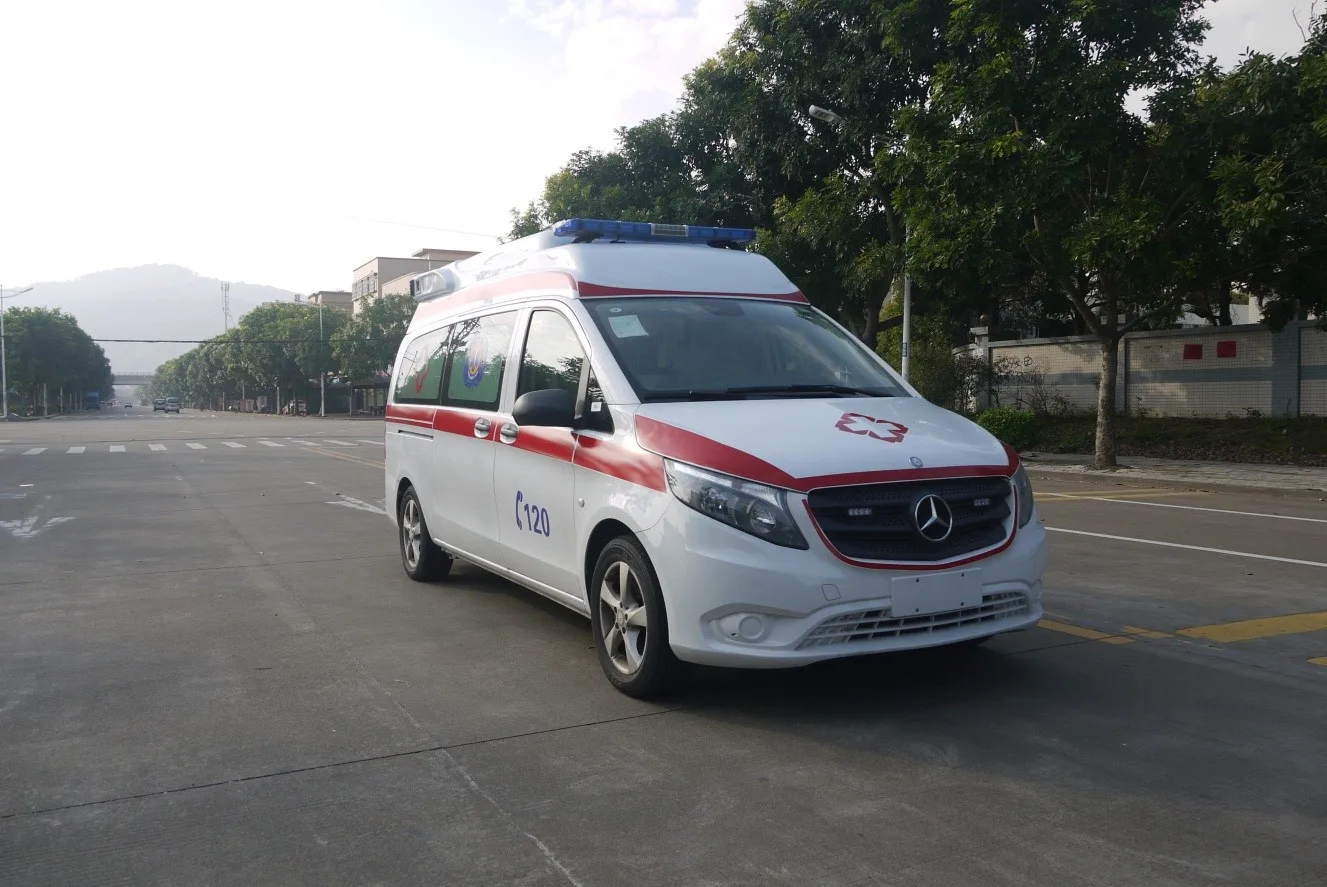

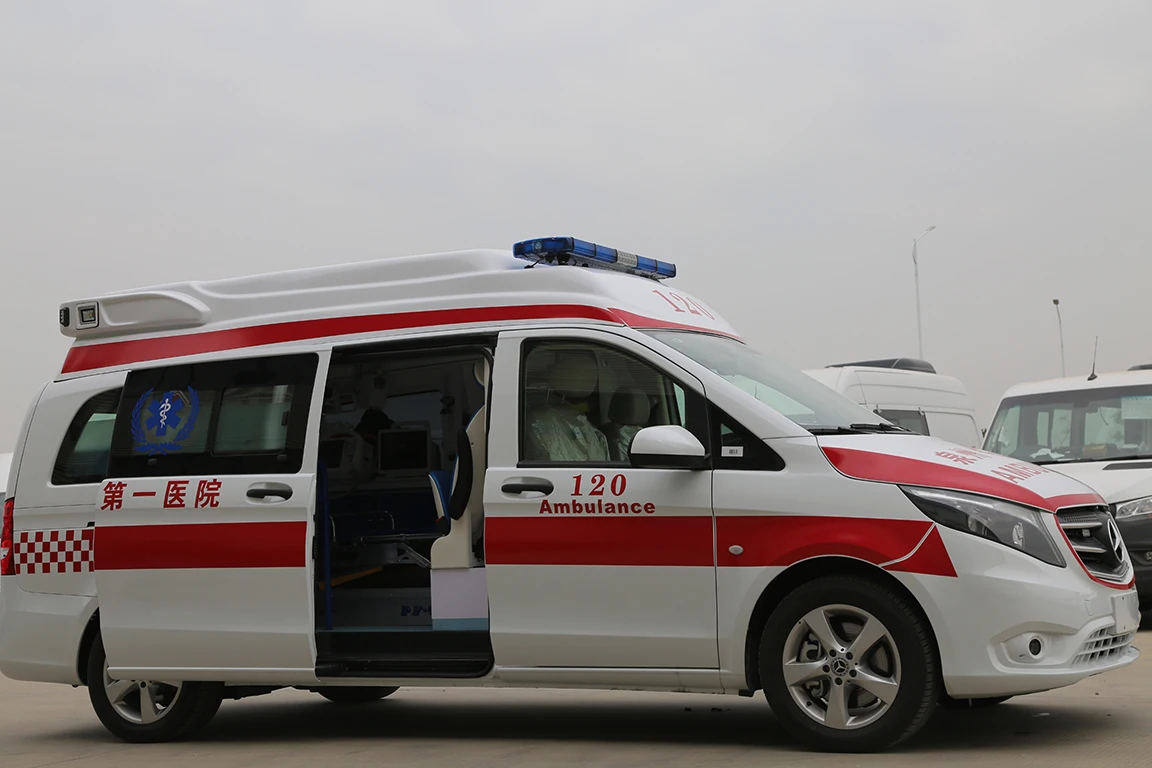

Vito Negative Pressure Ambulance Vehicle(Euro 6, AT)
Basic Data | ||
Model | GPY5031XJHB0 | |
Engine type | 274920 | |
Fuel type | Gasoline | |
Displacement (ml) | 1991 | |
Emission standard | Euro VI | |
Curb weight (kg) | 2500 | |
GVW (kg) | 3100 | |
Wheelbase (mm) | 3430 | |
Working way of Engine | Water cooled/ in-line 4 stroke/ direct injection inside cylinder | |
The dimensions of the Vehicle (mm) | 5370×1928×2330(Length x width x Height) | |
Max power（Kw/rpm） | 155/5500 | |
The maximum torque Nm/rpm | 350/11250-4000 | |
Suspended system | Front: McPherson style independent suspension Rear: Semi drag independent suspension | |
Transmission | 9-Speed AT | |
Top Speed(km/h) | 185 | |
The Capacity of Fuel Tank（L） | 70 | |
Seat | 4-7 | |

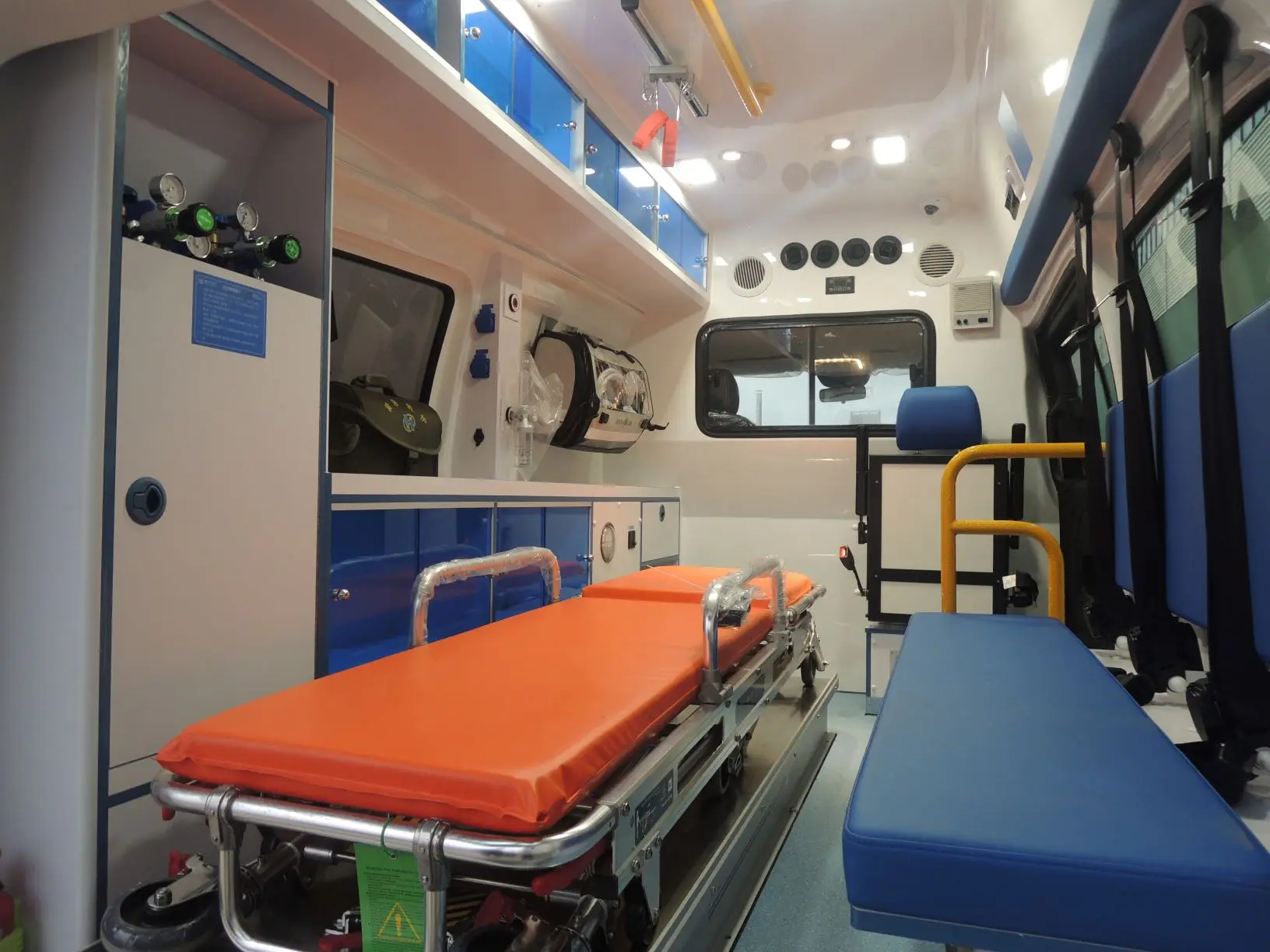

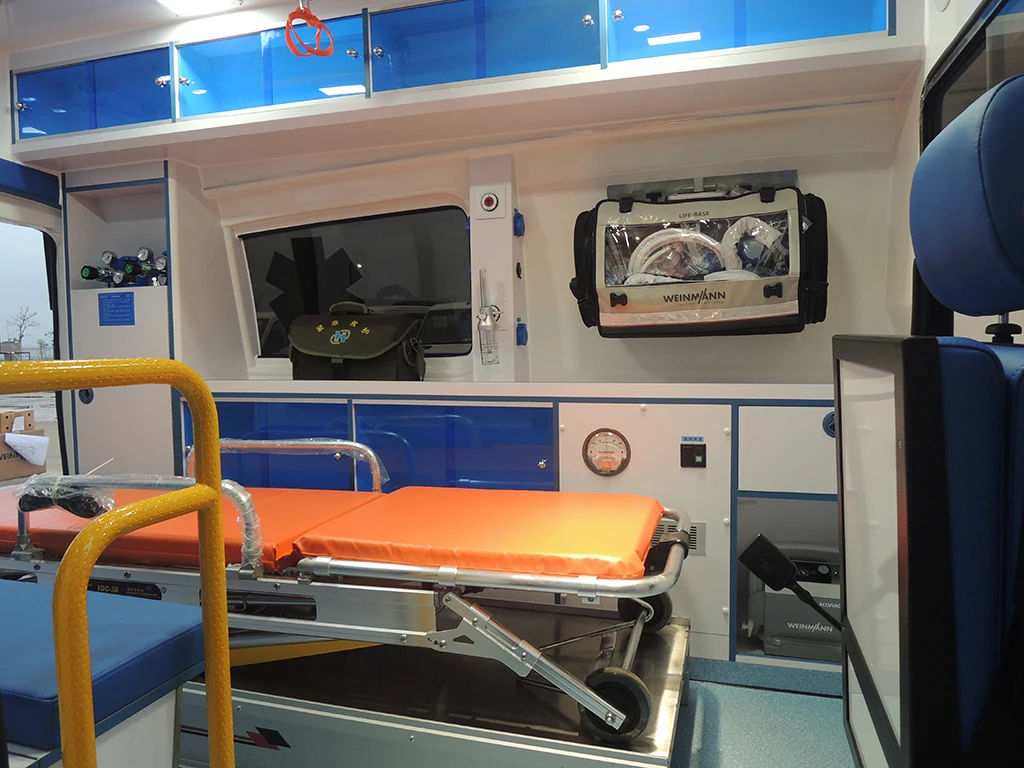

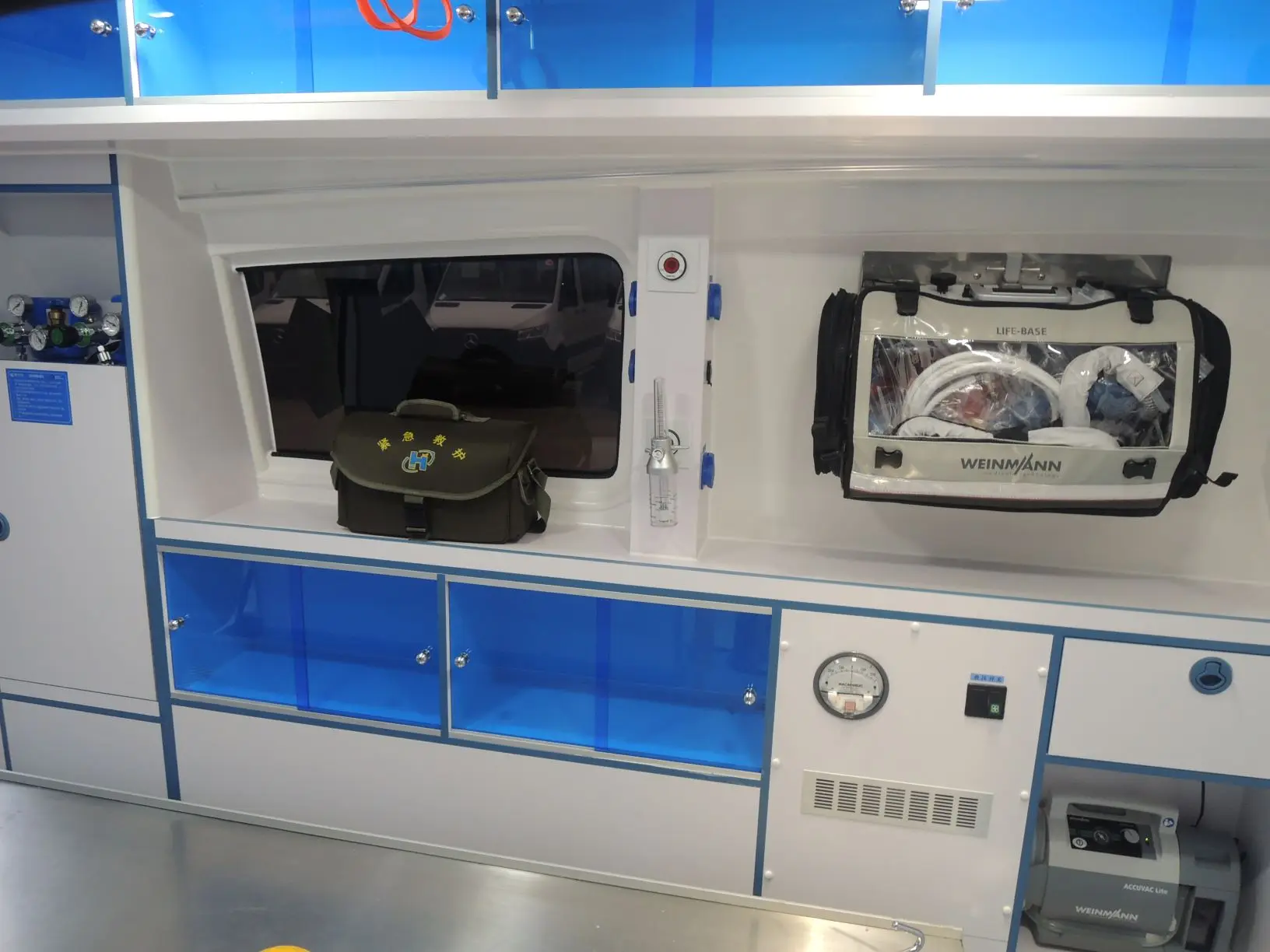

Medical compartment device | ||||
1. | Installation of partition wall and two sliding windows. | 1 | ||
2. | Installation of composite Walker fire-retardant board equipment cabinet. | 1 | ||
3. | Installation of a doctor folding seat in the middle partition. | 1 | ||
4. | Installation of all-round safety handrail on the middle door. | 1 | ||
5. | Installation of 3-seat long bench with safety belt on the right side. | 1 | ||
6. | Installation of an 8-transparent sliding storage lockers are on the top of the left side of the medical compartment. | 1 | ||
7. | Installation of long rows of medical equipment cabinets are under the left side of the medical compartment. | 1 | ||
8. | Installation of fixed rod of infusion pump is on the left side of medical compartment. | 1 | ||
9. | Installation of oxygen socket (for ventilator and humidifier). | 1 | ||
10. | Installation of oxygen fixing cabinet at the left rear. | 1 | ||
11. | Installation of two ways ventilation fan on the top. | 1 | ||
12. | Installation of transfusion hanger on top of medical cabin | 1 | ||
13. | Installation of 10L oxygen cylinder (with reducer). | 1 | ||
14. | The medical cabin is equipped with a complete closed oxygen supply system | 1 | ||
15. | Installation of humidifier. | 1 | ||
16. | 1kg fire extinguisher. | 1 | ||
17. | Installation of environment friendly waterproof, antiskid, anti-static and anti-corrosion floor (with coating). | 2 | ||
18. | Installation of full set of anti-collision soft bag. | 1 | ||
19. | Installation of automatic loading stretcher and platform. | 1 | ||
20. | Installation of thermal insulation, sound insulation and thermal insulation layer. | 1 | ||
21. | The exterior decoration can be pasted according to the customer's requirements | 1 | ||

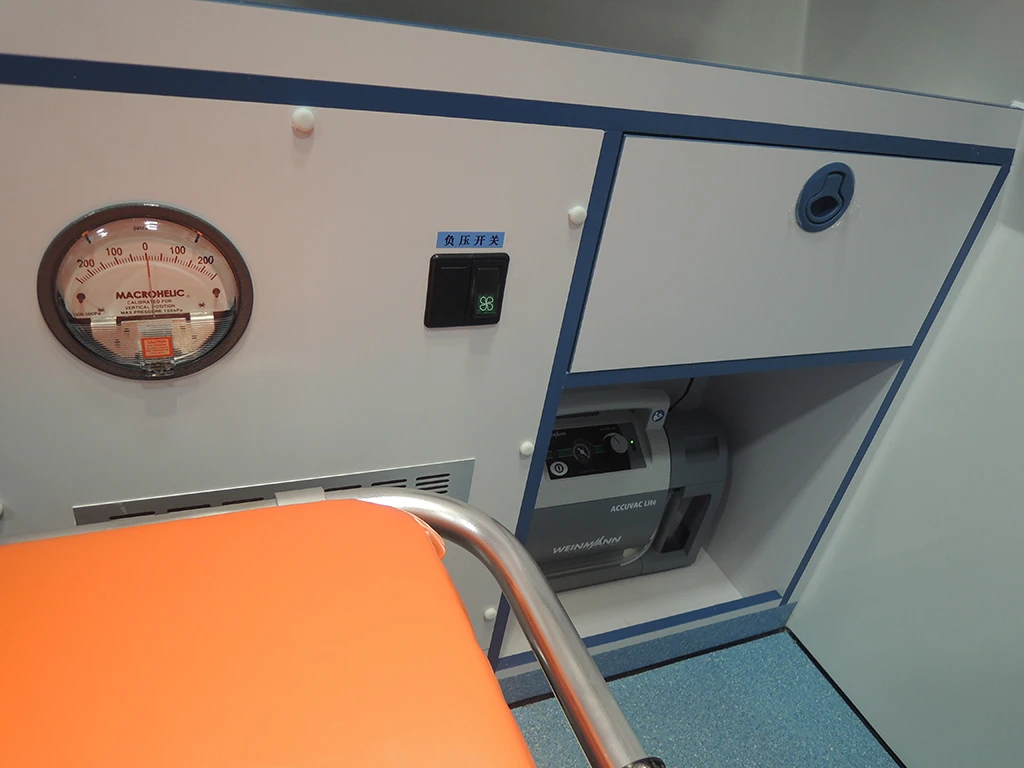

22. | Installation of standard negative pressure system | 1 | ||
Pictures for reference only, subject to customer order specification
