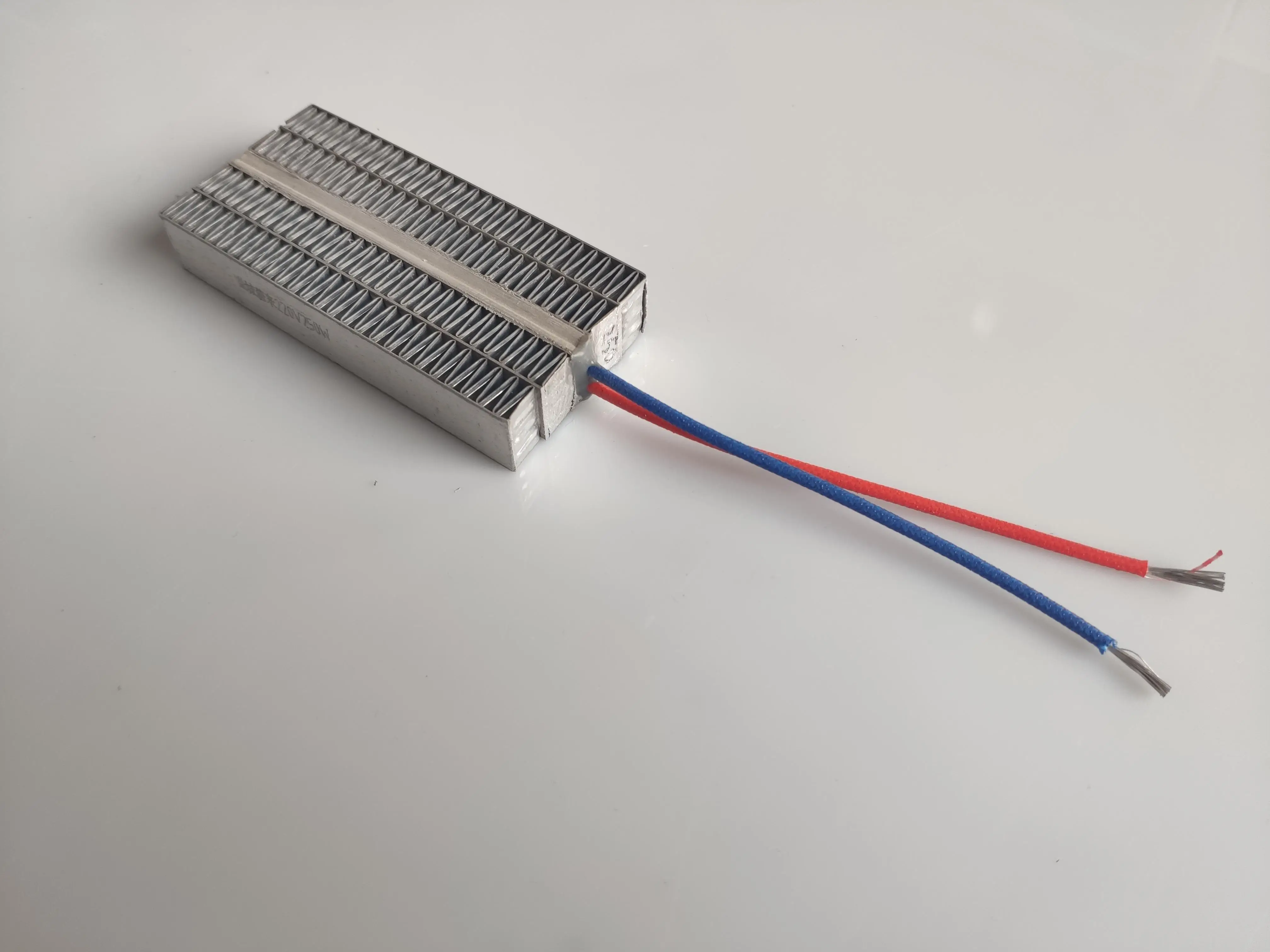

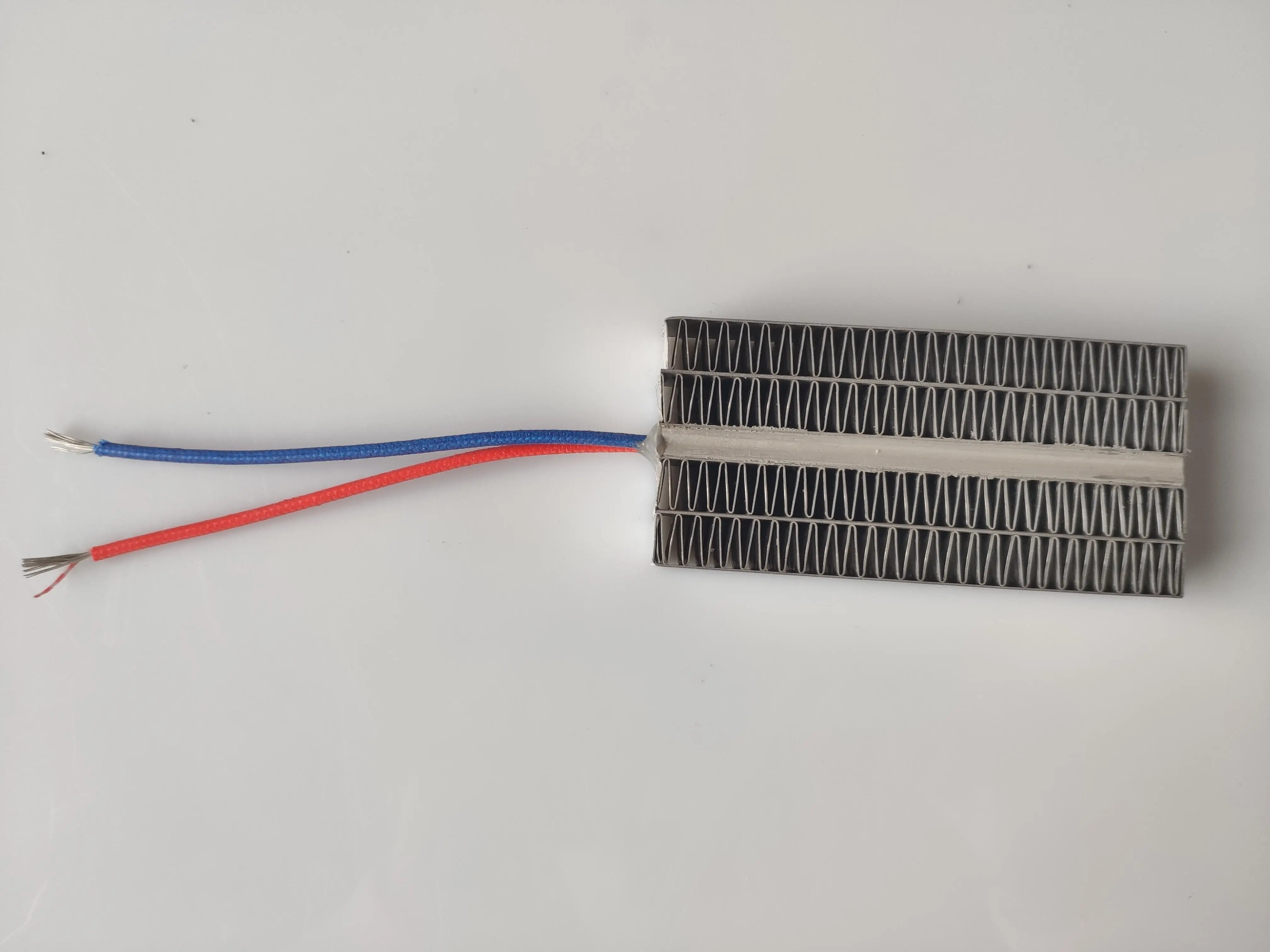

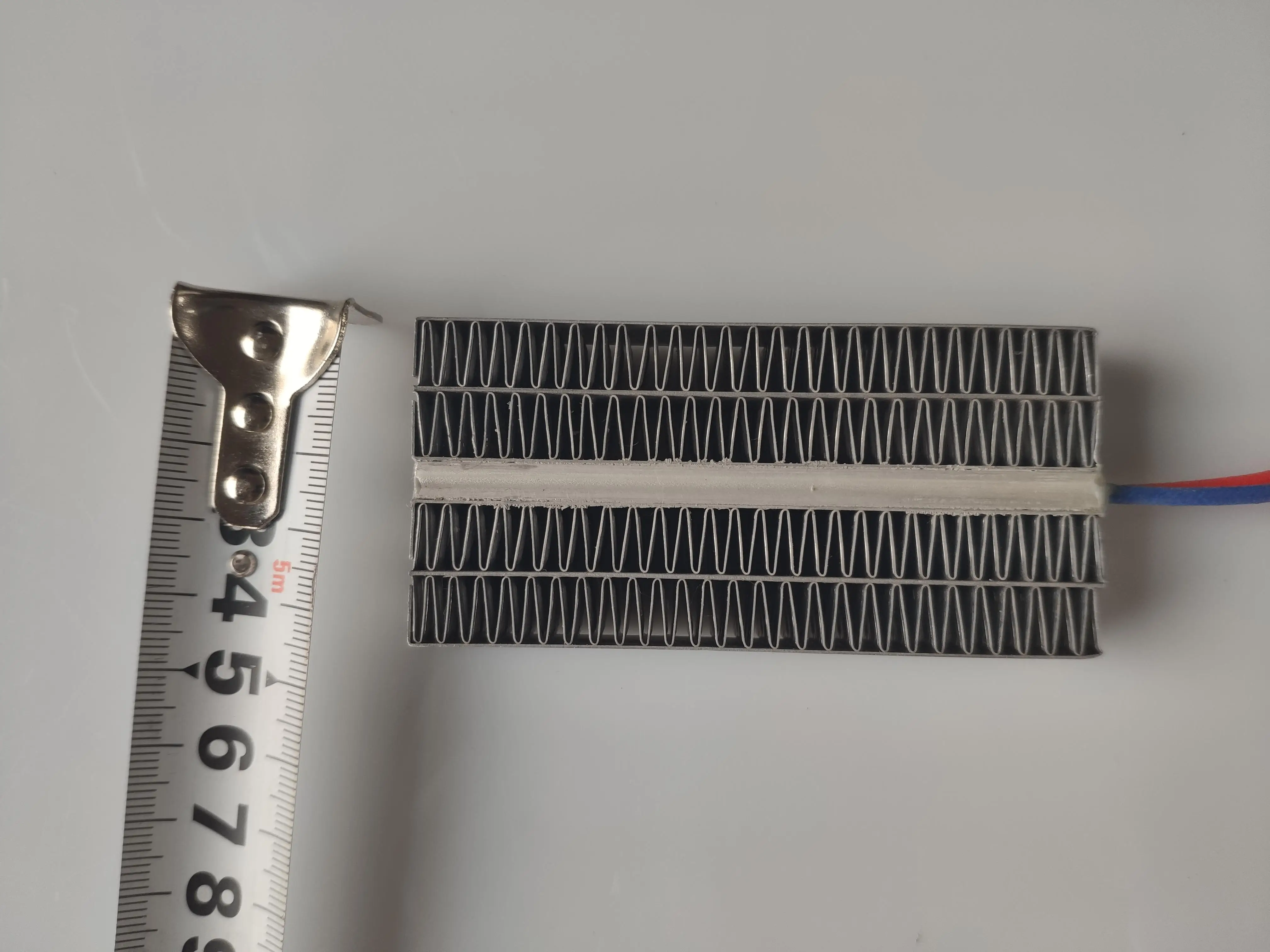

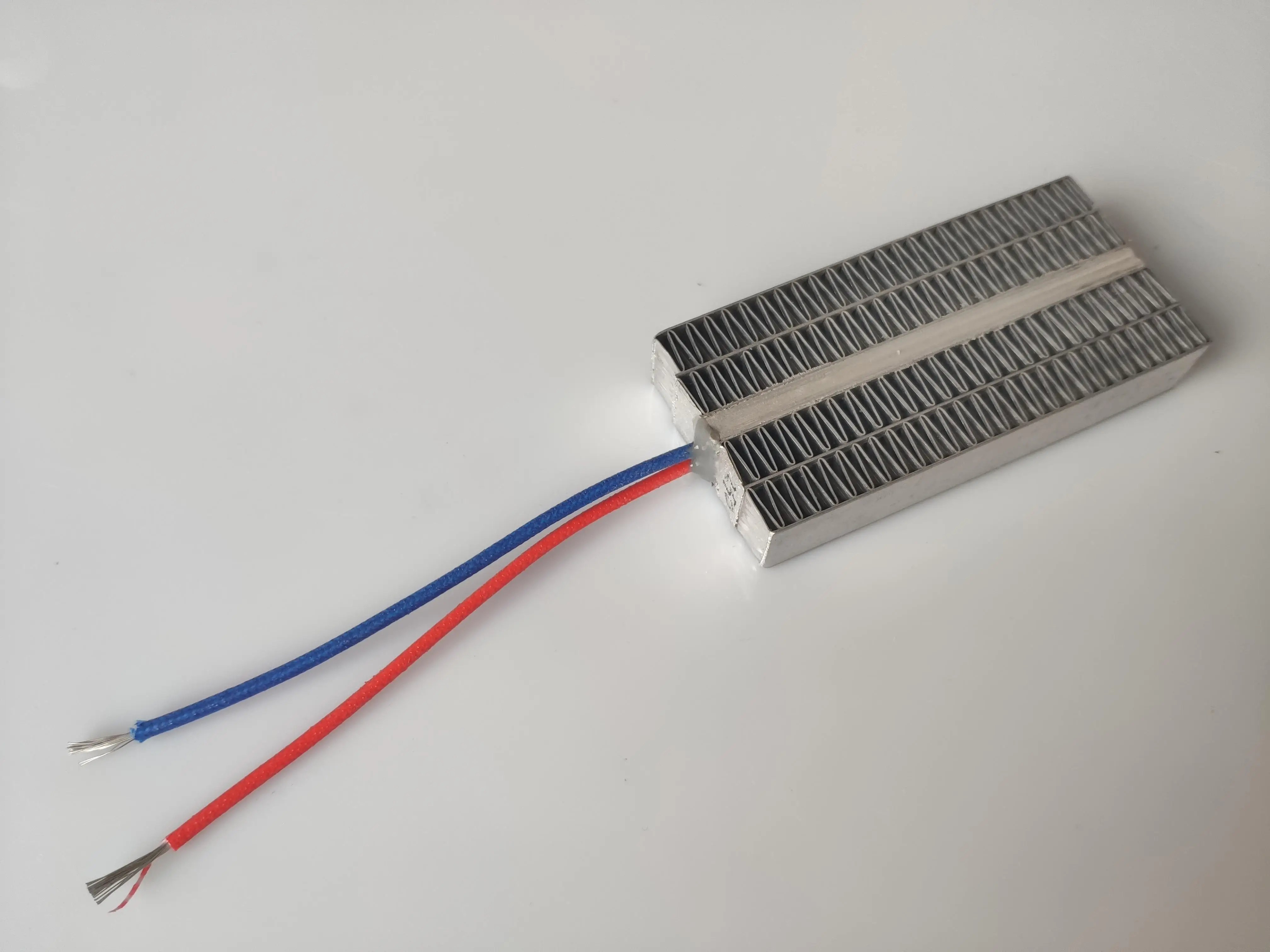

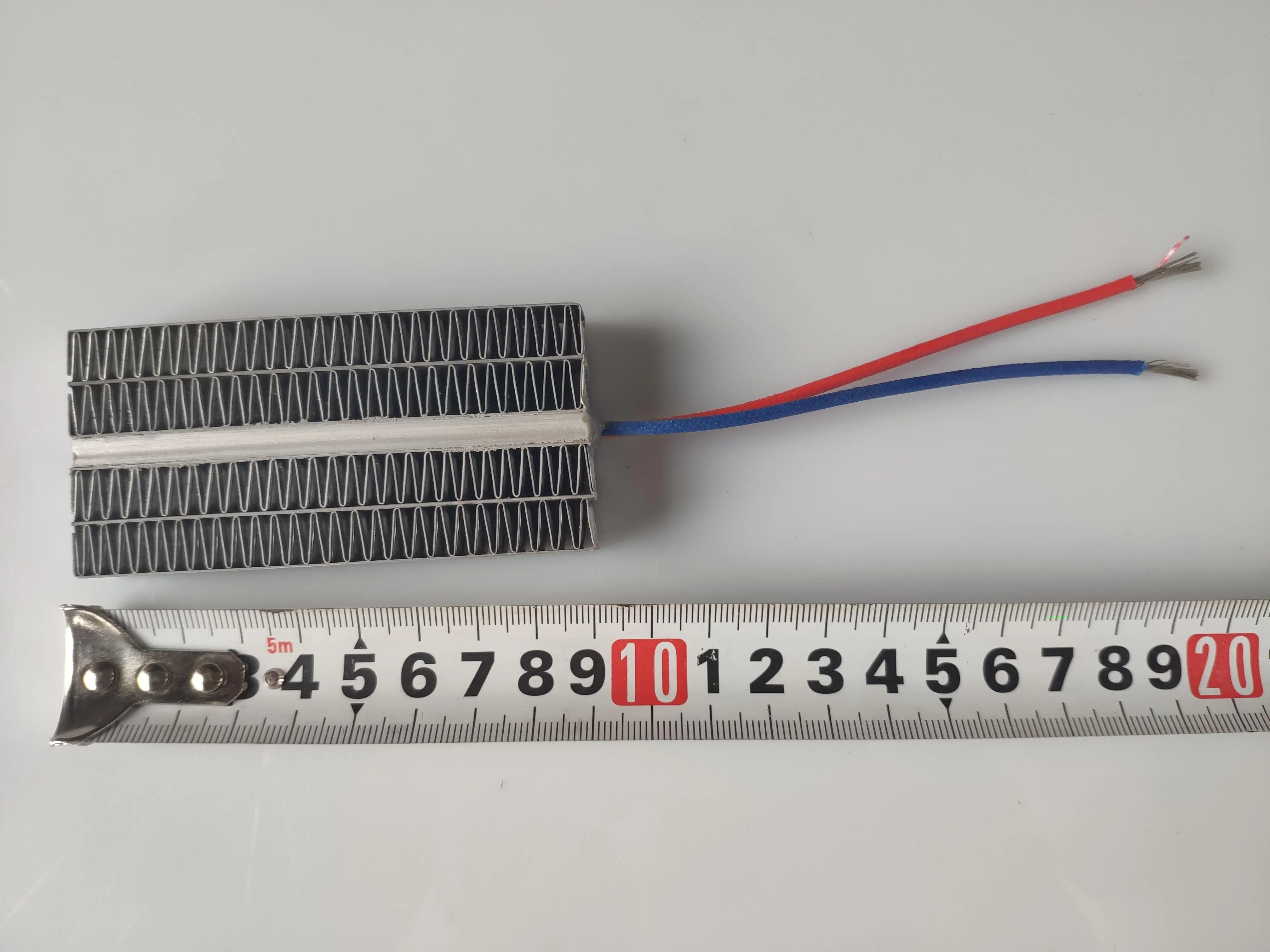

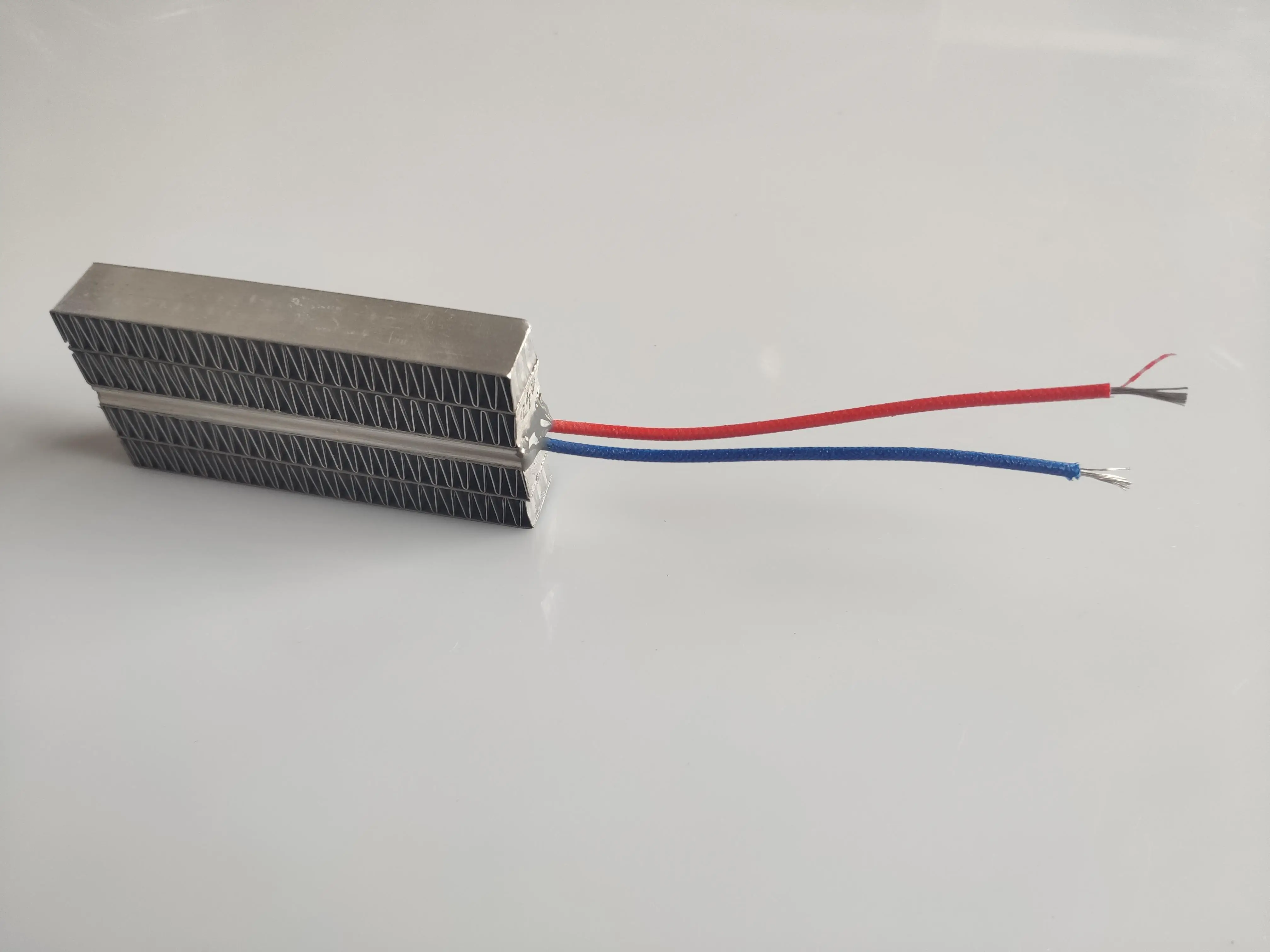

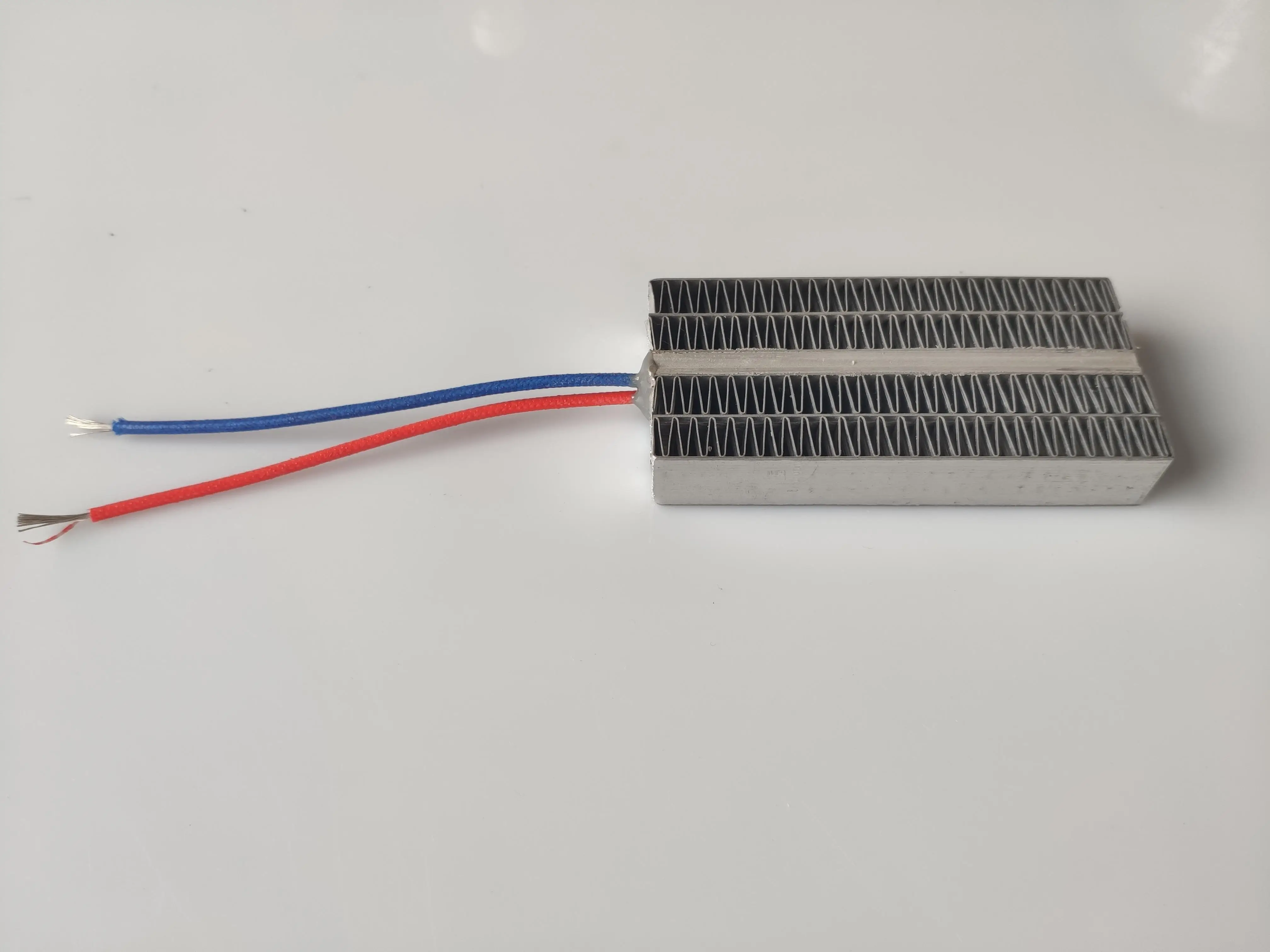

Wired electric heating element of PTC air heater
- Category: >>>
- Supplier: Yancheng Ditron Heater Equipment Co. Ltd
Share on (1600257707494):
Product Overview
Description
Product Overview
Electric wired PTC heating element for air heat transfer 220V 250W
We are specialist in production of electrical elements and equipments. Our factory locates in Yancheng city, Jiangsu province of China. We have been in heating industry for over 35 years, and have got certificates of ISO9001 and CE.
Main products are as below:
Aluminum heating plates
PTC heaters
SUS Tubular heaters
Silicone Rubber Heater
Ceramic heaters
Cartridge heaters
All heaters can be customized to produce according to clients’ requirements. We have exported our heaters to the USA, England and Asian markets.
Main products are as below:
Aluminum heating plates
PTC heaters
SUS Tubular heaters
Silicone Rubber Heater
Ceramic heaters
Cartridge heaters
All heaters can be customized to produce according to clients’ requirements. We have exported our heaters to the USA, England and Asian markets.
PRODUCT SPECIFICATIONS
No | Item | Data | |
1 | Power | 250W | |
2 | Voltage | 220V | |
3 | Size | 45*90mm | |
4 | Working temp. | 180-240 degrees | |
5 | Usage scope | Home appliances | |
6 | Certificates | ISO, CE | |
7 | Capacity | 25000/month | |
8 | Intended application | Air heating | |
9 | OEM, specifications can be customized. | ||
FEATURES AT A GLANCE
Product features:
Small size, easily installized and aeesmbled.
High efficiency to reach required temperature.
Safe design, in-time cut when over heat.
Simple and light volume.
Simple maintainance in use.
Real materials for product frame.
Electricity power operation.
Brief Introduction on PTC:
The higher the airflow, the higher the heat output and power (wattage).
Therefore, depending on the end design, if the ambient temperature is high, the PTC output power will decrease; if the airflow is high with low ambient temperature, then the PTC output power will increase.
Advantages: | ||||||
* Very low air resistance | * Long service life | |||||
* No Thermostat Required | * Virtually unlimited life | |||||
* No moving parts to wear | * No electrical noise | |||||
The PTC heat output can be regulated by the airflow applied in typical applications of heat generation. The higher the airflow, the higher the heat output and power(wattage). | ||||||
Applications:
PTC Air Heaters can be used in automotive (electric vehicles) and other applications for heating, dehumidifying, and thermal retention or in general electronic appliances including hand dryers, air conditioners, irons, laminating machines, and adhesive sealing machines. Additional applications include freeze protection of outdoor surveillance cameras, 3C products, and other electronic devices.
Application fields: | |||
* Hand dryer | * Dish dryer | * Shoe dryer | * Air conditioner (heater) |
* Hot air heaters | * Clothes dryer | * Dish washer | * Air conditioner (defroster) |
PRODUCT CONFIGURATION
High-quality raw materials
Firm frame
Safety connection
FAQ
1. What is your MOQ?
At least 1000pcs for each item.
2. What is the lead time?
10-25days, it is up to the quantity.
3. What is your prefered payment term?
TT payment term prefered, 20-30% prepaid after order confirmation.
4. Can you accept non-standard requirements?
Yes, we offer custom-made products and can design per your requirements.
5. Can you provide free samples?
We can provide free sample for 1pcs, but you should burden the freight.
6. What is your shipping type?
At least 1000pcs for each item.
2. What is the lead time?
10-25days, it is up to the quantity.
3. What is your prefered payment term?
TT payment term prefered, 20-30% prepaid after order confirmation.
4. Can you accept non-standard requirements?
Yes, we offer custom-made products and can design per your requirements.
5. Can you provide free samples?
We can provide free sample for 1pcs, but you should burden the freight.
6. What is your shipping type?
We can ship by sea, by air and by land; depends on the destination.
