Premium Quality Glossy Paper Roll Slitter Rewinder Machine With Automatic Germany Brand PLC System Control Durable In Use
- Category: >>>
- Supplier: Wenzhou Binbao Machinery Co. Ltd.
Share on (1600257846005):
Product Overview
Description
Product Description

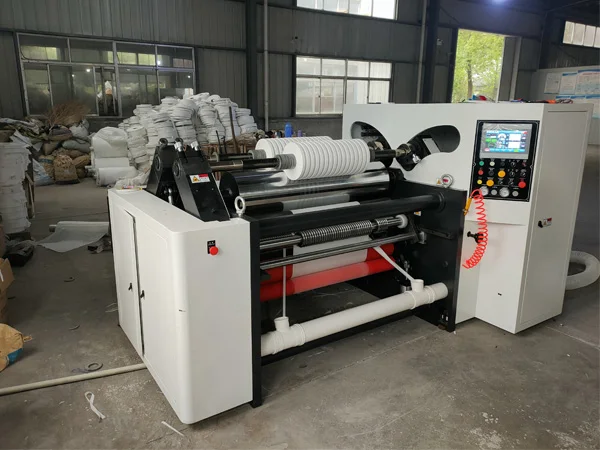

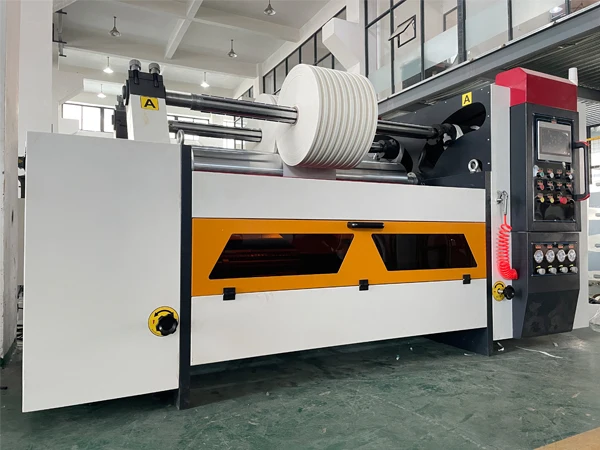

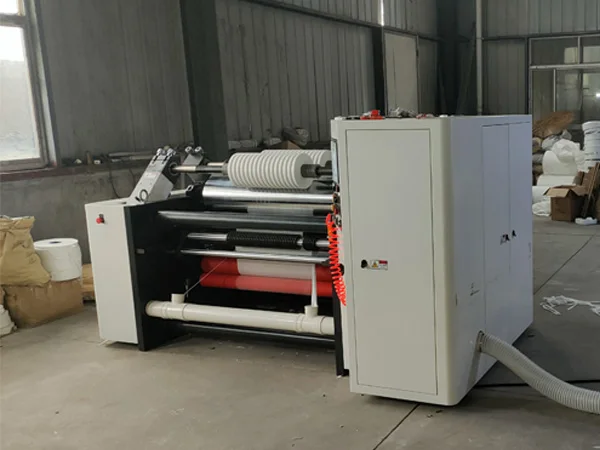

Premium Quality Glossy Paper Roll Slitter Rewinder Machine With Automatic Germany Brand PLC System Control Durable In Use
Usage:

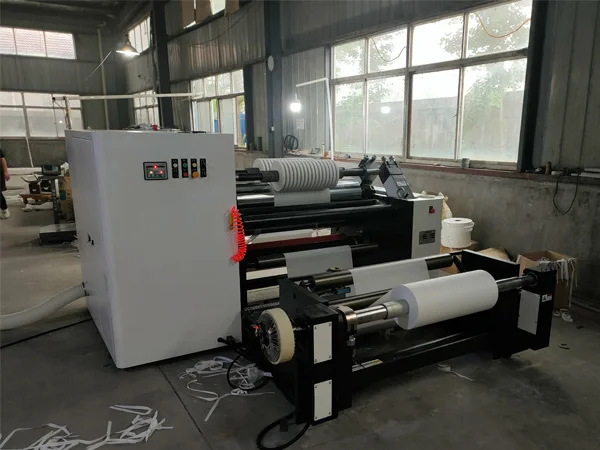

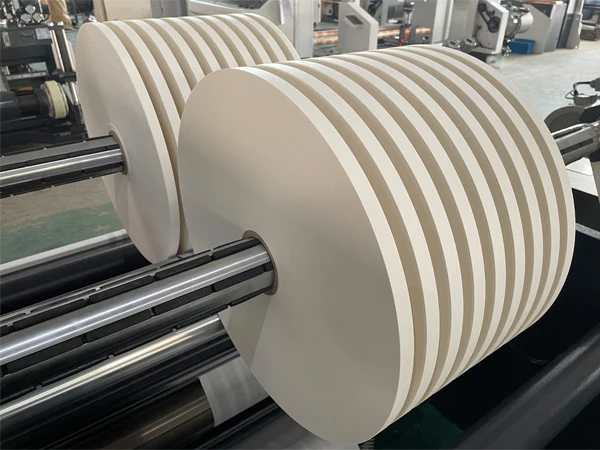

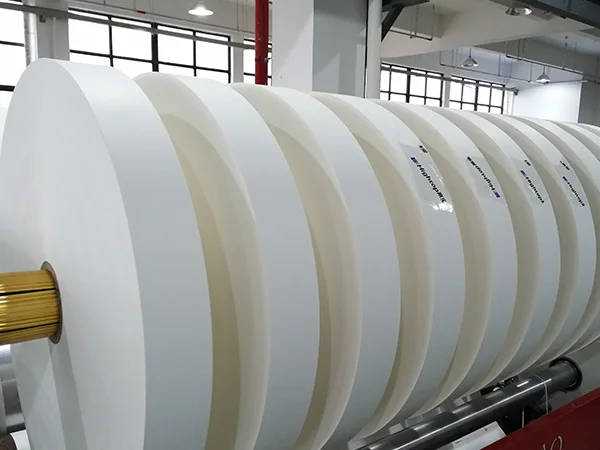

This SLB-series paper slitting rewinding machine designed to make narrow width paper
rolls(width less than 20mm). It is widely used for paper drinking straw,light weight packaging/wrapping paper rolls,special food grade packaging roll material and so on.
This SLB-series paper slitting rewinding machine designed to make narrow width paper
rolls(width less than 20mm). It is widely used for paper drinking straw,light weight packaging/wrapping paper rolls,special food grade packaging roll material and so on.
Feature:
1. The machine body adopt 60mm thickness high quality steel plate.This ensures that the machine avoids shaking when running at high speed, thereby improving the accuracy of paper rolls slitting.

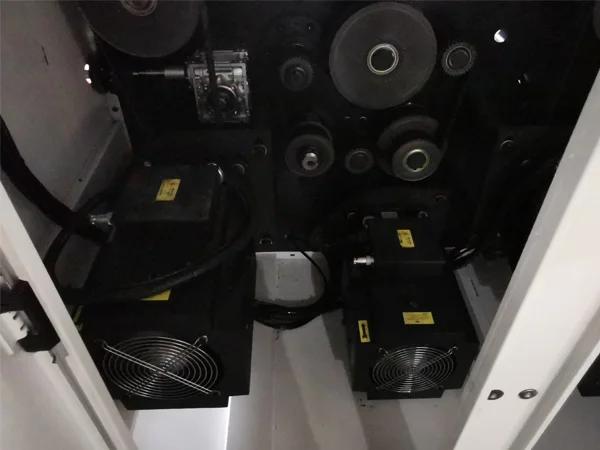

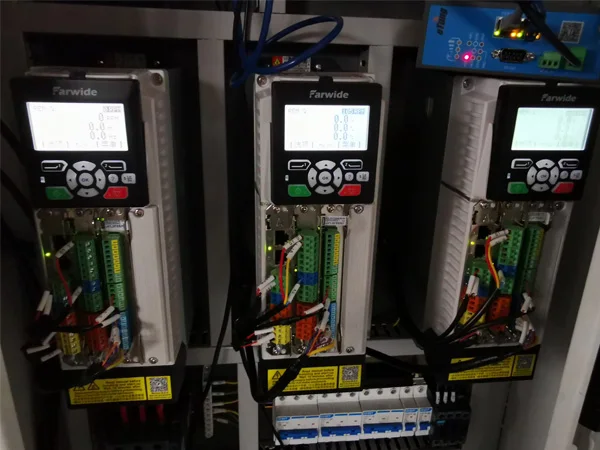

2. The machine has three servo motors, which are used for the transmission of materials and the winding after slitting.

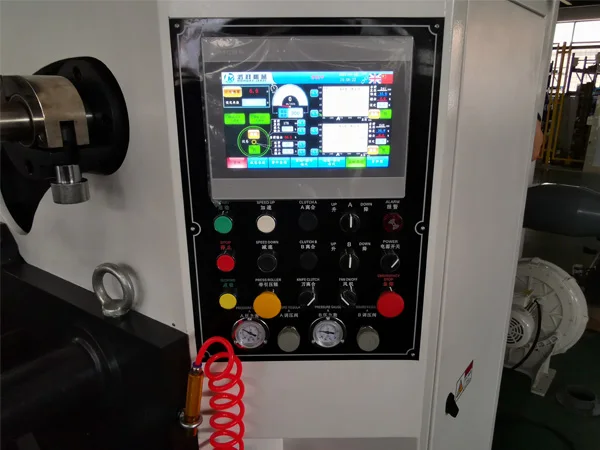

3. SIEMENS PLC,it have an intelligent operating program system with many function,automatic counting meter,automatic stop as setting winding meters,emergence stop and so on.
4. Automatic tension control. The machine can automatically measure the diameter of the motherroll and automatically adjust the output tension.

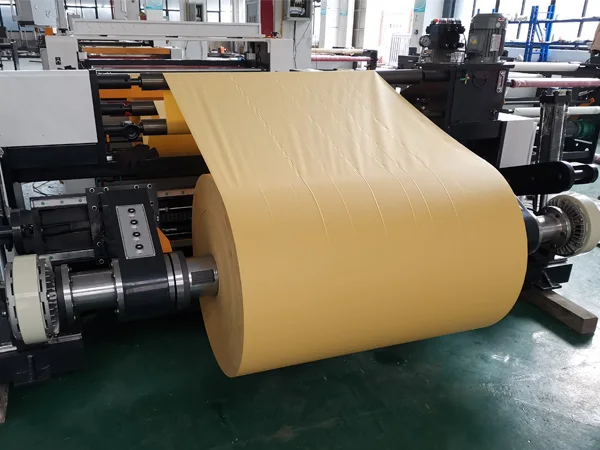

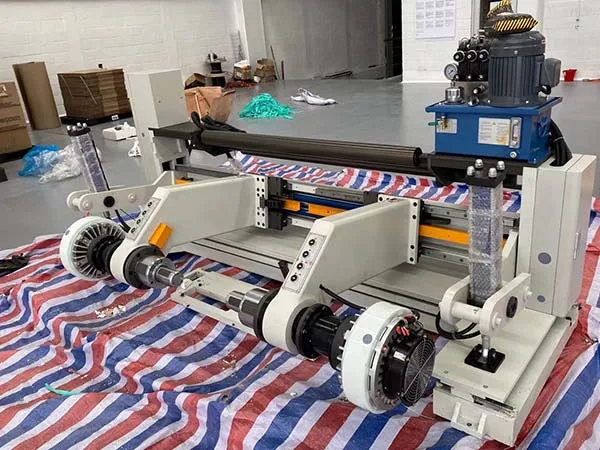

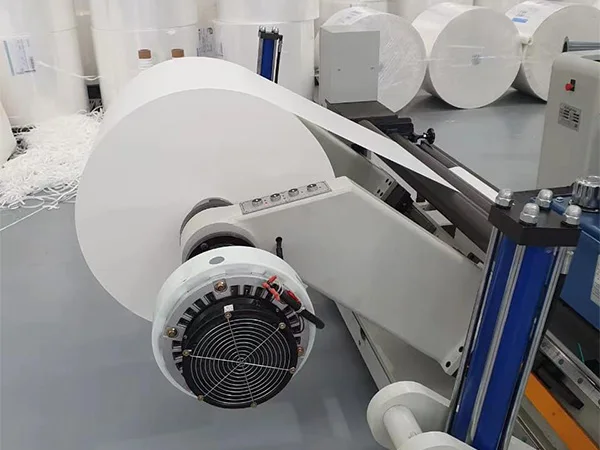

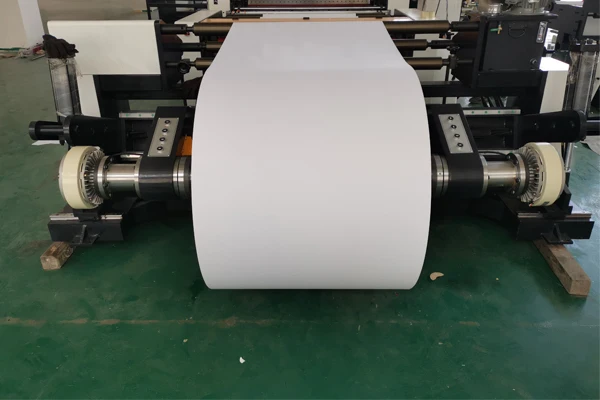

5. Hydraulic lifter unwinding structure make the jumbo rolls loading more easily and save labor.
6. The rewinding shafts are rotate,which easy to unloading finished small rolls
7. The rewinding type adopt the center and surface type,the rewinding rolls will run with tthe rewinding shaft ,also close to the center roller. This type design can well control the tension.
8. The web guider system automatic detect the web edge and adjust position,which can improve the accuracy.

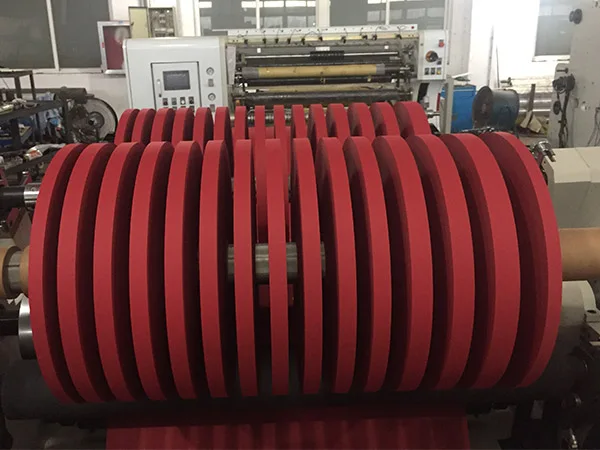

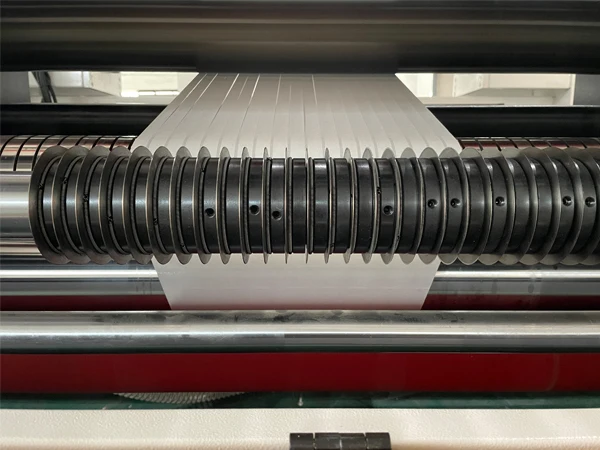

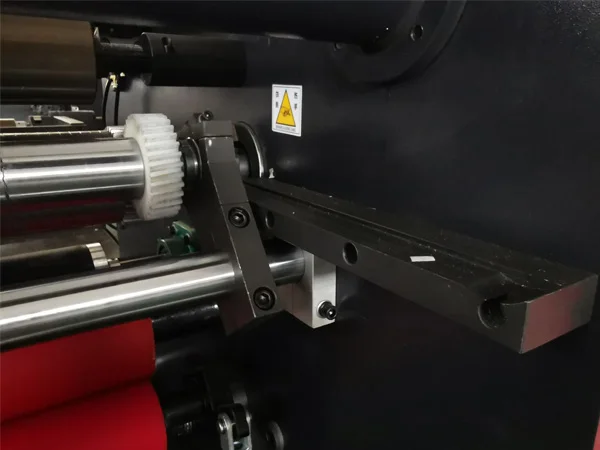

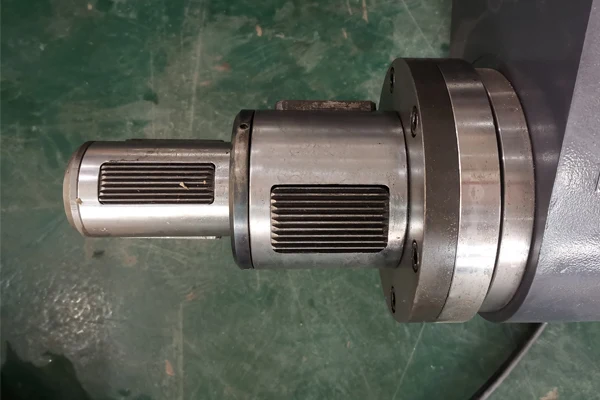

9. Slitting knife shafts can be take out of machine. Due to make small width rolls,the model slitting machine have many knives.So this type knife shaft can be easily adjust and change knives.
2. The machine has three servo motors, which are used for the transmission of materials and the winding after slitting.
3. SIEMENS PLC,it have an intelligent operating program system with many function,automatic counting meter,automatic stop as setting winding meters,emergence stop and so on.
4. Automatic tension control. The machine can automatically measure the diameter of the motherroll and automatically adjust the output tension.
5. Hydraulic lifter unwinding structure make the jumbo rolls loading more easily and save labor.
6. The rewinding shafts are rotate,which easy to unloading finished small rolls
7. The rewinding type adopt the center and surface type,the rewinding rolls will run with tthe rewinding shaft ,also close to the center roller. This type design can well control the tension.
8. The web guider system automatic detect the web edge and adjust position,which can improve the accuracy.
9. Slitting knife shafts can be take out of machine. Due to make small width rolls,the model slitting machine have many knives.So this type knife shaft can be easily adjust and change knives.
Specification
item | value |
Model Name | SLB-series |
Mother Roll Width(Max) | 1100-1600mm |
Mother Roll Diameter(Max) | 1400mm |
Mother Roll Weight Capacity | 1400kg |
Slitting Width(Min) | 10mm |
Rewinding Diameter(Max) | 600/800mm |
Paper Core Size | 3/6 inch |
Thickness Range | 18-400gsm |
Stable Speed | 300m/min |
Cutting Precision | ±0.2mm |
Application
Case One: Paper Drinking Straw Manufacturing

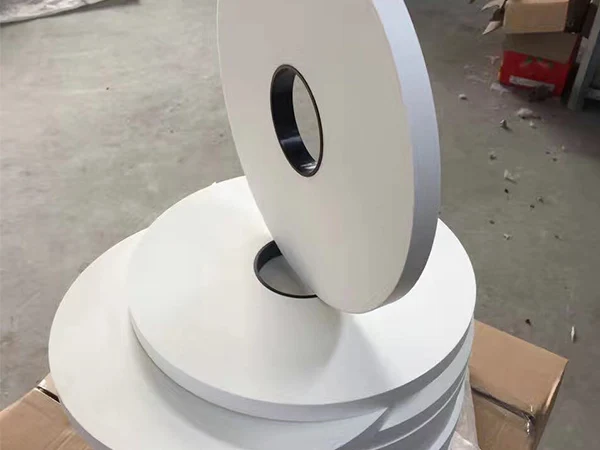

The paper drinking straw manufacturing processing is similar with paper tube. It consist of three layers of paper.So you must feed three different width rolls into the straw forming machine to make paper straw.Our the model paper slitting machine can make small width paper rolls for manufacturing paper straws(width can less than to 5mm).
The paper drinking straw manufacturing processing is similar with paper tube. It consist of three layers of paper.So you must feed three different width rolls into the straw forming machine to make paper straw.Our the model paper slitting machine can make small width paper rolls for manufacturing paper straws(width can less than to 5mm).

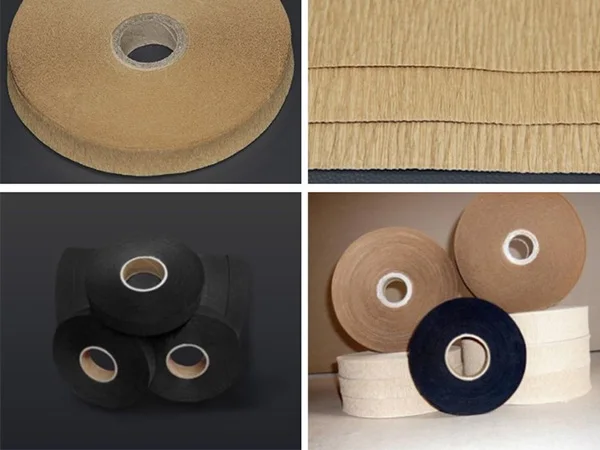

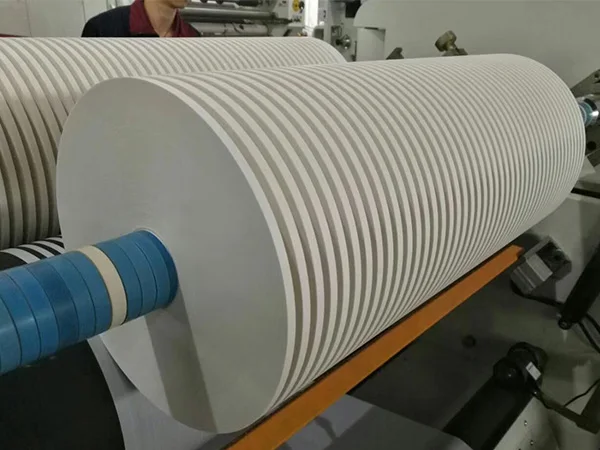

Case Two: Insulation paper tape/Anti-rust paper tape
The insulation paper tape and anti-rust paper tape normal have small width rolls type.Manufacturing these products,you must have a set jumbo roll slitting machine with center and surface rewinding structure.
The insulation paper tape and anti-rust paper tape normal have small width rolls type.Manufacturing these products,you must have a set jumbo roll slitting machine with center and surface rewinding structure.

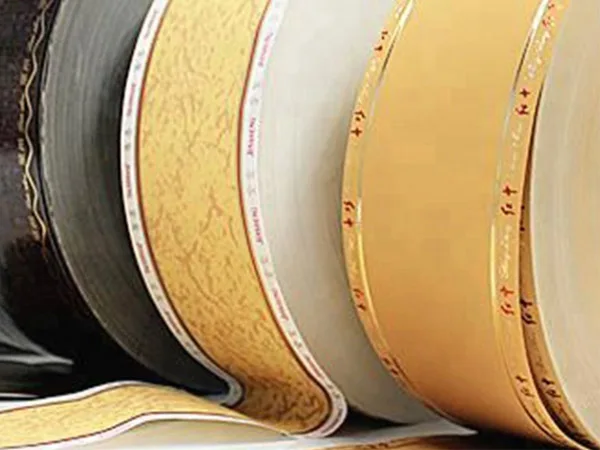

Case Three: Cigarette/Tobacco paper rolls or tipping paper rolls for rolling
In addition to books and packaging, the product with the largest amount of paper should be cigarettes. Fully automatic cigarette making machines also need to use very narrow paper rolls (between 20-30mm in width). So our slitting machine is favored by many cigarette paper mills. They use our slitting machine to process large rolls of paper to meet the requirements of cigarette rolling machines.
In addition to books and packaging, the product with the largest amount of paper should be cigarettes. Fully automatic cigarette making machines also need to use very narrow paper rolls (between 20-30mm in width). So our slitting machine is favored by many cigarette paper mills. They use our slitting machine to process large rolls of paper to meet the requirements of cigarette rolling machines.

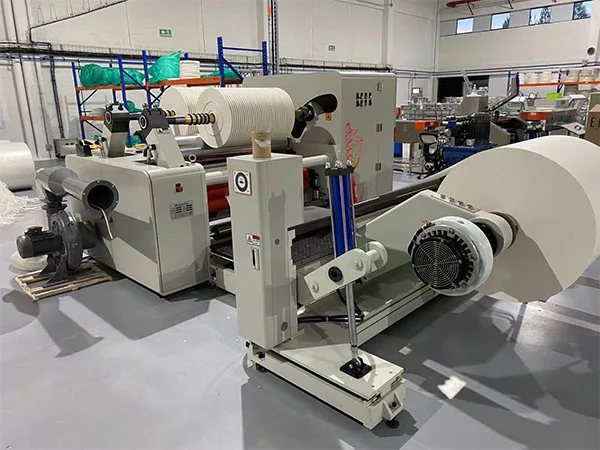

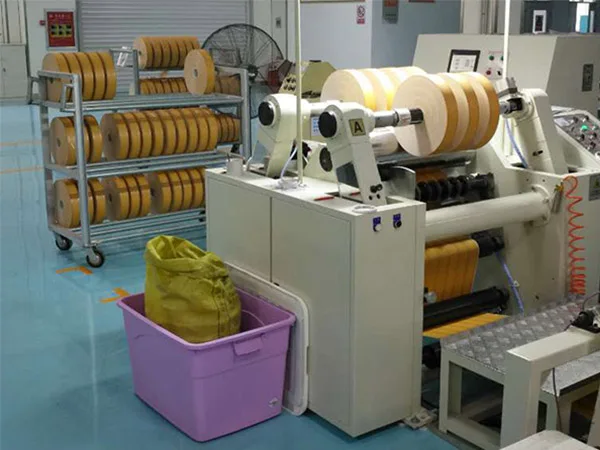

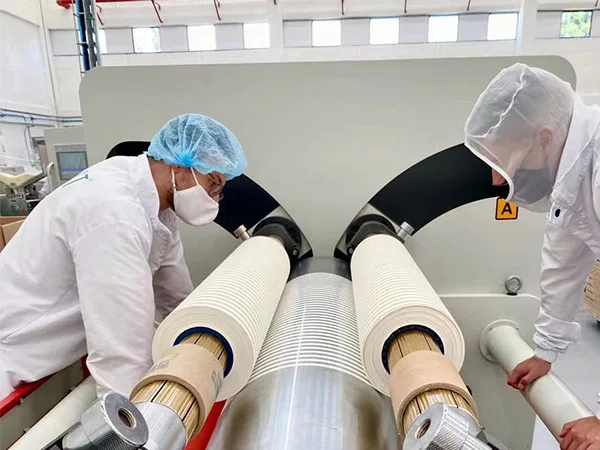

Customer Factory Photos
After Sales Service

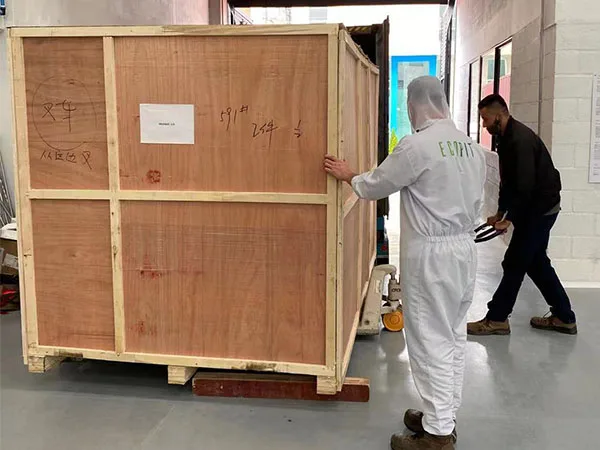

Packing & Delivery
Company Profile
Binbao Machinery was co-founded by three dynamic and experienced young people, they are Alfred, Lam and Ives. They have been working in the packaging and printing machinery industry for nearly ten years. After graduating from Shanghai University of Economics and Business in 2008, Alfred has been working in a well-known bank in Shanghai, but he has never given up his love for machinery. Lam and Ives are colleagues. They have worked together for four years in a packaging and printing machinery manufacturer in Ruian, Wenzhou. Lam is a test engineer and Ives is responsible
for mechanical design and assembly. They are willing to think, use their knowledge to improve the performance of the modified machine, and enjoy it.Lam and Ives met Alfred at a European packaging and printing machinery exhibition in 2014. They found that no Chinese company at the exhibition only focused on the production of paper roll slitting machines and sheets cutting machines.This subdivision field made them feel extremely excited. After they returned to China, after careful planning, their first slitting machine was finally completed in the warehouse of Ives father in early 2015. From then on, they began to process paper slitting machines and sheets cutting machines for Ruian's printing presses, paper cup machines, paper bag machines and other manufacturers.
In fact, in Ruian, the base of packaging and printing machinery, there are many machinery companies that produce slitting machines and sheets cutting machines, but they all spend their time and energy on paper products machinery with higher total prices and better profits. Slitting machine and sheets cutting machine are just a common tool, a supporting role ignored by everyone. But the founders of Binbao Machinery don't think so. They firmly believe that supporting roles also play a key role. Slitting machines and sheets cutting machines are widely used in packaging and printing production companies, and their stability and cutting quality also affect the value of the entire company's products. Out of their love for machinery, they continue to transform and upgrade the machines they develop.
Under the influence of the epidemic in 2020, their processing plants lost nearly half of their orders. Fortunately, they finally have enough time to design their own office, factory, and website, and start their brand development. Binbao Machinery will use its rich experience to continuously improve and improve the performance of slitting machines and sheets cutting machines, provide high-quality machinery and after-sales services to end users all over the world, and be the "BEST SUPPORTING ACTOR" for world packaging and printing industry.
for mechanical design and assembly. They are willing to think, use their knowledge to improve the performance of the modified machine, and enjoy it.Lam and Ives met Alfred at a European packaging and printing machinery exhibition in 2014. They found that no Chinese company at the exhibition only focused on the production of paper roll slitting machines and sheets cutting machines.This subdivision field made them feel extremely excited. After they returned to China, after careful planning, their first slitting machine was finally completed in the warehouse of Ives father in early 2015. From then on, they began to process paper slitting machines and sheets cutting machines for Ruian's printing presses, paper cup machines, paper bag machines and other manufacturers.
In fact, in Ruian, the base of packaging and printing machinery, there are many machinery companies that produce slitting machines and sheets cutting machines, but they all spend their time and energy on paper products machinery with higher total prices and better profits. Slitting machine and sheets cutting machine are just a common tool, a supporting role ignored by everyone. But the founders of Binbao Machinery don't think so. They firmly believe that supporting roles also play a key role. Slitting machines and sheets cutting machines are widely used in packaging and printing production companies, and their stability and cutting quality also affect the value of the entire company's products. Out of their love for machinery, they continue to transform and upgrade the machines they develop.
Under the influence of the epidemic in 2020, their processing plants lost nearly half of their orders. Fortunately, they finally have enough time to design their own office, factory, and website, and start their brand development. Binbao Machinery will use its rich experience to continuously improve and improve the performance of slitting machines and sheets cutting machines, provide high-quality machinery and after-sales services to end users all over the world, and be the "BEST SUPPORTING ACTOR" for world packaging and printing industry.
FAQ
Q: What should I do to find the appropriate machine?
A: You should offer some info.
1. Material name
2. Material thickness or gsm
3. Max. diameter and width of mother roll
4. Minimum width of finished roll5.Maximum rewinding diameter
You also can send your message of your slitting processing to our sales. They will help you find the best solution.
Q: How can I operate the machine?
A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learn
more details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating
videos in our YouTube Channel.
Q: What about your after-sales service?
A: Call us, email us, or video-chat, we will offer solutions within 24 hours
Q: What is your terms of payment?
A: We accept many kinds of payment. Please contact us for details.
Q: What is your advantage?
A: Not only good quality but also good service
1. Over 20 years manufacturer
2. All the accessories made by ourselves.
3. We have our own research and development design team.
4. We accept products customization.
5. 24 hours after-sales service and engineer oversea service.
A: You should offer some info.
1. Material name
2. Material thickness or gsm
3. Max. diameter and width of mother roll
4. Minimum width of finished roll5.Maximum rewinding diameter
You also can send your message of your slitting processing to our sales. They will help you find the best solution.
Q: How can I operate the machine?
A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learn
more details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating
videos in our YouTube Channel.
Q: What about your after-sales service?
A: Call us, email us, or video-chat, we will offer solutions within 24 hours
Q: What is your terms of payment?
A: We accept many kinds of payment. Please contact us for details.
Q: What is your advantage?
A: Not only good quality but also good service
1. Over 20 years manufacturer
2. All the accessories made by ourselves.
3. We have our own research and development design team.
4. We accept products customization.
5. 24 hours after-sales service and engineer oversea service.
