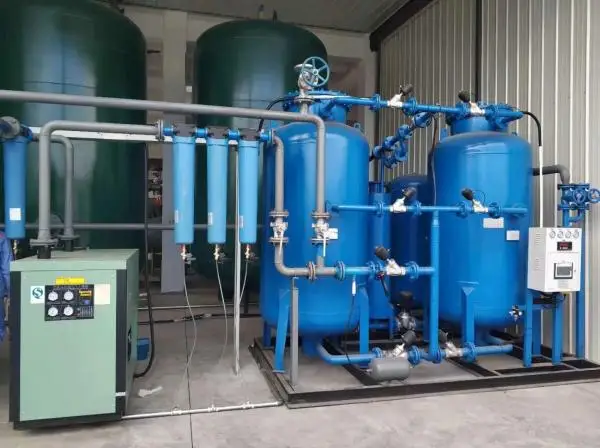

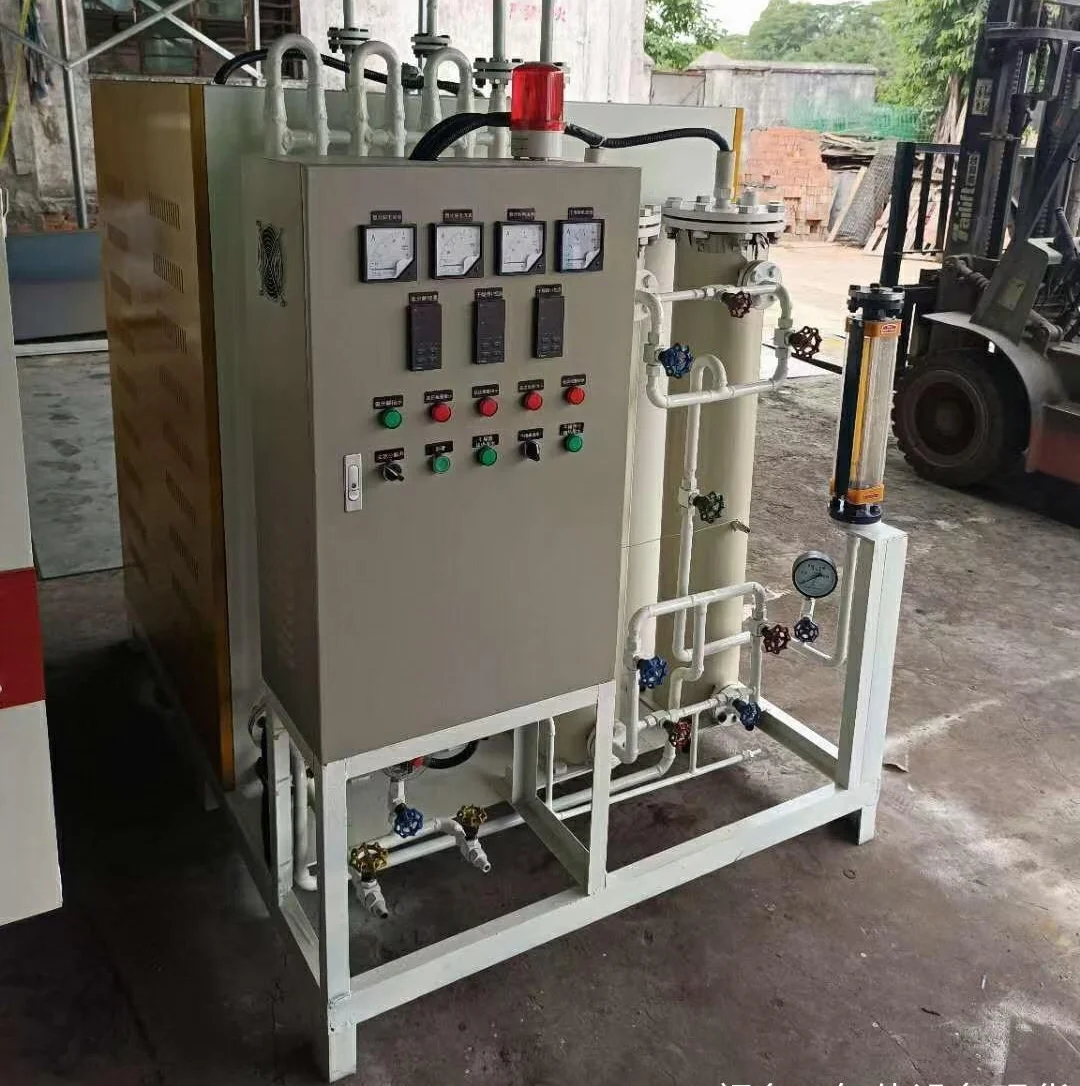

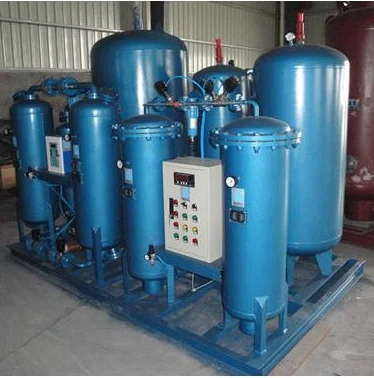

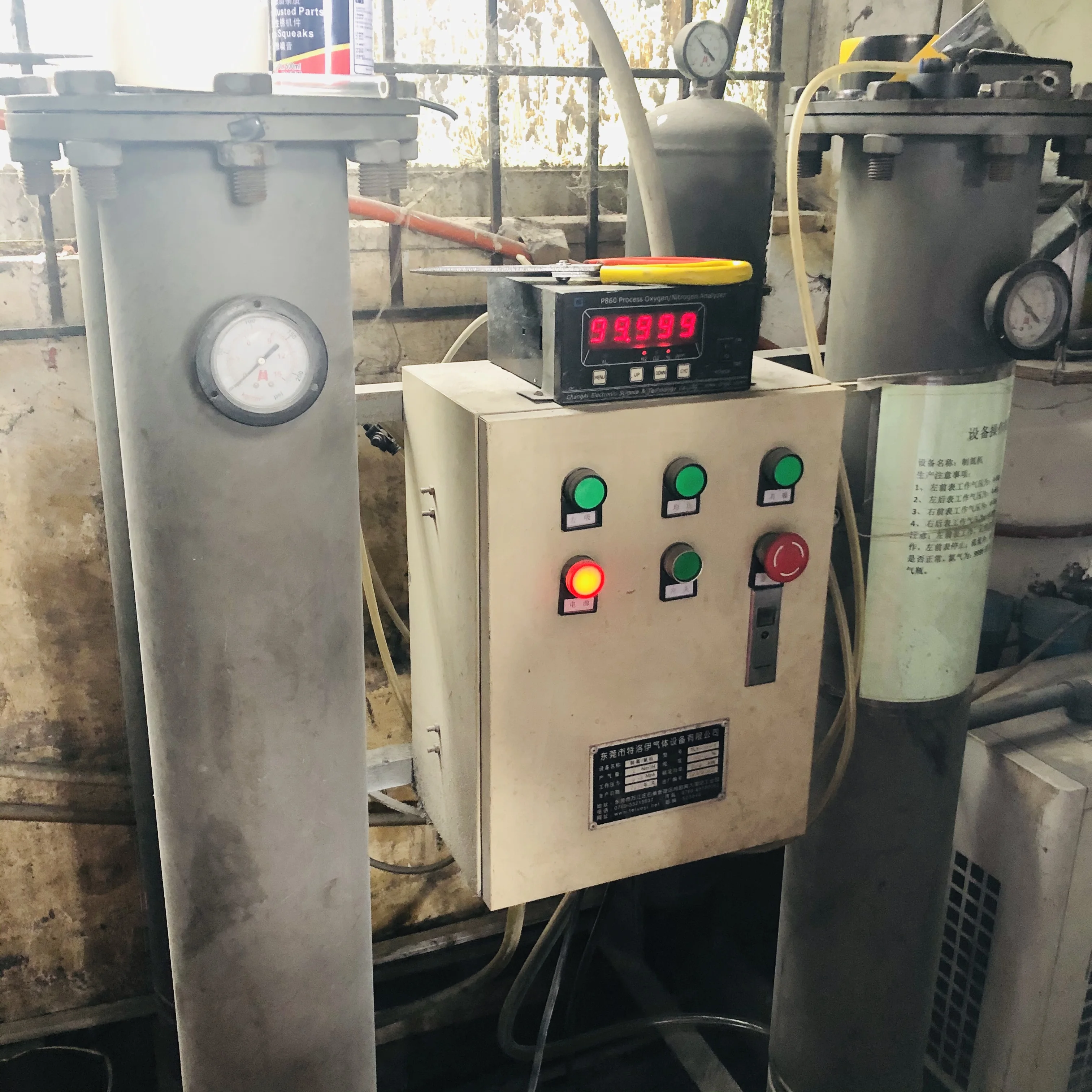

Psa Nitrogen Generator Nitrogen Gas Generator for Electronics Industries OEM Manufacturer

PSA). TLY series PSA nitrogen generator is based on the principle of the purified air as raw material, food grade carbon

molecular sieve as adsorbent, and takes advantage of the different pore diffusion rate of nitrogen and oxygen in the zeolite, the oxygen gas is faster and preferential adsorption of nitrogen concentration in the gas tank to be abundant, which can realize that N2 will be able to produce at room temperature.

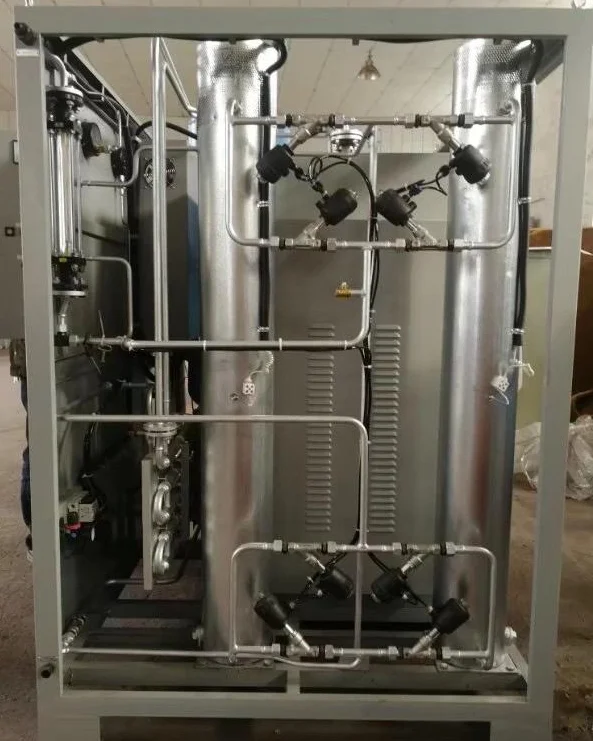

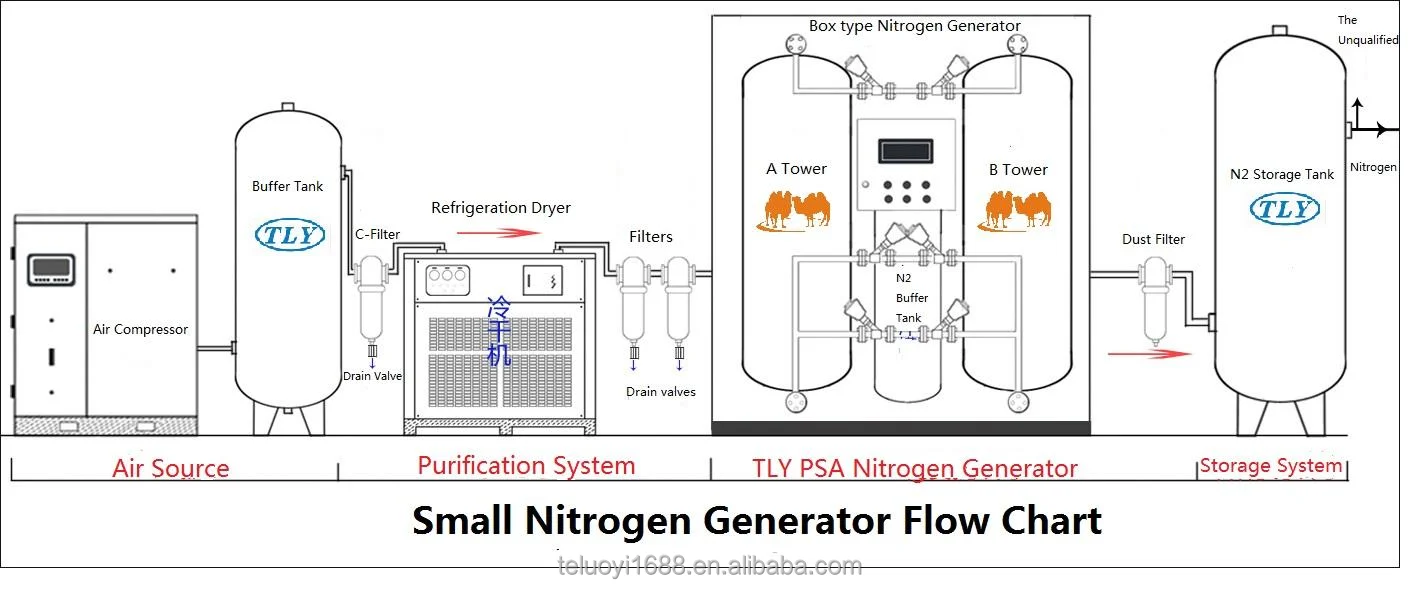

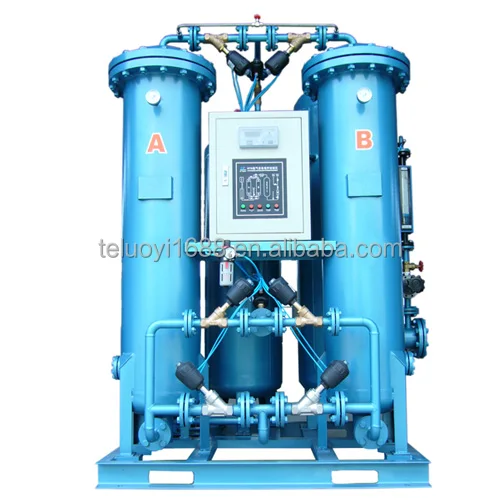

PSA nitrogen adsorption tower is dual structure and mainly a AB with carbon molecular sieve adsorption of these two towers as well as control system. When the compressed air goes through the A tower, the oxygen gas is adsorbed by the carbon molecular sieve, the nitrogen gas can be flowed out. When A saturated molecular sieve tower then would automatically switch to the B tower, while the adsorption tower A regenerates. The so-called regeneration is to eliminate the gas absorption tower so that the pressure decreased rapidly to atmospheric pressure, and the oxygen as well as other molecular sieve adsorption tower from the release process. Nitrogen adsorption capacity of a tower, then the other tower desorption regeneration emptying, and the valve action through the controller to achieve the 2 towers turns gas production
