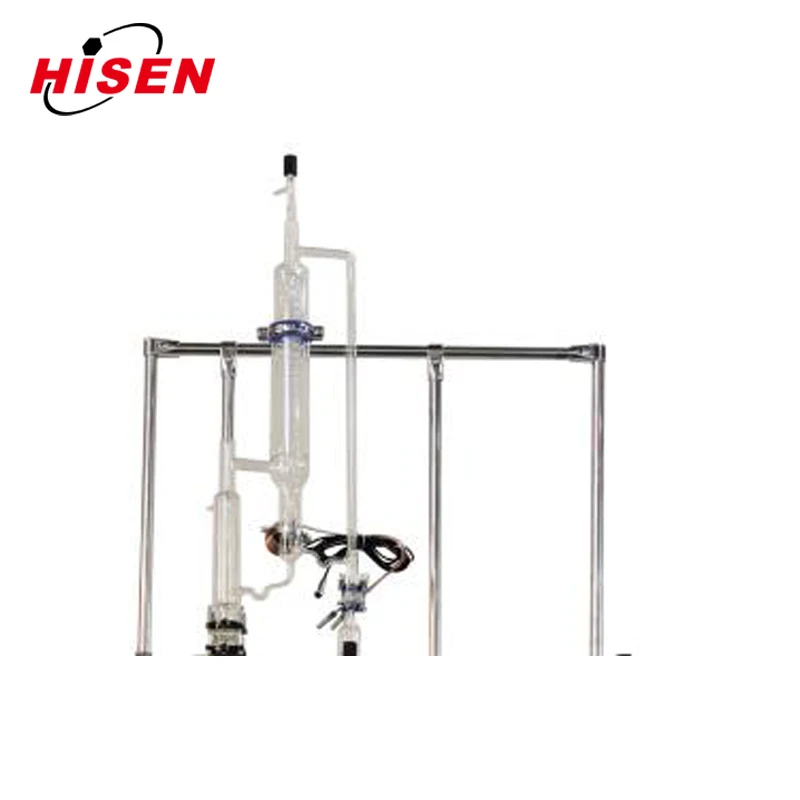

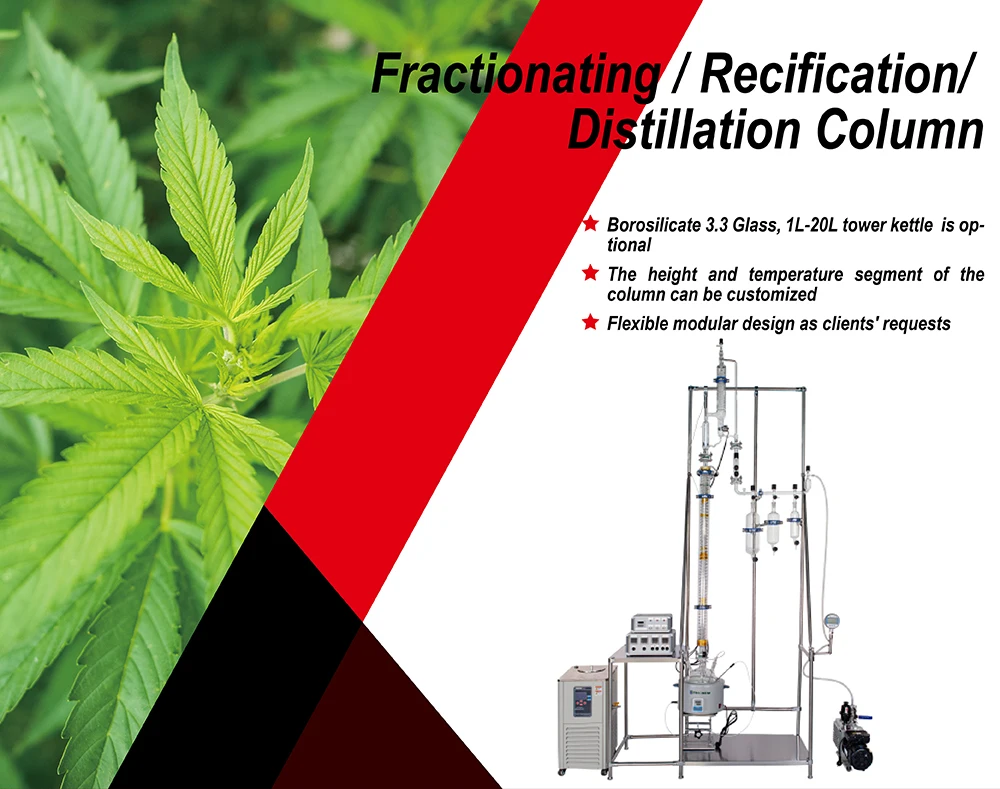

Borosilicate Glass Laboratory Equipment Distillation Column with Factory Price
The rectification column (Packed Tower) is a kind of tower type vapor-liquid contact device for rectification. Through the different volatility of each component in the mixture (that is, the vapor pressure of each component is different at the same temperature), the Distillate (low-boiling point) in the liquid phase is transferred to the gas phase, and the Residue (high-boiling point) in the gas phase is transferred to the liquid phase, so as to achieve the purpose of separation. It is also a kind of mass and heat transfer device widely used in laboratory and petrochemical production.
Technicai Data
HFT SPECIFICATION - 1
| Model | HFT-1 | HFT-2 | HFT-5 | HFT-10 | HFT-20 |
| Column Volume(L) | 1 | 2 | 5 | 10 | 20 |

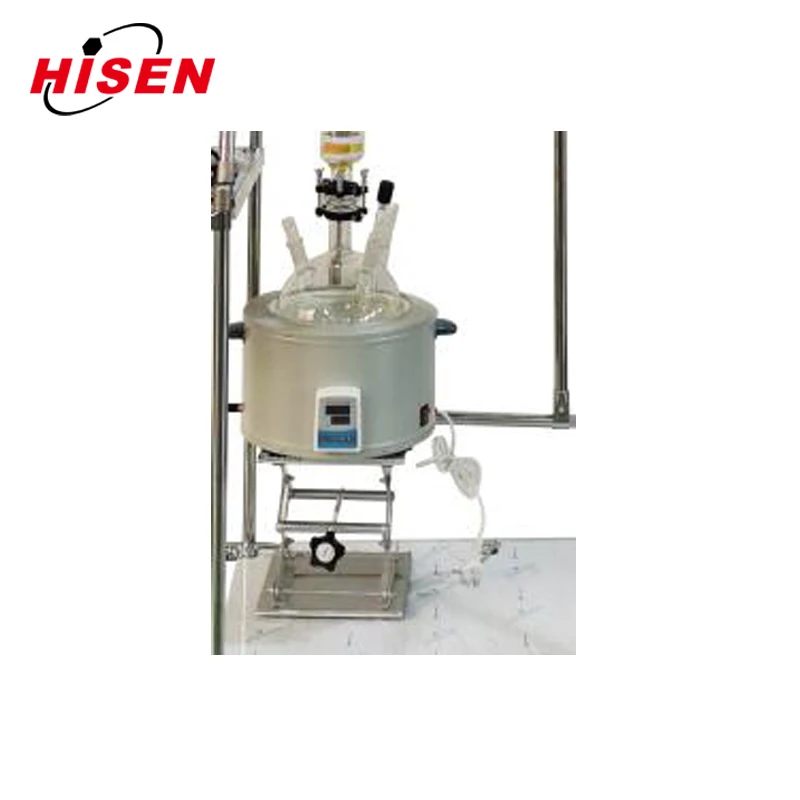

| Stirring Heating Mantle | 1000ml | 2000ml | 5000ml | 10000ml | 20000ml |
| Distillation Head Interface | DN32 | DN40 | DN40 | DN50 | DN60 |
| Thermometer Sleeve Interface | 24/40 | ||||
| Feeding Valve Interface | 24/40 | ||||
| Airway Interface | 24/40 | ||||

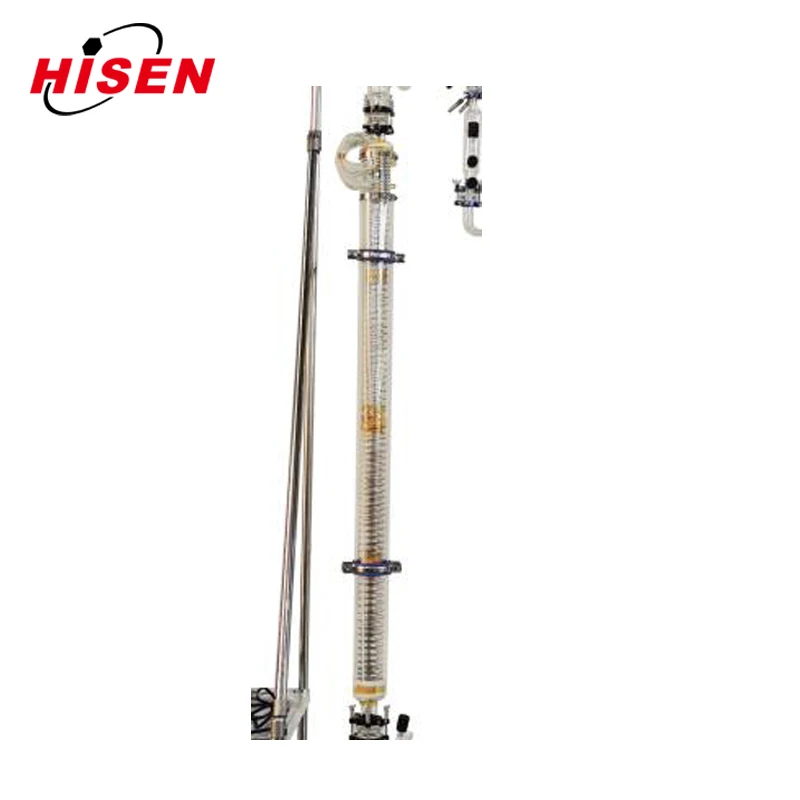

| Distillation Tower Height | 1500mm, Customizable | ||||
| Vacuum Sampler | DN25 | ||||
| Sampling Method | Magnetic Steel Adsorption | ||||

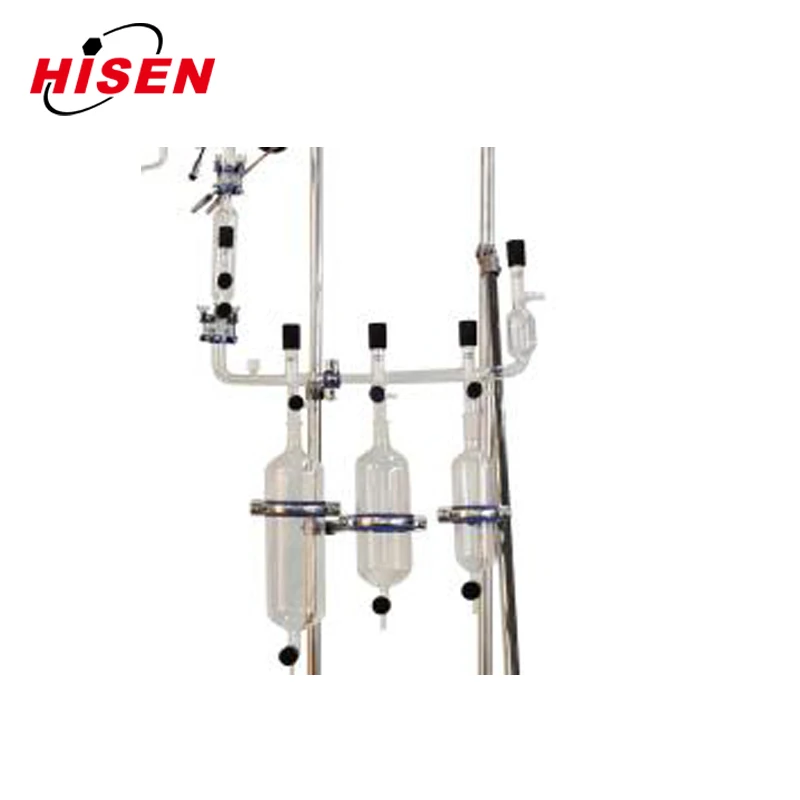

| Liquid Separator | 24/40, Customizable Separate Quality | ||||
| Reflux Ratio Controller | Digital Display Reflux 1:99 / 99:1 | ||||
| Electromagnet | 24V Strong Magnetic, Rectification Head Reflux Ratio Control | ||||

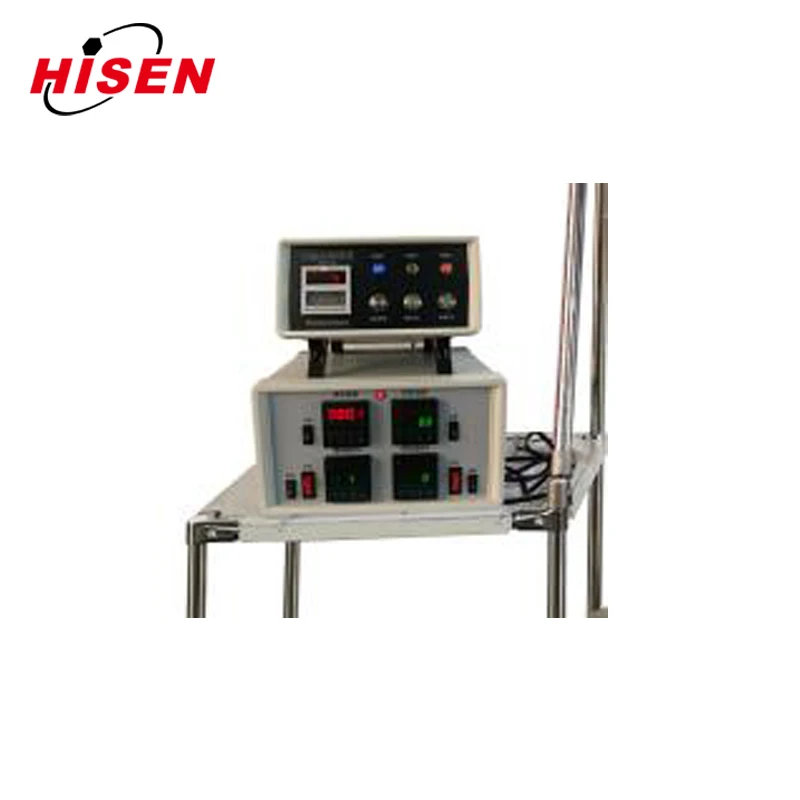

| Distillation Temperature Control Table | Two-Way Digital Display-Four-Way Temperature Control | ||||
| Lifting Platform | 202 Stainless Steel | ||||
| Frame Material | 304 Stainless Steel | ||||
Dimension (L*W*H/mm) | 1300*500*3000 | 1300*600*3000 | 1300*600*3000 | 1500*600*3100 | 1500*800*3100 |
| Weight(KG) | 55 | 55 | 62 | 85 | 105 |
HFT SPECIFICATION - 2
| Model | HFT-30 | HFT-50 | HFT-100 | HFT-150 | HFT-200 |
| Column Volume(L) | 30 | 50 | 100 | 150 | 200 |
| Stirring Heating Mantle(L) | 30 | 50 | 100 | 150 | 200 |
| Distillation Head Interface | DN60 | DN100 | |||
| Thermometer Sleeve Interface | 24/40 | ||||
| Feeding Valve Interface | 24/40 | ||||
| Airway Interface | 24/40 | ||||
| Distillation Tower Height | Customized on demand | ||||
| Vacuum Sampler | DN25 | ||||
| Sampling Method | Magnetic Steel Adsorption | ||||
| Liquid Separator | 24/40, Customizable Separate Quality | ||||
| Reflux Ratio Controller | Digital Display Reflux 1:99 / 99:1 | ||||
| Electromagnet | 24V Strong Magnetic, Rectification Head Reflux Ratio Control | ||||
| Distillation Temperature Control Table | Two-Way Digital Display-Four-Way Temperature Control | ||||
| Lifting Platform | 202 Stainless Steel | ||||
| Frame Material | 304 Stainless Steel | ||||
Dimension (L*W*H/mm) | Customized on demand | ||||
Please contact with us to get further detain information for the equipment, or please just let us know your required production capacity, we will recommend you the fit model or customized for you.
