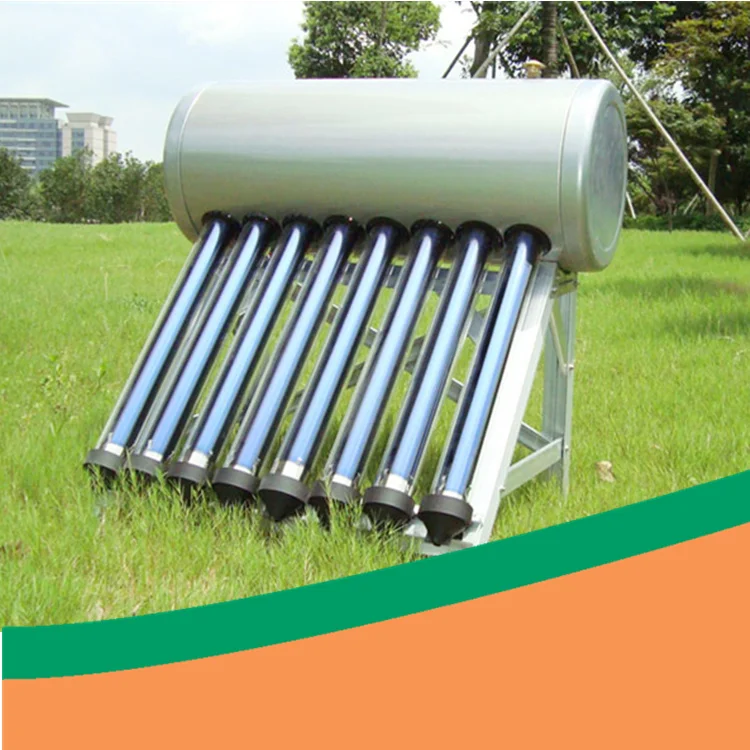

small sample Solar geysers , home solar water heater system stainless steel, termotanque solar

 Water Tank

 Inner Tank

Food-grade stainless steel SUS304-2B/SUS316, 0.5mm, diameter 360mm/380mm

 Outer Tank

Painted steel(Galvanized steel)/Stainless steel, 0.4mm

Diameter 460mm/480mm

 Insulation

 High-density polyurethane foam 50mm

Vacuum Tube

High borosilicate 3.3 glass with three-target (CU/SS-ALN(H)/SS-ALN(L)/ALN) coating, 58*1800mm, glass thickness 1.6mm±0.15mm

Bracket

Shaped strong painted steel(galvanized steel)/stainless steel/aluminium alloy, 15°/25°/38°/45° angle

Inlet&Outlet

Male 1/2" or 3/4"

Working

Pressure

0.05 Mpa

Accessories

Electrical heater, magnesium anode, intelligent controller, ASSISTANT TANK

Model

Vacuum Tube

Capacity/Liter

Container Loading

Qty/Sets

Qty/Pcs

Size/MM

20GP

40HQ

BS-NP-10

10

Φ58*1800

100

72

174

BS-NP-12

12

Φ58*1800

120

61

148

BS-NP-15

15

Φ58*1800

150

50

121

BS-NP-18

18

Φ58*1800

180

41

100

BS-NP-20

20

Φ58*1800

200

37

91

BS-NP-25

25

Φ58*1800

250

32

77

BS-NP-30

30

Φ58*1800

300

25

62
