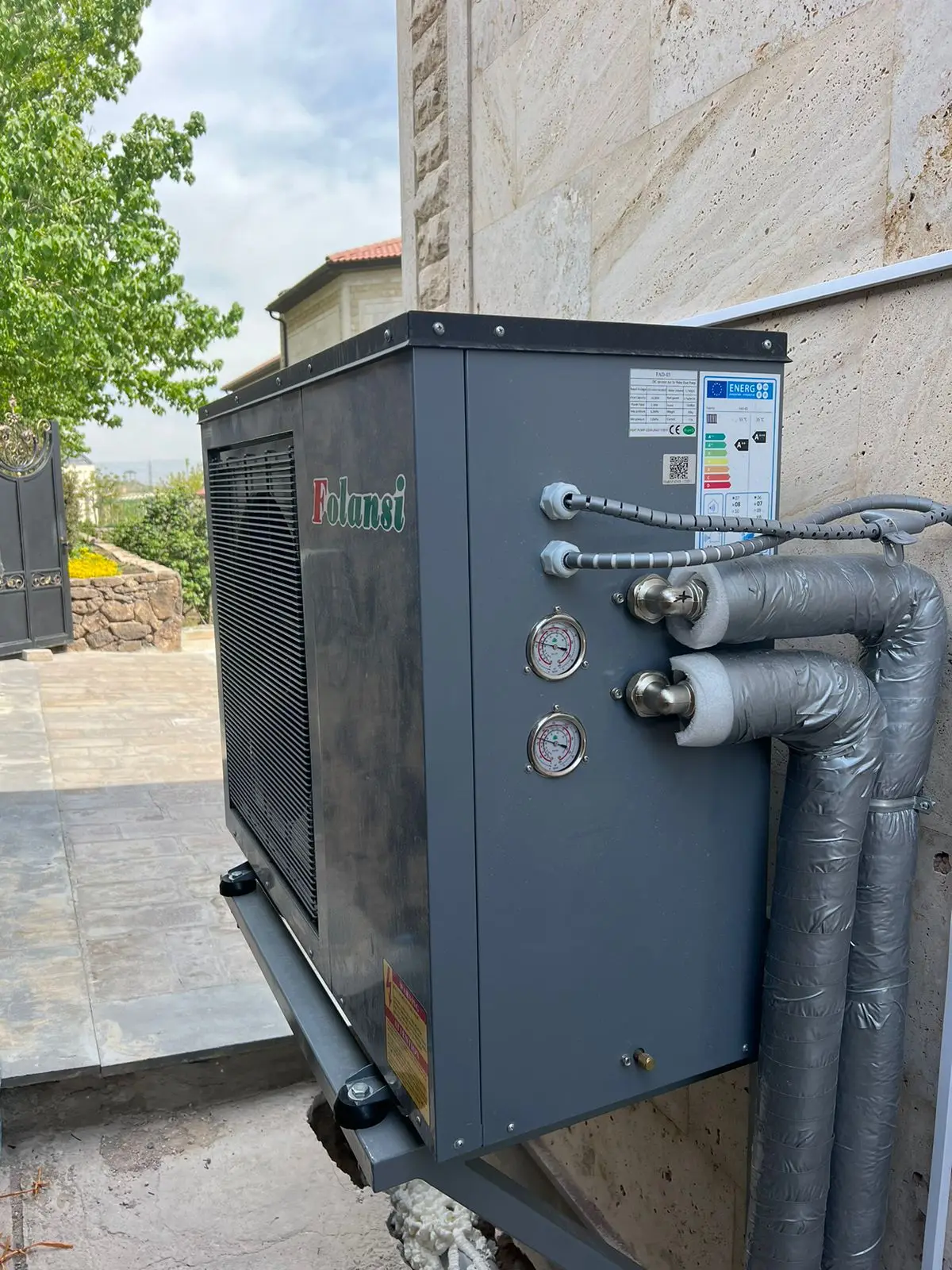

12KW Folansi WIFI DC Inverter Air source heat pump with TUV energy label A R32 heat pump
12KW Folansi WIFI DC Inverter Air source heat pump with TUV energy label A+++ R32 heat pump
12KW Folansi WIFI DC Inverter Air source heat pump with TUV energy label A+++ R32 heat pump
12KW Folansi WIFI DC Inverter Air source heat pump with TUV energy label A+++ R32 heat pump
12KW Folansi WIFI DC Inverter Air source heat pump with TUV energy label A+++ R32 heat pump
12KW Folansi WIFI DC Inverter Air source heat pump with TUV energy label A+++ R32 heat pump
12KW Folansi WIFI DC Inverter Air source heat pump with TUV energy label A+++ R32 heat pump

12KW Folansi WIFI DC Inverter Air source heat pump with TUV energy label A R32 heat pump

Share on (1600258669237):


Price:$1,268.00 - $1,298.00

Quantity:


Product Overview

Description








































































































































































































































DC Inverter Air to Water heat pump( TUV A+++  energy lable)
ModelFAD-03FAD-04FAD-05FAD-05FAD-10
Technical ParametersMax. heating capacitykW1216.819.820.231
Min. heating capacitykW4.15.86.56.511.3
Rated heating capacitykW913151525
Rated heating power inputkW2.13.053.533.515.94
COP 4.29 4.26 4.25 4.27 4.21
Rated cooling capacitykW6.59.110.810.917.8
Rated cooling power inputkW2.253.253.833.826.32
EER 2.89 2.80 2.82 2.85 2.82
Max. water temp.℃60
Rated water temp.℃55
water flowm3/h1.50 2.20 2.60 2.60 4.30
pressure dropKpa22 26 28 28 34
Net weightkg90105124126210
Gross weightkg105120142144230
NoisedB(A)4850525258
Pipe connectionmm1"1.2"
Power supply 220V/1PH/50Hz380V/3PH/50Hz
Net sizemm1110*450*8501080*430*9401110*450*12501110*450*12501110*450*1250
Package sizemm1200*520*9901180*500*10801200*520*13901200*520*13901200*520*1390
Standard FeaturesCompressorbrandMitsubishi
quantity1
Condenserplate heat exchanger
EvaporatorLouverd&hydrophilic fin-tubes
Flow switchYes
Circulation pumpBuilt-in energy clasee A water pump
Expansion valveElectionic expansion valve
DC Fan motor80W170W80W*280W*2170W*2
High pressure switch4.2/3.6MPa
Low pressure switch0.02/0.15MPa
Working modecooling, heating, hot water, cooling+hot water, heating+hot water
RefrigerantR410A
Remark1,Working temp.:-25℃~43℃
2,Test condition:heating mode Ambient temp.:7℃/6℃,inlet/ outlet water temp.:30℃/35℃;
                               cooling mode Ambient temp.:35℃/24℃,inlet/ outlet water temp.:12℃/7℃

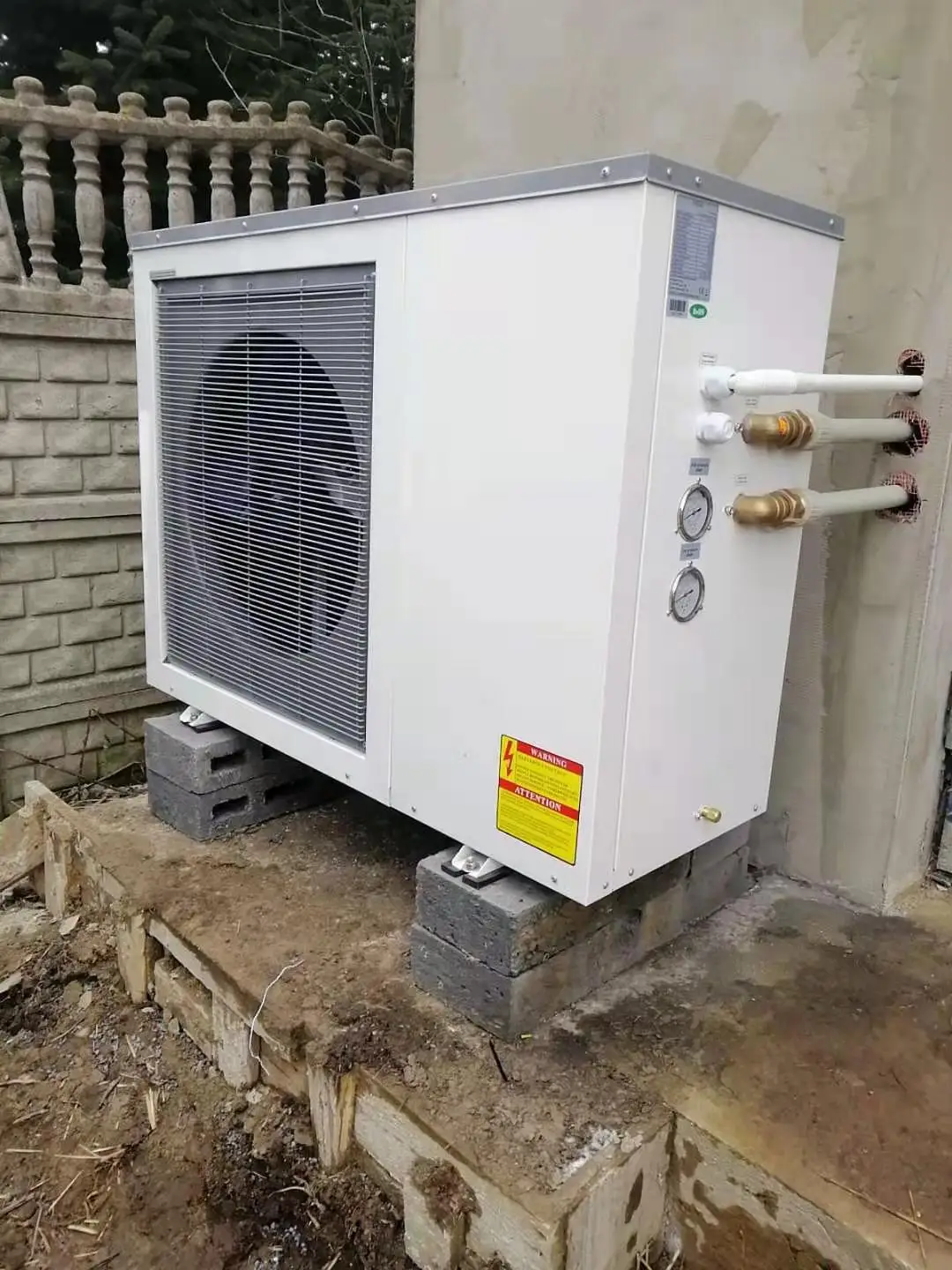

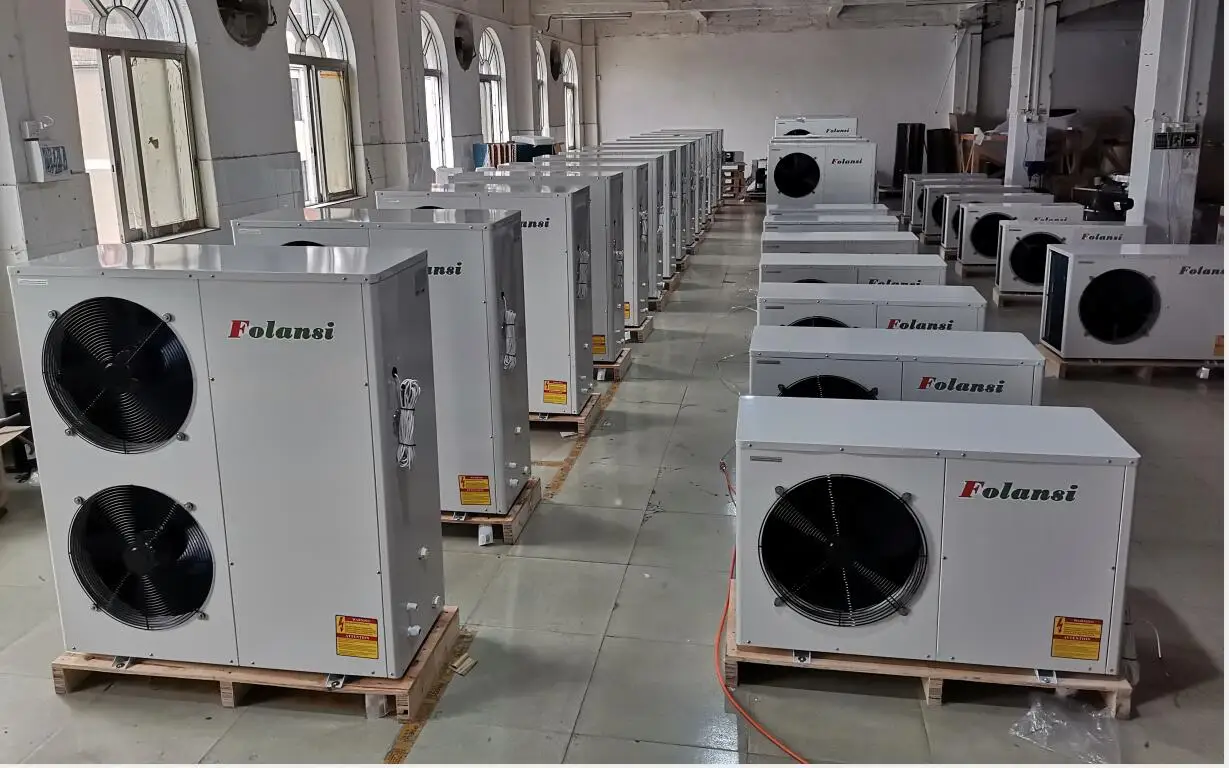

TUV energy lable.png_20210219172106.png_20210305180802.jpgQQ20200527163652.jpg
