Steel Coil Slitting Line Metal Processing Machinery
It is a complete line to slit the big steel coil into strips and then rewinding by PLC , it can slit various
size you need. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc..
size you need. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc..

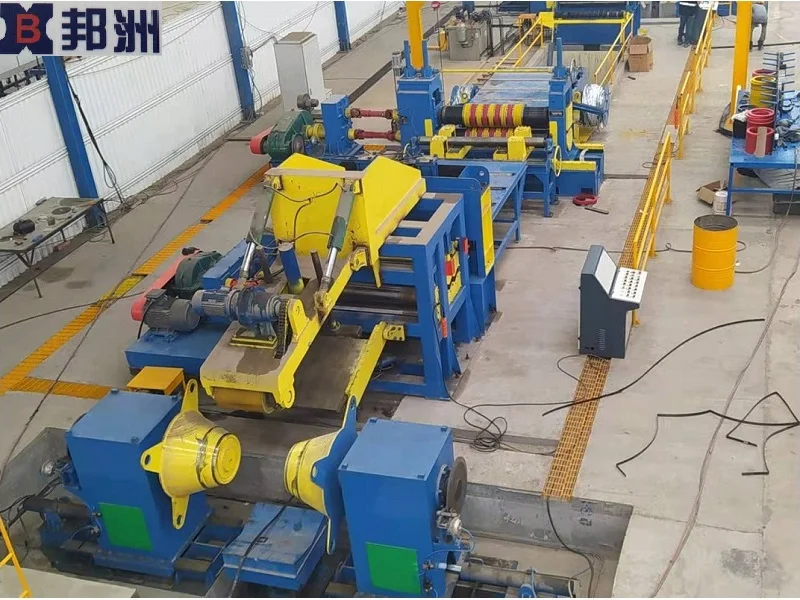

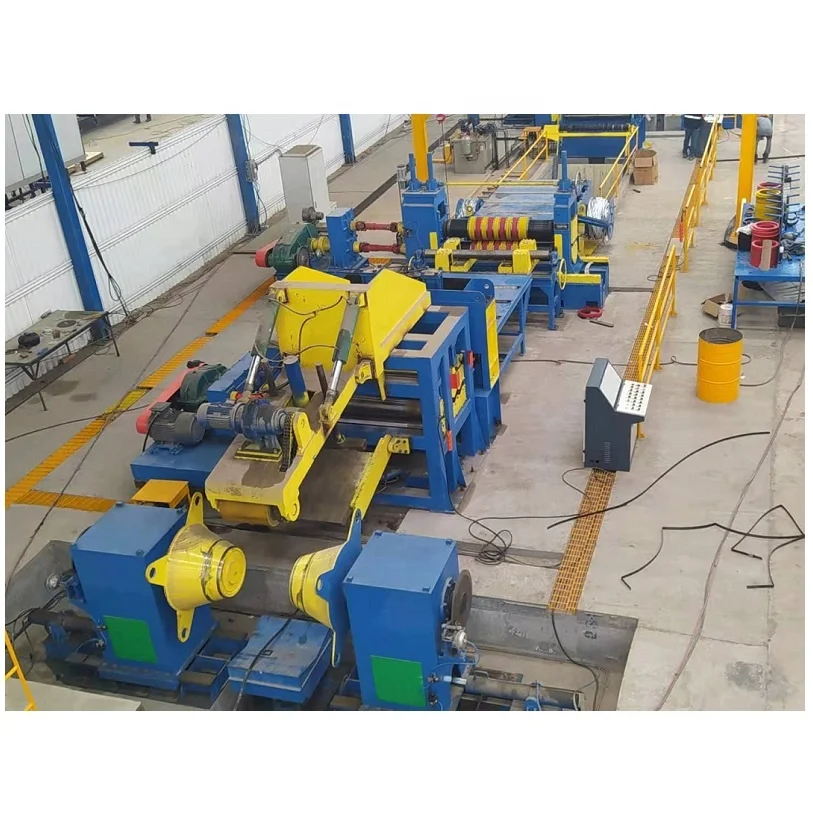

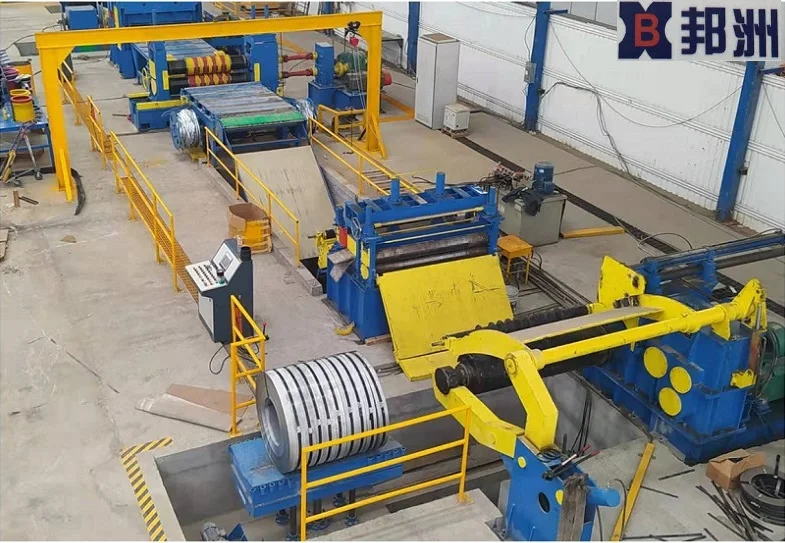

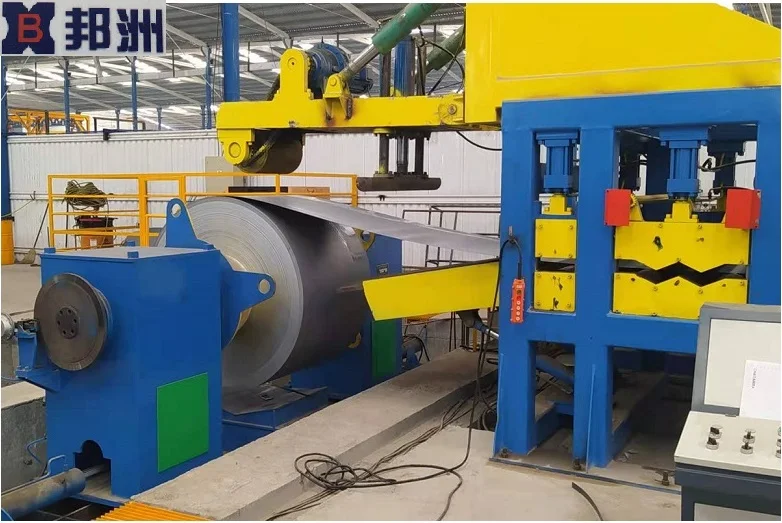

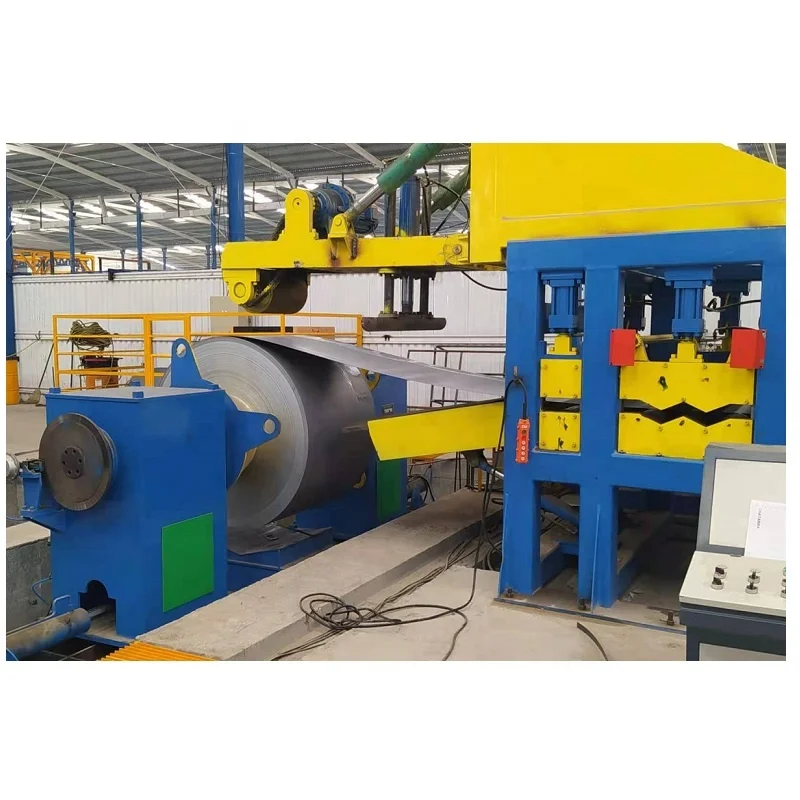

Steel Coil Slitting Line Metal Processing Machinery is composed as coil car, double head decoiler(25T capacity), pinch device, head cutter, slitter, scrap winder, tension stand , recoiler and exit coil car.The speed can be max 80m/min
Product Paramenters
Standard specifications of automatic slitting line(if other size,can be customlized)
Model | Thickness(mm) | Width(mm) | No. of slitting | Tolerance(±mm/m) | Speed(m/min) | Weight(T) |
ZJX-2X650 | 0.2-2 | 100-650 | 10-30 | ±0.05 | 0-120 | 10 |
ZJX-2X1250 | 0.2-2 | 500-1250 | 10-30 | ±0.05 | 0-120 | 10、15 |
ZJX-3X1250 | 0.3-3 | 500-1250 | 65-30 | ±0.05 | 0-120 | 10、15 |
ZJX-3X1600 | 0.3-3 | 500-1600 | 5-30 | ±0.05 | 0-120 | 15、20 |
ZJX-4X1600 | 0.5-4 | 500-1600 | 5-30 | ±0.05 | 0-100 | 20、25 |
ZJX-6X1600 | 1-6 | 500-1600 | 5-20 | ±0.1 | 0-80 | 20、25 |
ZJX-8X2000 | 3-8 | 800-2000 | 5-15 | ±0.1 | 0-40 | 25、30 |
ZJX-10X2000 | 3-10 | 800-2000 | 5-10 | ±0.1 | 0-40 | 25、30 |
ZJX-12X2000 | 4-12 | 800-2000 | 5-10 | ±0.1 | 0-30 | 25、30 |
ZJX-16X2200 | 6-16 | 800-2200 | 4-8 | ±0.1 | 0-20 | 30、35 |
Details Images

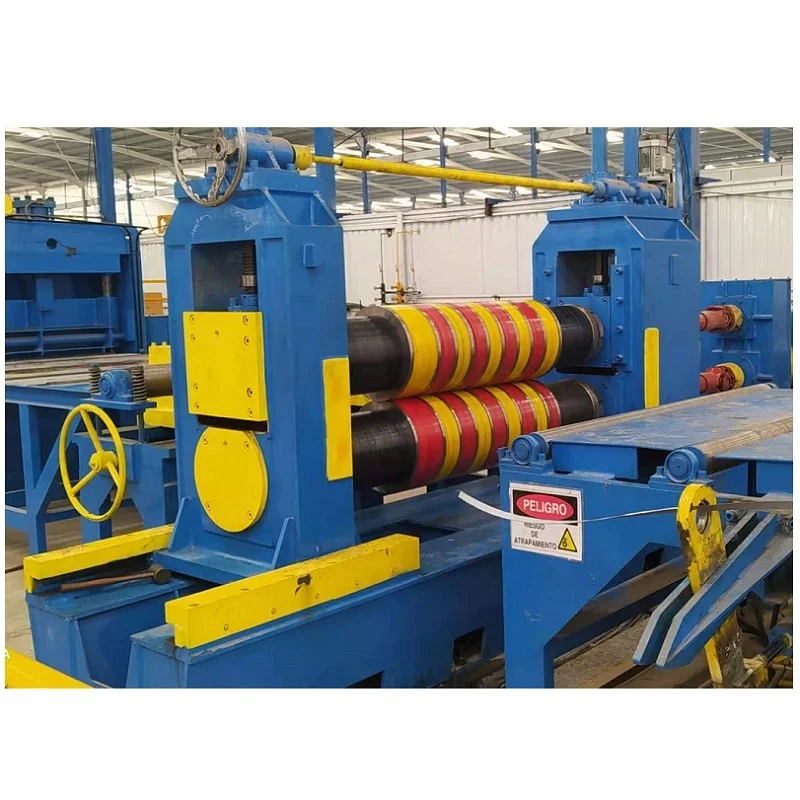

Slitter
Composed of bottom-stand, fixed bracket, big slide, knife pivot, movable bracket, slide, the front and back adjustable device of bracket, knife pivot lifting and pressing down adjustment device.
It is the important part to slit good-quality coil strips
Can slit the different size according as blade adjustment

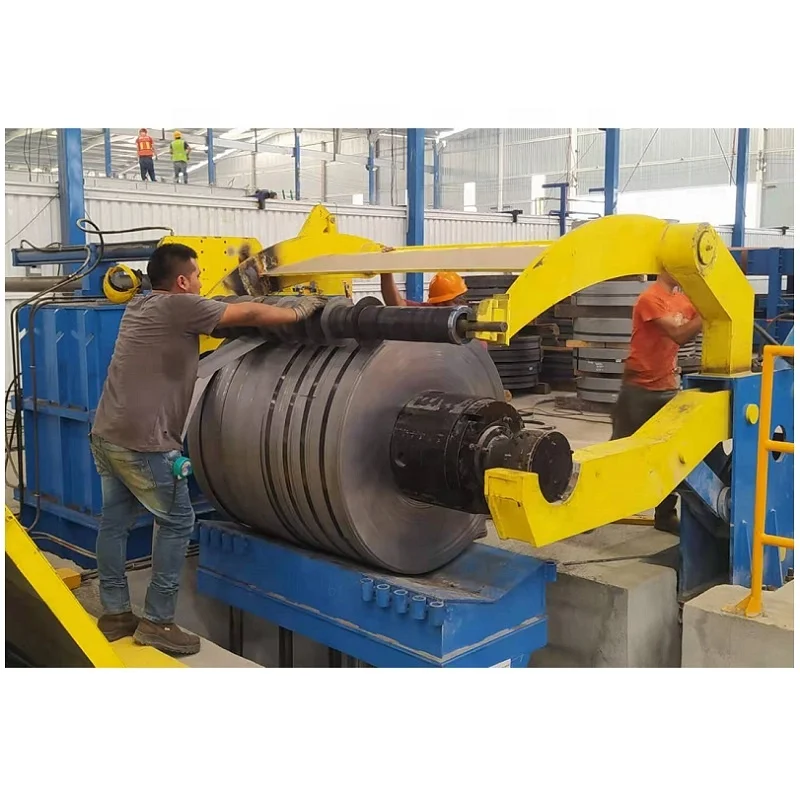

Recoiler
Designed with 8-fan-shaped plates which can be a round circle and machining as a whole to ensure the recoiling quality.
Designed with clip mouth and clip the strips heads.
Designed with the hydraulic press arm equipped with the spacers to guarantee the even rewinding quality.
Product packaging
*Rollers and gears will be anti-rusty treatment to protect the rollers and gears.
*All the spare parts will be collected into the homemade iron boxes.
* We use BELT to fix the Slitting Machine parts with the container;
* In addition, used shockproof film to protect the main motors.
* We use the container to deliver goods to our customer. Generally speaking, we start at SHANGHAI port, but we also can start at other port according to customer's need.
* In addition, used shockproof film to protect the main motors.
* We use the container to deliver goods to our customer. Generally speaking, we start at SHANGHAI port, but we also can start at other port according to customer's need.
Company Profile
WUXI BANGZHOU MACHINERY MANUFACTURING CO.,LTD
Established in 2010 , Wuxi Bangzhou Machinery Manufacturing Co.,Ltd is located in Wuxi city, near Shanghai international airport.
We are the manufacturer specialized in steel coil straightening machine, slitting line machine, cut to length line and flat bar straightening and chamfering machine. These parts are widely used in the steel industries, mainly for the steel factory, and tube mill factory and roll forming machine factories.
We are professional in designing and producing all kinds plates processing machines. At present, we have own team of design, production and sales. We can provide our customers with one-stop and high quality service.
We are professional in designing and producing all kinds plates processing machines. At present, we have own team of design, production and sales. We can provide our customers with one-stop and high quality service.

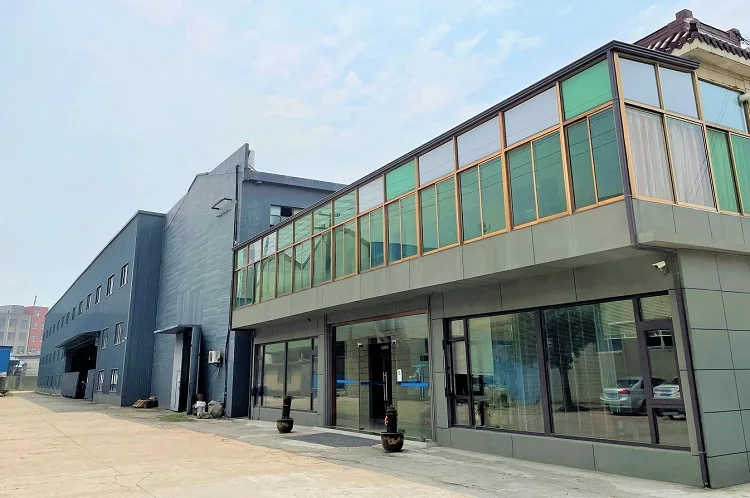

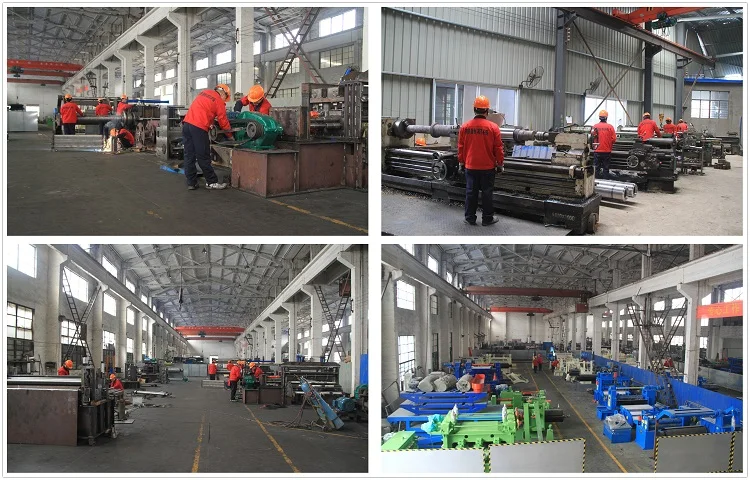

Below are our factory scene photos. If want know more about us, please contact us.
Certifications
Customer Photos
Our compnay will attend professional exhibition of this industry every year.
Always welcome to visit our factory.
Customer feedback
We will visit customers periodically to keep good relationship and ask the use sense of machine
Customer feedback
We will visit customers periodically to keep good relationship and ask the use sense of machine
FAQ
What is your advantages?
A1:More than 15 years experience in manufacturing the machines. Professional and humanized .
A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.
A3: Can produce 3-4 lines per month.
Do you have after sales support?
Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any problem , contract us and we will solve for you.
How to visit your company?
Our factory is located in Wuxi city, near Shanghai. So there are two ways to our city. One is by flight, direct to Wuxi Airport.
Another is by train, direct to Wuxi station or Wuxi East Station. We will pick you up at the station or airport
Another is by train, direct to Wuxi station or Wuxi East Station. We will pick you up at the station or airport
What information you need to prepare the quotation?
1. coil thickness(min-max)?
2. coil width(min-max)?
3. what is your steel material ?
4. weight of your coils(max)?
5. how many pieces need to slit for max thickness?
6. how many tons you need per day or per month?
2. coil width(min-max)?
3. what is your steel material ?
4. weight of your coils(max)?
5. how many pieces need to slit for max thickness?
6. how many tons you need per day or per month?
