Product Overview

Description

Product Information

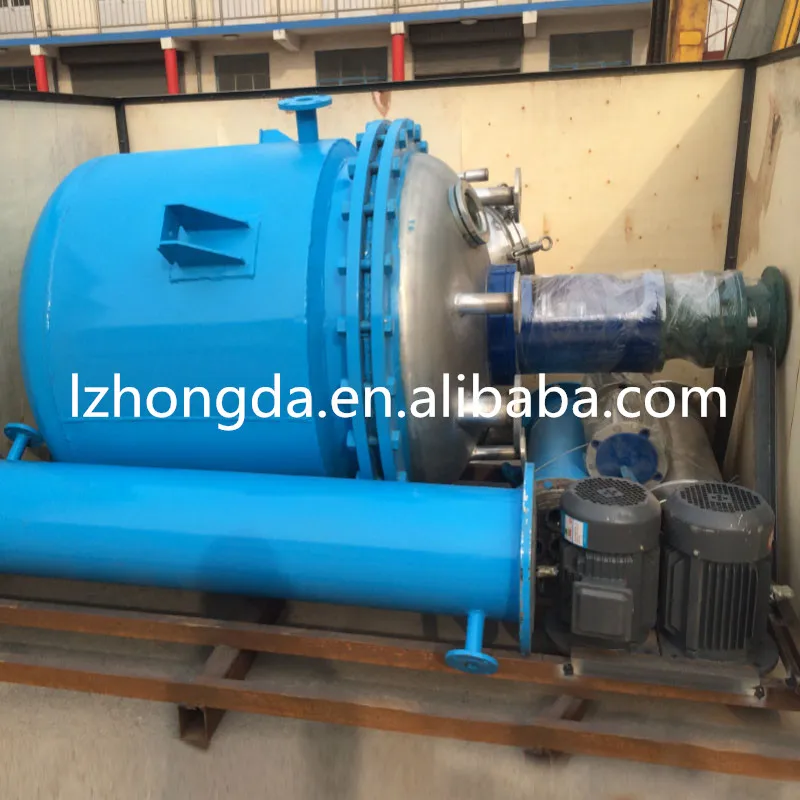

Hot Sale Soybean Oil Fatty Acid For Alkyd Resin Reactor for unsaturated polyester, phenolic, epoxy, ABS, paint





Detailed Information

• Volume: 50-10000L


• Material: SS304, SS316L, Carbon Steel


• Application: petroleum, rubber, dye, medicine, food, resin, coating, paint, adhesive, pigment, pesticide, silicone oil, printing ink, glue, white latex etc.


• Sealing type: Mechanical Seal or Packing Seal


• Agitator type: Anchor type, Frame type, Paddle type, Impeller type, Vortex type,  Propeller type, Turbine type, Push-in type or Bracket type


• Heating method: Electric, steam or outer coil.

Technical Datas for Reactor

Nominal Capacity L Actual Capacity L Electrical Heating Power (kw*pcs) Oil Amount in Jacket L Inner Pot Size φmm Outer Pot Size φmm Expander Capacity L Motor Power kw Speed of Stirring n/min Weight kg 50 78 2*4 96 400 600 10 1.1 80 270 100 127 2*6 127 500 700 10 1.1 80 340 300 327 4*6 218 800 1000 20 2.2 80 700 500 509 4*9 269 900 1100 20 3 80 930 1000 1017 4*12 400 1200 1400 40 4 80 1610 2000 2154 4*15 850 1400 1600 40 5.5 80 2010 3000 3201 4*15 1015 1600 1750 40 7.5 80 2590 4000 4020 5*15 1226 1600 1750 40 11 80 3160 5000 5170 4*18 1400 1800 2000 40 15 80 4000

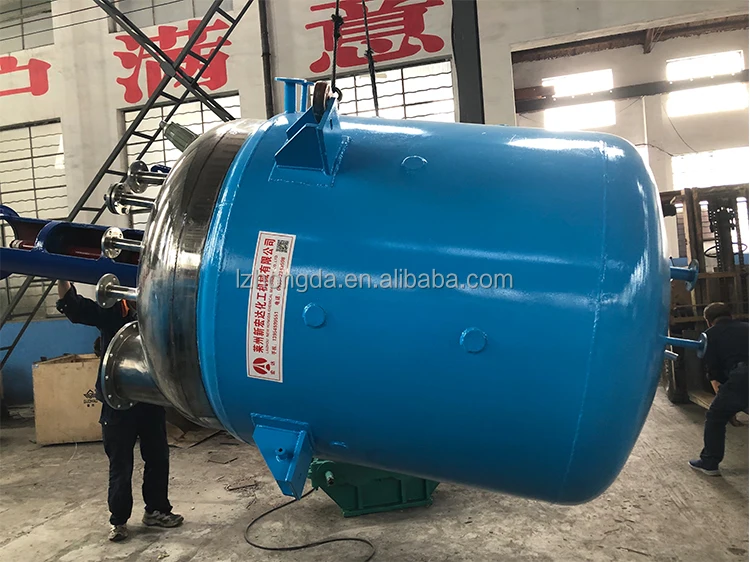

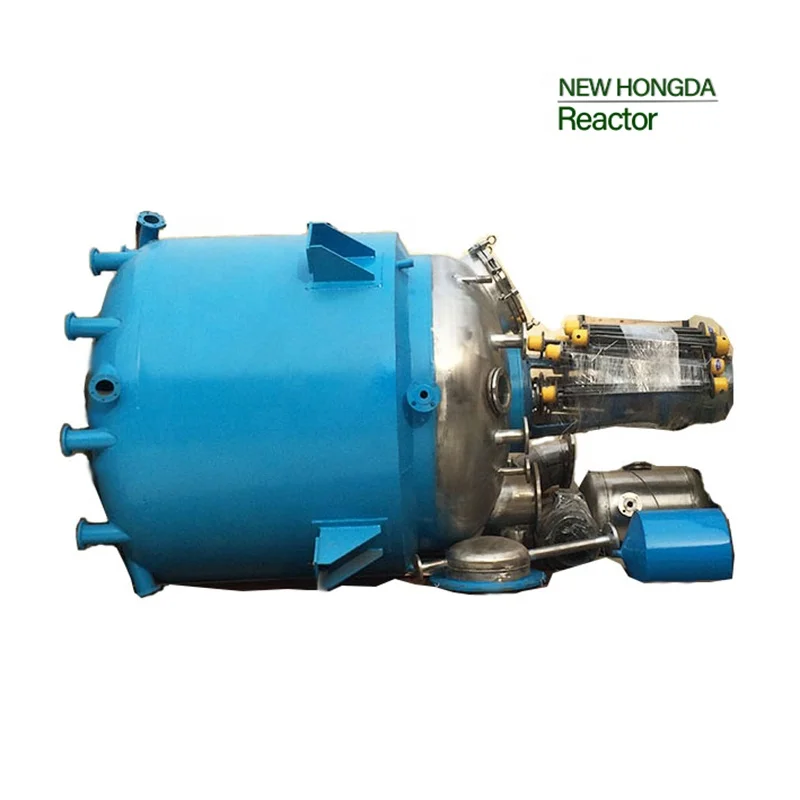

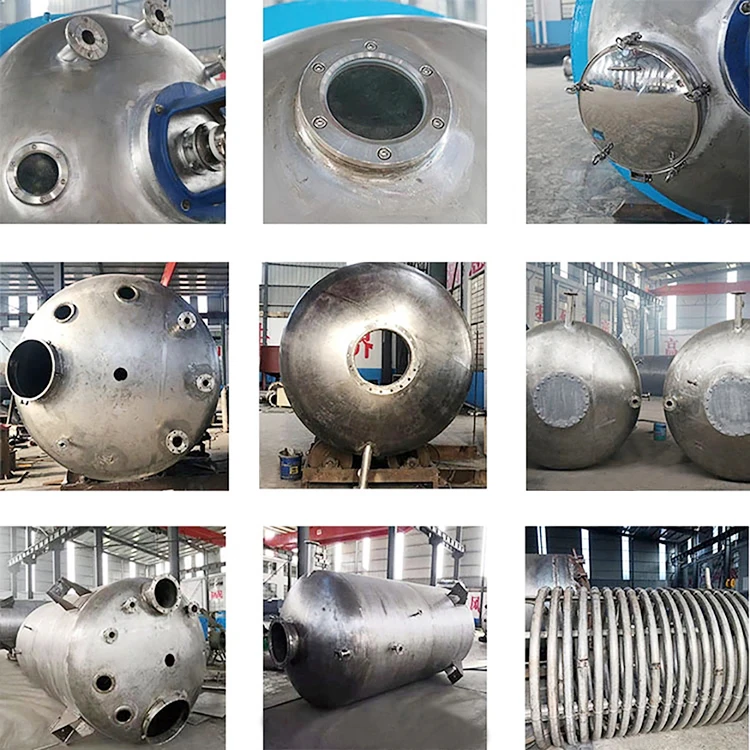

Detailed Images

  Condenser Data

Reactor (L)	Packing volume (m³)	Vertical cooling area (m²)	Horizontal cooling area (m²)	Water storage tank (L)
50	0.002	0.1	0.29	8
100	0.005	0.19	0.58	30
300	0.01	0.22	1.49	53
500	0.015	0.38	2.08	70
1000	0.025	0.62	3.17	140
2000	0.042	1.06	5	245
3000	0.063	1.52	10	346
4000	0.086	1.86	15	400
5000	0.096	2.07	20	500

 Tube Condensor Data

Specification(m²)	0.3	0.6	1.0	1.5	2	3	4	5	6	8	10	15
Effective length(mm)	550	600	1000	1000	1400	1500	1500	1600	1800	2000	2200	2100	2100
Outside diameter(mm)	150	180	180	210	220	270	270	300	300	350	400	500	500

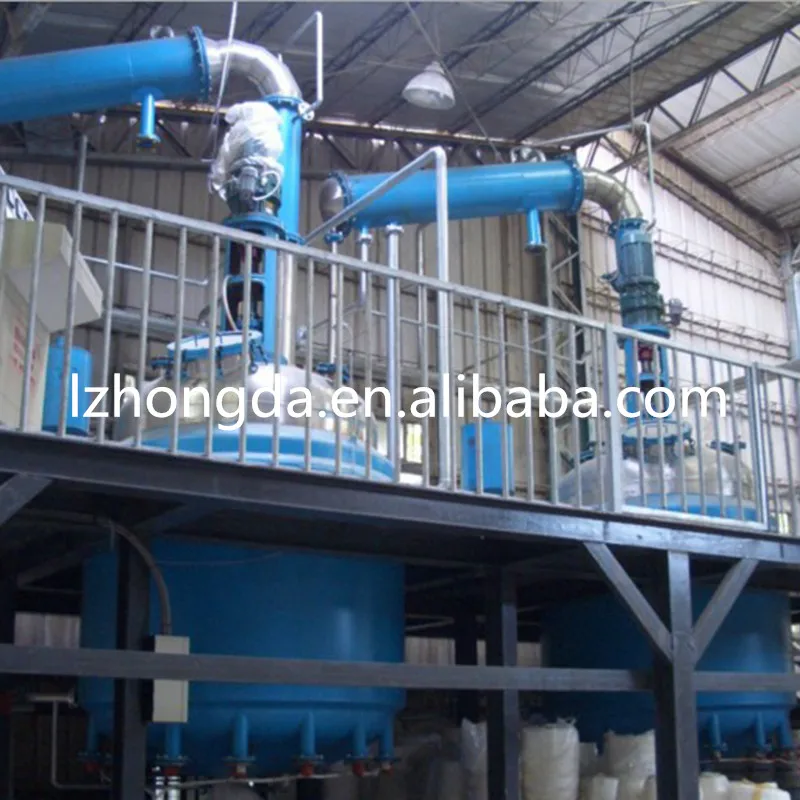

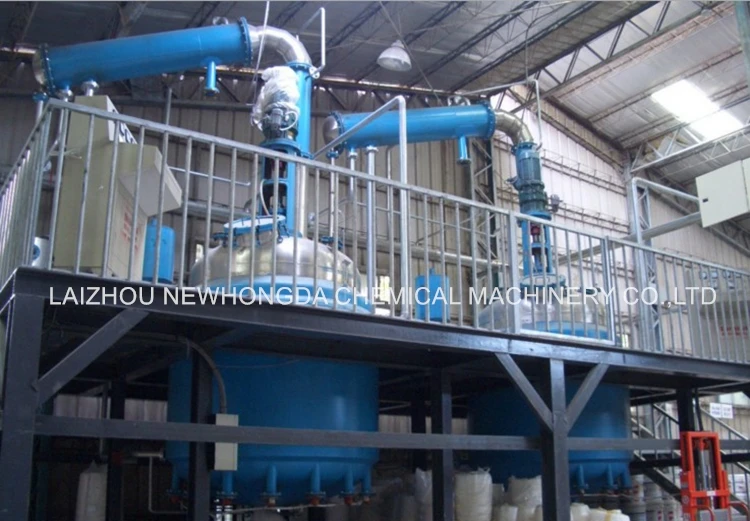

Process Technology



Application

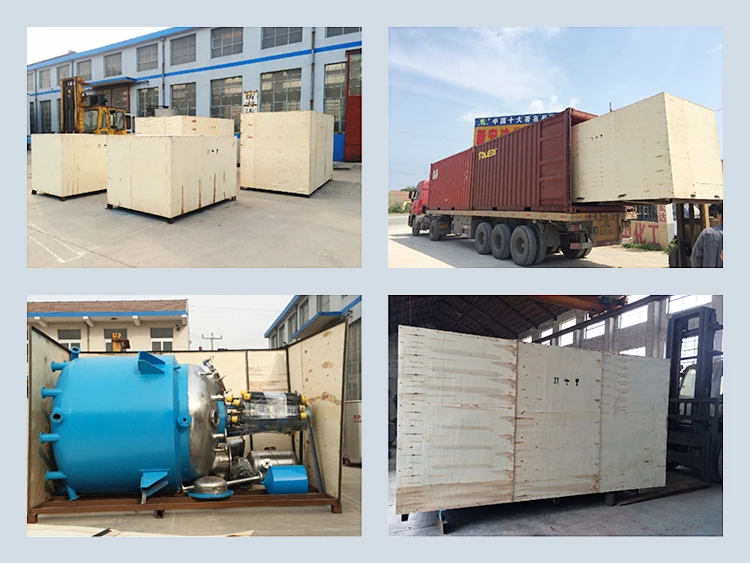

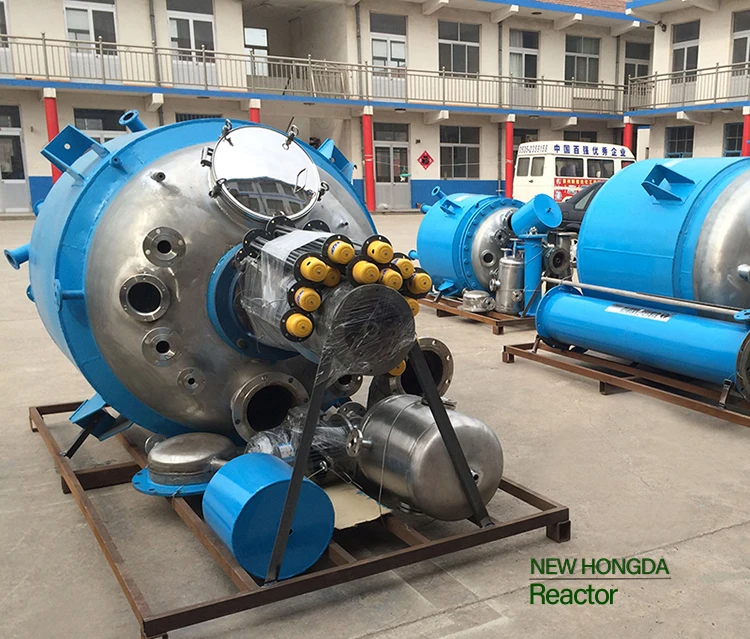

Packaging Information

 Standard strong export plywood case, pallet for equipment, or as per customer’s requirements.

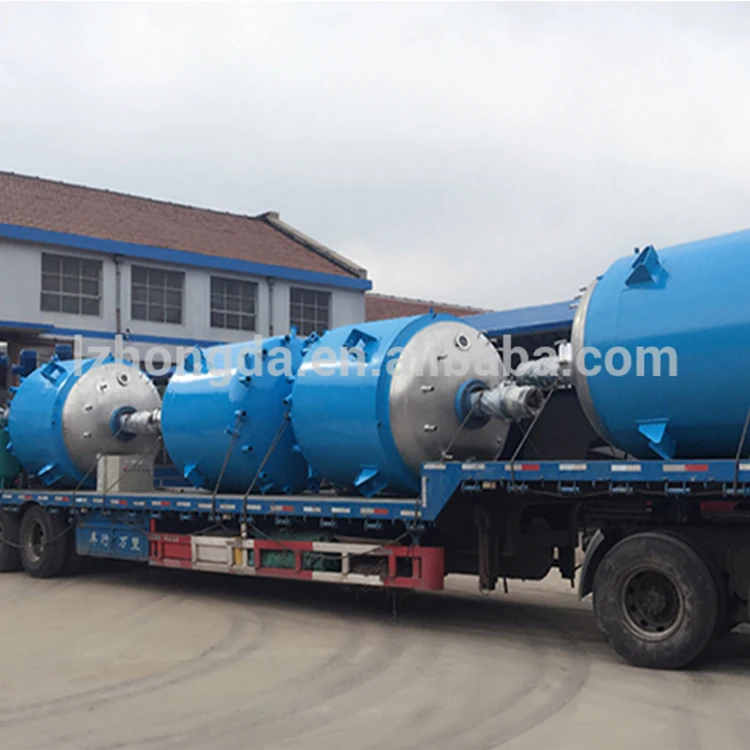

Delivery Information



About delivery approach

A: By sea or by air, detailed delivery approach could be discussed.



About delivery time

A: Usually it takes about 15-30 working days after we receive your PO cand pre-payment. However, it would depend on our production schedule and the complexity of the equipment.



About trade term

A: Usually we send the equipment in FOB term, however, the CIF is also acceptable, which could be decided by customers.



Payment Information

 By T/T in Advance, or Irrevocable L/C at Sight. The trade will be guaranteed by Alibaba.

 The equipment could be customized, welcome to consult us to know more details about the price, packing and delivery information.

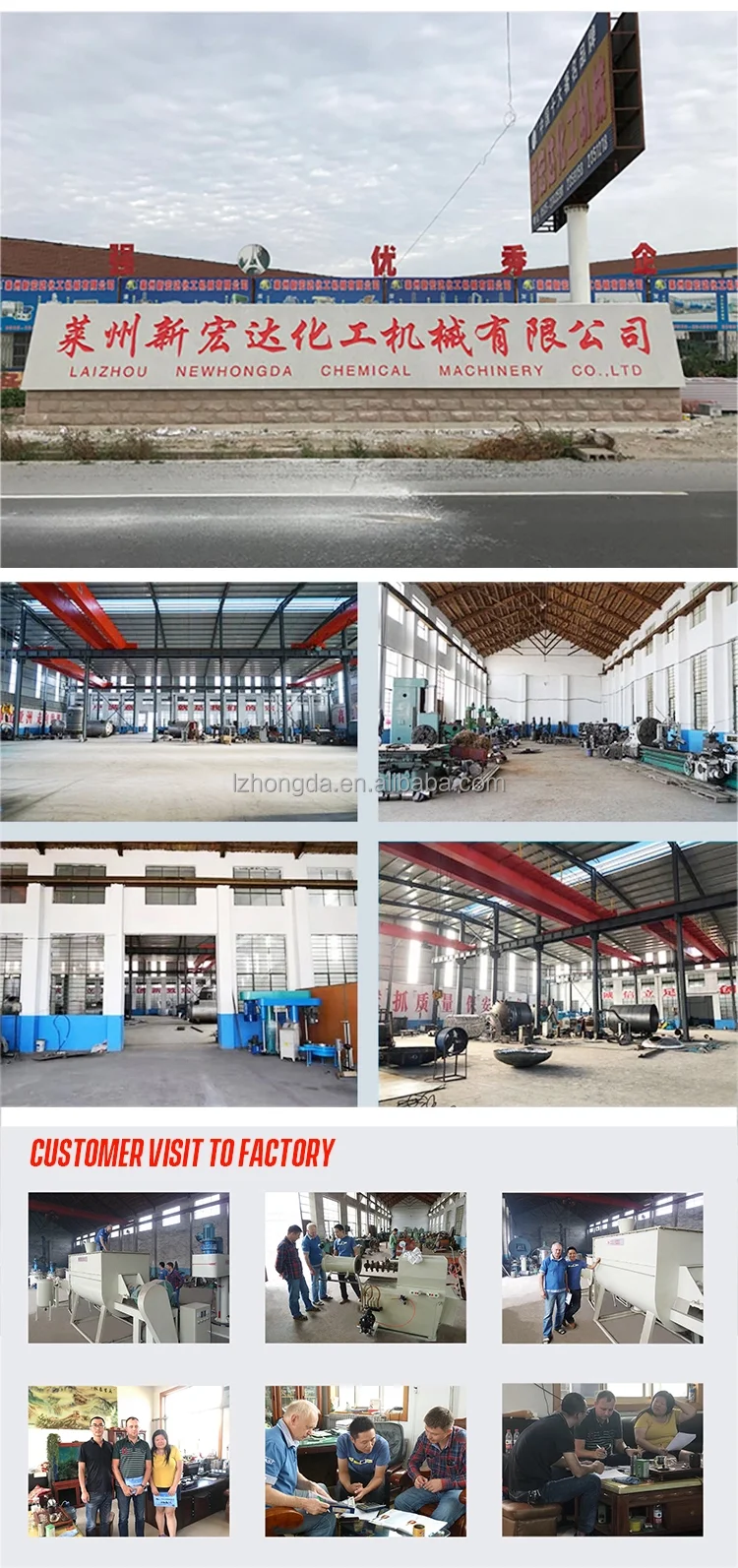

Company Profile



In 1996, New Hongda Chemical Machinery Co., Ltd. was founded by Wang Zhongren in Laizhou, which is located in the coast of Laizhou Sea. New Hongda Corporation is focused on its mission of providing solutions to our Machinery Product customers that yield superior productivity and return on investment.



Over the last 20 years, New Hongda Corporation has evolved from a regional marketer of chemical machinery equipment in China to the a global competitive manufacturer of complete product varieties/series and services delivering lifecycle solutions that maximize customer return on investment. Major products include Complete Resin Production Line, Complete Paint & Coating Production Line, Complete BMC/SMC Production Line, Complete Adhesive Production Line, Dry Mortar Production Line, various specifications and types of Reactor, Dispersion, Grinder, Mixer, Kneader, Filter, Emulsification and other sets of equipment. These products serve a broad range of industries, including cosmetics, metallurgy, food-processing, pharmaceuticals, fodder, paper, paint, resin, construction, fertilizer and chemical industries.

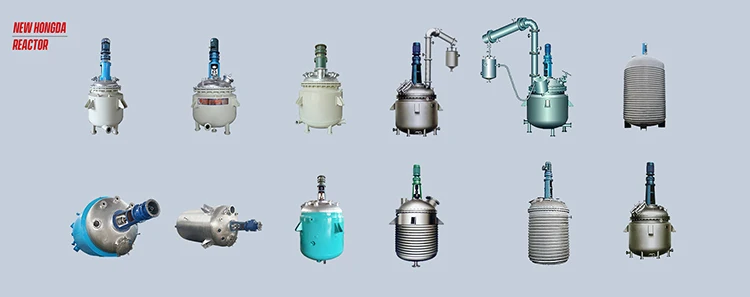

We can customize different specifications of reactors according to customers’ requirement. There are more than 10 series product catalogs and engineer assistance for you, welcome to consult us to know more information about the details.

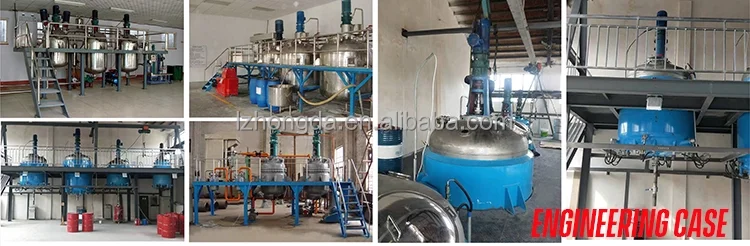

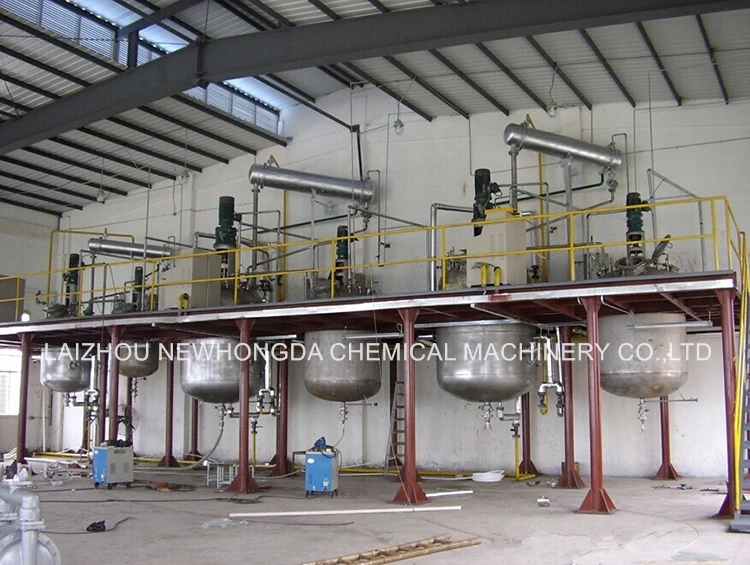

Engineering Case



Certification

Our complete quality - control system for products was certified by ISO9002 and CE listed.





Our Services

1. How about your advantages?

a. On time delivery.

b. More than 20 years experience.

c. Quality guaranteed and professional service.

d. OEM & ODM. Various design based on client’s requirements.



2. How to place order?

Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production ( 20-30 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.



3. Will you send us drawing of required machine for checking?

Yes, we’d like to send you our draft drawing of the required machine . After you place order, we shall send you details drawing

and technical parameters. Then shall put into production once you confirm the production.



4. Is there any quality warranty and after service?

The warranty period of mechanical portion of the equipment shall be a year after you receive the equipment, and help buyer installation and commissioning the equipment, and free training operator.



For more product details please click here and enter
