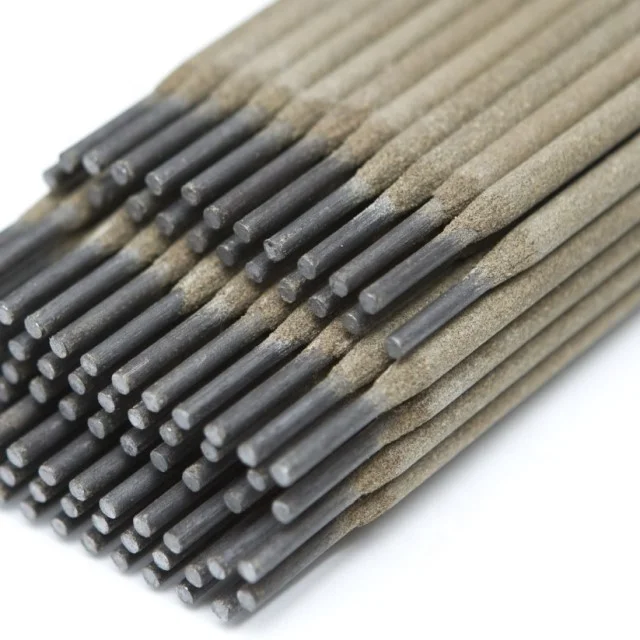

Deloro 50 Welding Rod Nickel Based Alloy
- Category: >>>
- Supplier: Wisdom Import & Export (shanghai) Co. Ltd.
Share on (1600259136302):
Product Overview
Description
Product Description
WD-Ni 50 is a hardfacing alloy for application by welding and the spray-fuse and powder-weld processes. It is machinable, and produces very hard dense corrosion resistant coatings with superior fusing characteristics. Should be considered where mild impact is possible, as it has lower crack sensitivity than WD-Ni 60. This is necessarily achieved by loss of some abrasion resistance. Hot hardness maintained to approximately 400°C. Used on extruder screw flights, wear rings, bearings, camshafts and diesel engine valve facings. Used to spray and fuse glass-forming plungers when high hardness is required.
Brand | Wisdom | Model Number | WD-Ni50 | ||
Form / Shape | Rod | Dimensions | DIA. 2.4, 2.6, 3.2, 4.0, 4.8, 5.0, 6.4, 8.0mm | ||
Process | OAW / TIG / ERW / Automatic | Application | Hardfacing & Wear-resistant Welding | ||
Equivalent | Deloro 50, Colmonoy 5, Weartech WT-50 | ||||
Certification | ISO 9001:2015 | Test Report | Signed & Stamped | ||
Free Documents | CO / GSP Form A E F P | Currency | USD/EUR/GBP/RMB | ||
Lead Time | Shipment within 10 days | Label | Brand, Neutral or Customized | ||
Specification
AWS / ASME: A5.21 / SFA5.21 ERNiCr-A | ||
Cold / Hot Abrasion | Excellent / Good | |
Erosion / Corrosion | Good / Good | |
Impact | Good | |
Magnetic | No | |
Deposit Layers | 2 Max | |
Machinability | Grinding | |
Max. Operating Temp. | 600 ºC | |
Chemical Composition (%)
Ni | Cr | B | Si | C | Fe | Others | Hardness | Density | Melting Range |
Bal. | 11 - 12 | 2.2 - 2.3 | 3.5 - 4 | 0.45 - 0.5 | < 5.0 | - | 47 - 55 HRC | 8.16 g/cm3 | 980-1060 ºC |
Forms & Grades

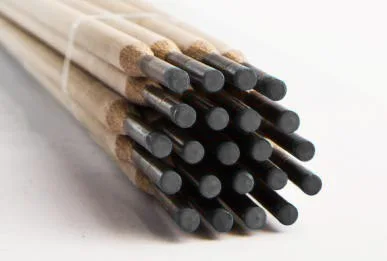

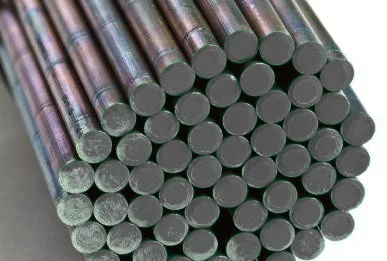

Bare Rod
Grade: Ni 40, 50, 55, 56, 60
Process: Oxy-acetylene / OAW, TIG / GTAW, ERW & other Automatic / Robotic system
DIA. (mm): 2.4, 2.6, 3.2, 4.0, 4.8, 5.0, 6.4, 8.0
DIA. (inch): 3/32, 1/8, 5/32, 3/16, 1/4, 5/16
LEN. (mm): 300, 350, 450, 500, 1000, 1500, 2000, 3000, 4000

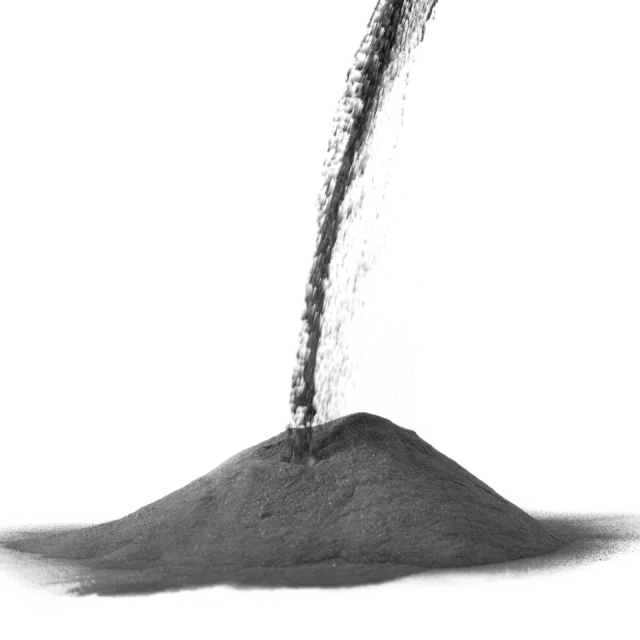

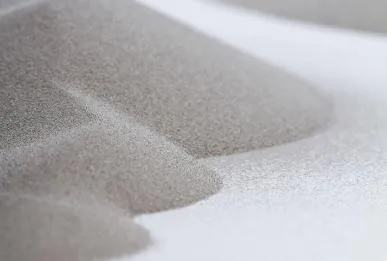

Powder
Grade: Ni 15, 21, 22, 25, 30, 35, 38, 40, 45, 50, 55, 56, 60
Process: PTA, HVOF, Laser Cladding, Plasma Spray, Spray-Fuse, Powder Welding
Particle Size (µm): 180/53, 180/63, 150/45, 150/63, 150/53, 125/38, 250/45, 210/63, 106/45, 106/38, 63/20, 106/20, 75/20, 45/20, 53/20
Particle Size (mesh): 80/270, 80/230, 100/325, 100/230, 100/270, 120/400, 60/325, 70/230, 140/325, 140/400, 230/635, 140/635, 200/635, 325/635, 270/635
Covered/Coated/Stick Electrode
Grade: Ni 40, 50, 55, 56, 60
Process: SMAW / MMA / MMAW
DIA. (mm): 2.4, 2.6, 3.2, 4.0, 4.8, 5.0
DIA. (inch): 3/32, 1/8, 5/32, 3/16
LEN. (mm): 300, 350, 450
Grade Color

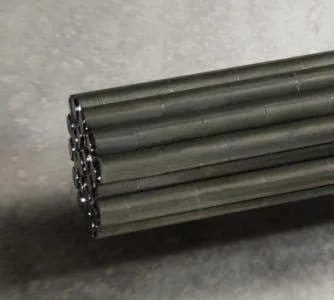

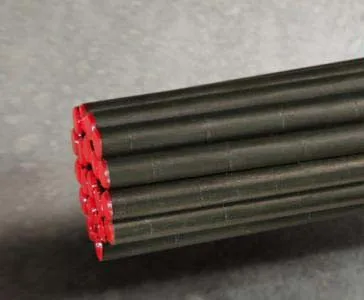

No colors for Nickel Based Alloy Bare Cast Rod
We also make Cobalt Based Alloy Bare Cast Rod, and the colors are as below:
Black: Co 1
Red: Co 6

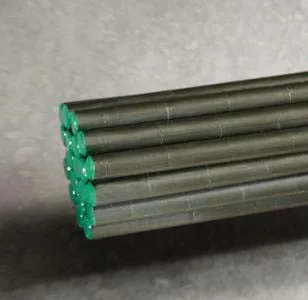

Green: Co 12

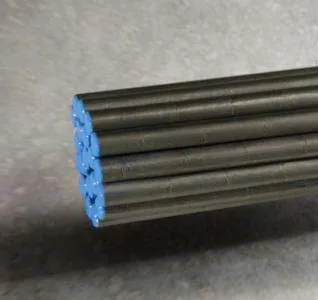

Blue: Co 21
Advantages
Quality
ISO 9001:2008 & Thorough inspection
20 years experience in production
OEM for world-class companies
Price
Most competitive price ever
Multi saving solutions
Aperiodic promotions
Service
7×24 services & Fast lead time
Free samples & Low MOQ
Various payment terms

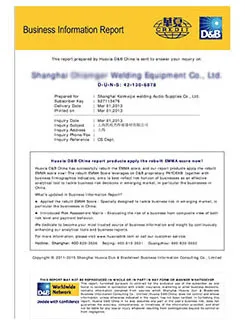

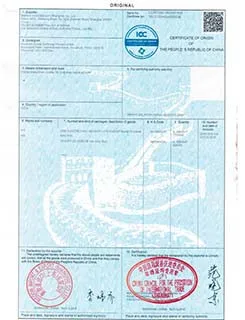

Certifications
Applications
Packing & Delivery
Packing: for different forms we use different packing as pictures below
Label: Brand, Neutral or Customized
Delivery: 5 - 20 days, by Sea, Air or Express
Rod: 5kg per Tube
Rod: 4 Tubes inside a Carton
Outer packing: Wooden Case or Pallet
Powder: 5kg per Bottle
Powder: 4 Bottles inside a Carton
Electrode: 5kg per Vacuum Pack
FAQ
Q1. What is your product line?
A: We specialize in hardfacing & wear-resistant welding / thermal spray consumables, with the strength of Cobalt, Nickel and Iron based alloys in form of rod, powder and electrode.
Q2. Can I have a sample order?
A: Yes, we offer FREE sample for inspection. Mixed samples are acceptable.
Q3. What about the lead time?
A: Sample needs 1-3 days, mass production needs 1-2 weeks for order quantity more than 100kgs.
Q4. Do you have any MOQ limit?
A: Low MOQ, 3-5 pcs for sample checking is available.
Q5. How do you ship the goods and how long does it take to arrive?
A: Depends on the transportation you choose. It usually takes 3 weeks to arrive by sea. Airline and Express shipping are also optional.
Q6. Do you have a fixed price list?
A: We do not. We quote based on the result we evaluate customers from various aspects, such as quantity, payment term, lead time, etc.
Q7. Is it OK to label my logo on packages?
A: Yes. Please inform us formally before the production. You could confirm the design earlier based on our sample.
Q8. How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.1%. If you do receive items with fault, we offer 100% refund or replacement.
