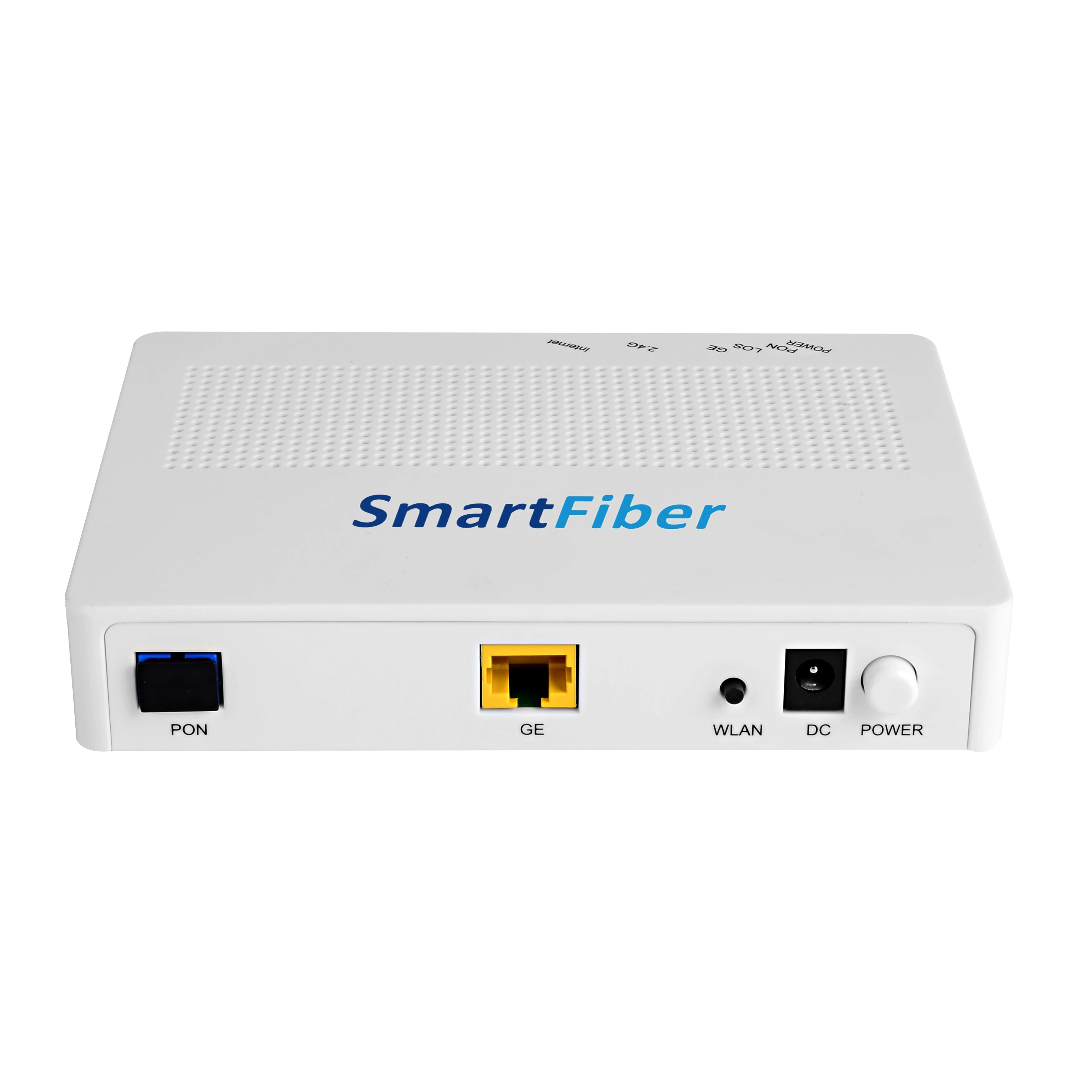

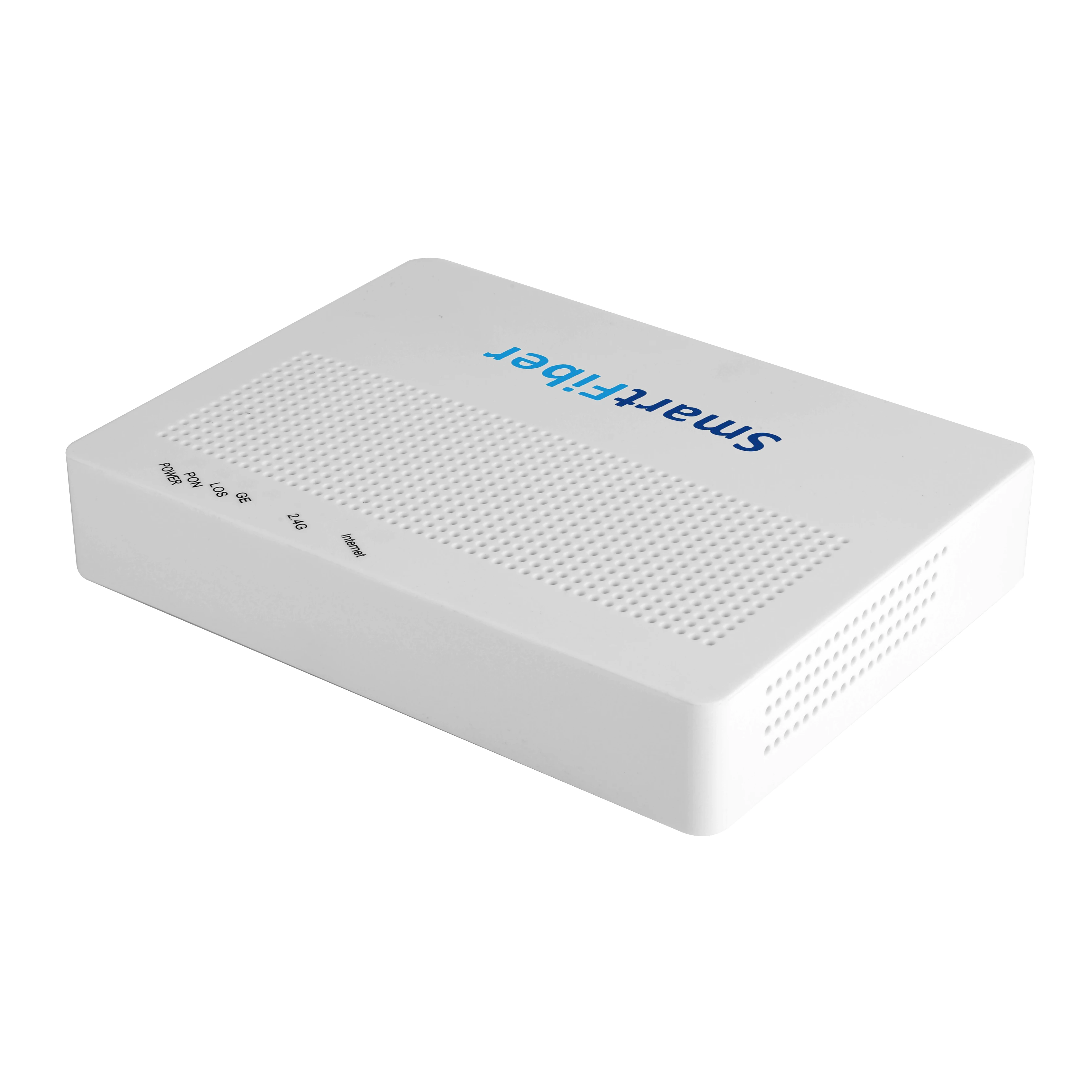

HUAWEI ZTE Fiberhome XPON ONT 1GE WIFI ONU GEPON Compatible Bdcom OLT EPON GPON
- Category: >>>
- Supplier: Dongguan Qingxi Jiaxin Daily Necessities Shop
Share on (1600259223142):
Product Overview
Description
Product Description
Feature
1. Functional Feature
Support ONT auto-discovery/Link detection/remote upgrade of software
WAN connections support Route and Bridge mode
Route mode supports PPPoE/DHCP/ static IP
Support WIFI Interface and multiple SSID
Support QoS and DBA
Support port Isolation and port vlan configuration
Support Firewall function and IGMP snooping multicast feature
Support LAN IP and DHCP Server configuration;
Support Port Forwarding and Loop-Detect
Support TR069 remote configuration and maintenance
Support CATV interface for Video Service
Support Pots interface for VoIP Service
Specialized design for system breakdown prevention to maintain stable system
2. Hardware Specification
|
Technical item |
Details |
|
PON Interface |
1 EPON port |
|
Receiving sensitivity: ≤-27dBm |
|
|
Transmitting optical power: 0~+4dBm |
|
|
Transmission distance: 20KM |
|
|
Wavelength |
Tx: 1310nm, Rx: 1490nm |
|
Optical Interface |
SC/APC Connector |
|
LAN Interface |
1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
Wireless |
Compliant with IEEE802.11b/g/n, |
|
Operating frequency: 2.400-2.4835GHz |
|
|
support MIMO, rate up to 300Mbps, |
|
|
2T2R,2 external antenna 5dBi, |
|
|
Support: Multiple SSID |
|
|
Channel: Auto |
|
|
Modulation type: DSSS, CCK and OFDM |
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM |
|
|
LED |
14, For Status of POWER, LOS, PON, SYS,LAN1~LAN4 ,WIFI, WPS, Internet, FXS, Worn, Normal(CATV) |
