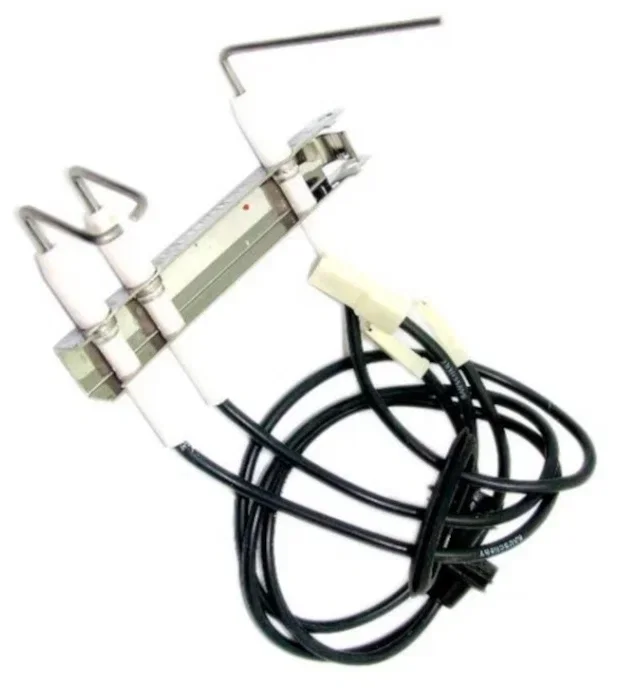

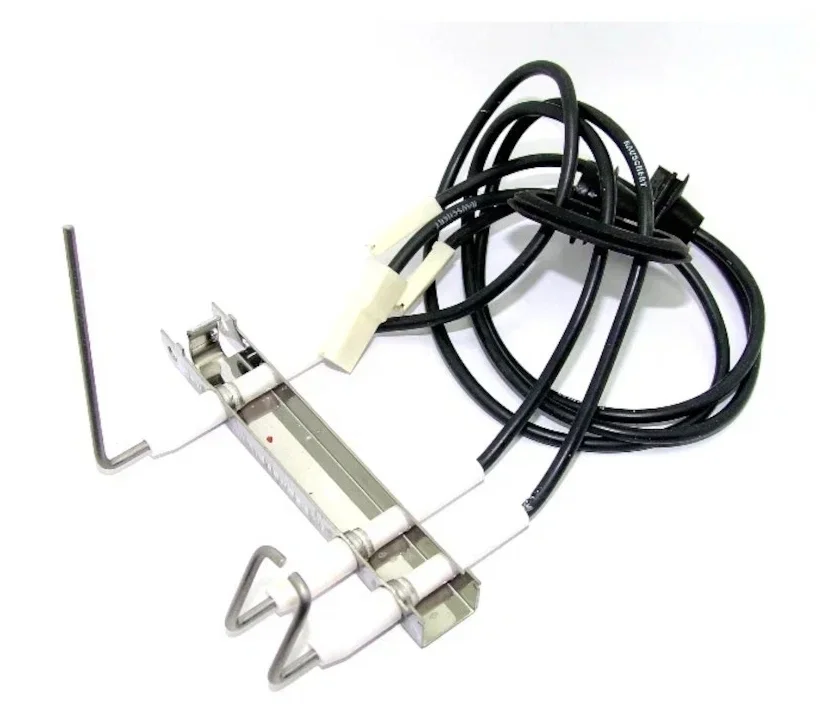

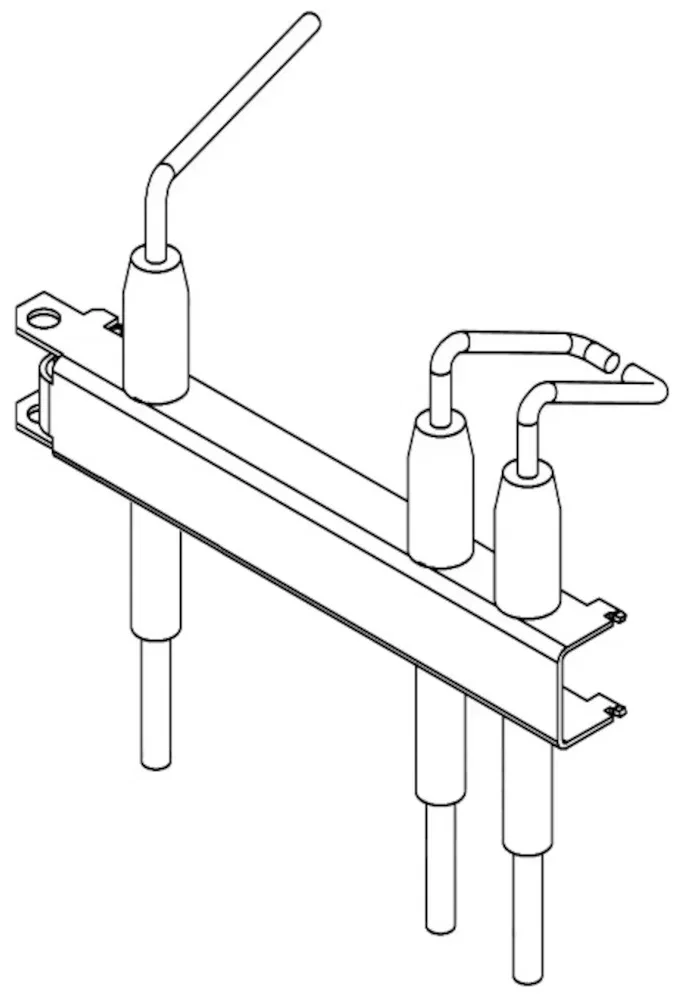

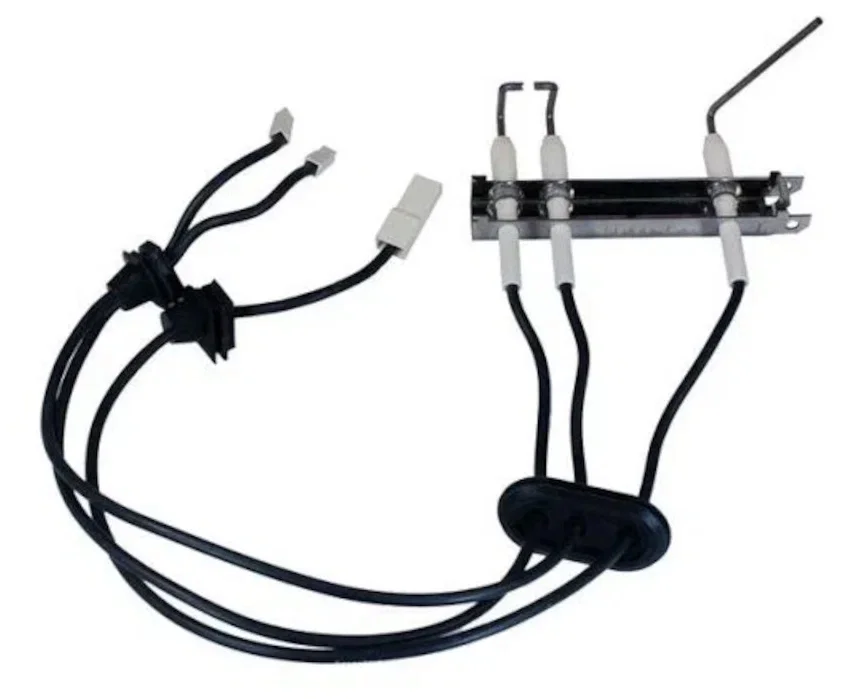

Direct factory manufacture gas boiler ionization electrode used in gas burner flame control sensors
- Category: >>>
- Supplier: Changxing Benneng Gas Appliance Co. Ltd.
Share on (1600259422603):
Product Overview
Description
Material | Probe: FeCrAl / Kanthal Ceramic: 95% Al2O3 Cable: UL1332/ UL3573/ UL3304/ UL3257/ UL1911/ UL1659/ UL10362 |
Temperature Resistance | Probe: ≤1050℃ Ceramic: ≤1700℃ Cable: ≤250℃ |
Tip | M1.6/ φ2.35/ 2.8x0.5/ 2.8x0.8/ M4 |
Supply ability | 50000pcs/month |
Application | Gas boiler/ gas Water heater |
Packaging | Customizable with standard export carton |
MOQ | 1000pcs |

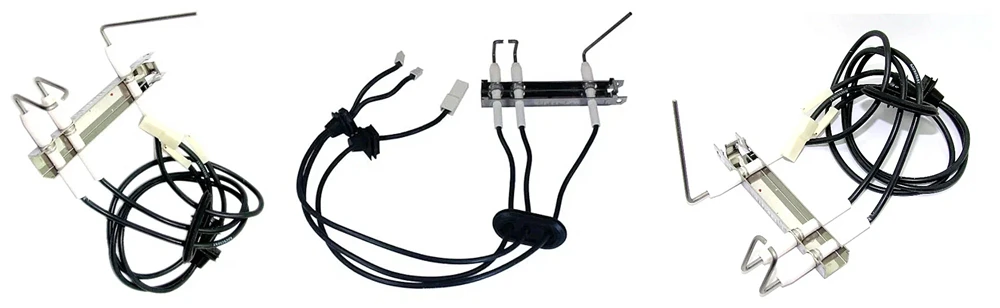

This part fits | Viessmann 7831305 Suitable for Viessmann Vitopend boilers, boiler serial number: 100-W WHKB rla 25kW, 7247906/ rlu 25kW, 7247907 100-W WHKB rla 30kW, 7247908/ rlu 30kW, 7247909 WH1B Kombi-RLA 24kW, 7277948/ RLU 24kW, 7277949 WH1B Kombi-RLA 30kW, 7277950/ RLU 30kW, 7277951 WH1B Umlauf-RLA 24kW, 7277952/ RLU 24kW, 7277953 100-W WH1D K-rla 24kW, 7427721/ K-rlu 24kW, 7427722 100-W WH1D U-rla 24kW, 7427725/ U-rlu 24kW, 7427726 100-W WH1D K-rlu 24kW UA, 7428244/ K-rla 30kW, 7464529, 7464531 |
Worcester 87161163810 Set of Electrodes
Product: BN5502
Supplier Part Number: B-D-0109
Worcester 8716121817 Set of Electrodes
Product: BN5503
Supplier Part Number: B-D-0110
Supplier Part Number: B-D-0110
BAXI 5130293 Set of Electrodes
Product: BN5501
Supplier Part Number: B-D-0108
Supplier Part Number: B-D-0108
IDEAL 175592 Set of Electrodes
Product: BN5505
Supplier Part Number: B-D-0112
Supplier Part Number: B-D-0112
GLOWWORM 801637 Set of Electrodes
Product: BN5507
Supplier Part Number: B-D-0114
Supplier Part Number: B-D-0114
IDEAL 173528 Set of Electrodes
Product: BN5511
Supplier Part Number: B-D-0133
Supplier Part Number: B-D-0133
Choose BNGAS to Custom Your Ignition Electrodes
BNGAS has over 16 years of experience in the production of ignition electrodes. Over the years, we have focused on designing and producing high-quality ignition electrodes to meet our customers’ expectations.
Our experience, team of experts, and advanced production equipment on Dimensional Control, Dielectric Control, and Pressure Control. LEAN PRODUCTION enables us to provide quality customization services for ignition electrodes.
Our ignition electrode products are quality tested and conform to many international standards such as ISO, CE, CSA, etc.
Therefore, you can rest assured that our products are of high quality and safe.
We are capable of helping you design, whether it is domestic ignition electrodes or industrial ignition electrodes, through our years of export experience. Besides, the electrodes’ size, design, and other specifications can be customized according to your needs.
If you want to customize ignition electrodes, please feel free to contact BNGAS!
Our experience, team of experts, and advanced production equipment on Dimensional Control, Dielectric Control, and Pressure Control. LEAN PRODUCTION enables us to provide quality customization services for ignition electrodes.
Our ignition electrode products are quality tested and conform to many international standards such as ISO, CE, CSA, etc.
Therefore, you can rest assured that our products are of high quality and safe.
We are capable of helping you design, whether it is domestic ignition electrodes or industrial ignition electrodes, through our years of export experience. Besides, the electrodes’ size, design, and other specifications can be customized according to your needs.
If you want to customize ignition electrodes, please feel free to contact BNGAS!
BNGAS Ignition Electrode Materials
Kanthal A-1 Wire
Kanthal® A-1 is a ferritic iron-chromium-aluminum alloy (FeCrAl alloy) for use at temperatures up to 1400°C (2550°F). The alloy is
characterized by high resistivity and very good oxidation resistance.
characterized by high resistivity and very good oxidation resistance.
Alumina (Al2O3) Ceramic
High purity alumina has a very high melting point of 2,072 °C, is extremely hard, and has good electrical insulation properties, high chemical resistance, and low thermal expansion properties.
Stainless Steel Bracket
The surface of the electrode bracket made of stainless steel can be well protected by passivation and polishing. Different types can meet the installation requirements of different structures.
Wire For Ignition Electrode
* Regular Wire: UL1332, UL1659, UL1911, UL3573, UL3071 etc.
* 200℃ Heat-resistant: UL1332, UL3071, UL3573
* 250℃ Heat-resistant: UL1659, UL1911
* 200℃ Heat-resistant: UL1332, UL3071, UL3573
* 250℃ Heat-resistant: UL1659, UL1911
Ignition Electrode Terminal
* Fermale Terminal：110(0.5*2.8, 0.8*2.8), 87(0.5*4.74, 0.8*4.74), 250 (0.8*6.35), φ2.35mm
* Male Terminal: φ4mm, φ6.35mm
* Flat male: 0.8*4.74mm, 0.8*6.35mm
* Male Terminal: φ4mm, φ6.35mm
* Flat male: 0.8*4.74mm, 0.8*6.35mm
What is the Ignition Electrode?
Ignition electrodes and ionization probes are produced from high-quality materials.
* The central electrode is generally made of a unique fireproof material, resistant to high temperature and electrochemical corrosion (seen more in gas boilers and gas heaters)- Kanthal material.
* The outer insulator is made of alumina ceramic with high mechanical strength, heat resistance, high voltage resistance (usually 18kV), and high Al2O3 content.
* Some electrodes also have mounting brackets on ceramics, and we usually like to be made of 304 stainless steel, which gives the product a longer life.
They ignite gaseous fuels in gas burners and operate on the principle of high voltage flashover. The ignition electrode must be outside the flame. Only the central electrode is in the flame. The ignition electrode and ionization probes are usually used in combination in the combustion chamber of a gas-burning appliance (the ignition electrode can also be used as an ionization probe). However, the space between them needs to be designed by a professional engineer for you.
* Some electrodes also have mounting brackets on ceramics, and we usually like to be made of 304 stainless steel, which gives the product a longer life.
They ignite gaseous fuels in gas burners and operate on the principle of high voltage flashover. The ignition electrode must be outside the flame. Only the central electrode is in the flame. The ignition electrode and ionization probes are usually used in combination in the combustion chamber of a gas-burning appliance (the ignition electrode can also be used as an ionization probe). However, the space between them needs to be designed by a professional engineer for you.
Our Ignition Electrode Certification
FAQ: Ignition Electrode –The Complete Guide
You can find most of the questions you want to know about ignition electrodes here.
Whether you want to learn about specifications or the electrode process – you will find all information right here.
Keep reading to learn more.
Q1: What is the Ignition Electrode?
Ignition electrodes and ionization probes are produced from high-quality materials.
* The central electrode is generally made of a unique fireproof material, resistant to high temperature and electrochemical
corrosion (seen more in gas boilers and gas heaters)- Kanthal material.
* The outer insulator is made of alumina ceramic with high mechanical strength, heat resistance, high voltage resistance (usually 18kV), and high Al2O3 content.
* Some electrodes also have mounting brackets on ceramics, and we usually like to be made of 304 stainless steel, which gives the product a longer life.
Q2: What is the Flame Sensing
ignition) gas equipment.
The flame sensing rod is inserted into the flame and connected to the control circuit board. Whenever the circuit board gives the command to open the gas valve, it monitors the current on the flame sensing rod. It generates a potential (voltage) at the terminals of the flame sensing rod connected to the sensor. A small microampere (µA) direct current (DC) is generated by forming a path between the rod and the ions in the flame only when the flame is present. Otherwise, there is only potential at the rod and no current. If the flame goes out and the small DC signal board does not sense this microampere (μA) DC for a few seconds, it will shut off the gas valve and tries again.
The flame sensor fails in the following cases:
1. they are short-circuited due to ceramic body rupture.
2. They do not open because they are broken.
3. They are not properly installed in the flame.
4. They have silica (glass) or carbon attached to their surface.
1. they are short-circuited due to ceramic body rupture.
2. They do not open because they are broken.
3. They are not properly installed in the flame.
4. They have silica (glass) or carbon attached to their surface.
It could be a circuit board problem or a flame sensor problem. Every possible test needs to be done before replacing it. Many technicians advocate replacing the flame sensor if they suspect it is not conducting well. I don’t mind because BNGAS flame rods are cheap with good quality, and you can cover this cost for your customers.
In summary, the flame rod should be:
1. In the flame
2. Clean
3. Not open
4. Not short
In summary, the flame rod should be:
1. In the flame
2. Clean
3. Not open
4. Not short
Q3: Can I Find All The Boiler Electrodes Here?
Please send the inquiry to us, if we don’t have the model you need, we can make a prototype for you based on the sample you send
us.
Q4: What's the Minimum Order Quantity of the Electrode?
Please send the inquiry to us, if we don’t have the model you need, we can make a prototype for you based on the sample you send us.
Q5: What's the Delivery Time?
Q6: Do You Charge A Mold Fee For The New Models?
Our regular lead time is 30-90 working days, depending on our current order status.
Q7: Does The Product For Which I Spend Money Belong To Me?
Strictly speaking, only the mould belongs to you. The product does not belong to you. Because we can’t only produce 1,000 or 2,000 pcs products and sell them to one customer.
But we can negotiate whether we need to make this to your exclusive product according to your purchase quantity after one year.
Q8: Can You Provide Gaskets And Screws?
Yes, we can. Please check with our sales.
Q9: How Do You Package My Ignition Electrodes?
We usually put independent products in small cartons, then pack them in large cartons, and eventually make pallets, which will be safer.
