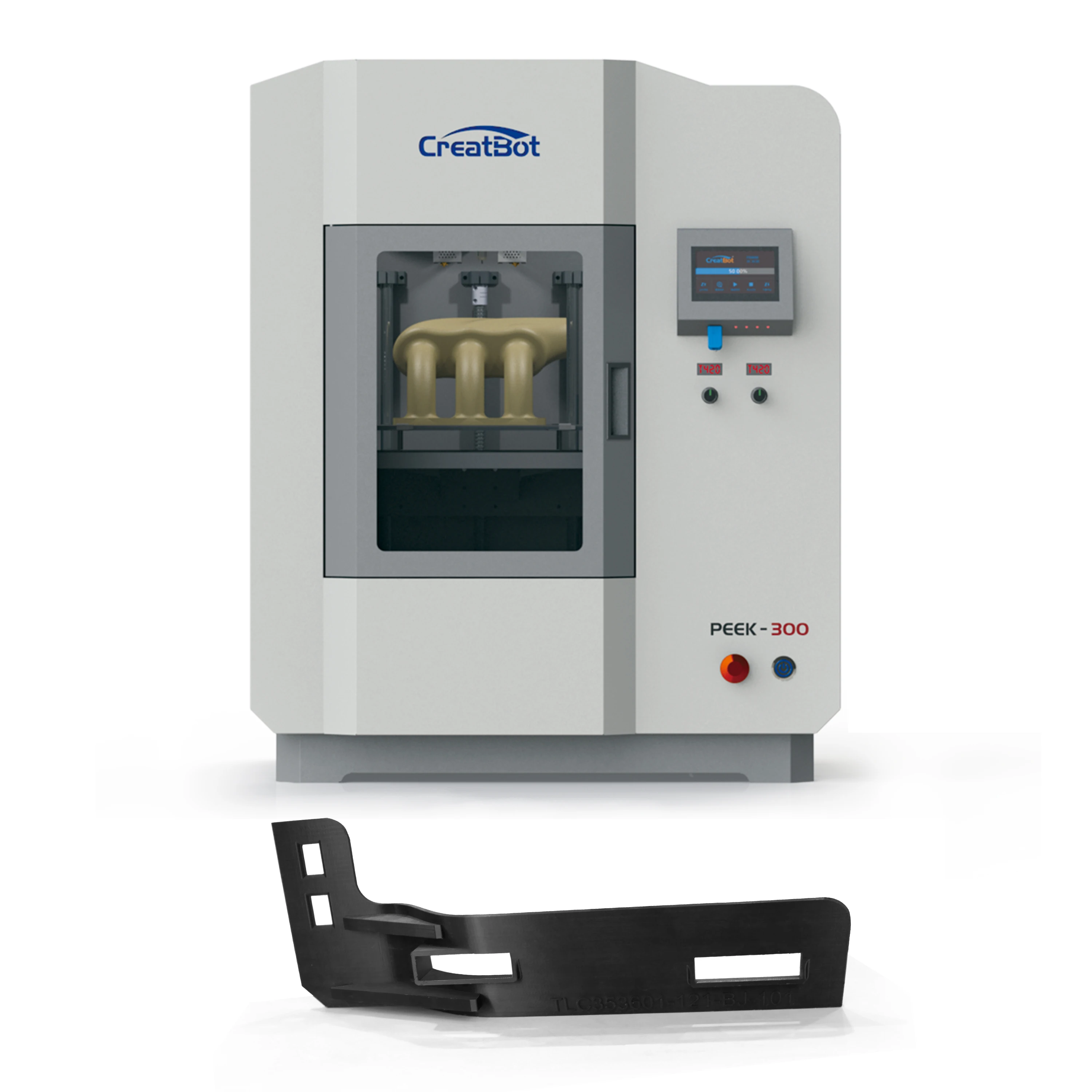

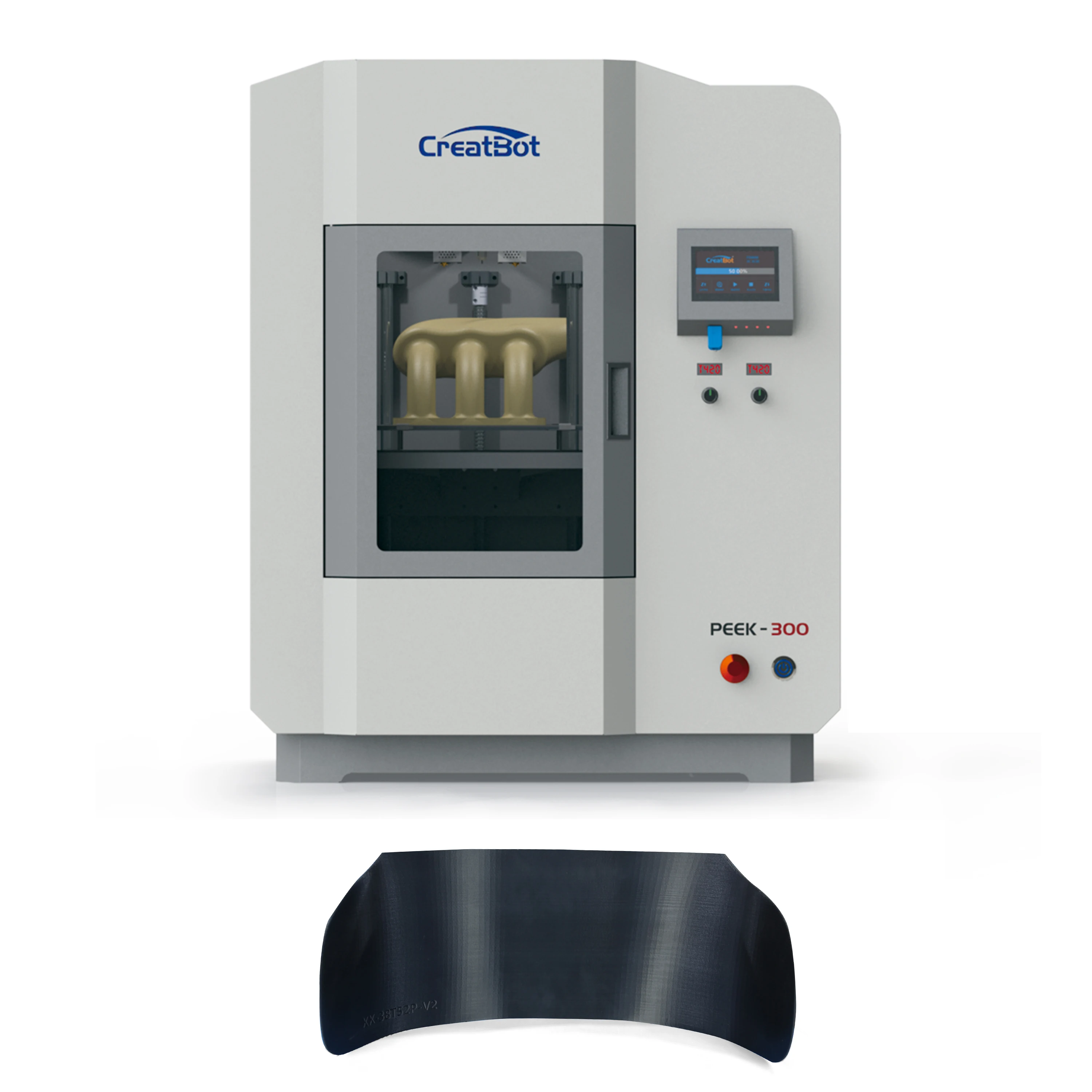

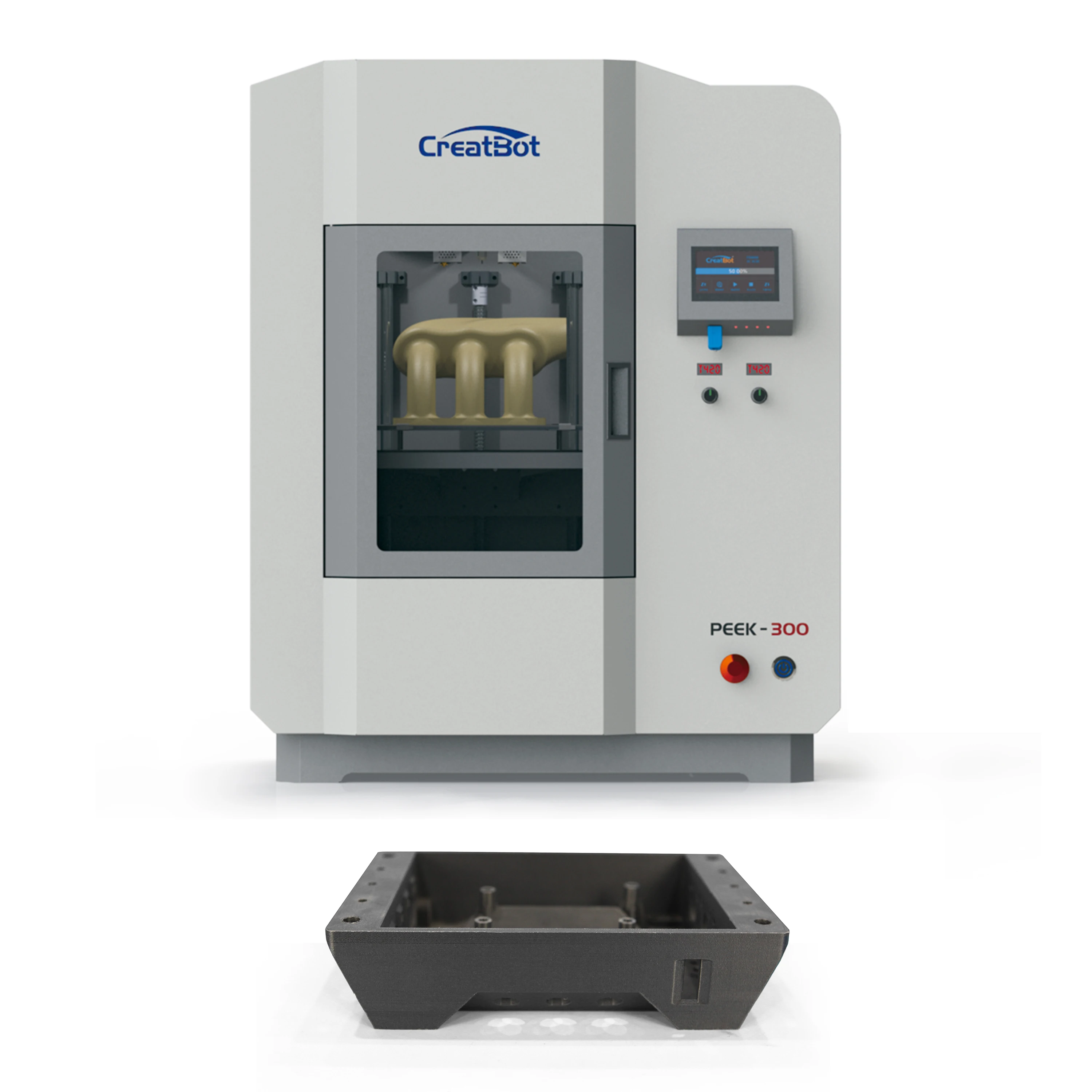

CreatBot PEEK 300 Professional 300*300*400 high temperature 3D printer large industrial FDM 3D printer
- Category: Digital Printers >>>
- Supplier: Henan Suwei Electronic Technology Co. Ltd.
Share on (1600259529552):
Product Overview
Description
CreatBot Peek 3D Printer PEEK-300 Large Print Size 300*300*400mm
* Prints up to 500°C with dual extruder
* Heated build plate 200°C
* Heated build chamber 120°C
* Water cooled system
* Fully enclosed chamber
* Automatic and manual bed levelling
* 4,3” touch screen
* HEPA air filtration
* Heated build plate 200°C
* Heated build chamber 120°C
* Water cooled system
* Fully enclosed chamber
* Automatic and manual bed levelling
* 4,3” touch screen
* HEPA air filtration
* Large Build volume: 300 x 300 x 400 mm
Details Images

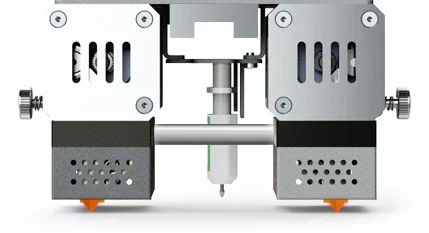

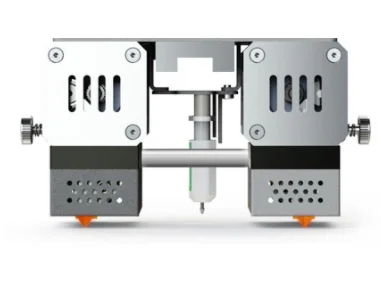

Hotend max. 500°C with dual extruder
Realiable and amazing.
The conqueror of all kinds of plastics.
The conqueror of all kinds of plastics.

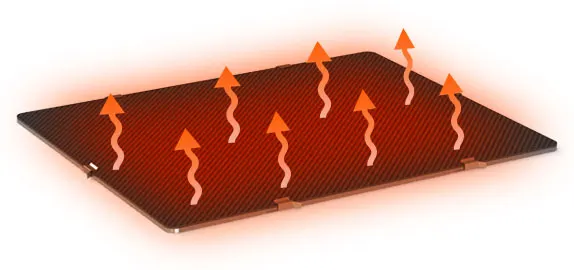

Heated build plate 200°C
Common but necessary.
Base of printing big models with no warping.
Base of printing big models with no warping.
PCB aluminum + PEEK print board

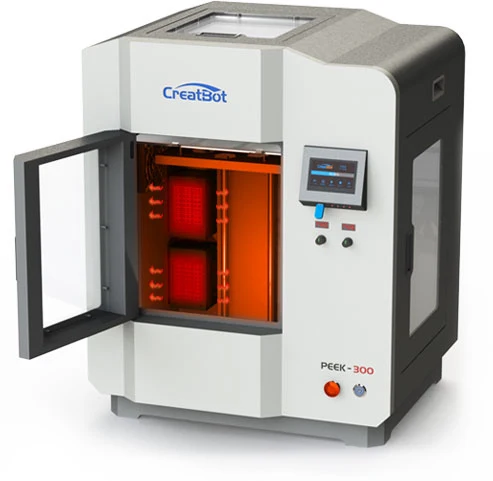

Hot Chamber 120°C
Outstanding and important.
The protector of no cracking printing.
The protector of no cracking printing.

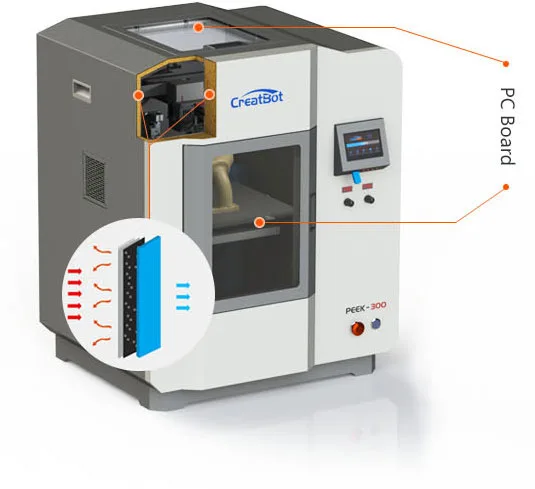

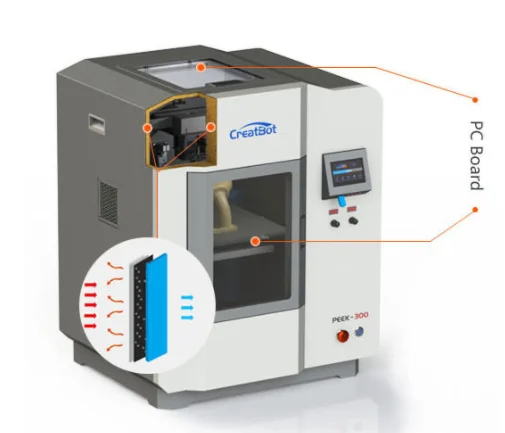

Triple Heat Isolation
Triple heat isolation is made of double insulation chamber, advanced insulation materials and vacuum double PC boards. It is
guarantee of ultra performance and safety.
guarantee of ultra performance and safety.

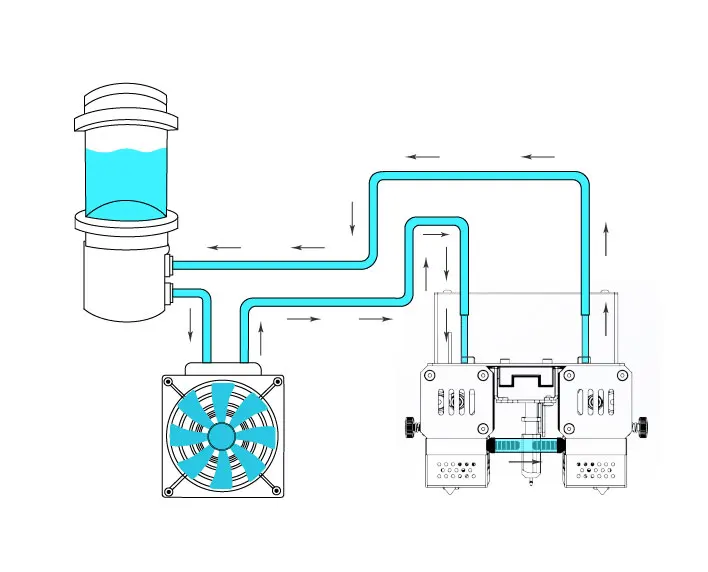

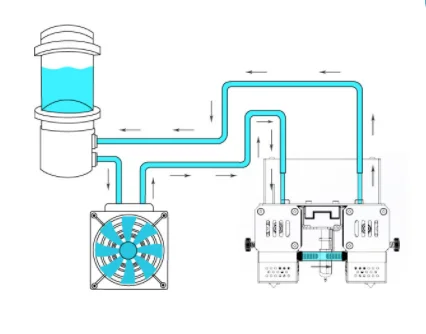

Water Cooling System
Cooling system is one of the important parts to constitute the whole thermal system. It is made of
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.

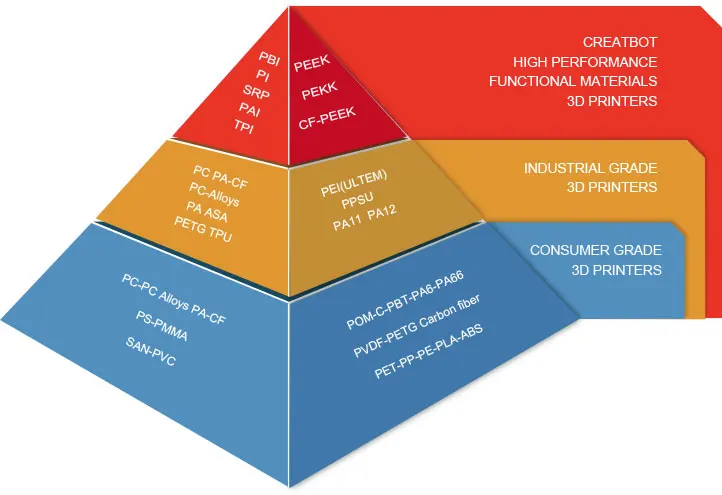

Material Performance Comparison Chart
Engineering Plastics: PLA, PC, ABS, PA6, PETG, PVDF, POM-C, PP, TPU
High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF
Ultra performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc
High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF
Ultra performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc

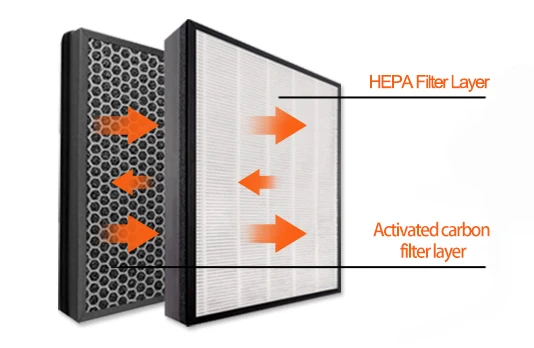

HEPA Air Filtration
The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental
protection which is more suitable for house, school, office space.
protection which is more suitable for house, school, office space.

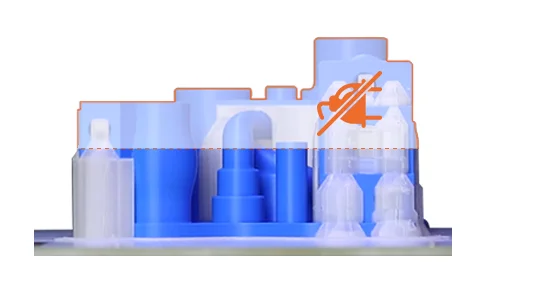

Outage Restored & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when
power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
power off suddenly. It will continue to print from the last stopped point after power’s on.
The printer will avoid invalid printing by stoping print and warning when filament runs out.
PRODUCT SPECIFICATIONS
Technical Specs | ||||||||
Build Volume | 300*300*400mm | Cooling | Air pump cooling & water cooling | |||||
Print Resolution | 0.04mm-0.4mm | Platform | PCB aluminum + PEEK print board | |||||
Filament Diameter | 1.75mm | Positioning Precision | X Y axis 0.01mm, Z axis 0.0025mm | |||||
Number of Nozzles | Dual Extruder | Extruder | Directly Drive | |||||
Print Speed | 10-150mm/s | Machine Construction | Fully enclosed hot chamber | |||||
Nozzle Diameter | 0.4mm (0.3~1.0mm optional) | Bed Leveling | Manually/Automatic | |||||
Filament Compatibility | Engineering Plastics: PLA, TPU, PC, ABS, PA6, PETG, TPU High temperature Material: PEI (ULTEM), PP Ultra-performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc. | Software Bundle | Creatware, Simplify3D, Cura, Slice3r | |||||
Nozzle Max. Temperature | 500℃ | Operating Systems | Win7/8/10 | |||||
Chamber Temperature | 120℃ | Print File Type | STL, OBJ, AMF, Gcode | |||||
Platform Max. Temperature | 200℃ | Packing Size | 820*720*1080mm | |||||
Direct Annealing Temperature | 0~400℃ | Weight | 130kg(Pallet) | |||||
Installation Instructions

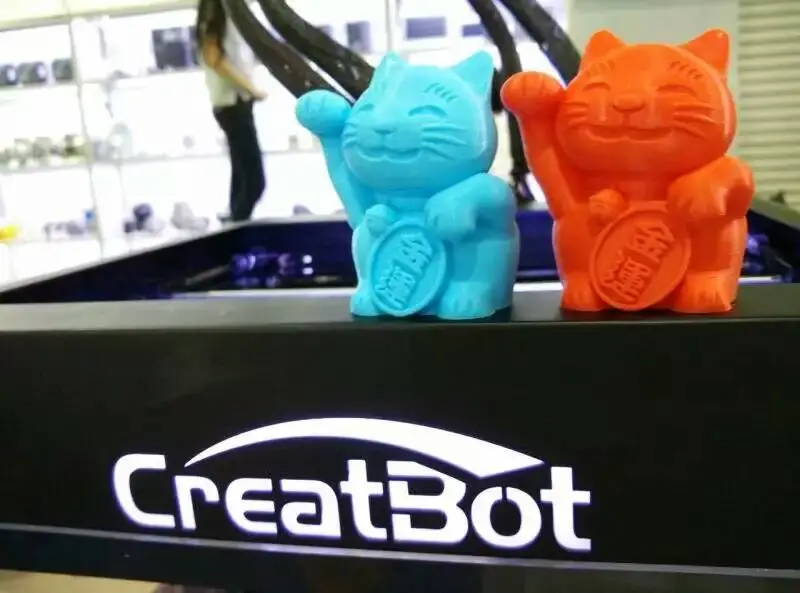

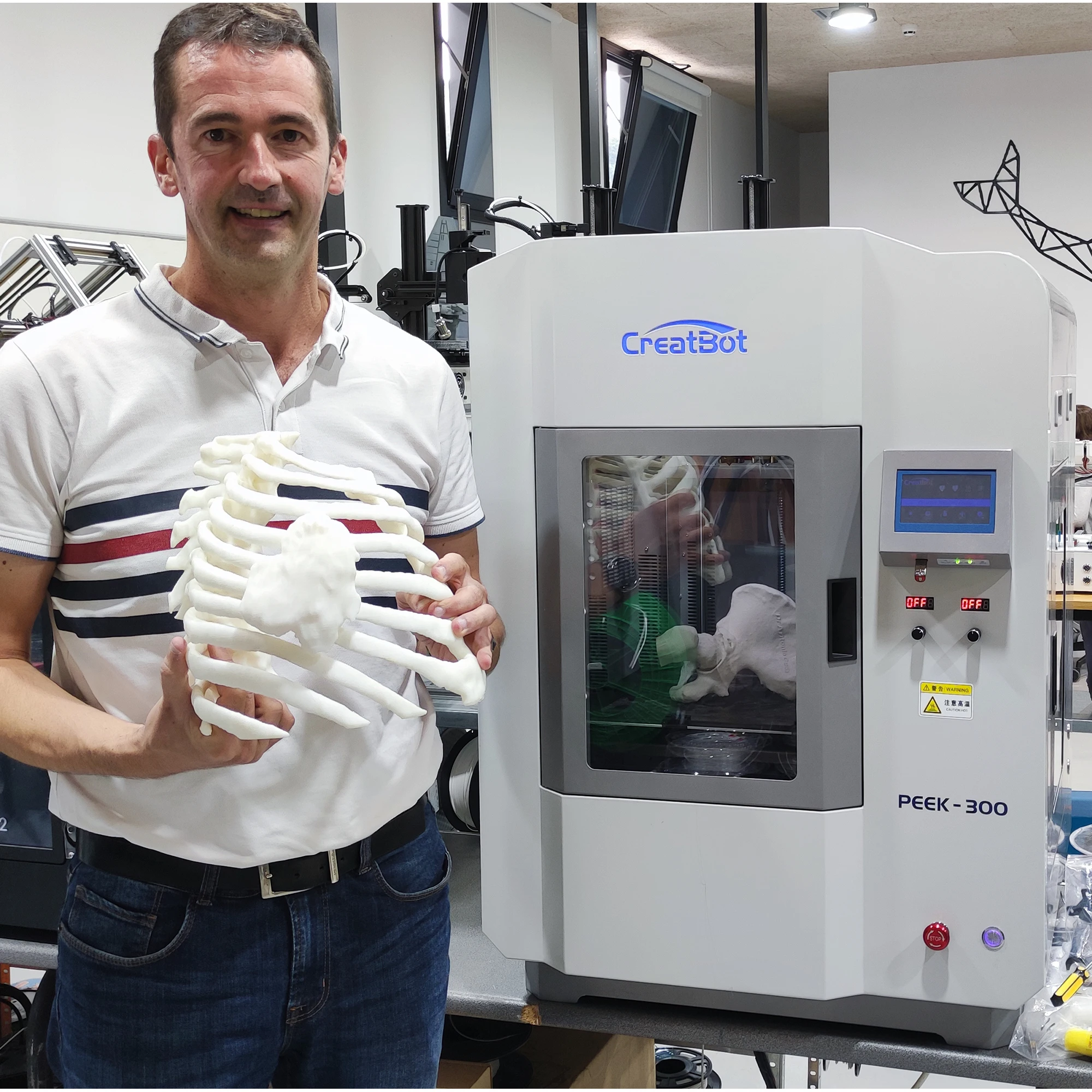

Customer Photos

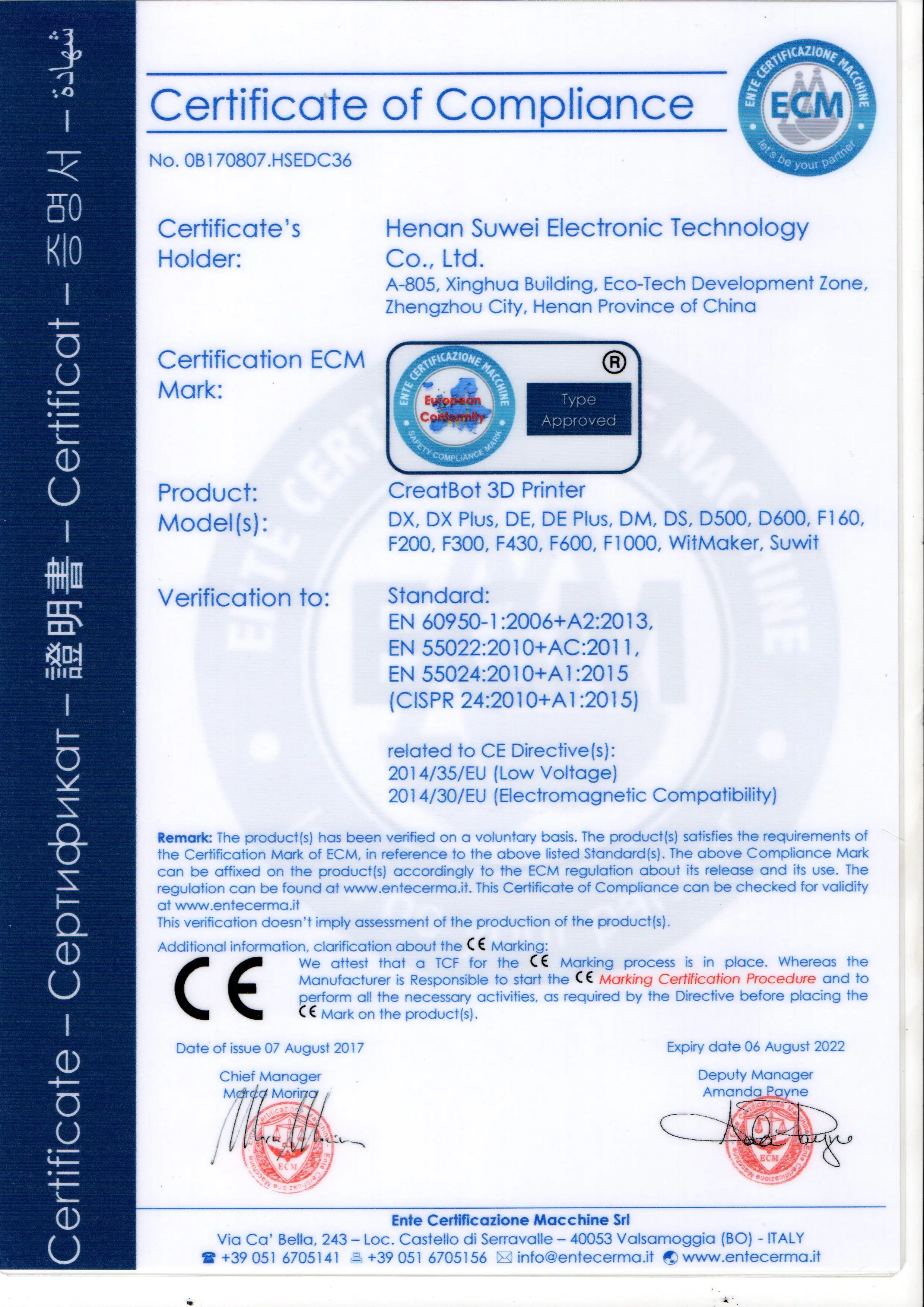

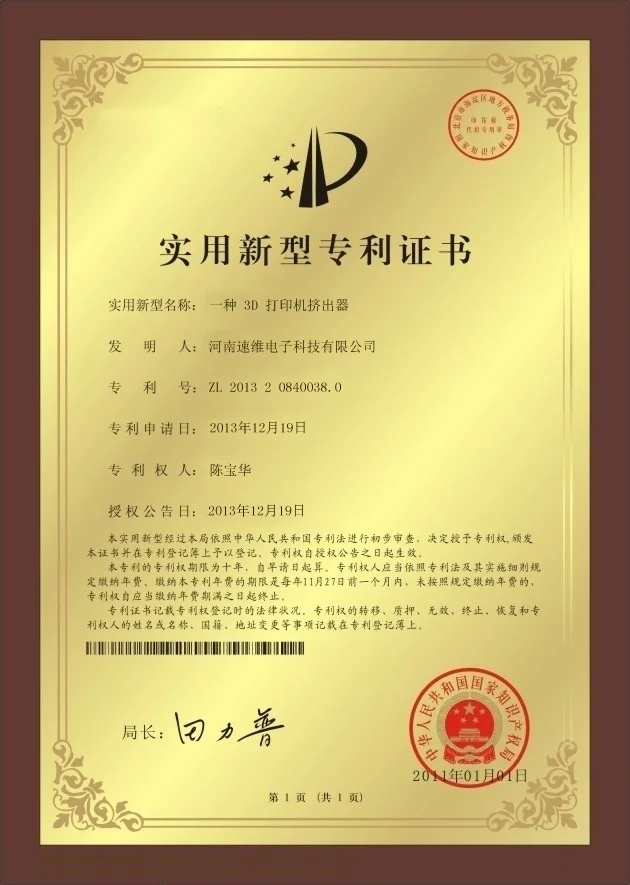

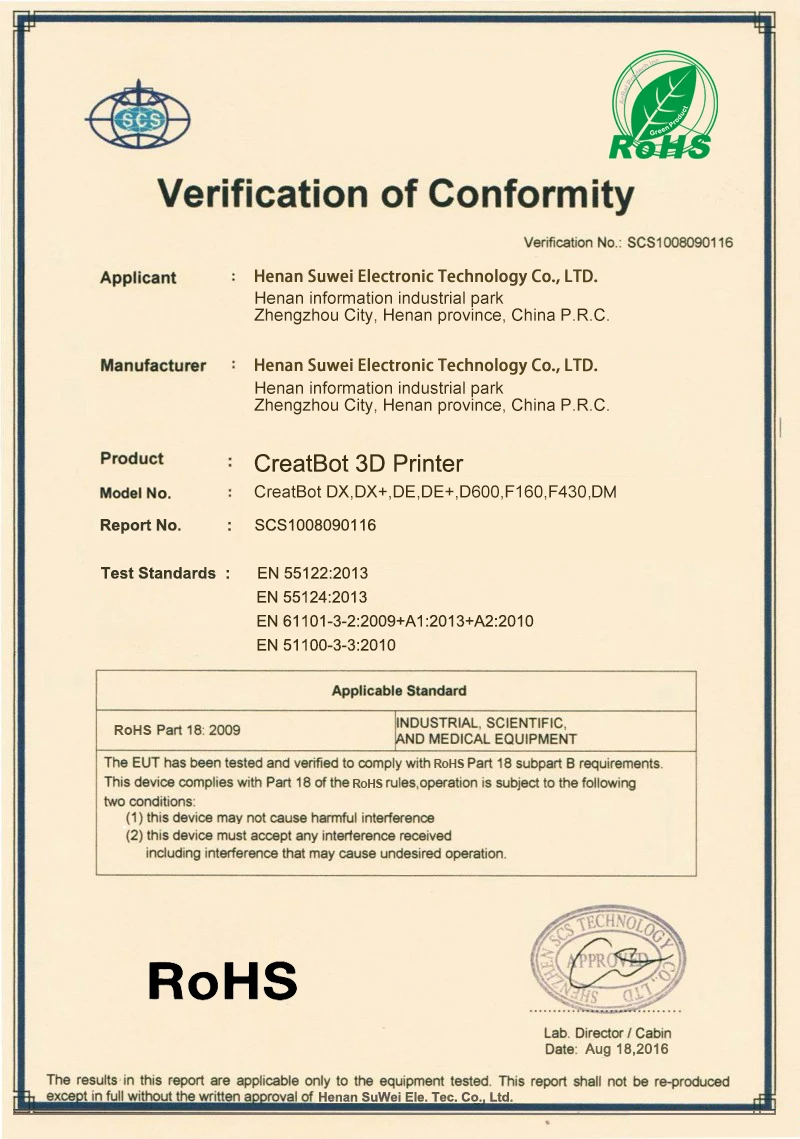

Certifications
Recommend Products
Printing | Temperature | ||||
Build Volume | 300*300*400mm | Nozzle Max. Temperature | 500℃ | ||
Print Resolution | 0.04mm-0.4mm | Chamber Temperature | 120℃ | ||
Filament Diameter | 1.75mm | Platform Max. Temperature | 200℃ | ||
Number of Nozzles | Dual Extruder | Direct Annealing Temperature | 0~400℃ | ||
Print Speed | 10-150mm/s | Mechanical | |||
Nozzle Diameter | 0.4mm (0.3~1.0mm optional) | Cooling | Air pump cooling & water cooling | ||
Filament Compatibility | Engineering Plastics: PLA, TPU, PC, ABS, PA6, PETG, PVDF, TPU | Platform | PCB aluminum + PEEK print board | ||
High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP | Positioning Precision | X Y axis 0.01mm, Z axis 0.0025mm | |||
Ultra-performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc. | Extruder | Directly Drive | |||
Software | Machine Construction | Fully enclosed hot chamber | |||
Software Bundle | Creatware, Simplify3D, Cura, Slice3r | Bed Leveling | Manually/Automatic | ||
Operating Systems | Win7/8/10 | Electrical | |||
Print File Type | STL, OBJ, AMF, Gcode | Input Power | 200V~240V, 20A | ||
Special Function | Max. Power | 3000W | |||
Outage Restored | Save data when power is off | Screen | 4.3'' full color touch screen, multi-language | ||
Filament Detection | Pause printing when filament run out | Print Method | USB Connectivity/USB Disk | ||
Direct Annealing System (DAS) | Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials. | Size & Weight | |||
Heat insulation | Triple heat insulation | Machine Size | 650*600*750 mm | ||
Emergency stop switch | Support emergency stop | G.W | 100 kg | ||
High temperature accessories | High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing. | Packing Size | 820*720*1080mm | ||
N.W | 130 kg | ||||
Nozzle 500°C
Realiable and amazing.
The conqueror of all kinds of plastics.
The conqueror of all kinds of plastics.
Triple Heat Isolation
Triple heat isolation is made of double insulation chamber, advanced insulation materials and vacuum double PC boards. It is
guarantee of ultra performance and safety.
guarantee of ultra performance and safety.
Cooling System
Cooling system is one of the important parts to constitute the whole thermal system. It is made of
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.
(1) liquid cooling. Circulating liquid can be used effectively for a long time.
(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.
Filaments Drying Room
The printer has a 4.3" touch screen, more easy to operate. Wealso provide One-Key to preheat, print, home as well as othershortcut keys.
