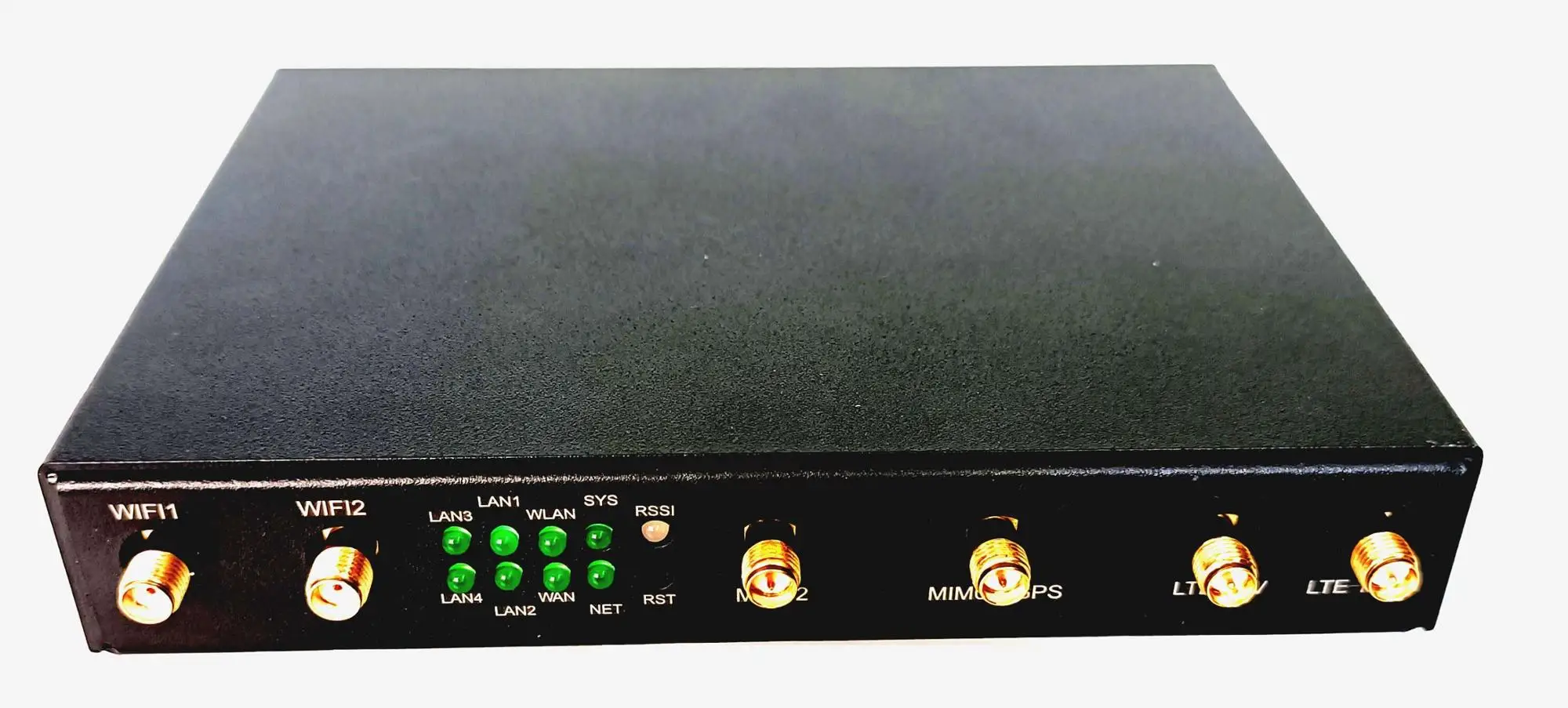

5G NR bands CPE Industrial router 1.2Gbps high speed gateway with dual SIM for advanced speed applications

HDRM200  Industrial Gigabit router integrated machine,is designed for global market.It provides 4G LTE/5G/WIFI/GPS/SD storage function 2.4G/5.8G WIFI. It provides stable and reliable data connection for user device such as RTU, Broadband, Intelligent Transportation, Financial self-service terminal, Express cabinet , Power Ammeter and other remote device management application. In order to achieve permanent online, some key feature such as watch-dog function, wide temperature and multiple RF band/mode are suppored by HDRM200 industrial router,making it can be used in any environment of worldwide .Provides one WAN port, four fast Ethernet ports, one Gigabit Lan port. Supports VLAN feature.

   Highlight

• 3G/4G LTE/5G data transmission;

• Built-in watchdog, system crashes self-recovery;

• Built-in link maintenance mechanism, data link dropped from self-recovery

•CAT4 CAT6  2*2 4G/WIFI MIMO antenna;

• CAT12  5G 4*4 5G MIMO antenna;  GPS function;

• One WAN,4 LAN(1 Gbit LAN ) ports, Support VLAN,LAN Ethernet port.

• One console port, One USB port,RS232 or RS485 Interface,4 line GPIOs;(Optional)

• SD data storage (Optional);2 SIM card slots

• Supports wifi 802.11AC, 1.2Gbit

• Supports 50 WiFi users sharing

ITEM	Product specification
2G/3G/4G Transmitting Power	GSM/GPRS: Class 4 (2W): GSM850,EGSM900 Class 1 (1W): DCS1800,PCS1900 EDGE: Class E2 (0.5W): GSM850,EGSM900 Class E1 (0.4W): DCS1800,PCS1900 UMTS: Class 3 (0.25W): WCDMA Class 3 (0.25W): CDMA2000 Class 2 (0.25W): TD-SCDMA LTE: Class 3 (0.25W)
GPS	GPS/GLONASS,Protocol: NMEA
WIFI Frequency	2.4GHz/5.8GHz dual frequency bands
Hardware interface	1*WAN, 4* LAN 1Gbps,
Storage memory	Support SD data storage
RF	High gain WIFI, 4G LTE, 5G,GPS antenna
Security Encryption	Support WEP,WPA,WPA2 encryption ways
Protocol	PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP
Advertising push	Support portal protocol, User login interface jump
Data traffic management	Support Traffic monitoring and bandwidth limitation
LED Indicator	"SYS", "Net", "WAN", "LAN",RSSI
SIM/UIM	Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection
Standard Power	DC input: DC 12V/1A
Power Supply	DC input: DC 5~48V
Working current	2A (Max Current)
Temperature	Operating Temperature -40~+80ºC Storage Temperature -45~+85ºC
Environment humidty	95%
Case	Black steel case
Weight	225g

4 LTE/5G Router Details

CPU: MTK7621A
Memory: FLASH 16MByte, DDR2 64MByte
System : Openwrt
Network:  FDD LTE,TDD        LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X

CAT12 frequency bands:

4G/5G Router Details

WIFI: 802.11 AC, 1Gbitbps
Data rate: 4G LTE.  CAT 4, CAT 6 ,CAT12 ,5G DL 100M~1000Mbps , UL 50Mbps;
WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps
GPRS DL/UL 85.6Kbps
WIFI Tx Power: 14 dBm(11g),17 dBm(11b),14dBm(11n)
WIFI Rx Sensitivity: <-70 dBm@54Mpbs

Frequency Band	CAT4	CAT6	5G
4G 5G Frequency band	Version E. LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8 Version AF. LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 Version AU. LTE FDD: B1/B2①/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8	Version E. LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE TDD: B38/B40/B41 2*CA: B1+B1/B5 /B8/B20/B28;B3+B3 B5/B7/B8,B20/B28;B7+B5/B7/B8/B20 B28;B20+B32;B38+B38;B40+B40;B41+B41; WCDMA:B1,3,5,8 Version A LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26/B29/B30/B66 LTE TDD: B41 2*CA: B2+B2/B5 /B12/B13/B26/B29;B4+B4,B7+B5 B7/B12,B13/B26/B29;B25+B5/B12/ B13/B25/B26/B29; ;B30+B5/B12/B13 B26/B29;B66+B5;B12/B13/B26/B29/ B66;B41+B41; WCDMA:B2/B4/B5	5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 LTE: B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/ B12(17)/B13/B14/B20/B25/B26/B28/ B29/B30/B38/B39/B40/B41/B42/B43/ B46/ B48/B71 DL 4×4 MIMO: 5G NR: n1/n2/n3/n7/n41/n66/n77/n78/n79 LTE: B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42 /B43/B48/B66 DL 256QAM UL 64QAM WCDMA: B1/B2/B3/B4/B5/B8/B9/B19

Our Company

Head Weblink Corporation Founded in 2008, as the leading provider of 2G/3G/4G LTE CPE/WIFI industrial router and systems solutions, we have experienced technical teams and professional implementation of industry solutions. and independently developed 4G wireless router,4G CPE,4G ODU,4G DTU ,tracker, traveling recorder, DVR, streaming media mirror and other high-quality terminal products.Our products and solutions are widely used in finance, transportation, telecom, electricity, power meter, water conservancy and other industry.

Industry Application

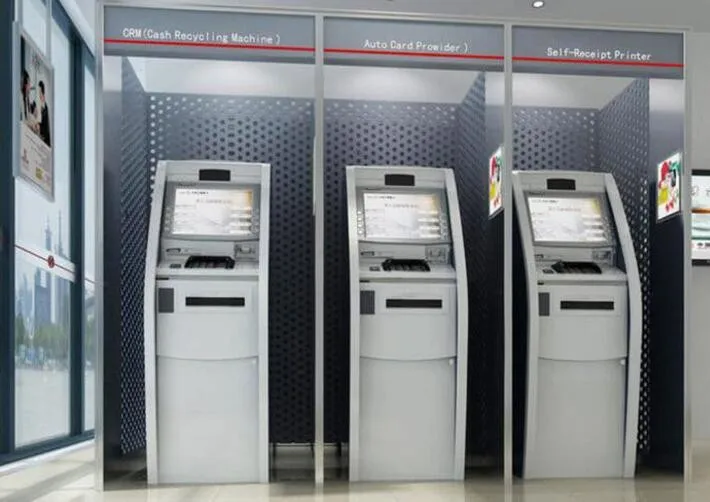

industrial 4G router used in finance terminal
