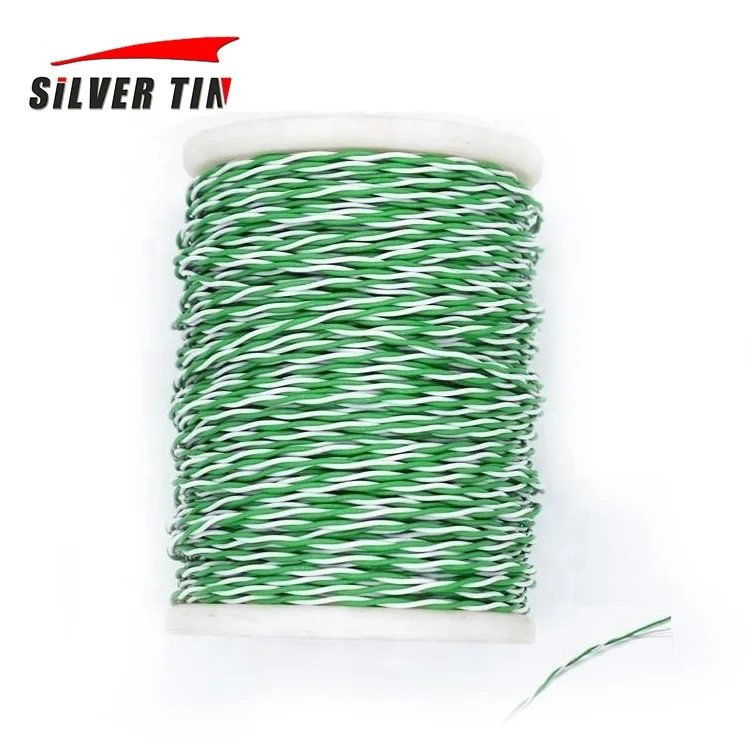

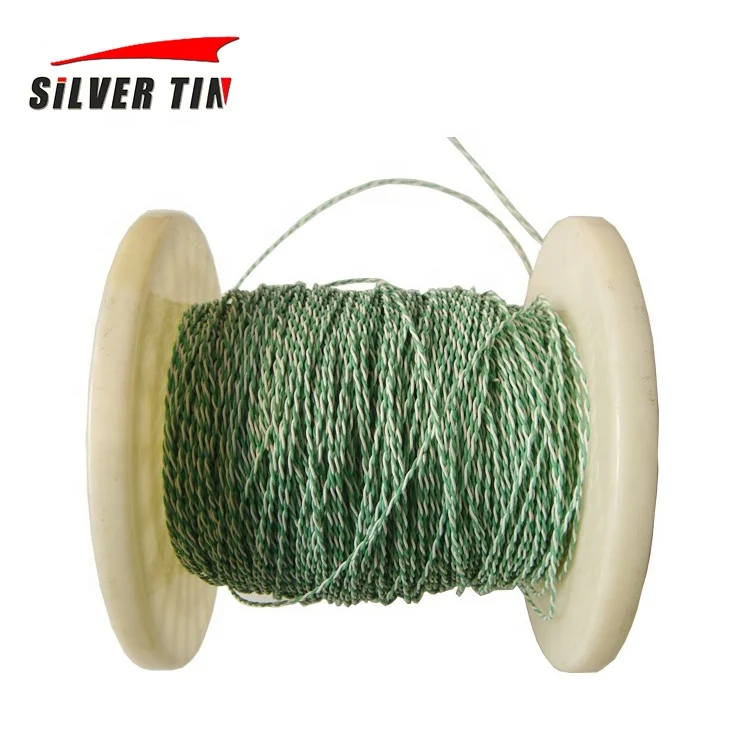

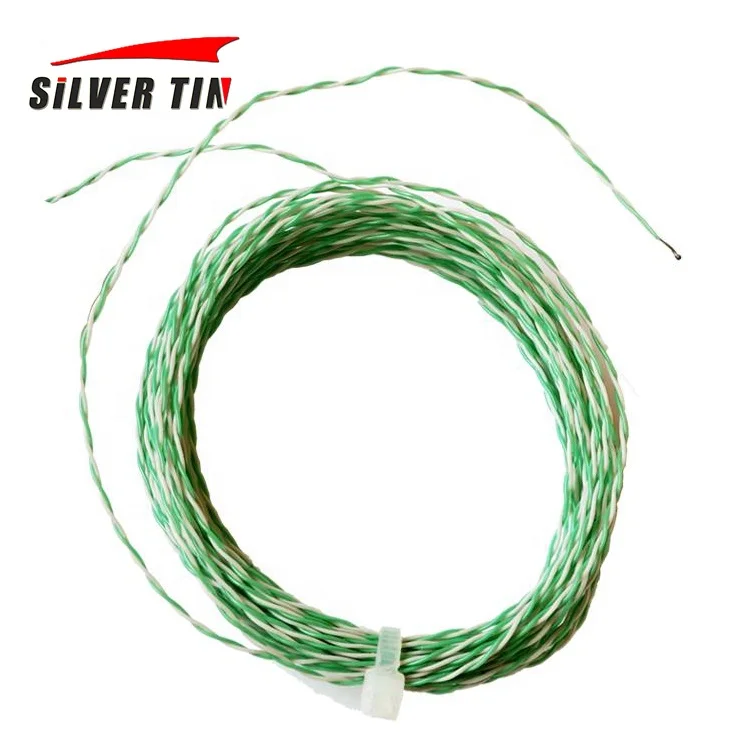

Type K Wire Thermocouple Green white color PTFE/silicone Twisted Pair Extension Wire
- Category: >>>
- Supplier: Shanghai Silver Tin Temperature Measuring Equipment Co. Ltd.
Share on (1600259656642):
Product Overview
Description
Product Description
The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature
measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are
used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and
pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for
these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for
sensing the temperature.
measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are
used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and
pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for
these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for
sensing the temperature.
Products Description
* Type: pt 100, K, E, J, T, N, etc.

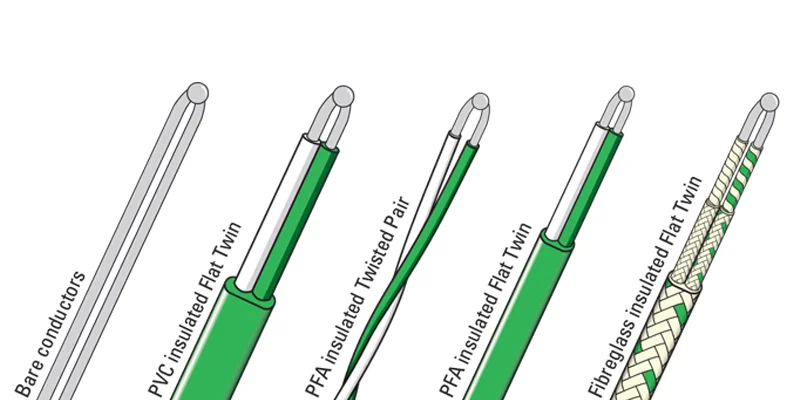

* Style: solid or stranded, parallel or twisted
* Conductor material:
* Style: solid or stranded, parallel or twisted
* Conductor material:
Variety | Type | ||||||
NiCr-NiSi | K | ||||||
NiCr-CuNi | E | ||||||
Fe-CuNi | J | ||||||
Cu-CuNi | T | ||||||
NiCrSi-NiSi | N | ||||||
NiCr-AuFe0.07 | NiCr-AuFe0.07 | ||||||
* Insulating and sheath material:
1. insulator Material
Silicone, fiberglass, PFA, FEP, PTFE, PVC, Quartz Fiber, Kapton
Silicone, fiberglass, PFA, FEP, PTFE, PVC, Quartz Fiber, Kapton
Insulation | PFA | TEP | FEP | PVC | FG | silicone | kapton | Quartz fiber | |
Max temp(°c) | 260 | 260 | 200 | 200 | 108 | 400 | 200 | 400 | 800 |
Core type | cross section(mm²) | Number of core strands | wire dia(mm) |
Single | 0.2 | 1 | 0.52 |
0.5 | 1 | 0.8 | |
1.2 | 1 | 1.13 | |
1.5 | 1 | 1.37 | |
2.5 | 1 | 1.76 | |
Stranded | 0.2 | 7 | 0.2 |
0.5 | 7 | 0.3 | |
1.2 | 7 | 0.43 | |
1.5 | 7 | 0.52 | |
2.5 | 19 | 0.41 |

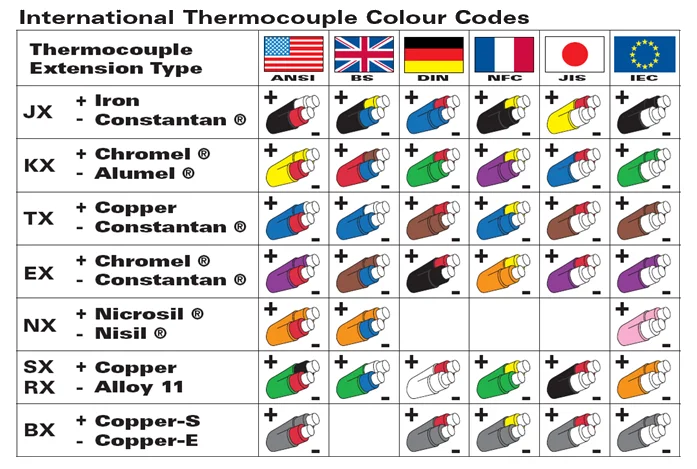

KC TYPE COMPENSATION WIRE
Conductor: Cu-CuNi
Conductor: Cu-CuNi
KX TYPE EXTENSION WIRE
Conductor: NiCr-NiSi
Conductor: NiCr-NiSi
TX TYPE EXTENSION WIRE
Conductor: Cu-CuNi
Conductor: Cu-CuNi
JX TYPE EXTENSION WIRE
Conductor: Fe-CuNi
Conductor: Fe-CuNi
NC TYPE COMPENSATION WIRE
Conductor: Fe-CuNi
Conductor: Fe-CuNi
SC TYPE COMPENSATION WIRE
CONDUCTOR: CU-CUNI
CONDUCTOR: CU-CUNI
EX TYPE EXTENSION WIRE
Conductor: Iron-CuSi
Conductor: Iron-CuSi
PT100 THERMOCOUPLE GRADE WIRE
Conductor: Cu-CuNi
Conductor: Cu-CuNi
Product packaging
