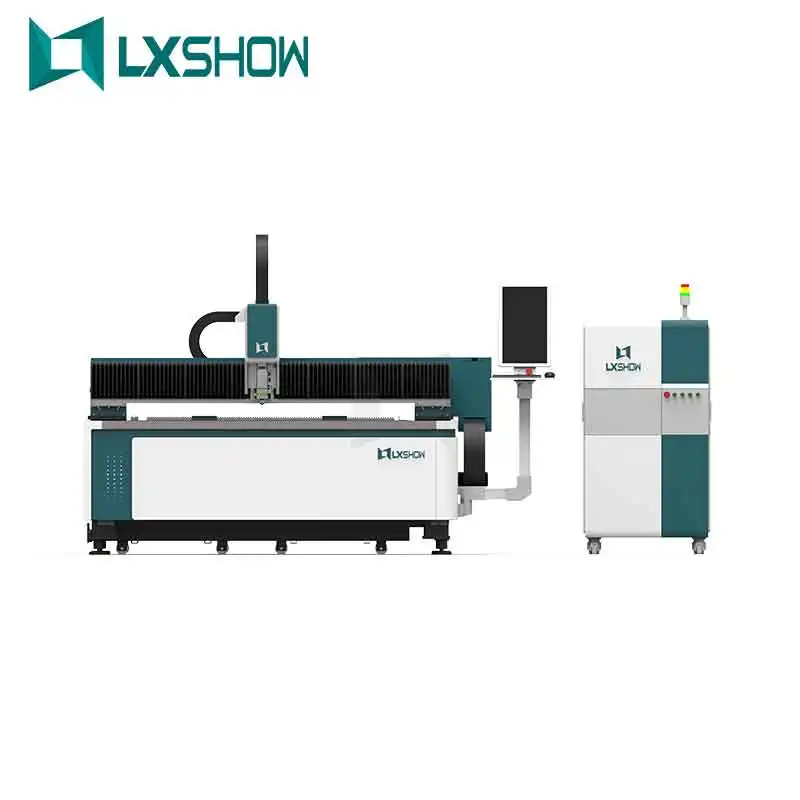

1500w 2000w 2kw sheet metal fiber optic laser kit cutter iron laser cutting machine
- Category: >>>
- Supplier: Jinan Lxshow Laser Manufacture Co. Ltd.
Share on (1600259662995):
Product Overview
Description
Product Overview

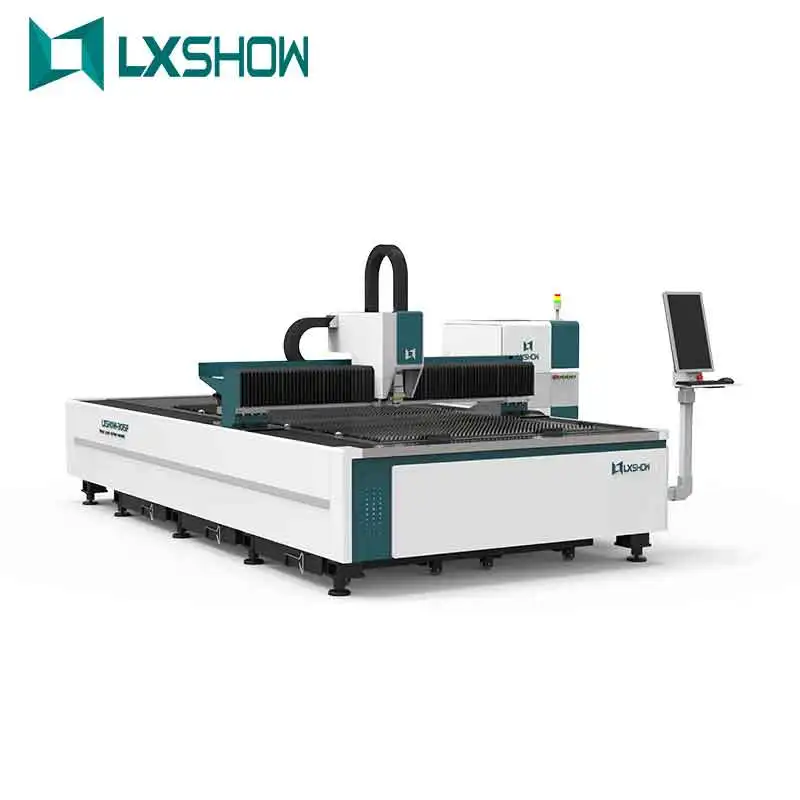

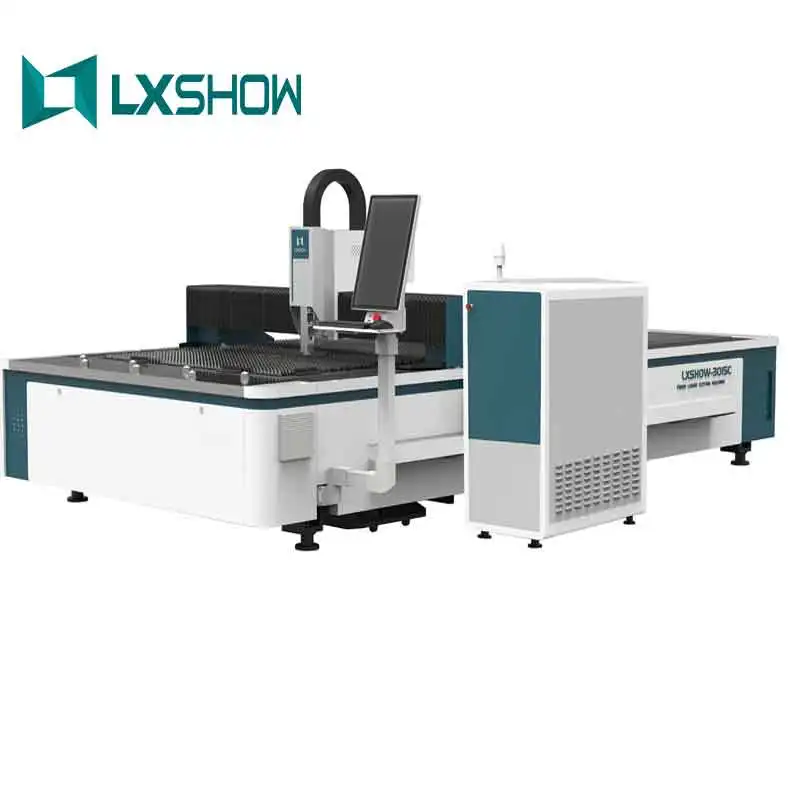

LX3015 1000--20000W Matel Sheet Plate Fiber Laser Cutting Machine
FEATURES AT A GLANCE
Machine Model | LX3015(4015/6015/4020/6020/6025/8025/12025 Optional) |
Power of Generator | 1000W/1500W/2000W/3000W/40000W/6000W |
Working Area | 1500*3000mm(Other size can be customized ) |
Max Running Speed | 120m/min |
Dimension | 4800*2600*1860mm |
Repeated Positioning Accuracy | ±0.02mm |
Max Acceleration | 1.5G |
Specified Voltage And Frequency | 380V 50/60HZ |

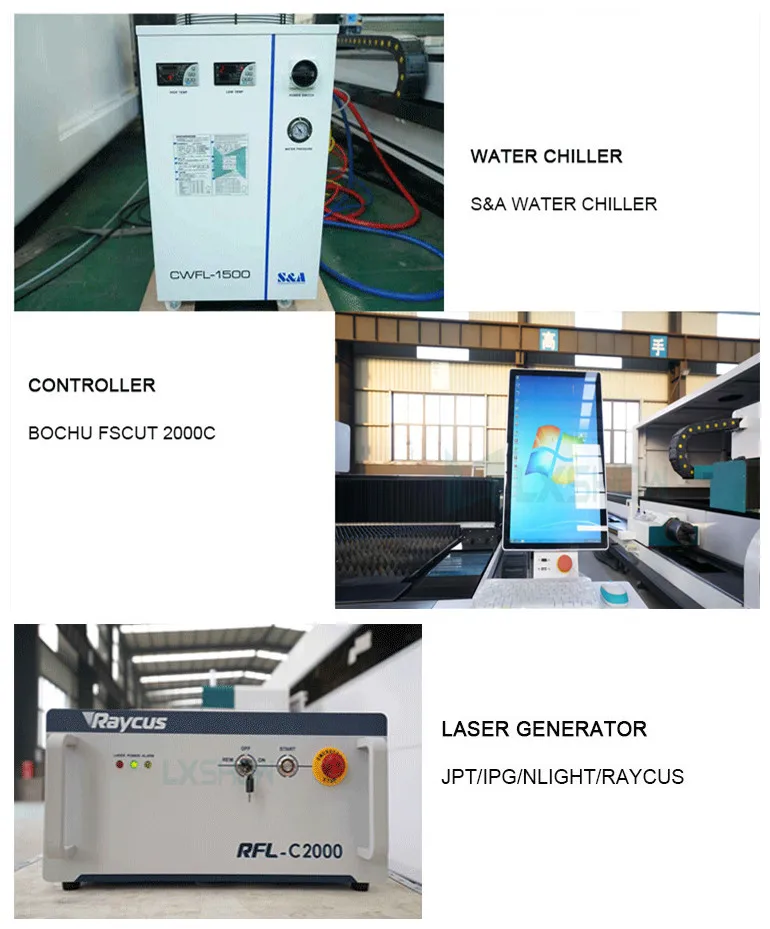

PRODUCT CONFIGURATION
Independent Control Cabinet
Dust-proof
•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
•The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
•The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
Intelligent Autofocus
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Transmission And Precision
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Japan THK Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G.
Cost Analysis
Laser Power | Assisted gas consumption | Option 1:Using air compressor Cutting Stainless Steel | Option 2:Using O2 compressor Cutting Stainless Steel | Option 3:Using N2 compressor Cutting Stainless Steel | ||||
1000W | Power Consumption | Laser Power | 4KW | 4KW | 4KW | |||
Water Chiller Group | 2.8KW | 2.8KW | 2.8KW | |||||
Host Machine | 5.4KW | 5.4KW | 5.4KW | |||||
Dust Exhausting Equipment | 0.75KW | 0.75KW | 0.75KW | |||||
Consumable Part | 2 RMB/h | 2 RMB/h | 2 RMB/h | 2 RMB/h | ||||
Gas Consumption | 15×85%=12.75KW | 20L/h(6RMB) | 40L/h(32RMB) | |||||
Total Power | 15.2KW | 15.2KW | 15.2KW | |||||
Average Power Consunption(Take 80% Cutting Effciency) | 15.2×80%=12.16 | 15.2×80%=12.16 | 15.2×80%=12.16 | |||||
All Cost | 12.16+12.75+2=26.91RMB/h | 12.16+6+2=20.16RMB/h | 12.16+32+2=46.16RMB/h | |||||
What materials can be cut?
1.Carbon Steel
2.Stainless Steel
3.Aluminum
4.Metals
5.Brass
6.Iron
7.Galvanized

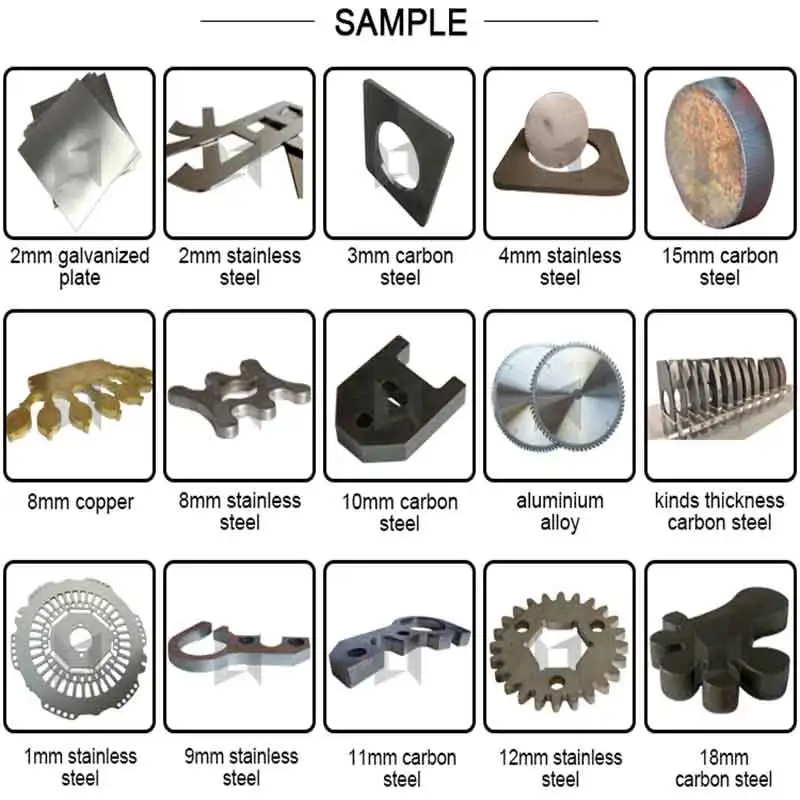

What is the cutting effect？Please refer to the pictures.

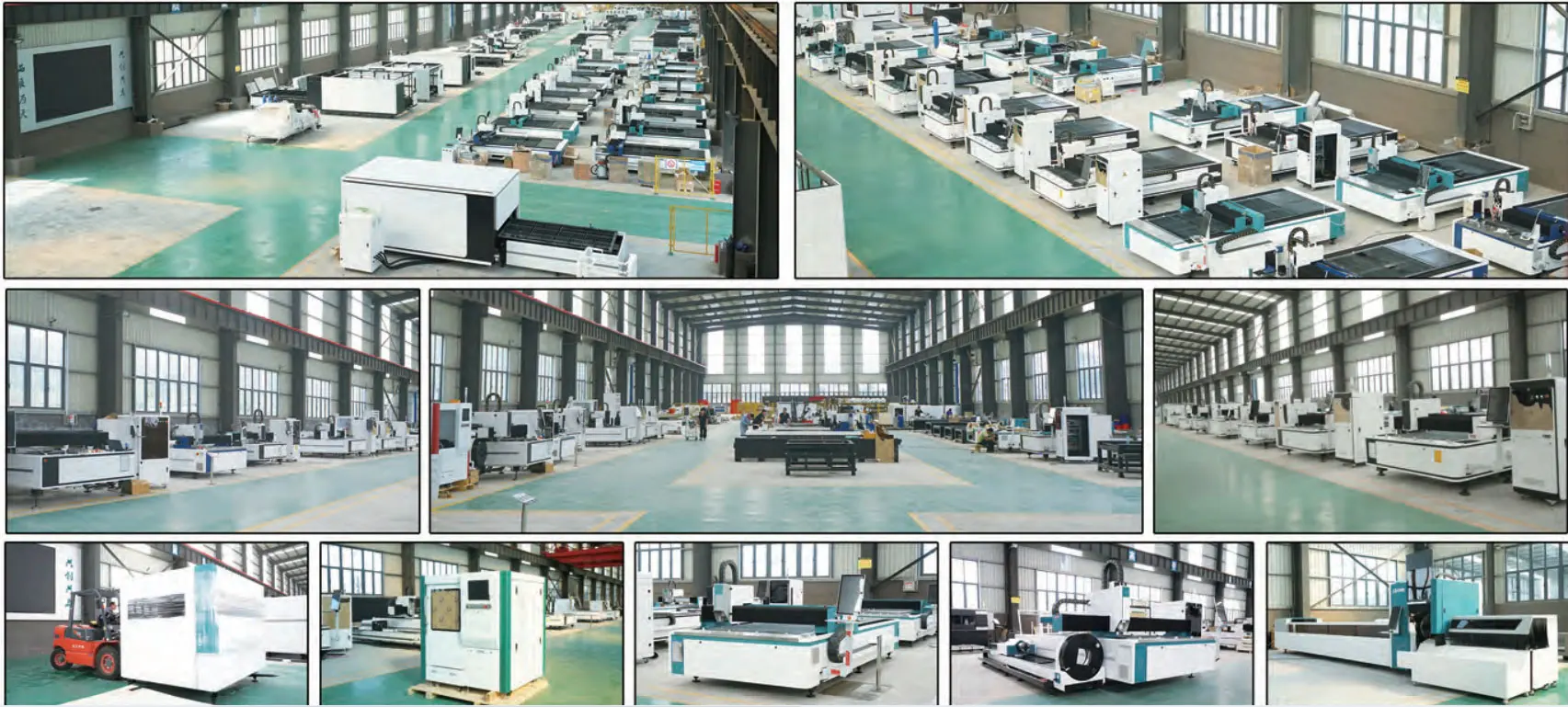

FACTORY SCENE
We have our own production factory, which can guarantee to provide you with products at the best price.
Design, Sales, Production, After-sales Service Team
Why we are the best choice？
How to contact us
Send your Inquiry Details in the Below，Click“Send”Now!
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to LXSHOW Laser Cutting Machine factory.
● The meaning of visiting supplier, because seeing is believing, LXSHOW Laser Cutting Machine with own manufacture and developed & research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
SEE LXSHOW LASER CUTTING MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, Each assembly is in charged by a master who has working experience for more than 5 years.
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
SEE LXSHOW LASER CUTTING MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, Each assembly is in charged by a master who has working experience for more than 5 years.
