Algae Tubular Separator Centrifuge
US $6800
Высокая скорость непрерывной Осадка Сточных вод для перекачивания отработанного масла для очистки воды центробежка Графинчика
- Category: Separation Equipment >>>
- Supplier: Nanjing,FiveMen,Machine,Co.,Ltd.
Share on:
Product Overview
Description
Product Categories
| Decanter centrifuge | Disc centrifuge | Tubular centrifuge | Milk centrifuge |
| High speed disc centrifuge | LWL filter centrifuge | Pusher centrifuge | Others |
Instruction

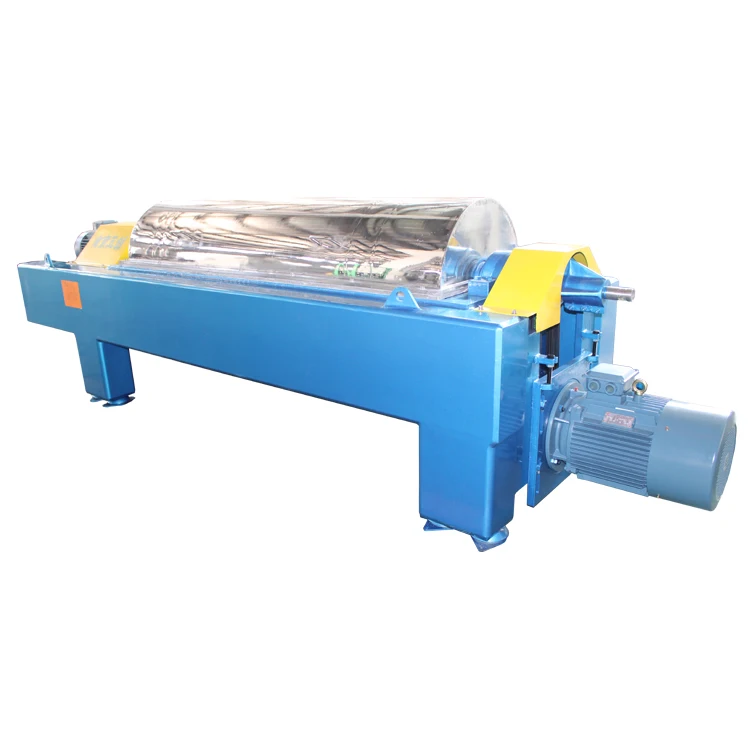

Horizontal screw centrifuge is for 0.002-3mm material for clarification, separation, dehydration, or classify 1um-5um solid phased particles. It has two types, one is LW two phase centrifuge, which can separate the solid from the liquid, another is LWS three phase cntrifuge, which can separate the water and solid from the oil.
Feature
It is wide application range, work continuously, large processing capacity, low cost, convenient maintenance and so on. It is the best equipment for separating solid-liquid.
Reference standard
1. Main standard of the national machinery industry.
JB/T502-2004 "spiral discharge sedimentation centrifuge"
JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard"
2. The national main standard GB10894-89 "separation machinery noise sound power level measurement engineering method"
Application:
LW decanter oil centrifuge is widely used in chemical industry, light industry, medicine, food, paper making, mining and other industries.
For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge),
another is three phase centrifuge (solid liquid liquid centrifuge.)
1) City tap water, domestic sludge dewatering;
2) Oil drilling mud dewatering;
3) Sludge Oil Recovery;
4) Fruit juice separation
5) Refinery sludge concentrated dehydration;
6) Distiller ‘s grains dehydration;
7) Medical sludge dewatering;
8) Soy protein dehydration;
9) Plant oil clarification and separation;
10) Cosmetic clarification and separation;
11) Bleaching powder separation.
12) Paper, printing and dyeing wastewater separation;
Product technical paramete
For LW decanter centrifuge, we have two different types, one is LW decanter centrifuge , which is two phase centrifuge(solid liquid centrifuge), another is three phase centrifuge (solid liquid liquid centrifuge.)
Model: | LW450X1720 |
Drum diameter: | 450mm |
Drum length: | 1720mm |
Drum speed: | 0—3300r/min(adjustable) |
Speed Difference: | 0—30r/min(adjustable) |
Length Diameter Ratio: | 4.2 |
Motor Power: | 22KW |
Auxiliary power | 7.5KW(In power generation state) |
Weight: | 3600kg |
Capacity: | ≥7.5T/h |
Application area: | animal oil,sludge dewatering chemical and waste oil so on |
Water content after separation: | ≤10% |
Oil content after separation: | ≤0.2% |
Three-phase Decanter Centrifuges technical parameters
Type | Bowl diameter(mm) | Bowl length/ Bowl diameter | Bowl speed (r/min) | Main Power(Kw) |
LWS355 | 355 | 3.3-4.5 | 4000 | 15-18.5 |
LWS420 | 420 | 4.1 | 3600 | 22 |
LWS500 | 500 | 4.2 | 3000 | 30 |
LWS530 | 500 | 4.2 | 3000 | 30 |
LWS580 | 580 | 4.1 | 2800 | 45 |
LWS620 | 620 | 4 | 2800 | 45 |
Note: In case of differences between the table and the user manual, the latter shall prevail. | ||||
