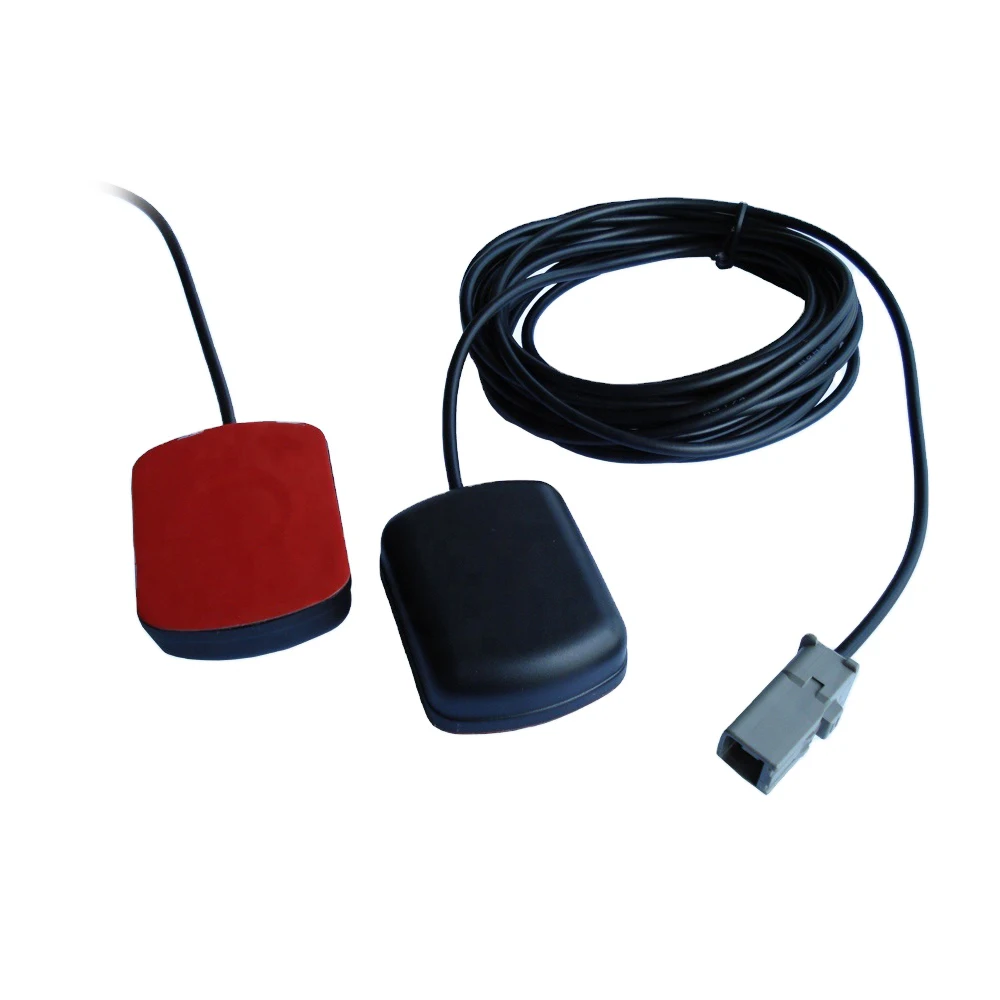

GNSS GPS Antenna RTK 1575.42MHz/1602 1610MHz GPS antenna with straight blue fakra connector
- Category: GNSS & GPS Antenna >>>
- Supplier: Jiaxing Bailly Mechatronics Co. Ltd.
Share on (1600259693238):
Product Overview
Description
Product Description
GNSS GPS Antenna RTK 1575.42MHz/1602-1610MHz GPS antenna with blue fakra connector
Specification:
| 1)Dielectric Antenna | |
| GPS Frequency | 1575.42 MHz±3 MHz |
| Glonass Frequency | 1602-1610MHz |
| V.S.W.R | 1.5:1 |
| Band Width | ±5 MHz |
| Impedance | 50 ohm |
| Polarization Type | R.H.C.P |
| 2)LNA/Filter | |
| LNA Gain(w/o cable) | 28±2dB Typical |
| Noise Figure | 1.5 dB |
| DC Voltage | 2.2~5 V |
| DC Current | 5~15 mA |
| 3)Mechanical | |
| Mounting | Magnetic/Adhesive |
| Housing | Black |
| Size | 43*35*14mm |
| Cable | RG174 3m or others |
| Connectors | SMA/MCX/SMB/BNC or others |
| 4)Environmental | |
| Working Temp | -40℃~+85℃ |
| Relative Humidity | 55%~75% |
| Waterproof | IP67 |
