China New SM200M 3 Heavy Duty 2m Milling Width Cold Milling Machine With Best Price
- Category: Other Construction Machinery >>>
- Supplier: Sinomada,Heavy,Industry,(Changsha),Co.,Ltd.
Share on:
Product Overview
Description

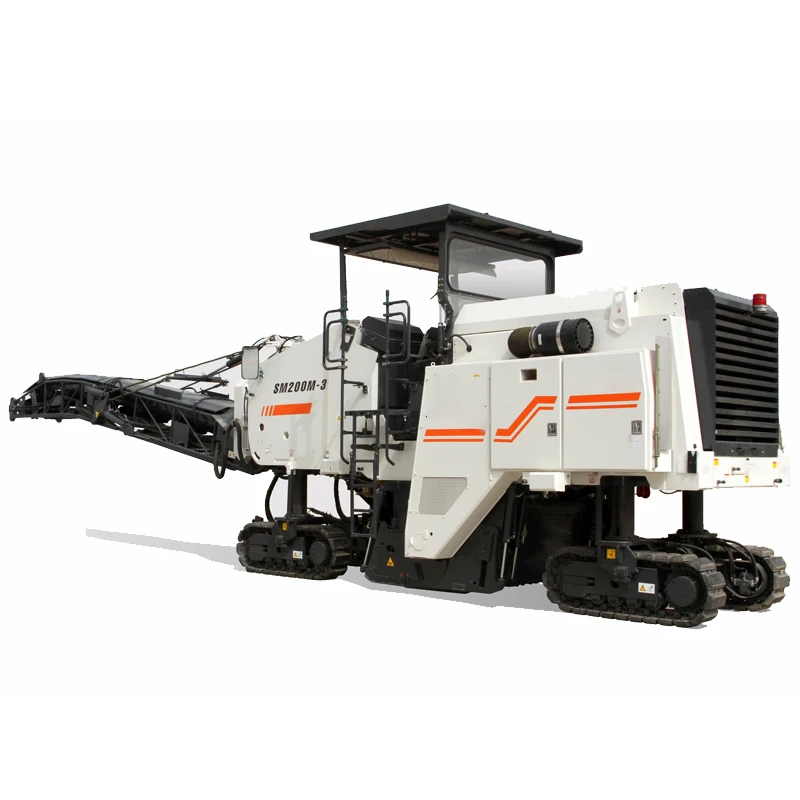

China New SM200M-3 Heavy Duty 2m Milling Width Cold Milling Machine With Best Price
ENGINE POWER With 447kW/2100rpm, this engine conforms to Euro-ⅢA emission regulation.
OVERALL WEIGHT 29700kg
MILLING WIDTH 2000mm
| Parameter name | SM200M-3 (Standard version) |
| Performance parameters | |
| Operating weight (Kg) | 32000 |
| Transport weight(Kg) | 29700 |
| Maximum milling width (mm) | 2000 |
| Maximum milling depth (mm) | 320 |
| Engine | |
| Engine model | QSX15 |
| Rated power/rated speed (kW/rpm) | 447/2100 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 14940*2515*4090 |
| Driving performance | |
| Traveling speed (km/h) | 0-5 |
| Working speed (m/min) | 0-83 |
| Conveyor System | |
| Width of conveyor belt (mm) | 800 |
| Swing angle of conveyer (Rightward/leftward) (°) | ±45 |
| Tank capacity | |
| Fuel tank (L) | 1120 |
| Working device | |
| Number of milling cutters (Piece) | 162 |
