This type of animal equipment is a luxurious model that is carefully designed by a senior Australian designer and combined with our company's years of mechanical experience. This machine is more humane and more refined, suitable for manufacturers with a certain scale and economic strength.
This machine can cut 0.2mm-30mm carbon steel, stainless steel, copper plate, aluminum plate, galvanized plate and other metals of different materials. In addition to all the high-efficiency configurations of our leading models, it is also equipped with a well-known domestic brand servo motor, so it has higher precision than ordinary plasma. Equipped with an exclusive red light positioning, it can more accurately preview whether the work area is within your requirements before cutting, avoiding the waste of steel plates, and accurately providing the preconditions for pointing where to hit. Equipped with a wireless control handle, fully taking into account the people-oriented, convenient operation, and closer to the concept of actual combat, so that the operation can be controlled at will, and it can be easily controlled to achieve the state of man-machine integration within a range of 20m. Equipped with a high-sensitivity electronic anti-collision gun head, it is also based on the human-oriented concept, allowing customers to use the machine boldly and confidently. Even if the operation is wrong, the machine can be a protective measure to avoid injury. Equipped with a sliding feeding system, which allows us to process more easily and conveniently during the actual feeding process. Let us minimize the time that is not required in the work T to maximize work efficiency.

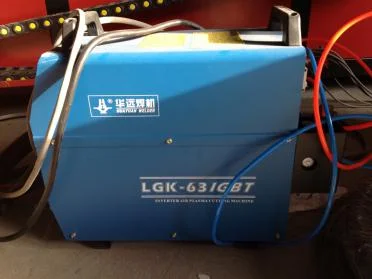

63A plasma source

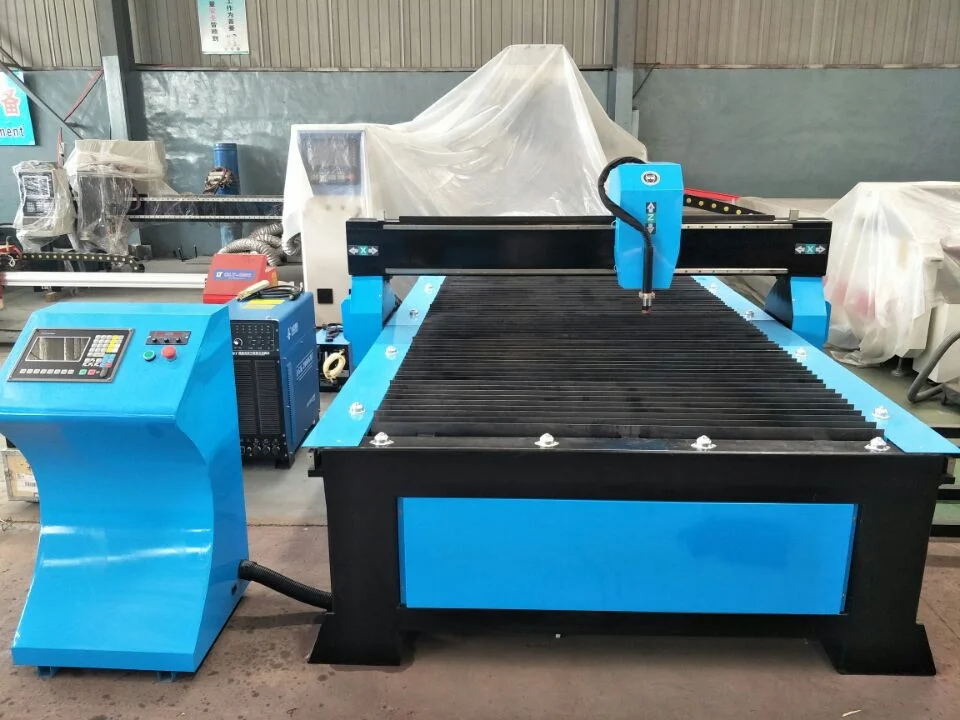

Machine appearance
Automatic Torch height control
Independent control cabinet

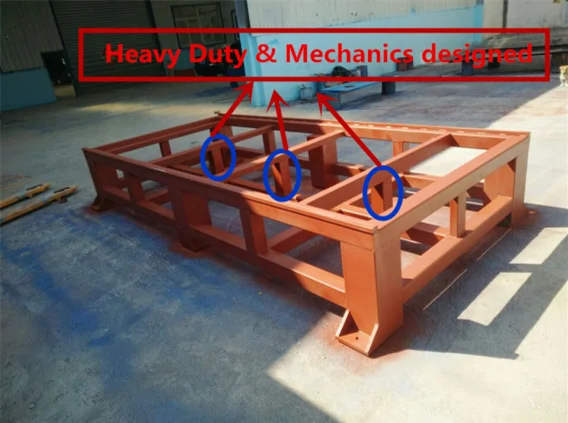

Heavy duty Machine body
stepper motor & driver
Product selling point:
1. Equipped with domestic well-known brand servo motor, higher than ordinary plasma precision
2. Equipped with exclusive red light positioning, it can be used in the requirements of more accurate working formations before cutting,
avoiding waste of steel plates.
3. Equipped with wireless control handles, realizing people-oriented, convenient operation, more close to the philosophy of actual combat, allowing operations to control with the heart, can easily control the state of people in one.
4. Equipped with high-sensitivity electronic anti-collision guns, is also based on people-oriented concepts, allowing customers to use the machine boldly, even if the operation error can also make the machine to avoid harm. 5. Equipped with a sliding upper system, which can be easier and convenient to improve the work efficiency in the process of actual material.

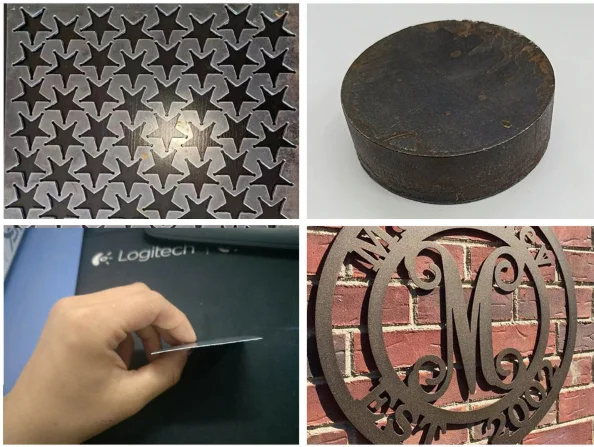

Sample display
Cable
We use the XBE cable super soft line, which can fold more than 1.2 million times, while the cable can only be 300,000 times, in other words, our cable does not have any problems within 6 years, while other home | cables There will be a problem with many more points.
Software
If you don't make a picture, don't worry, we can also help you do more common graphics, then give you a tutorial for free, you are half an engineer.
After-sales
In addition to consumables, warranties for two years, other houses are only one year, there is any problem free service during the warranty period, free replacement accessories, don't worry after the warranty period, as long as it is our machine, service is free forever. For the first time, you will have two choices. You will have two options. If you feel familiar with the machine, you can take a closer look at our video tutorial. I can have 8G blue and white U disk for the operation of the video handle. 2 If you don't have a cold to mechanical products, you can choose to train our sales. Of course, this will charge a certain fee according to your company's distance.
They can make the machine into English, Russian, French Spanish Czech, Japanese. Convenient customers' use. Because our company is engaged in export sales, many of Europe requires many standards and requirements we can basically meet. Moreover, there are many improvements in the connection of the machine. In the late stage, we can use A b C to C, which is easy to repair any conditions via a pair of A B, regardless of the customer. There are still many similar small details, and it is not - one more, and you can consult our business.
Need to prepare
220V single phase electricity + 380V three-phase electricity The air compressor (0.36 cubic / min and the pressure is greater than 0.6MPa) is easier to meet. One computer is not too old
Specification
Model
1325
1530
1540
1560
2040
2060
Cutting width（mm)
1300
1500
1500
1500
2000
2000
Cutting length(mm)
2500
3000
4000
6000
4000
6000
Cutting thickness
Power
Quality cutting thickness (within) mm
Maximum thickness (within) mm
Compressed air pressure MPA
63/65A
8
12
0.6
100/105A
20
25
0.6
120/125A
22
25
0.6
160A
25
30
0.8
Packing & Delivery
Company Profile
The company specializes in the production of various sheet metal equipment such as Press brake, shearing machine, v grooving machine, roll machine and other sheet metal equipment. Since the beginning of our establishment, we have established the business philosophy of "being first, doing things later, honesty and trustworthiness", and the business tenet of "meeting customer needs, thinking about customers, and satisfying customers" to meet the ever-increasing needs of customers. After years of development, we have achieved economic benefits and spiritual civilization. At present, we have formed a good business relationship with many surrounding customers for many years. Quality is the life of a brand, and service is the capital of brand transmission. We will work hard for the take-off of Runguang with first-class service, excellent quality, full work enthusiasm, and positive and serious work attitude!
FAQ
