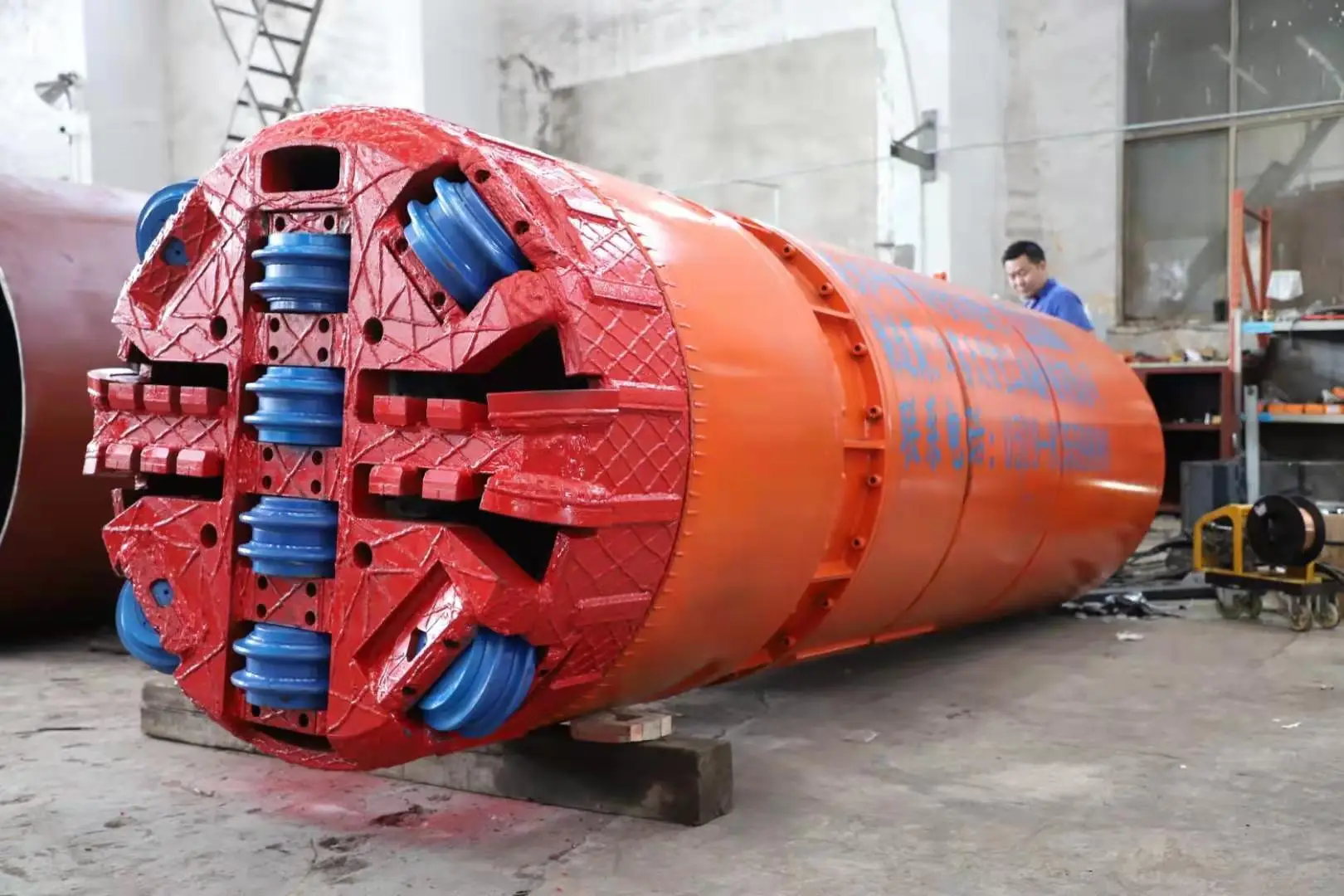

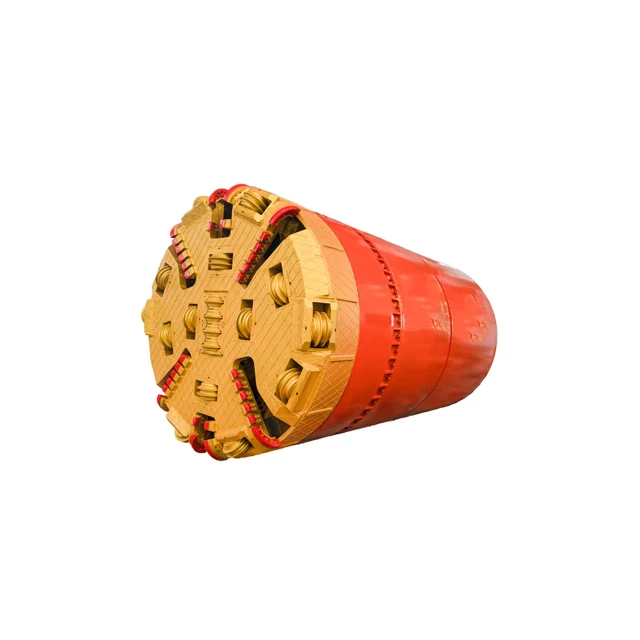

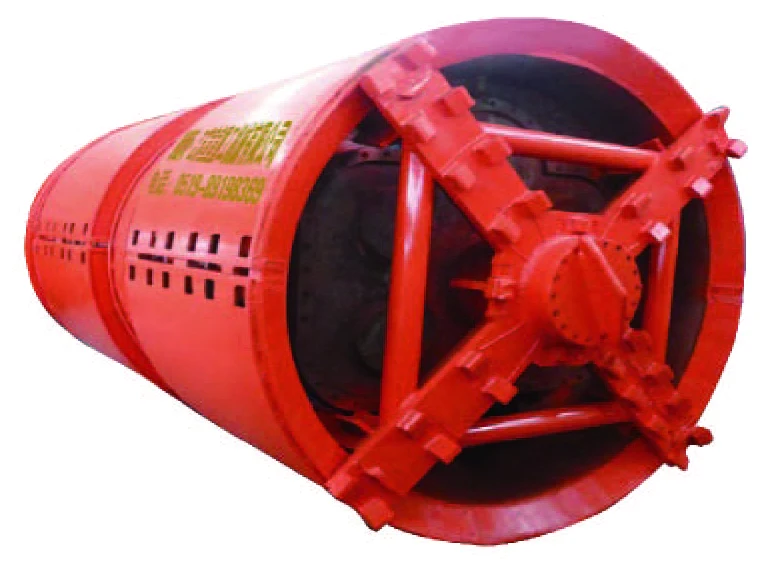

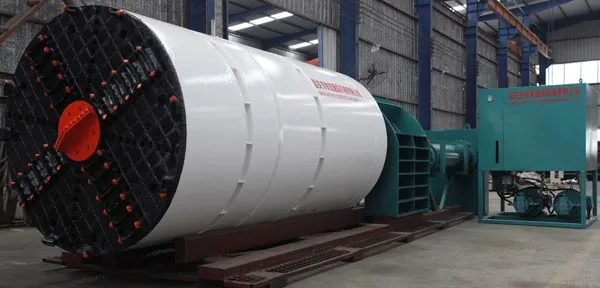

Ysd3000 Rock Auger Pipe Jacking Machine for Sewage Pipes for Rcp
Description
Rock pipe jacking machine adopts heavy mechanical transmission structure design, the transmission torque is large, maintenance personnel can freely enter the mud silo, as third crushing, can change the tool, the transmission torque is large, can jack in the hard soil layer, sand layer, gravel layer, rock laye. It can design and manufacture diameter1000-diameter3500 mm with various specifications of rock pipe jacking machine.
Full section earth pressure display system;
Film plate and spindle center two independent injection system;
The rear of the top machine is equipped with a main push device and anti-deflection device; Advanced instruments and control systems, such as touch screen, PLC and frequency converter etc;
The touchscreen display, recorded data can be connected to the user's office monitor.


Product Parameters


Model YSD3000
Design pipe jacking specification:
inner diameter * outer diameter
3000*3600mm
Pipe jacking machine outer diameter * length
3600x5400mm
Length of front shell of pipe jacking machine
2420mm

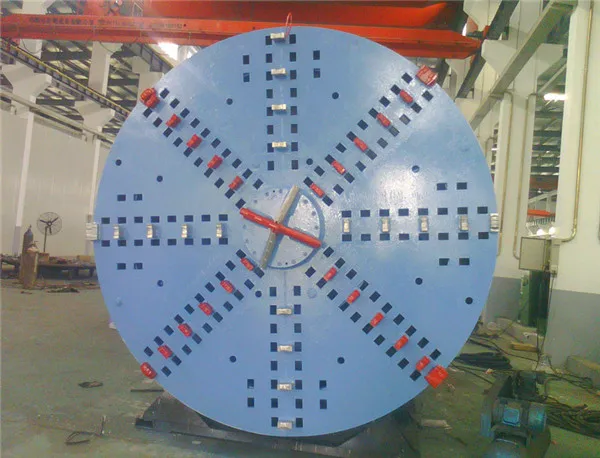

Cutter Head
Motor power
6*45kW
Dynamick reducer
45kW/i=205
Speed of revolution
2.1rpm
Maximum torque
1232KN.m
Rectification system
Number of cylinders
8
Cylinder thrust
200T
Correction angle
2.5°
Motor power
11kW
Feed and discharge system
150mm
Total head power
281kW
Control mode
Centralized control of ground console
