Huihuang Well manufactured Steel Tape Measure Pullback Spring

Product Overview

Description

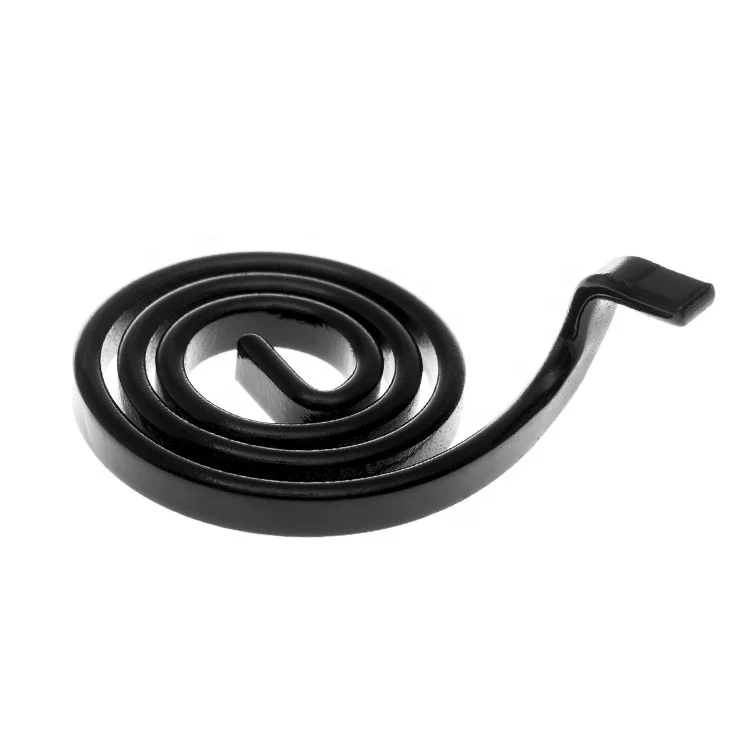

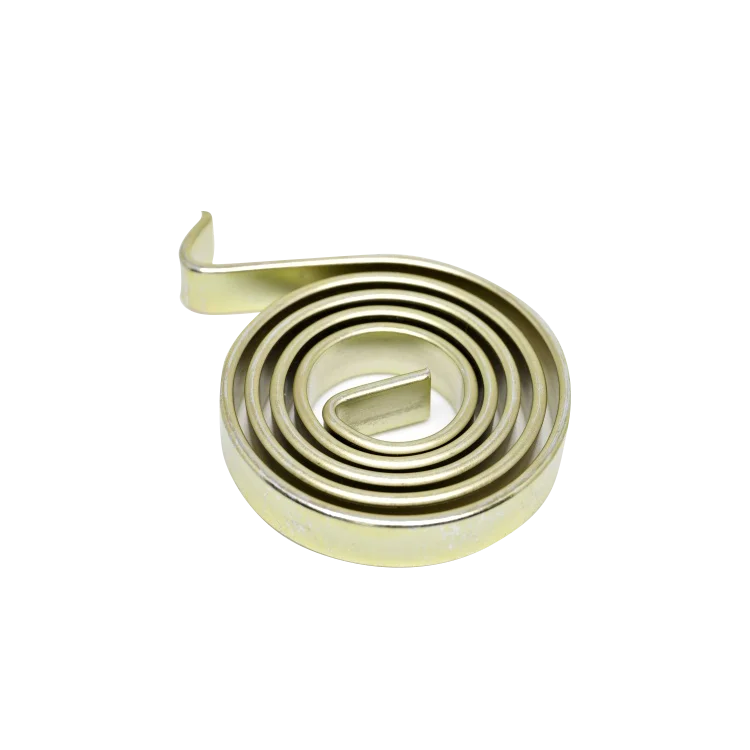

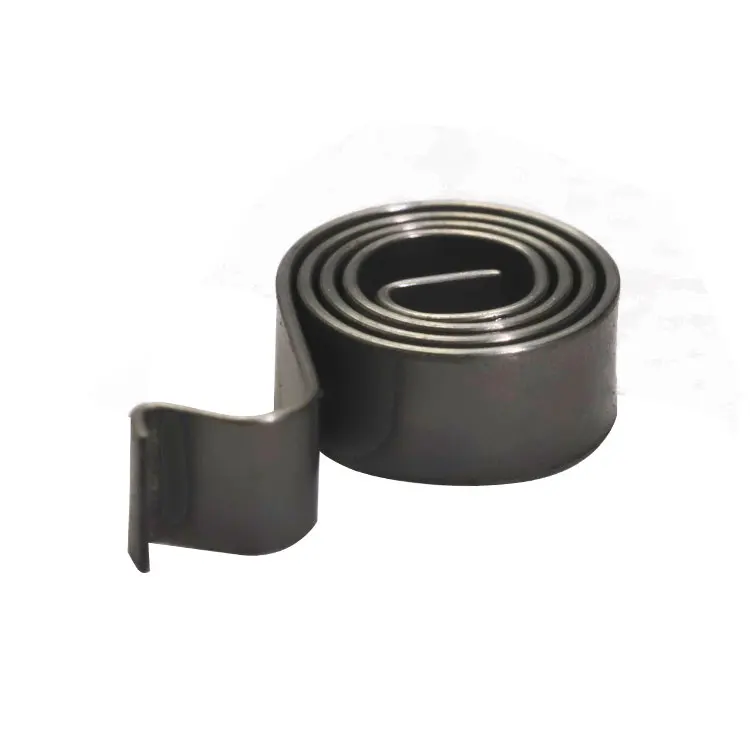

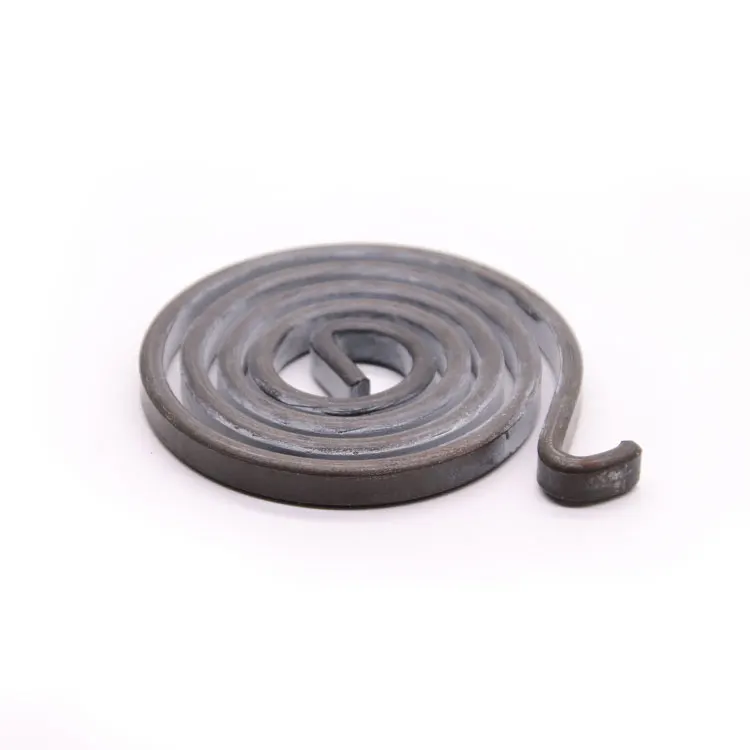

Huihuang Well-manufactured Steel Tape Measure Pullback Spring



Scroll spring is a kind of spring in which the spiral is in a plane and the material is wound into a plane spiral. After one end of the spring is fixed and the other end acts with torque, the material is subjected to bending torque to produce bending elastic deformation, so the spring produces torsion in its own plane. Its deformation angle is directly proportional to the torque and has high torque, which is different from the torque distance of multiple angles. Therefore, it is not easy to fatigue when applied to the mechanism working for a long time. Its application is similar to that of torsion spring.





1. Production scope: the maximum thickness of round wire flattened steel wire or strip is 3mm and the maximum width is 10mm

2. whether it is in contact with adjacent working parts:

    ---- non-contact plane scroll spring,

    ---- contact plane scroll spring.

3. The fixing methods of the fixed end are:

    ----hinge fixing,

    ----pin fixing,

    ----V-shaped fixing,

    ----lining fixing.



1.Produce the springs according to your drawings, samples and related patameters

2. If there are no drawings, samples and related parameters, our company's unique

Zhongyuan Spring Research Institute can design according to your actual situation.















Product Catalog (Stock model optional)
Factory Code	Product Name	Material	Material Specification	Outer Diameter	Arm Length	Core	Number Of Turns	Remarks
30136	spiral spring	SUS301	0.3x8	ø10	14.8	4.6*2.4	3.25
143006					13.2	4.1*2.1
30030		65Mn	0.3x9	ø9.5	15.5
94007			0.35x6.5	ø12	13	4.5*2.4	4.5
30049			0.35x8	ø10		4.5*2.7	3.5
163005				ø11.6	12.6	4.8*2.4	4.5
154130			0.4x10	ø10.8	15.2	4*2.2	3.75
163025				ø11.5	14.8	4.8*2.6	4.25
154050			0.4x11	ø12.5	13.8	5*2.5	4.5
33008			0.4x3.5	ø9.8	12	4*2.1
30101			0.4x5	ø7.5		3.4*1.8	3
163007			0.4x6	ø12.1	14.8	4.3*2.4	4.25
163008				ø10.8	13.6	4.4*2.5	4.5
163031				ø12.1	14.5	4.5*2.4	4.3
30138			0.4x8	ø12	13.2	5*2.6
47020			0.45x10	ø14.3	16.5	5*3	4.5
163006			0.45x5	ø11.7	13.5	5.2*2.7	4
23002			0.5x10	ø12.9		5.6*2.9	4.5
25034				ø15			4.75
30169				ø14	17.6	6*2.9
40079					19	5.8*3	4
54038				ø13.5	15.5	5*3	4.5
54045				ø15	17.5		4.75
54053		1Cr17Ni7		ø16.5		6*3
64010		65Mn		ø14	15	6.2*3.1	4.5
75005				ø13.5	16.2	6*3	4.5
83036				ø14.5	17		3.5
97052					16		4.5	Different elasticity
97054
97066				ø15	17.2
111008				ø14	16.8		3.75
124108				ø13.8	14.5	6.3*3	4.25
143004				ø13.4	15.5	6*3	4.5
143005				ø13		5*2.4	4.3
143007				ø14.8	16.5	5.9*2.9
143008				ø15.5	20.5	6*3	4.75
154042				ø14.5	19
154045				ø13.6	17		4
154048				ø14	16.8
154080				ø15.4	18	6.2*3	4.75
154099				ø12.9	15.6	5.7*2.9	4.5
154125				ø14.5	17.5	6.1*3	4.75
50022			0.5x11	ø13	14	5*2.5	4.5
50023				ø12.5	15.5	4.6*2.5	4
54023		SUS301		ø17.5	16.5	6*3	5.5
87008		65Mn		ø15	18.2	5.6*3	5.3
67018		SUS301	0.5x4.5		18	4.5*2.3	3.8
3005		65Mn	0.5x5	ø12	14	5.1*2.6	4
30014				ø10.5	12.5	4.4*2.2
30076				ø12	15	4.5*2.1
124125				ø13.7	18.8	6*3	4.5
163013				ø11.7	12.9	5.1*2.6	3.9
64021			0.5x6	ø13	15	6.3*2.7	4
64023						5.4*2.7
94011					15.5	5*2.5	3.7
104004				ø16	25.5	6.8*3.3	4.9	Different elasticity
20038			0.5x8	ø14		5*1.5	3.75
25053				ø13.5	15.5	6*3	4.5
154106					15.2	5.8*3.2	3.5
154123	Brush spring				16.2	5.8*3	5
23025	spiral spring		0.5x12	ø20.5	27.2	9*5
55032			0.55x6	ø15	21	5.5*3	3.75
104005				ø16	15.5	6.8*3.3	4.9
150012					23	6.3*3.5	4.6
143003			0.55x8	ø14	16	6.5*3.1	3.75
14012			0.6x10	ø14.8	17	6.7*3.5	3.5
124035				ø17	21.5	6.6*3.4	4.5
154077				ø14	16.7	6*3	4
54080			0.6x11	ø16	19	5.8*3	5
97045				ø16.5	18.4	5.6*2.9	5.25
20028			0.6x12	ø16	24	5*1.5	4.5
25049				ø16.5	20	6*3
77001								V-shaped spring
124078				ø22	25	9*5.5	5.5
67003			0.6x5	ø14.5	17	5.7*3	3.5
68015				ø16.5	16.5	6*3.3	4
76022				ø13.5	16	6.1*3	3
124021				ø16	20	5.7*2.9	4.5
124142					20.1	9.5*4.5	2	Actual 0.65 * 5 material
154127				ø12.2	19	5.6*3	3
163026				ø13	16	5.3*2.6	4
54082			0.6x6	ø13.8	17	6*3
124019				ø16	22	6.7*3.3	4.75
14014			0.6x7	ø14.1	17	6*3	3.5
67001				ø14.5		5.7*3
8001		SK5	0.6x8	ø20	26.9	6.5*3.5
23004		65Mn		ø14	16	5*2.8	4
25029				ø13.5	17	6*3
25032				ø14	18
25043				ø14.3	16	6*2.9
25048					17
54058				ø14		4.5*3
55012					16.5	6*3.5	4.5
64003					17	5.8*3	4
64006					16.5
67006
75006					17.7	6*3
97064				ø14.5	20.5	6.8*2.9	3
143009				ø14	16	5*1.5	4
154006				ø14.5	15.5	6*3
154023				ø13.5	16.5	5.8*3
154103					15.5
166001				ø14		6*3
154123			0.7x10	ø16.9	18.5	6.4*3.8	4.4
54011		1Cr17Ni7	0.76x0.87	ø24	23.5	3.3*5.7	5
77009		SUS301	0.76x8	ø20		7*3.8	4.3
67002		65Mn	0.8x8	ø20.5	24	7.1*3.6	4.5
30072		SWPB	ø1	ø10.9	16.5	5*1.5	4
30073
3015		65Mn	ø1.1	ø10.7		5*1.6		Dextral
3016								Sinistral
30038			ø1.2	ø12.4	20.5	6.1*1.8
110014		0.5x10	ø15	16.1	6x3.5	4.3
97077		0.4x10	Dia11.6		14	4.4
97079		0.5x10	Dia14		17.6	4.75		Flat scroll spring core 3 * 5.6
97078		0.5x11	Dia14.8		17	5.25
