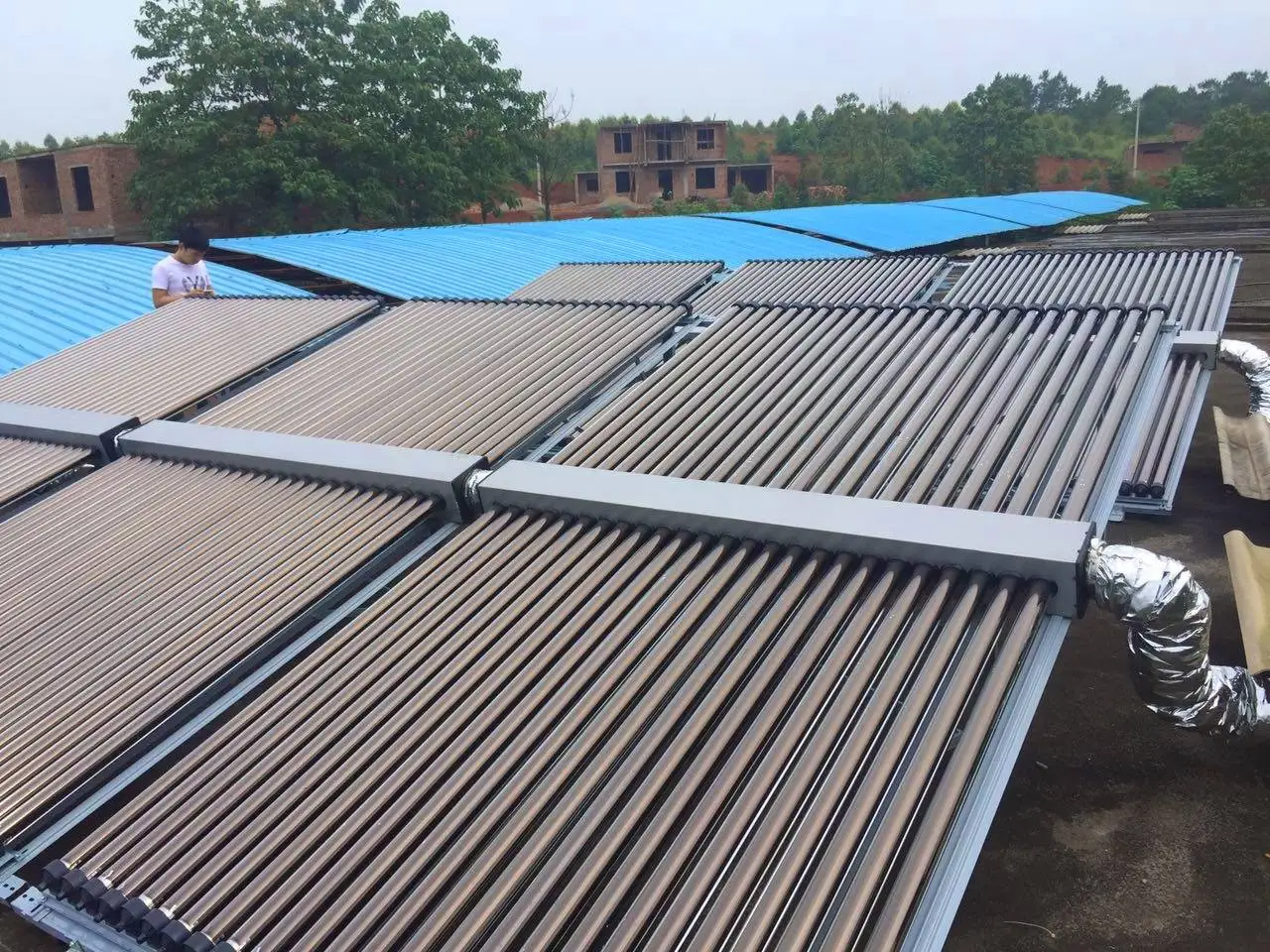

high pressurized copper heat pipe solar collector manifold

Pressured SOLAR  COLLECTOR

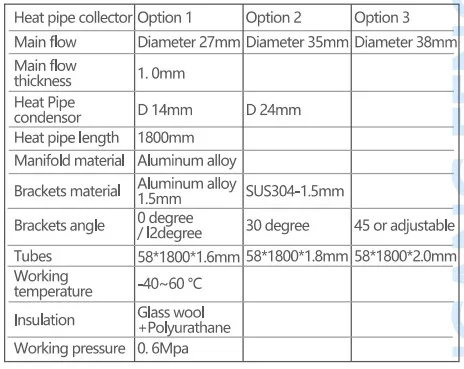

Item No.

FXSP-10

FXSP-15

FXSP-20

FXSP-25

FXSP-30

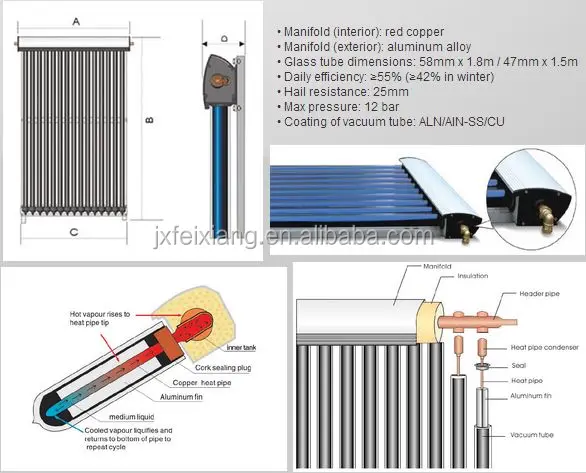

Solar tube

Tri-elements vacuum tube with heat pipe, Φ58X1800mm

HP condenser

Φ14mm or Φ24mm, 70mm length

HP body

Φ8mm, 1,750mm length

Transferring

Anti-freeze fluid medium (water glycol)

Aluminum fin

Whole piece aluminum fin, 1,600mm length, thickness ≥ 0.2mm

Sealing plug

Silicone rubber with stainless steel cover

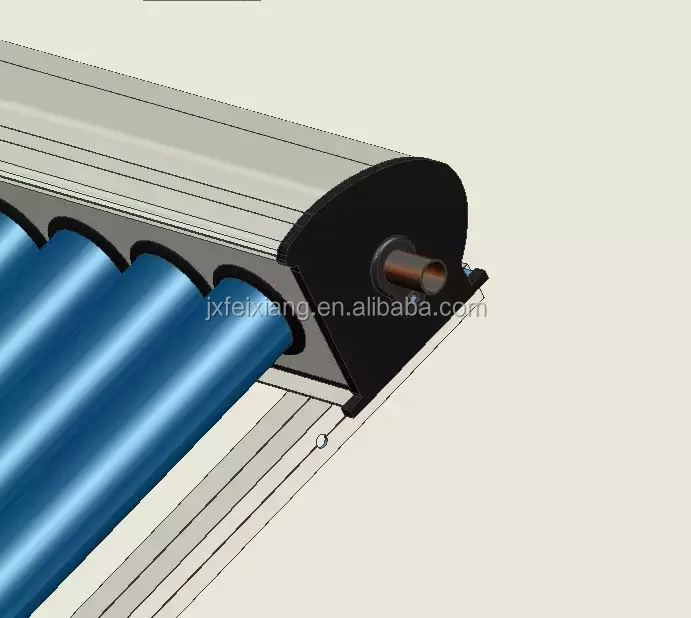

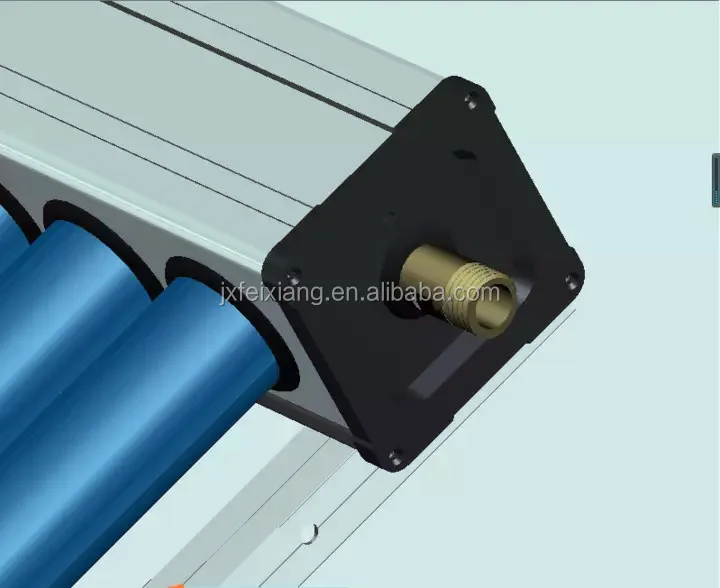

Manifold material

Aluminum alloy with Anode electrophoresis, thickness ≥ 2mm

Manifold cover

Heat resisting Nylon plastic parts

Accessories

Anti-water ring, anti-dust cover, silicone rubber

Header pipe

Copper TU2, Φ35mm or Φ42mm,1.0mm thickness

Insulation

Rock wool, thickness ≥ 45mm, density ≥ 50kgs/m³

Bracket

Aluminum alloy with Anode electrophoresis, thickness ≥ 1.6mm

Tube support

Adjustable Nylon plastic parts

Tube QTY.

10 pcs

15 pcs

20 pcs

25 pcs

30 pcs
