100% HDPE material for mbbr sewage treatment agricultural waste
- Category: Agricultural Waste >>>
- Supplier: Jiangsu,Yulong,Environment,Protection,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

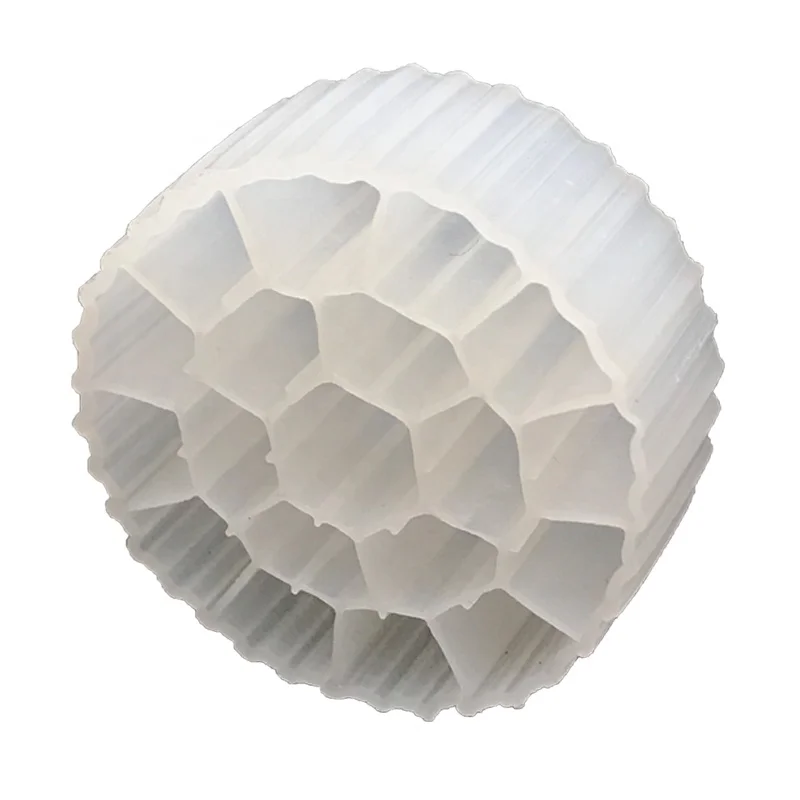

mbbr biofilm carrier for agricultural waste, better than Kaldnes
-- MBBR/ISBAS™(Integrated Suspended Biofilm and Activated Sludge)
-- ISBAS™ process combines the YULONG® Biofilm technology and activated sludge in the same tank.
We started to cooperated with China Academy of science (CAS) in 2001 and successfully developed YULONG® MBBR bio media in 2007.
-- The ISBAS™ is especialy suitable for municipal wastewater but also be used for some industrial applications.
-- We design, professional manufacture and after-sales service of our products in China,
-- Excellent Doctor teams could provide you reliable technical support and devise tailor-made sollution for your actual wastewater project.
-- We have rich experience in doing a lot of successful projects (in pharmaceutical, food industry, etc.,) relying on MBBR technology
-- The future potential of MBBR process technology has been proved to be quite optimistic because of the characters of saving footprint (The land become more expensive because of over development of real estate.) We would like to stand by you to develop more market by using our CORE technology MBBR/ISBAS™.
Features:
1) Bioflim forming time is 3~15 days, the fastest is only 2 days. Do not culture of bacteria in advance. The formula scientific substance support the growth of heterotrophic and autotrophic microorganism within its cells
2) Special Surface Treatment
- Larger and Roughness Inner Surface to Enhance Microble cell Adhension and Biofilm Forming Rapidly
3) Good Hydrophilicity
- Add Hydrophilic Groups to Improves Biofilm Formation and Biomass
4)The surface of our MBBR media is with positive Charge which promote Microorganism Growth , the study report most of microorganisms take negative charge.
5)Biomass (g/m2) 10 - 20
6)High efficience removal of BOD5,COD, TSS etc,
2) Special Surface Treatment
- Larger and Roughness Inner Surface to Enhance Microble cell Adhension and Biofilm Forming Rapidly
3) Good Hydrophilicity
- Add Hydrophilic Groups to Improves Biofilm Formation and Biomass
4)The surface of our MBBR media is with positive Charge which promote Microorganism Growth , the study report most of microorganisms take negative charge.
5)Biomass (g/m2) 10 - 20
6)High efficience removal of BOD5,COD, TSS etc,
mbbr biofilm carrier for agricultural waste
can be used for the elimination of COD and BOD5, for nitrification and denitrification. Need not any other structural changes to existing tanks. Stable opeation, good design flexibility, Need not metal framework, Service-free, service life is far above 20 years.
Micro-polluted water treatment of city water, MBBR bio filter media carrier can be wildly applied for Aquaponics, Aquarium, Fish pond KOI POND Etc., improve the water quality, good effect of denitrification and phosphorous removal, controlling water eutrophication, is characterized by high process stability and performance.
Specifications

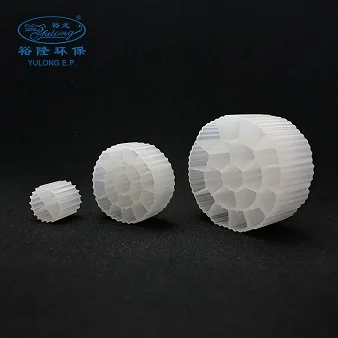

Model | YL-Ⅰ | YL-Ⅱ | YL-Ⅲ |
Size(Φmm) | 10×10 | 25×12 | 35×17 |
Specific Gravity(g/cm3) | >0.96 | >0.96 | >0.96 |
Bulk Density(piece/m3) | 365,000 | 95,000 | 58,000 |
Efficient Surface(m2/m3) | >850 | >500 | >350 |
Voidage Ratio(%) | >85 | >90 | >92 |
Dosage Ratio(%) | 15~60 | 15-70 | 15~50 |
Membrance-Forming Time(day) | 3~15 | 3~15 | 3~15 |
Nitrification Efficiency(g NH4-N/m3.day) | 400~1200 | 400~1200 | 300~800 |
BOD5 Oxidation Efficiency(g BOD5/m3.day) | 2000~10000 | 2000~10000 | 1000~5000 |
COD oxidation efficiency(g COD/m3.day) | 2000~15000 | 2000~15000 | 1000~10000 |
Applicable Temperature(℃) | 5~40 | 5~40 | 5~40 |
Service Life(year) | >10 | >10 | >10 |
YULONG Bio Filter Media | |
Biofilm forming time(day) | 3 - 15 |
Material | Food grade HDPE |
Note | expensive premium Grade original PE (HDPE) |
Formula | Scientific Formula for Quick Film Formation |
Surface Treatment | - Special Surface Treatment - Larger and Roughness Inner Surface to Enhance Microble cell Adhension and Biofilm Forming Rapidly |
Hydrophilicity | - Good Hydrophilicity - Add Hydrophilic Groups to Improves Biofilm Formation and Biomass |
Surface Charge | Positive Charge for Microorganism Growth due to Microorganisms Take Negative Charge |
Biomass (g/m2) | 10 - 20 |
Application for Aerobic, Anaerobic & Anoxic Processes | 3 series Bio Filter Media: Aerobic, Anaerobic & Anoxic Bio Filter Media |
YULONG® MBBR media and ISBAS™ use virgin Polyethylene media with high-effective surface areas to grow biofilm.
working for 1 year YL-ll Oxic media, biomass:6kg/m3
Our Company
JIANGSU YULONG ENVIRONMENT PROTECTION CO.,LTD, which is founded in 1995. Our company is engaged in waste water treatment for 21 years. We are a national high-tech enterprise with strong technology team, has been engaging in environment protection industry and related products R&D, production, investment operation, etc.
Certificates
ISO 9001:2008
Quick biofilm forming
MBBR patent for invention cerfication
Our Service
Packing & Delivery
PACKAGE:
Standard export,woven package or Carton as your required, 90*45*30(cm)
DELIVERY TIME:
3-14 working days after received the payment
