EFR Laser Manufacturer Lasea F series Co2 Laser Tube Price 80 W F2 100W F4 130W F6 150W F8 170W F10 for laser engraving machine
- Category: >>>
- Supplier: Beijing EFR Laser S&T Co. Ltd.
Share on (1600260487185):
Product Overview
Description
EFR LA*SEA
Professional CO2 Laser Tube Manufacturer
---------------------------------------------------------------------
Classic Hot sale product
F Series F-2 :80W 100w 130w 150w 170w
CO2 Laser Tube For Laser Engraving Machine
Product Parameters
Parameters of EFR X Series CO2 Laser tubes | |
Model | F2 |
length(mm) | 1250±20 |
Diam. (mm) | 80±2 |
Rated Power(w) | 80 |
Max.Power(w) | 100 |
Ignition Voltage(kV) | 19 |
Working Voltage(kV) | 15 |
Working Life(H) | 8000 |
Detected Current (mA) | 28 |
Max. current limit (mA) | 28 |
Working Current (mA) | 26 |
Beam divergence angle (mrad full angle) | 3.1mrad |
Beam quality | >95% TEM00 Mode |
Catalyst | YES |
Power Stability(%) | ≤±5% |
Cooling liquid | Pure Water |
Cooling liquid flow | 3-5 L/min |
Standard water temperature | 10℃-40℃ |
Working temperature | 2℃-40℃ |
Working humidity | 10-60% |
Warranty(Day) | 360 |

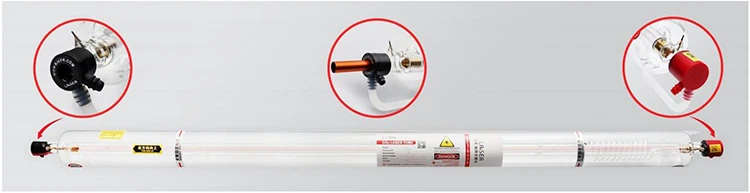

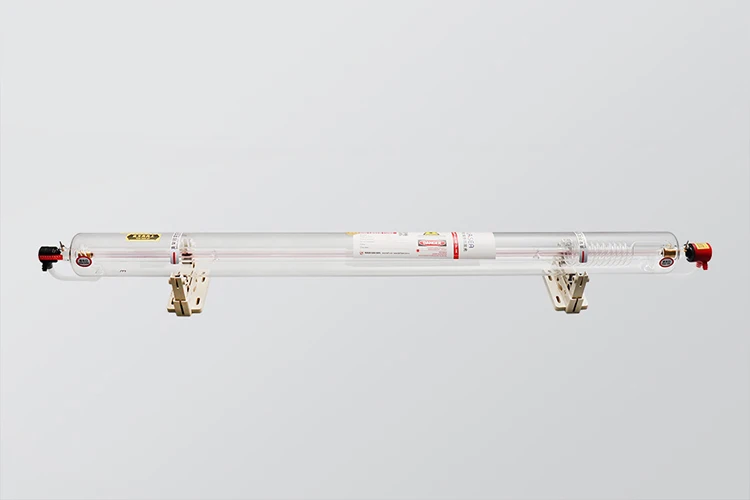

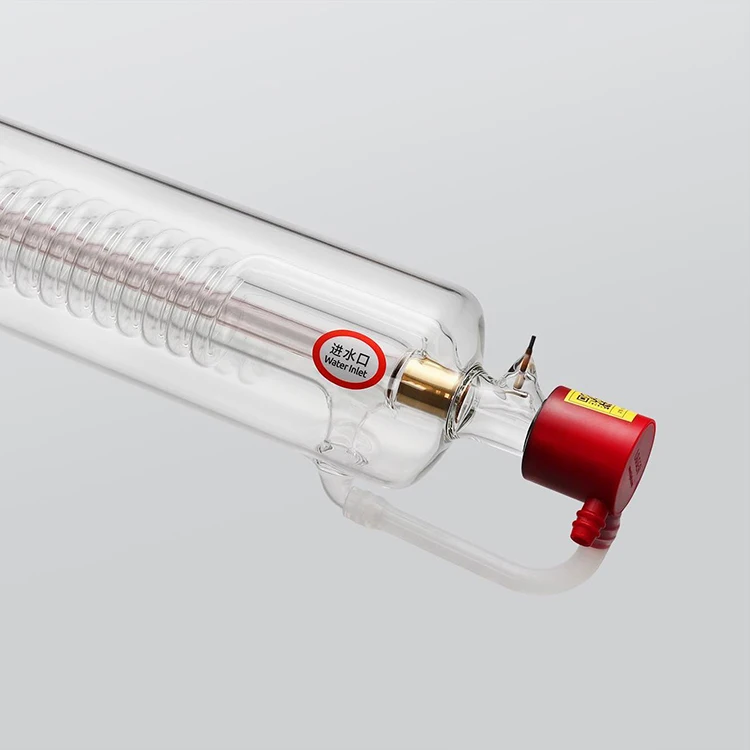

Product Image
Product Advantages
1 Classic model upgraded, catalyst coating on Germany discharge tube, working life is up to 8000 hours. When compared to the same length tube, the power of the F series co2 laser tube is 30% much higher.
2 Connecting pipe for cooling water jacket adopts the mold integrated silicone tube, higher water flow, and more significant cooling effect.
3 High voltage side uses a ceramic water cooling jacket, which is cooling faster, more durable, more stable, and reliable when compared with a hand-made hard glass cooling jacket.

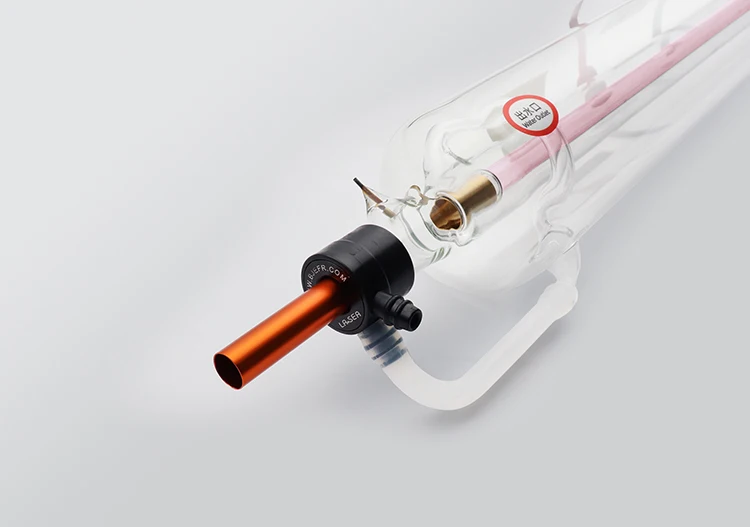

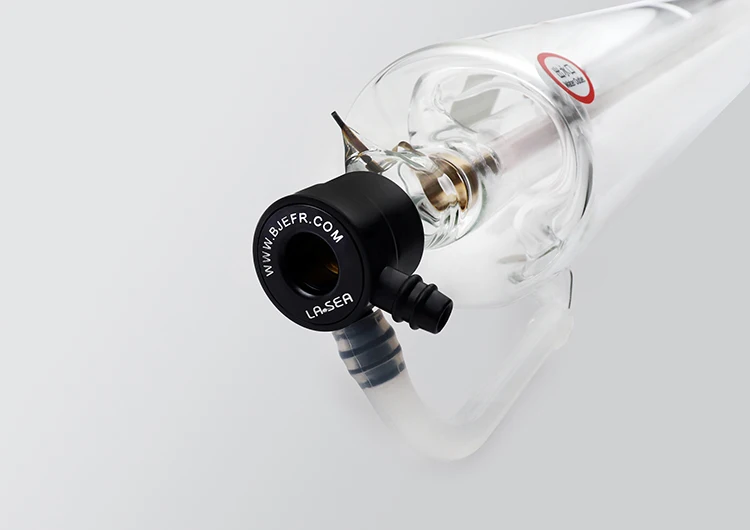

4 The light adjusting device makes the laser mode more easily reach TEM00, effectively improves the beam mode, and significantly improves the engraving precision and cutting speed.
5 Special connection for the customized electrode ensures that the electrode is not a virtual connection and does not fall off.
6 CNC machining standardized cathode, die-stamping high precision anode, stability heat dissipation, and discharge, double ensure long life and super stable power of laser tube.
Product Package
Warranty
| Parameters of EFR F Series CO2 Laser tubes | |||||
| Model | F2 | F4 | F6 | F8 | F10 |
| Warranty(Day) | 360 | 360 | 360 | 360 | 360 |
Company Profile
Beijing EFR Laser S&T Co., Ltd. Is a high-tech company that devotes to the research, development, and production of carbon dioxide laser tube and related products.
Our company is committed to the research and experimentation of carbon dioxide laser tubes for up to 20 years, and we have gained tens of carbon dioxide laser technology patents certification in China.
EFR Laser Launched long life 10000 hours CO2 laser tube, which is specialized for Metal & Non-Metal Laser Cutter.
Our products have a smaller volume, better spot mode, and higher cutting speed compared to similar products.
Our unique catalyst technology ensures that the CO2 laser tube has more than years of chemical life.
In the field of CO2 laser tubes, EFR has professional technology and rich experience in research, development, and production. And our products have gained a good reputation in the market.
Our company owns a group of skilled craftsmen, an ultra-clean optics workshop, dozens of production lines, and has an annual production capacity of more than 100000 pieces of CO2 laser tubes.
EFR laser is a well-known brand on the global market & highly satisfied.
We sell products to nearly 150 countries & regions.
EFR laser, looking forward to embracing more partners.
