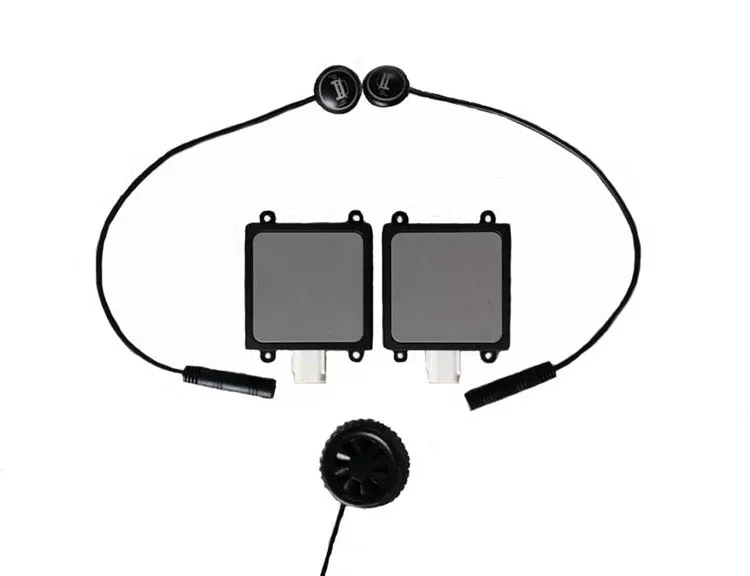

Car Sensor Assist Bsa 77Ghz Sensor Off Road Vehicles Accessories Blind Spot
- Category: >>>
- Supplier: Shenzhen Ou Lu Hang Auto Accessories Co. Ltd.
Share on (1600260530032):
Product Overview
Description
Product Description
Production Function
1.BSD Blind Spot Pre-warning (Detection range: Horizontally 4 meters, longitudinally 15 meters) Working Logic: Vehicle's own speed is higher than 10Km/Hour, BSD pre-warning mode is started:
A. If the target object enters the radar signal area with the faster speed (the turn signal lamp of this vehicle is not turned on), it will produce the Level 1 Warning until the target object leaves the monitoring area, and the warning is canceled.
B. If the target object enters the radar signal area with the faster speed (the turn signal lamp of this vehicle is turned on), it will produce the Level 2 Warning until the target object leaves the monitoring area, and the warning is canceled.
2.LCA Vehicle Approaching Pre-warning (Detection range: Horizontally 4 meters, longitudinally 50 meters) Working logic: Start after powering on, the target object enters the alarming range and the relative collision time＜3.5 seconds, LCA vehicle approaches the pre-warning mode is started:
A. When the target object enters the alarming scope (the turn signal lamp of this vehicle is not turned on), it will produce the Level 1 Warning until the target object leaves the alarming area, and the warning is canceled;.
B. When the target object enters the alarming scope (the turn signal lamp of this vehicle is turned on), it will produce the Level 2 Warning until the target object leaves the alarming area, and the warning is canceled.
3.AOA Overtaking Pre-warming (Detection range: Horizontally 4 meters, longitudinally 15 meters) Working logic: Vehicle's own speed is higher than 10km/Hour, AOA overtaking pre-warning mode is started:
A. This vehicle positively overtakes the other vehicles with speed and the target object is within the alarming scope, it will produce the Level 1 Warning until the target object leaves the warning area, and the warning is canceled.
B. This vehicle positively overtakes the other vehicles with speed, the target object is within the alarming scope and the turn signal lamp on the corresponding side is turned on, it will produce the Level 2 Warning until the target object leaves the alarming area, and the warning is canceled.
4. RCT Reversing Pre-warning (Detection range: Horizontally 5 meters, longitudinally 5 meters) Working logic: Put into R (reversing gear), RCT revering pre-warning mode is started: When the target object enters the alarming scope, it will produce the Level 2 Warning until the target object leaves the alarming area, and the warning is canceled.
Item name | Blind Spot Detection System | Function | microwave blind spot detection radar sensor |
Working voltage | 10-36v | Working frequency band | 77-81GHZ |
Working temperature | -40℃-~+80℃ | Power consumption | < 2W |
Water-proof level | IP67 | Distance resolution | 0.5M |
Range accuracy | 24GHZ | Car make | Superior to 0.18m |
Detection distance | 50m | warranty | 12Monthes |
Operation Instructio:

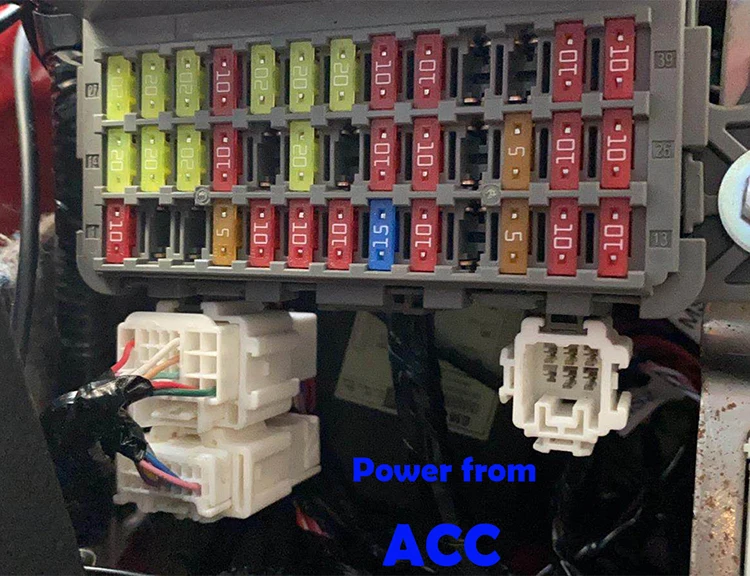

1. After vehicle ACC powers on, the system will immediately enter the environmental adaptability detection prior to entering the working stats. After the vehicle stops, the radar will stop working.
2. If not turning on the turn signal lamp and double-flash warning lamp, the system will stay in the Level 1 warning status.
3. If turning on the turn signal lamp and double-flash warning lamp, and putting into the R reversing gear, the system will stay in the Level 2 warning status.
Detailed Images

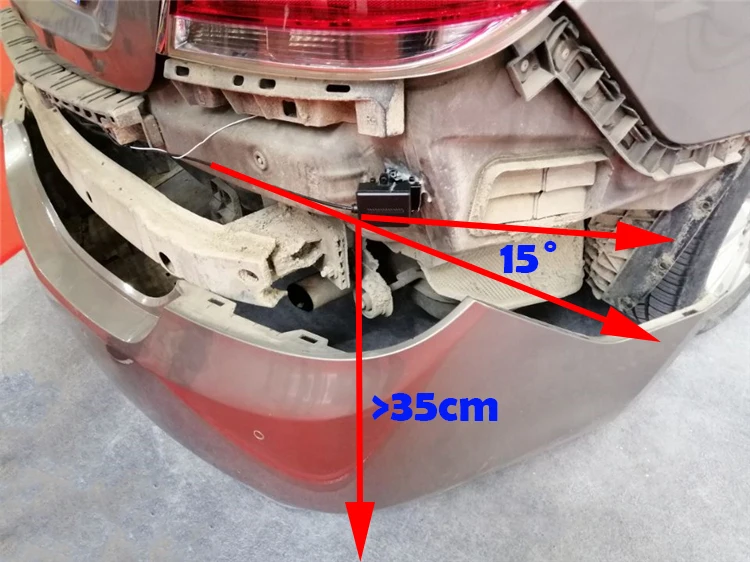

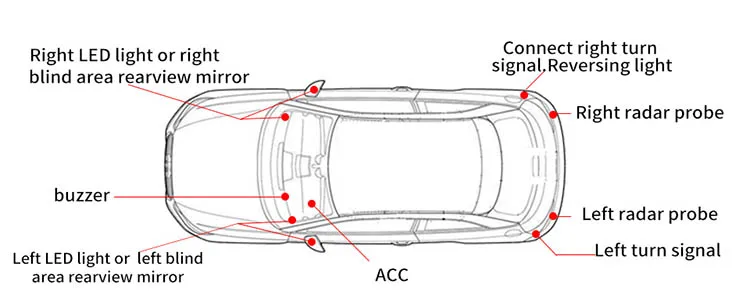

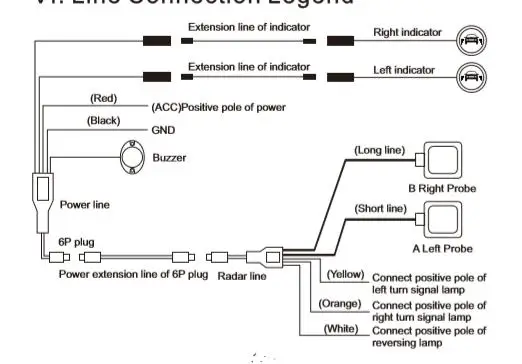

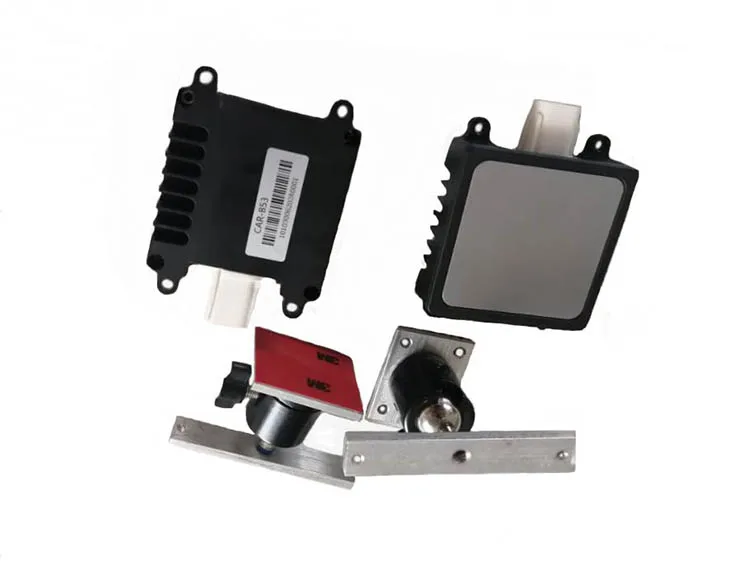

The radar install:
Remove the rear bumper, fixed at 15- 25 degrees, H=30-100cm.
