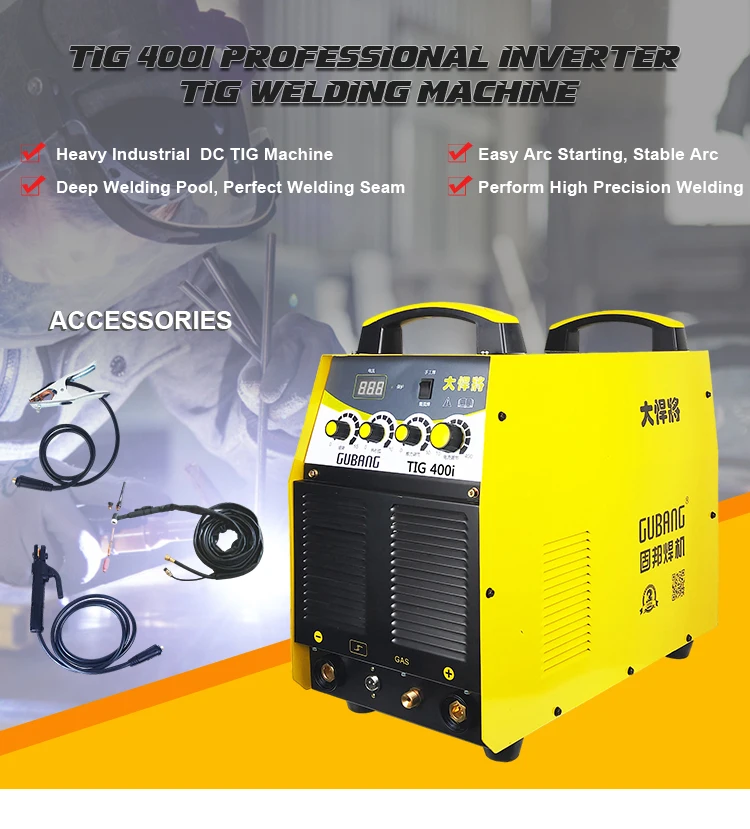

TIG 400 IGBT Industrial Inverter DC TIG Welding Machine for Heavy Industrial

Product Overview

Description

1. We are a powerful factory focusing on importers and sellers of professional welding and cutting equipment and large-scale hardware and electromechanical equipment;

2. Provide OEM and ODM services;

3. We supply self-developed and designed products, you can customize the appearance color of the product and print your trademark.

4. The text content and style on the packaging carton can be designed according to your requirements;

5. You can also choose to represent our brand GUBANG products, then our product color and packaging carton design are designed according to our own style;

6. The form of our shipments is generally by sea, including LCL for seaborne bulk cargo, generally 10-20 cubic meters; FCL for seaborne container cargo, such as 20GP, 40GP, 40HQ, etc.; it may also be air cargo;

FEATURES

√ Advanced IGBT inverter technology .

√ Easy arc ignition with High Frequency .

√ Good arc stiffness and concentrated heat .

√ Stable arc without spatter and good shaping .

√ Suitable for welding materials such as steel, stainless steel, titanium, copper, nickel and their alloys .

√ Applicable in vessel, bike, decoration, outdoor advertising, etc .

Type	IGBT Module INVERTER DC TIG MMA
Power Supply(V)	Three phase AC380V +-15%
Rated Input Power Capacity(KVA)	13
Input Frequency(Hz)	50/60
Non-load Voltage(V)	56
Output Current Range(A)	10-400A
Down Slope(S)	0-5
Arc Striking Way	HF
Rated Duty Cycle(%)	60
Efficiency(%)	85
Power Factor	0.93
Insulation Grade	F
Protection Grade	IP21
Electrode Diameter(mm)	1.6/2.5/3.2/4.0/5.0
N.W./G.W.(kg)	25/30
Dimension(L*W*H)/mm	515*260*470
Packing Size(L*W*H mm)/1 pcs	640*370*520/  Brown carton

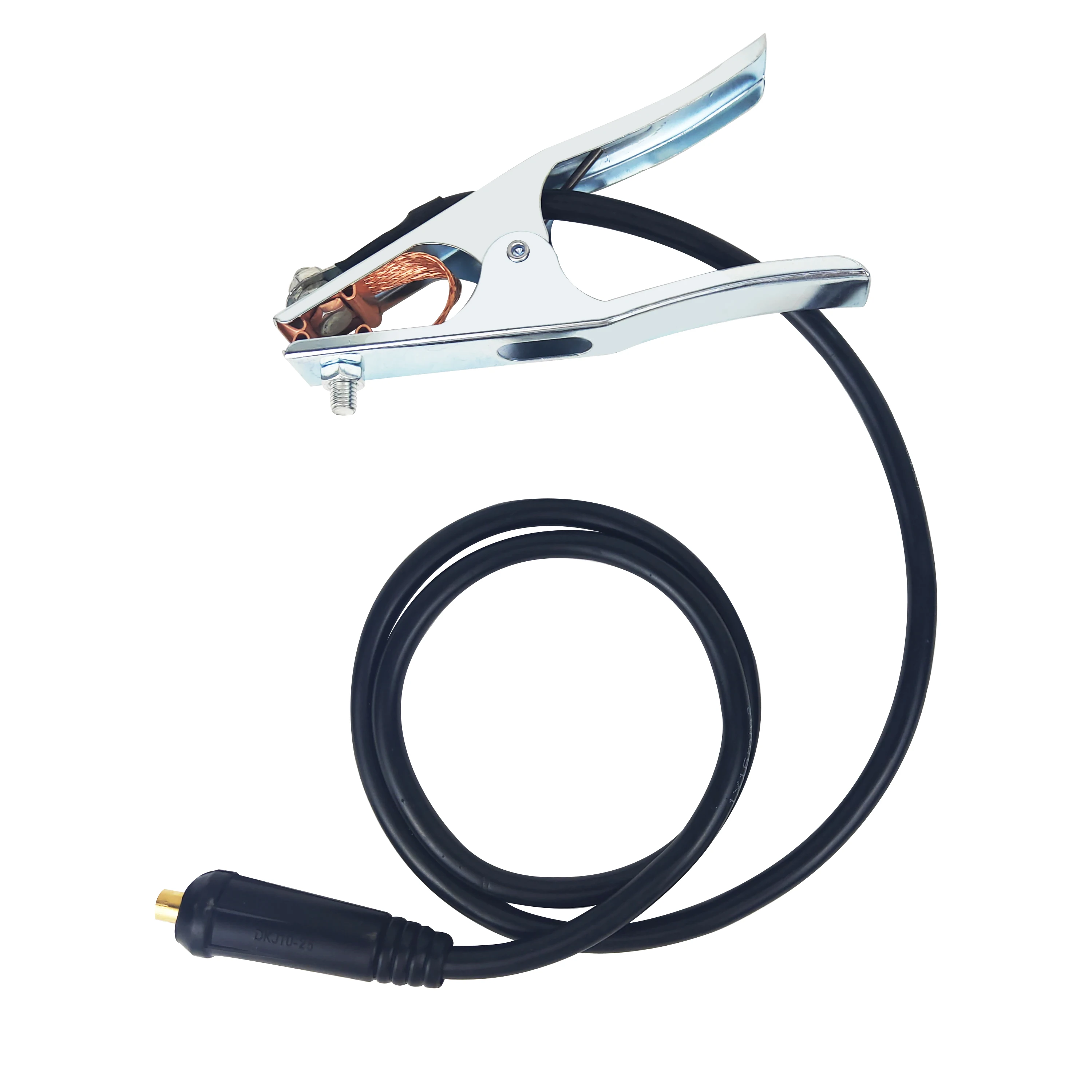

Accessories	Carbon,stainless steel welding
