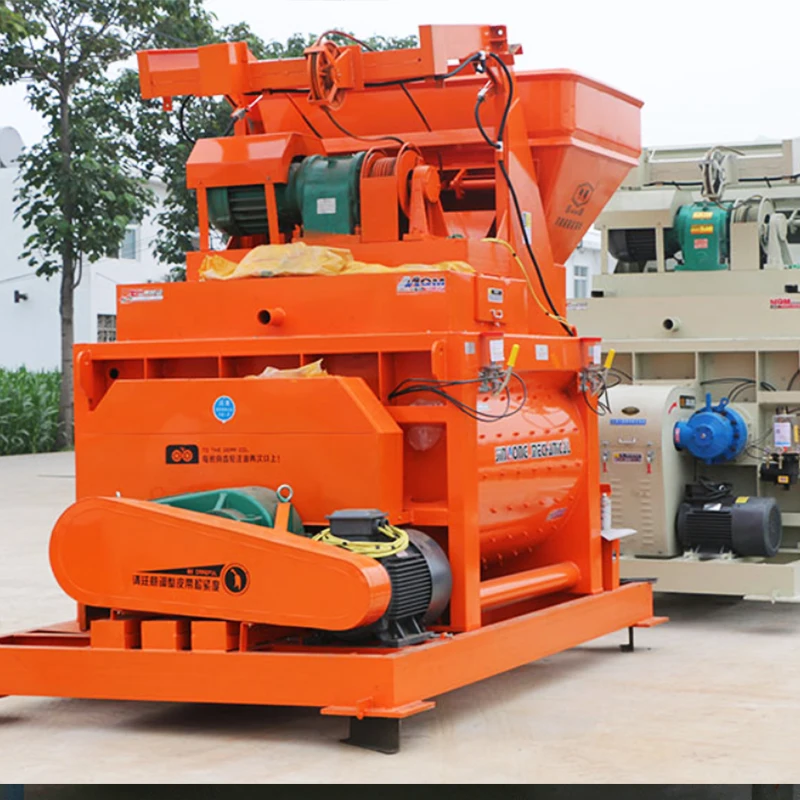

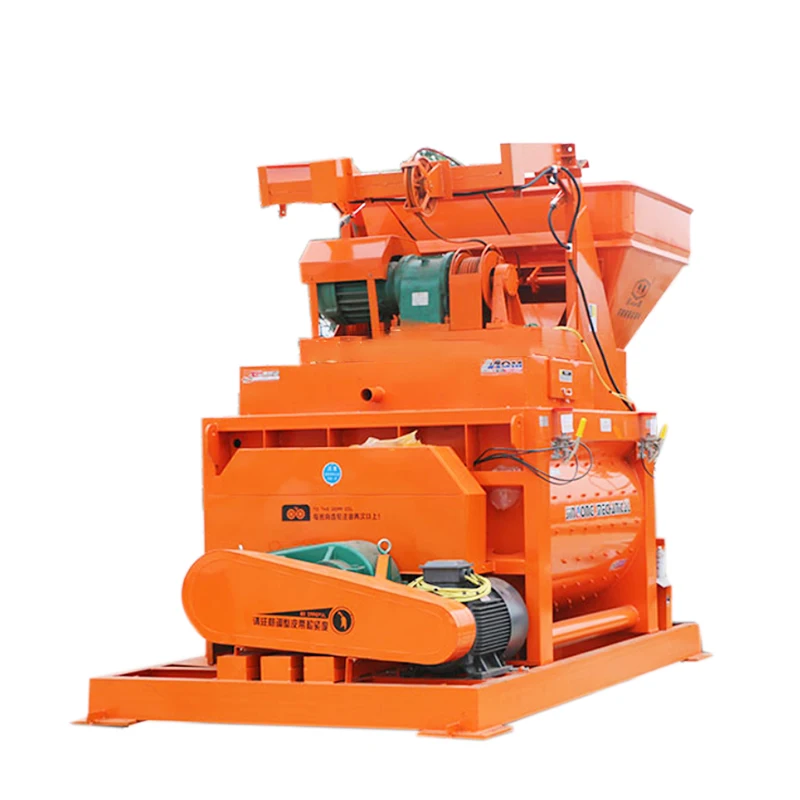

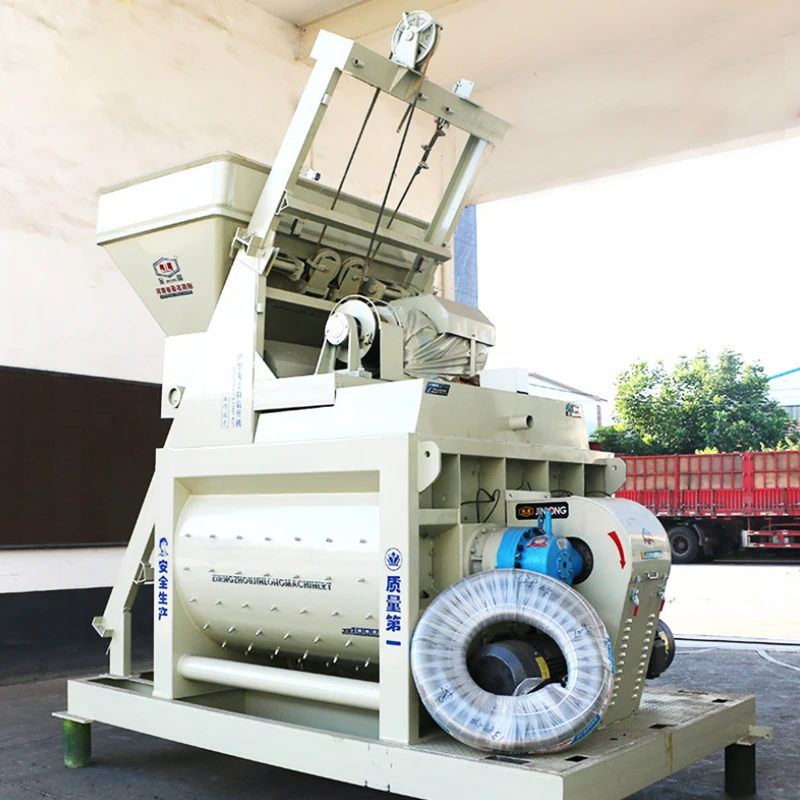

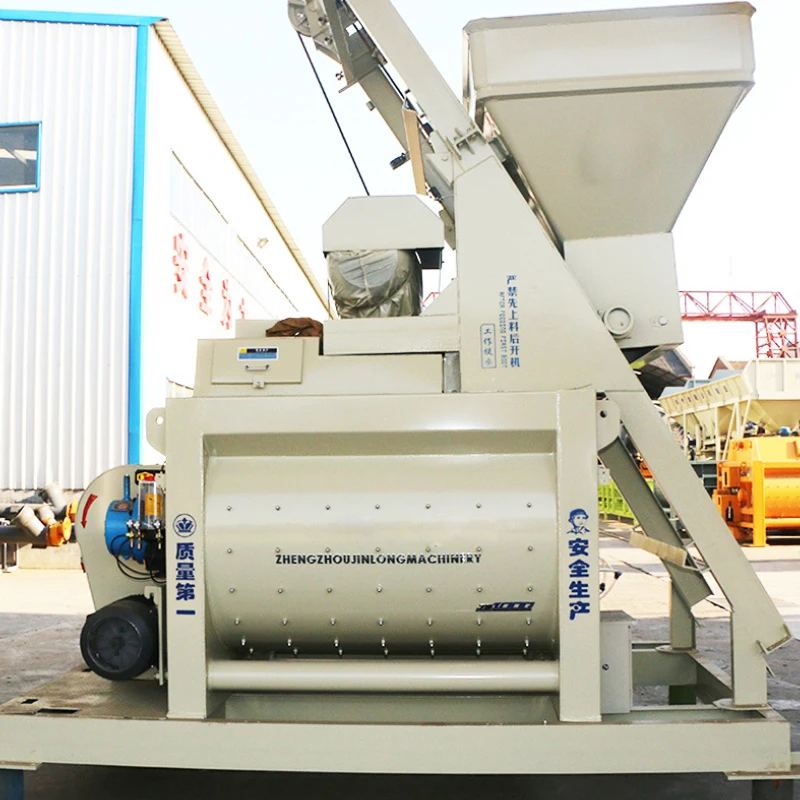

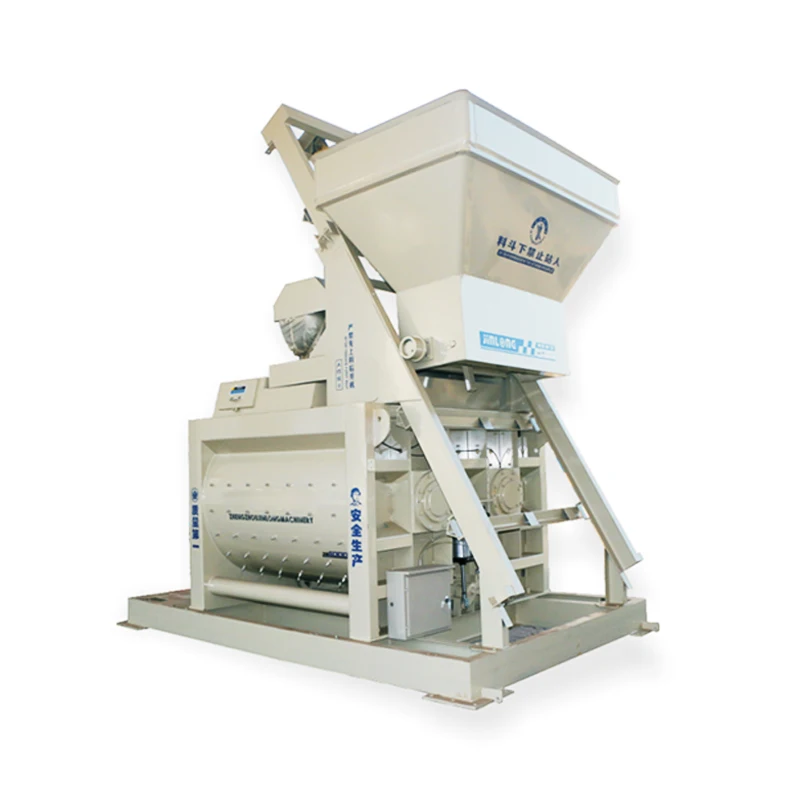

Construction equipment automatic twin shaft forced electric JS concrete mixer machine with lift hopper



Product Description


The JS series concrete mixer is a double-horizontal-shaft forced mixer, which has the dual advantages of a single machine independent operation and a simple concrete mixing plant with the PLD series batching machine. It can also provide a supporting main machine for the mixing plant. It can mix dry hard concrete, plastic concrete, fluid concrete, light Aggregate concrete and various mortars. It is a high-efficiency machine with wide range of application.


The height of the outrigger part is designed as 1500 mm for JS500, 1600 mm for JS750, 4600 mm for JS1000 and JS1500, users can equip their own dump trucks, dump trucks, and mixer trucks, and they can also be modified according to user special requirements to meet user needs .

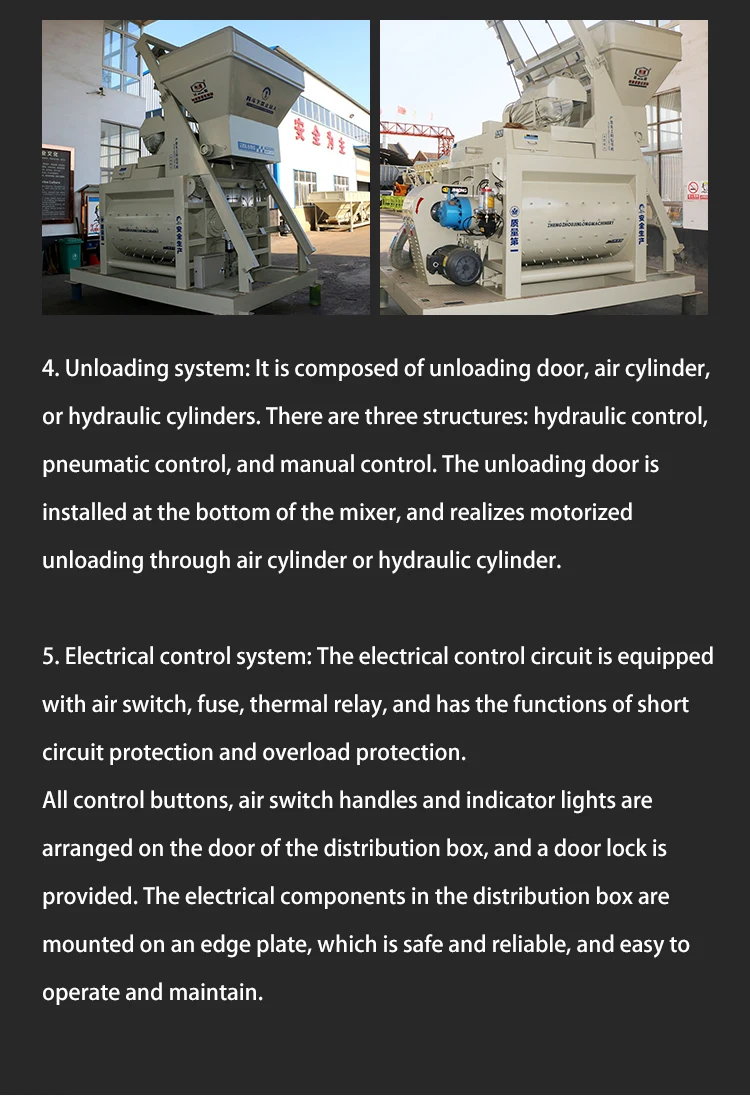

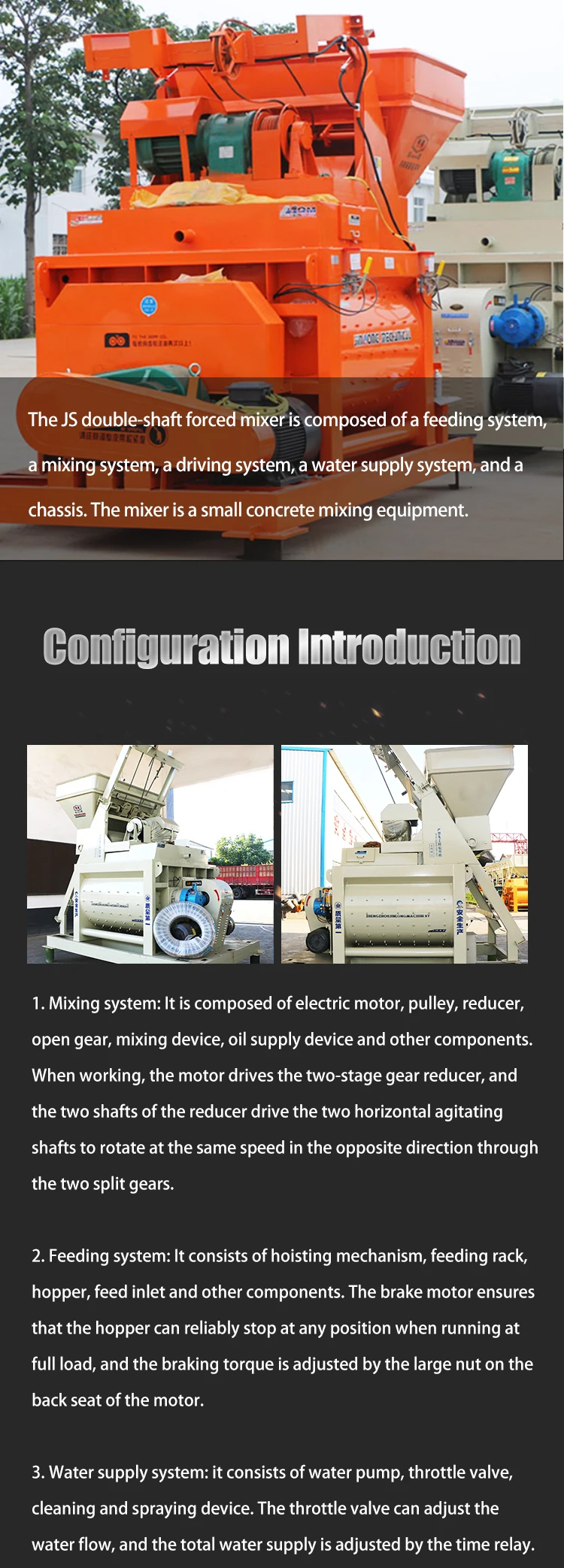

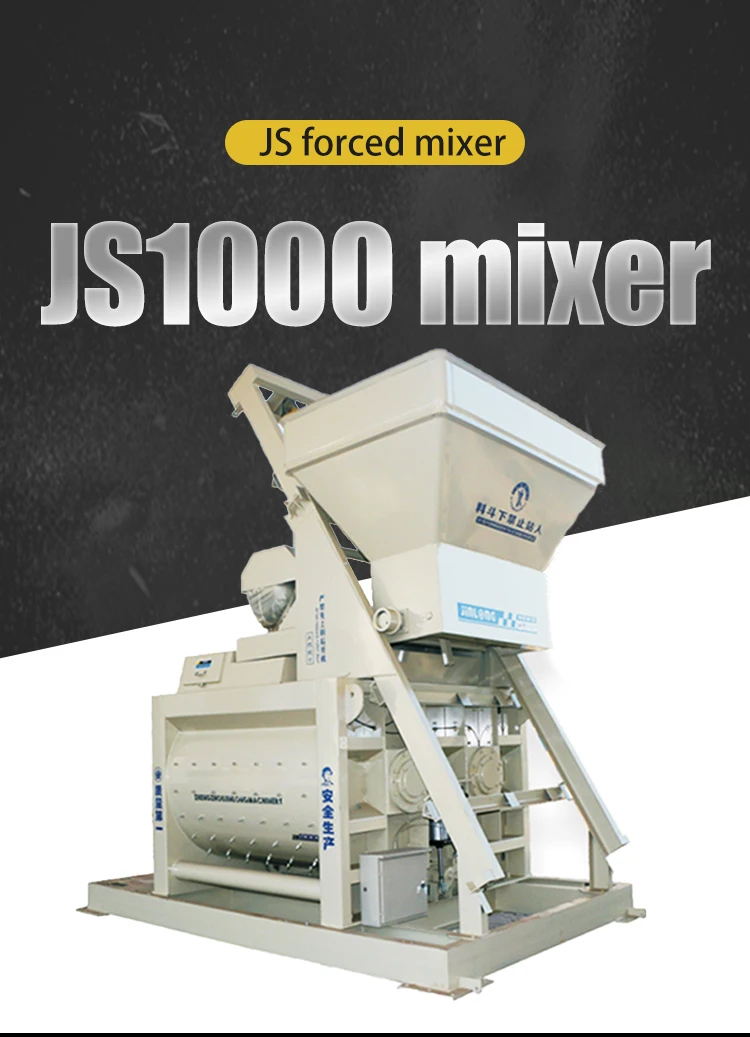

concrete mixer (6).jpgConcrete Mixer (3).jpgconcrete mixer (7).jpgconcrete mixer (8).jpg





Technical Parameters
































































































































ModelJS500JS750JS1000JS1500JS2000
Production capacity25m3/h35m3/h50m3/h90m3/h120 m3/h
Feeding capacity 800L750L1000L1500L 2000L
Reclaiming capacity 500L1200L 1600L 2000L 3200L
Max. aggregate size 40/5040/60 60/80 60/80 80/100
Cycle time 72s72s 72s 60s  60s
Total weight 4000kg5500kg 6500kg 8300kg 7500kg
Overall Dimension 3*2.17*2.9m3.14*2.33*2.75m 3.68*2.25* 3.35m4.58*2.38*3.35m 3.275* 2.3*2.252m
Mixing Blade   Speed 31r/min31r/min26.5r/min26.5r/min24.5r/min
 Quantity 2*7 2*72*7 2*8 2*8
Mixing Motor Model Y180M-4Y2000L-4 Y180M-4 Y180L-4 Y180S-4
 Power 18.5kw30kw 2*15.5kw 2*30kw 2*37kw
Hoist Motor Model YEZ132S-4YEZ132M-4 YEZ160M-4  YEZ180L-4YEZ180L-4
Power5.5kw7.5kw13kw18.5kw37kw
Water pump motor1kw1.1kw3kw3kw4kw

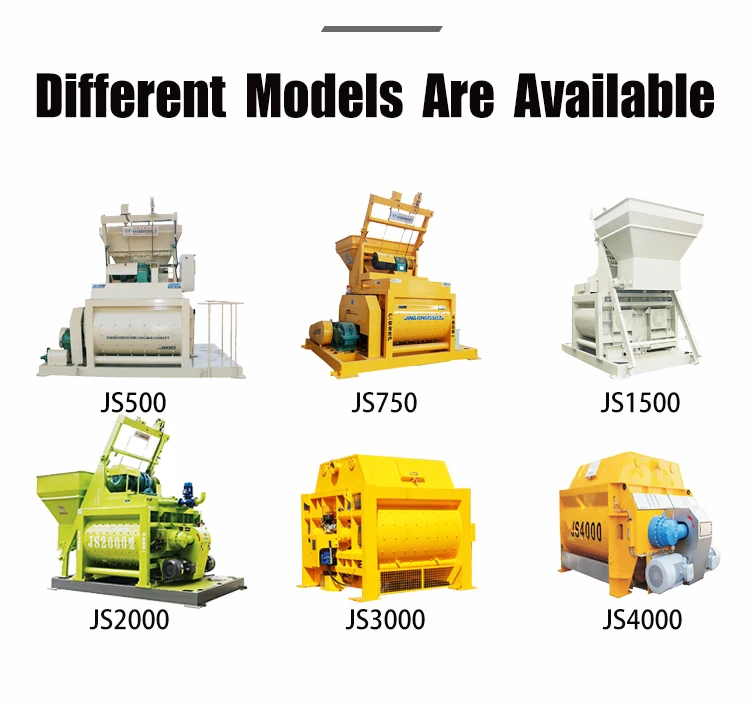

concrete mixer (9).jpg

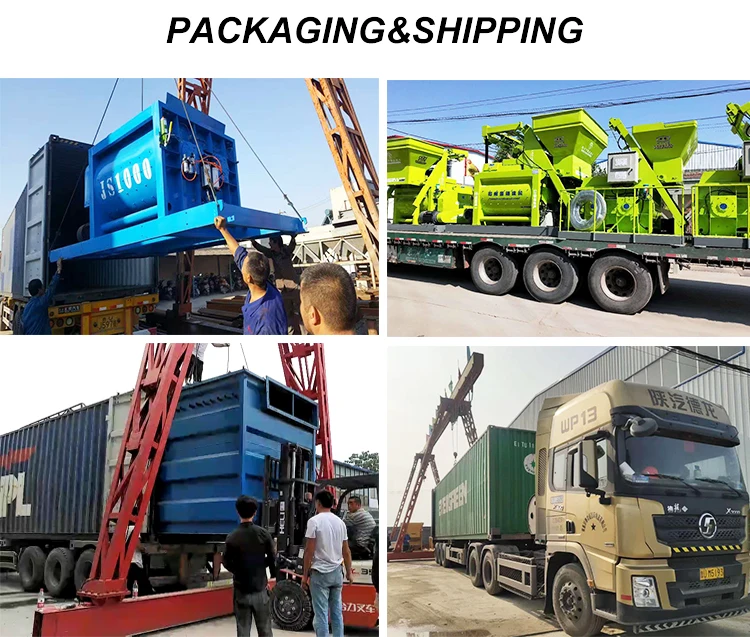

Packaging & Shipping
