Liquid Nitrogen Semen Cryogenic Storage Tank Container

Product Overview

Description

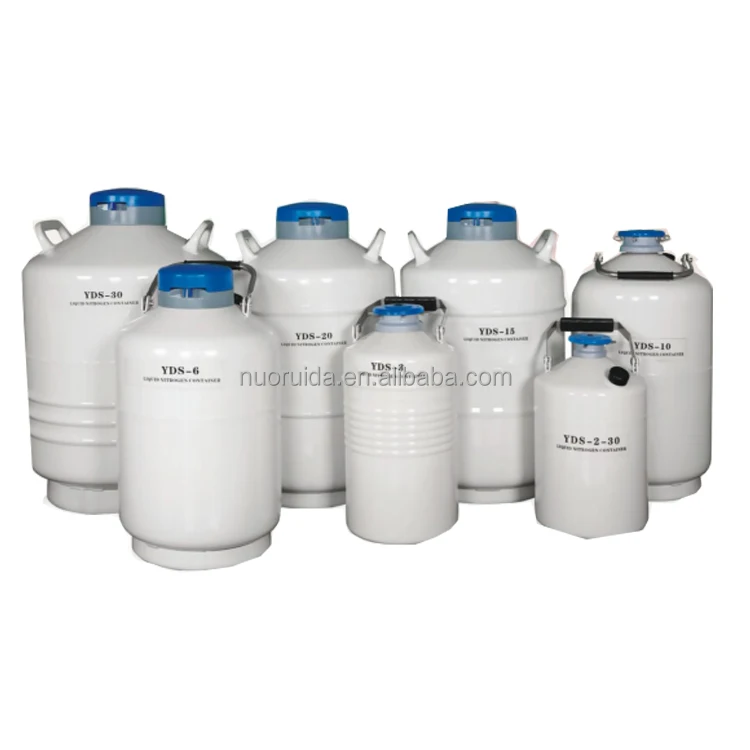

Liquid Nitrogen Semen Cryogenic Storage Tank Container



Technical characteristics of large-caliber liquid nitrogen biological container:

Two-phase storage: immersion storage at -196℃ and gas phase storage at -190℃ can be selected

More accurate: imported high-precision sensors, liquid level monitoring accuracy up to 5MM

More secure: multiple alarms, password protection and liquid nitrogen splash-proof design

More economical: store 94500 copies of 2ML ordinary cryotubes and extremely low evaporation loss design







The Large-caliber square bucket series
Model	YDS-30-125	YDS-35-125	YDS-47-127	YDS-50-125	YDS-65-216	YDS-95-216	YDS-120-216	YDS-175-216
The max storage capacity
Number of square buckets	6	6	6	6	6	6	6	6
Number of 1.2&2.0ml cryopreservation tubes (100meters square bucket)	_	_		_	2400	3000	4200	6000
Number of 1.2&2.0ml cryopreservation tubes (25meters square bucket)	600	750	900	1050	_		_	_
The Number of layers	4	5	6	7	4	5	7	10
The performance
The volume(L)	30	35	47	50	65	95	121	175
The Static evaporation rate(L/day)	0.33	0.36	0.36	0.36	0.95	0.95	0.95	0.95
Static liquid nitrogen storage period	90	97	131	139	68	100	126	184
The outsides Dimensions
The caliber (mm)	125	125	127	125	216	216	216	216
The height(mm)	608	627	729	761	770	795	900	959
The Outer diameter(mm)	464	464	464	464	665	665	665	665
The Empty weight(kg)	13.1	14.6	15.3	15.8	39	42	45	54
The Full weight (kg)	39	44	55	58	92	119	142	193

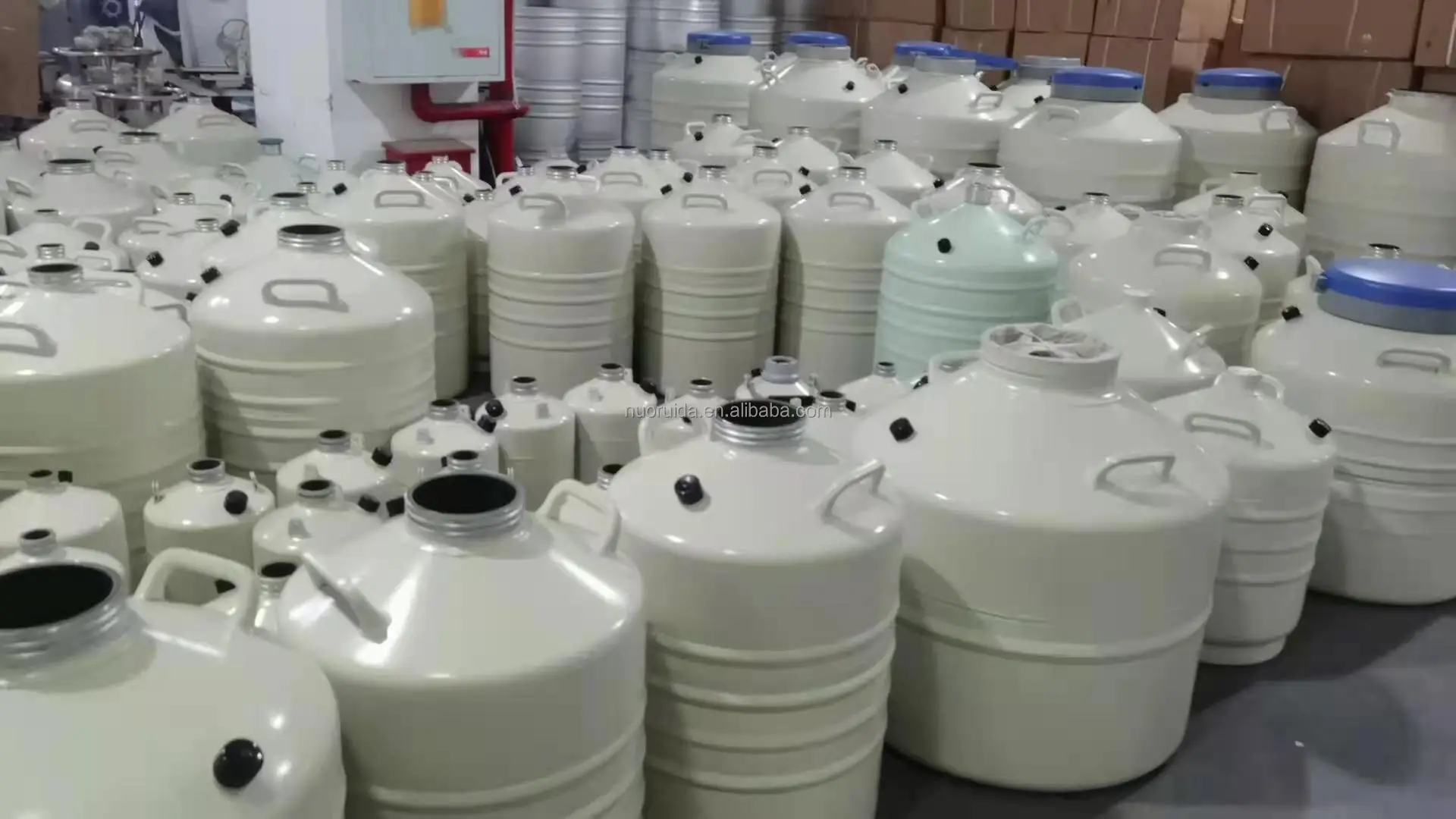

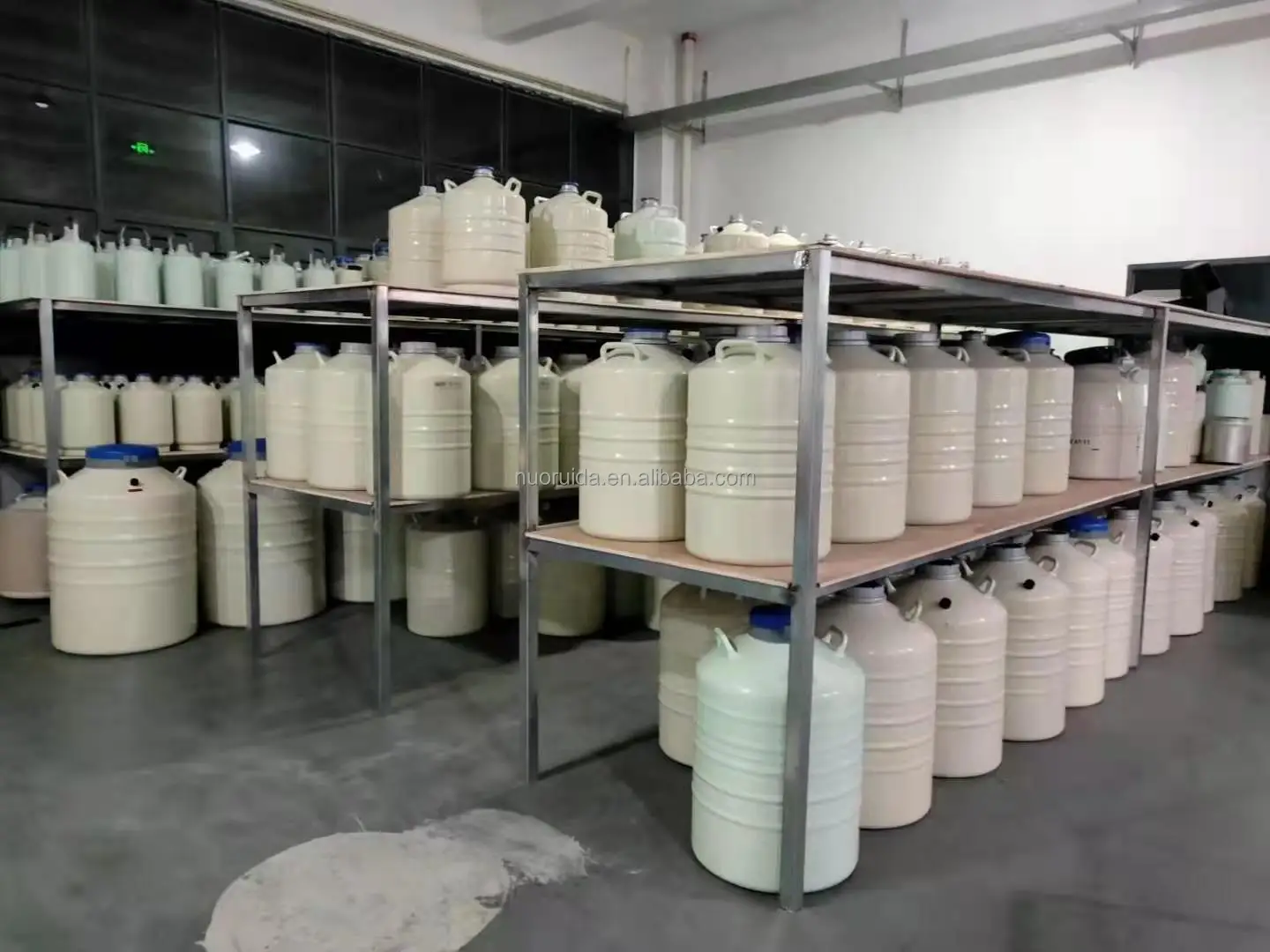

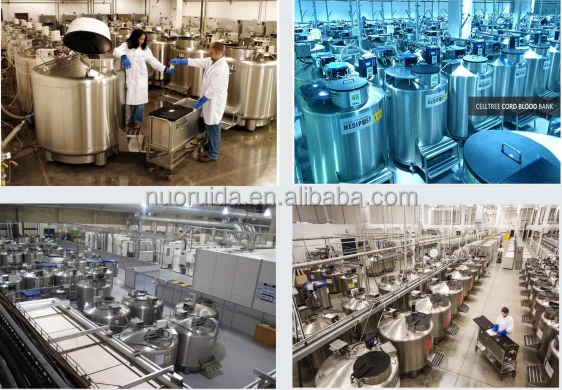

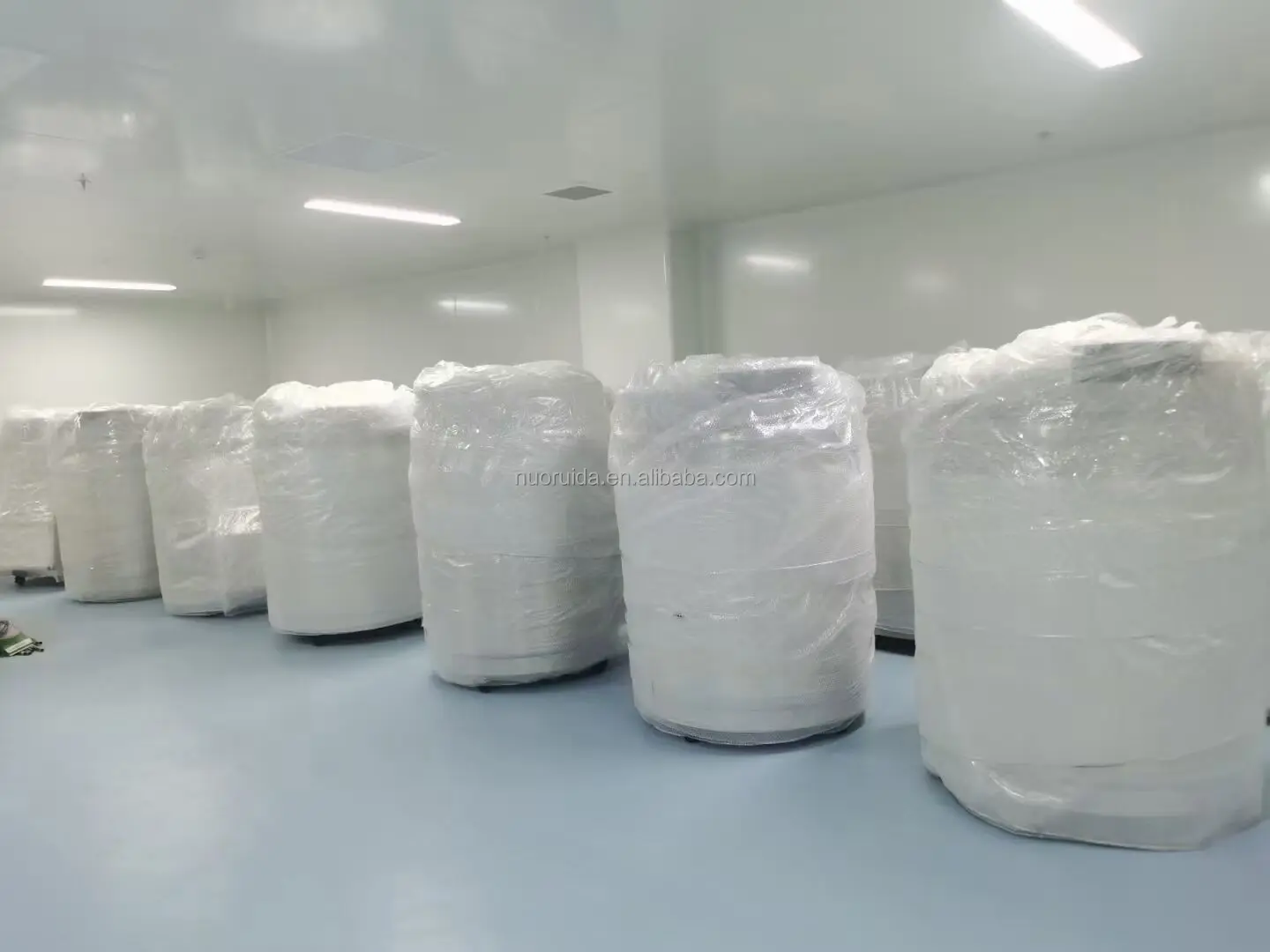

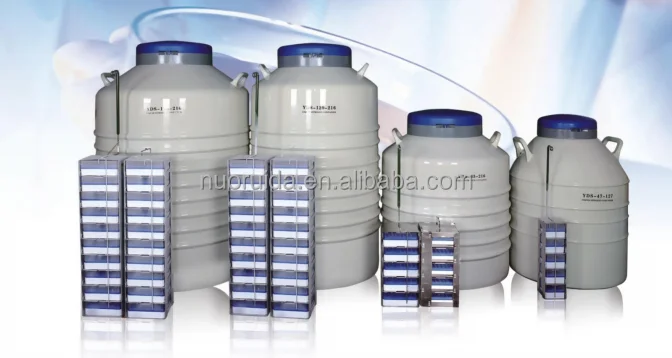

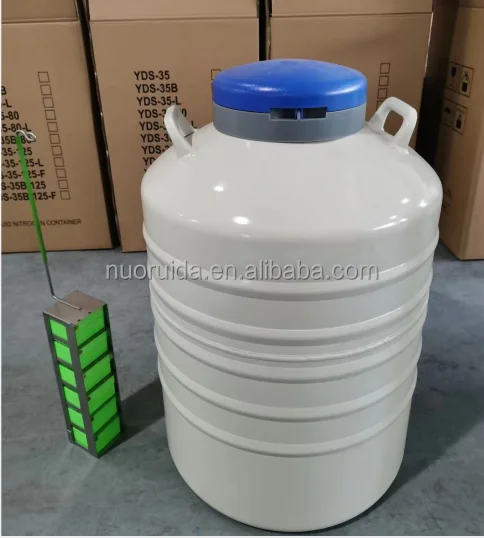

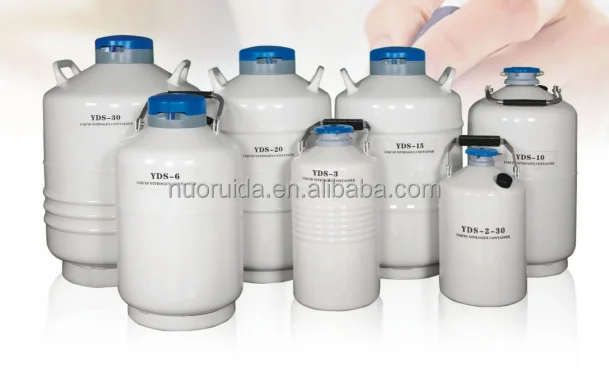

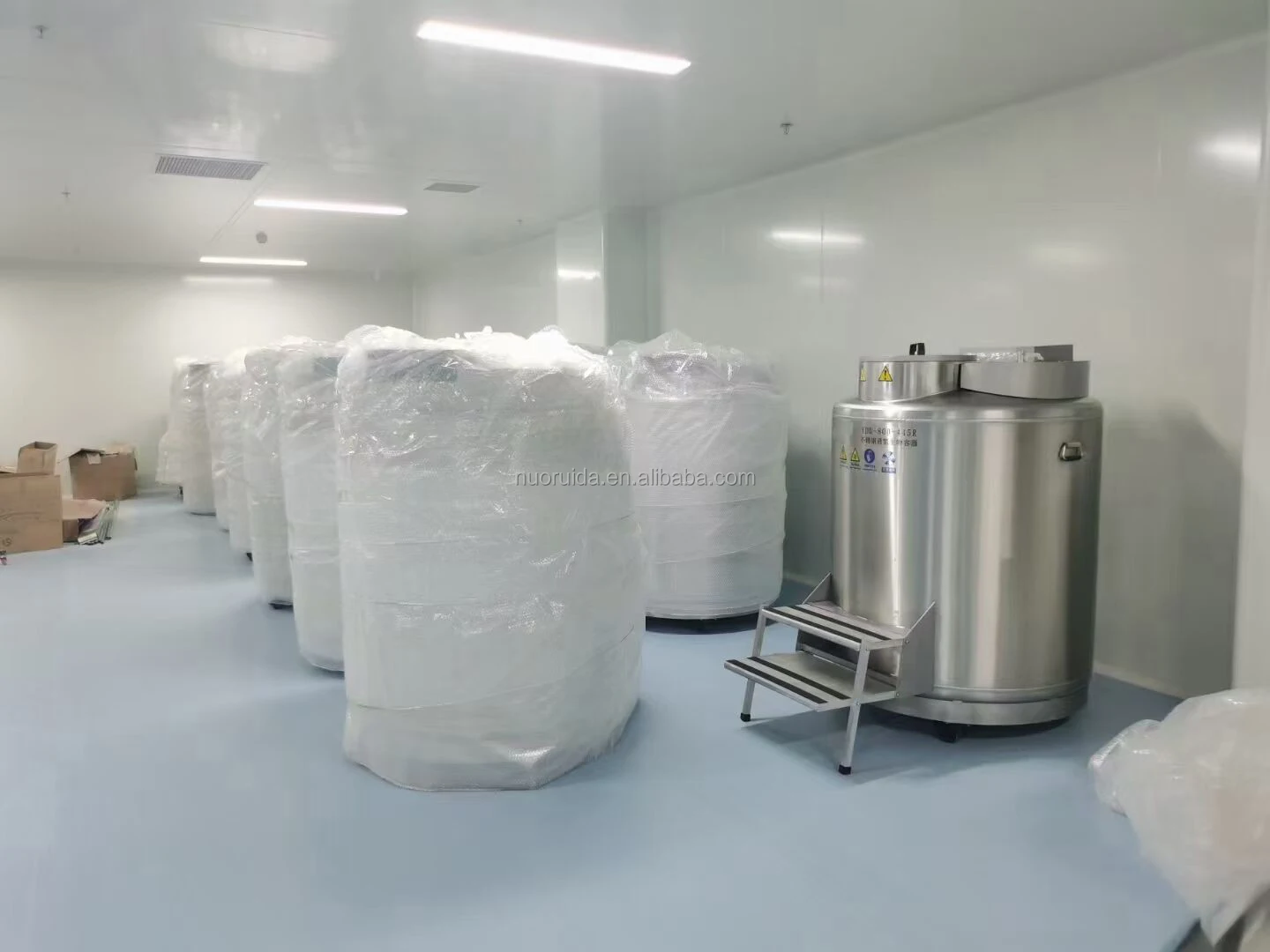

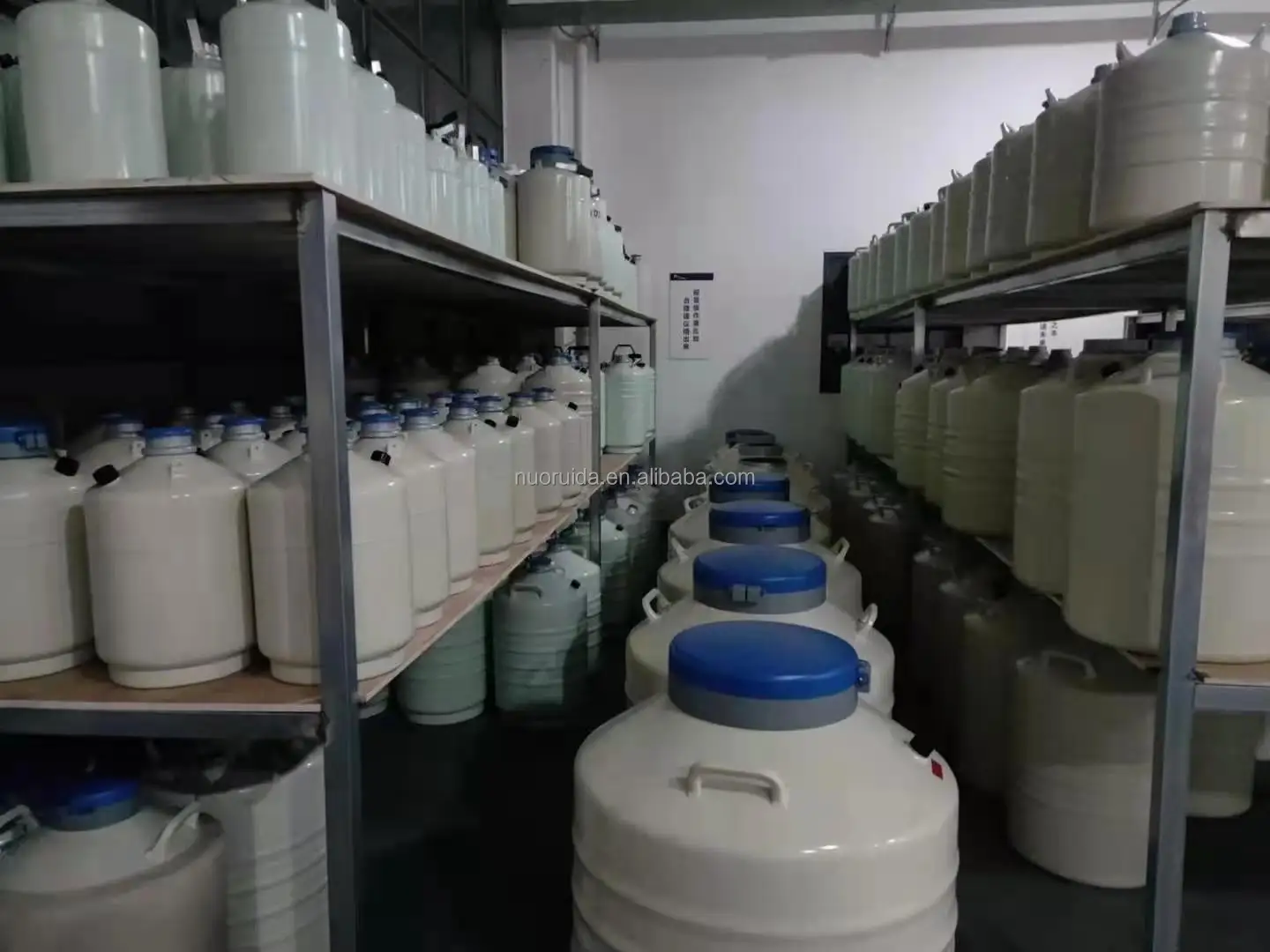

The pictures as follows:

















Advantages of large-caliber liquid nitrogen biological container:

1. The large-caliber liquid nitrogen container provides protection for biological samples. The microprocessor-based temperature and liquid nitrogen level monitoring system closely monitors the operation of the equipment to ensure sample safety.

2. The standard integrated folding step, auxiliary workbench and ergonomic cover design can ensure the safety and simplicity of the equipment.

3. Compatible with liquid nitrogen phase and liquid phase storage modes, even when the lid is opened for a long time, the temperature uniformity and stability of the entire box can be guaranteed.

4. Multiple user-friendly designs, comfortable operation and lockable lid to fully ensure sample safety

5. The hot gas bypass function automatically discharges the nitrogen in the pipeline when filling liquid nitrogen, reducing the impact on the internal temperature of the tank and ensuring the safety of stored samples



is suitable for long-term static storage of stem cells, plasma, semen, embryos, and various tissues and organs
