Product Overview
Description
Production Application

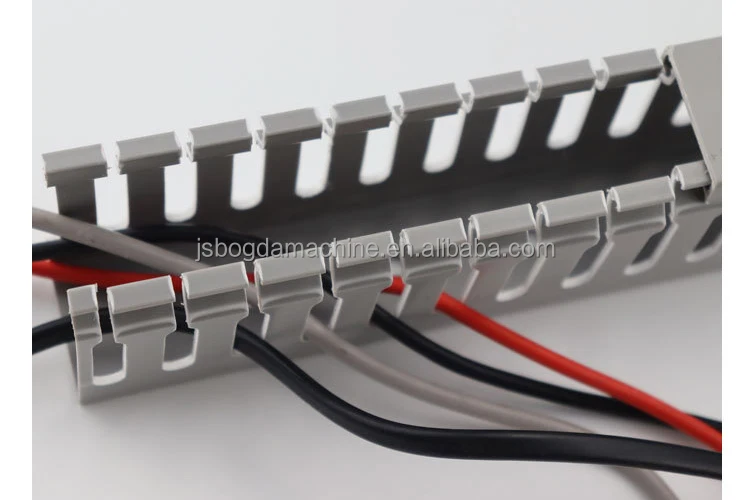

Wire troughs are generally called line troughs, wire troughs, square troughs, open troughs, crimping troughs, wire troughs, bus ducts, decorative troughs, electrical wiring troughs, etc.
It is mainly used for internal wires of electrical equipment (such as power distribution cabinets and internal wires of distribution boxes). In electrical equipment of 1200V and below, the wires are laid for mechanical protection and electrical protection.
After using this product, the wiring is convenient, the wiring is neat and beautiful, the installation is reliable, and it is easy to find, repair and exchange lines.
It is mainly used for internal wires of electrical equipment (such as power distribution cabinets and internal wires of distribution boxes). In electrical equipment of 1200V and below, the wires are laid for mechanical protection and electrical protection.
After using this product, the wiring is convenient, the wiring is neat and beautiful, the installation is reliable, and it is easy to find, repair and exchange lines.
Machine Specification
Advantages Of Equipment:
1. A mixing section is added on the screw structure of the extruder to facilitate the full and uniform mixing of materials.The increase of thread pitch in the exhaust section facilitates the discharge of gas through the exhaust port located in the front of the barrel. The thread of metering section is optimized to achieve constant pressure extrusion without shear overheating, and to achieve stable extrusion of materials.
2. The feeding system of our equipment is equipped with stainless steel screw automatic feeder and screw type quantitative feeding device. In order to prevent the material from "bridging" phenomenon, a stirring device is added. The quantitative feeding device adopts frequency conversion speed regulation, which can continuously and evenly extrude the material.
3. The temperature control system is mainly composed of barrel heater, fan and screw core temperature regulating device. Automatic temperature control can be realized through the electrical control system.
The Complete White PVC Open Slot Cable Tray Plastic Trunking Extrusion Production Line

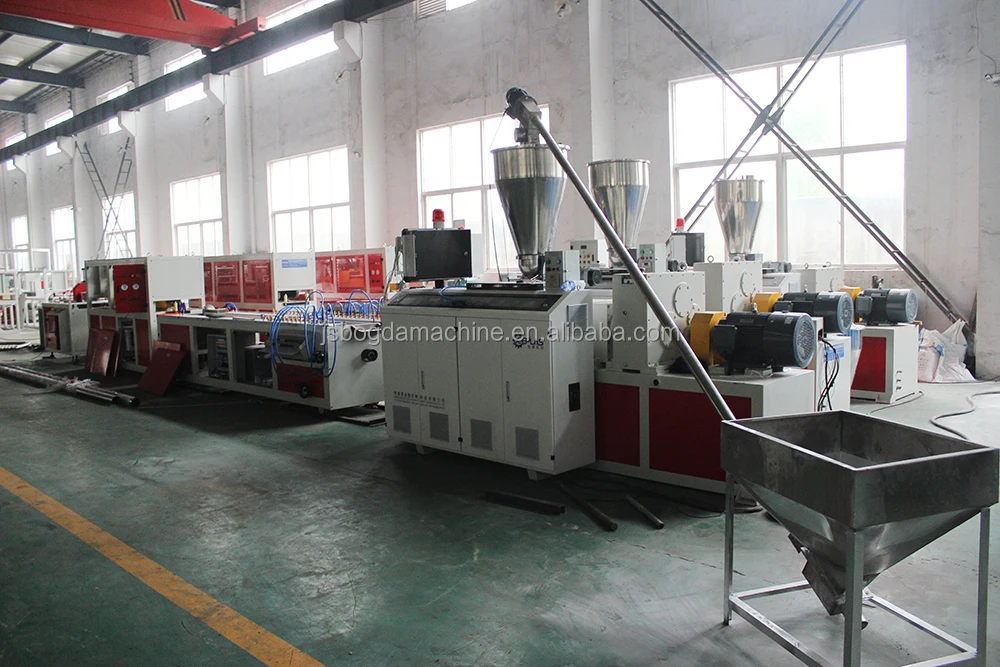

1. SJSZ65/132 conical twin screw extruder with automatic screw loader

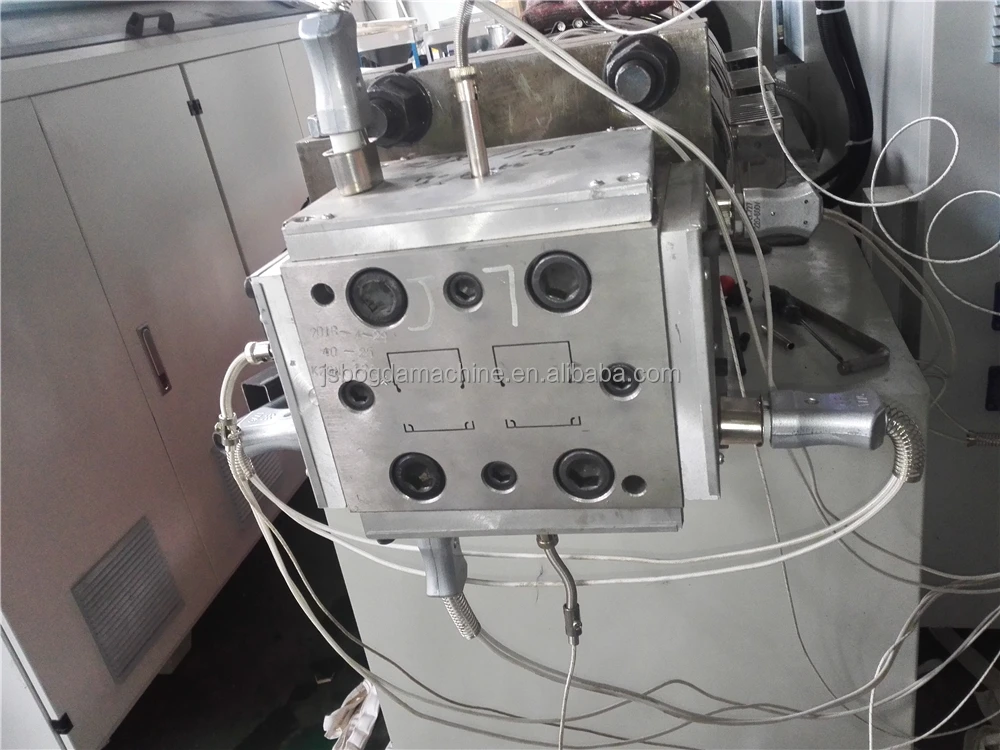

2. PVC trunking extrusion mould, MAX. 200x200 (one cavity)
3. Stainless steel vacuum table
4. Haul-off machine
5. Automatic cutting machine for pvc cable trunking
6. Stacker for pvc trunking
7. PVC trunking punching machine

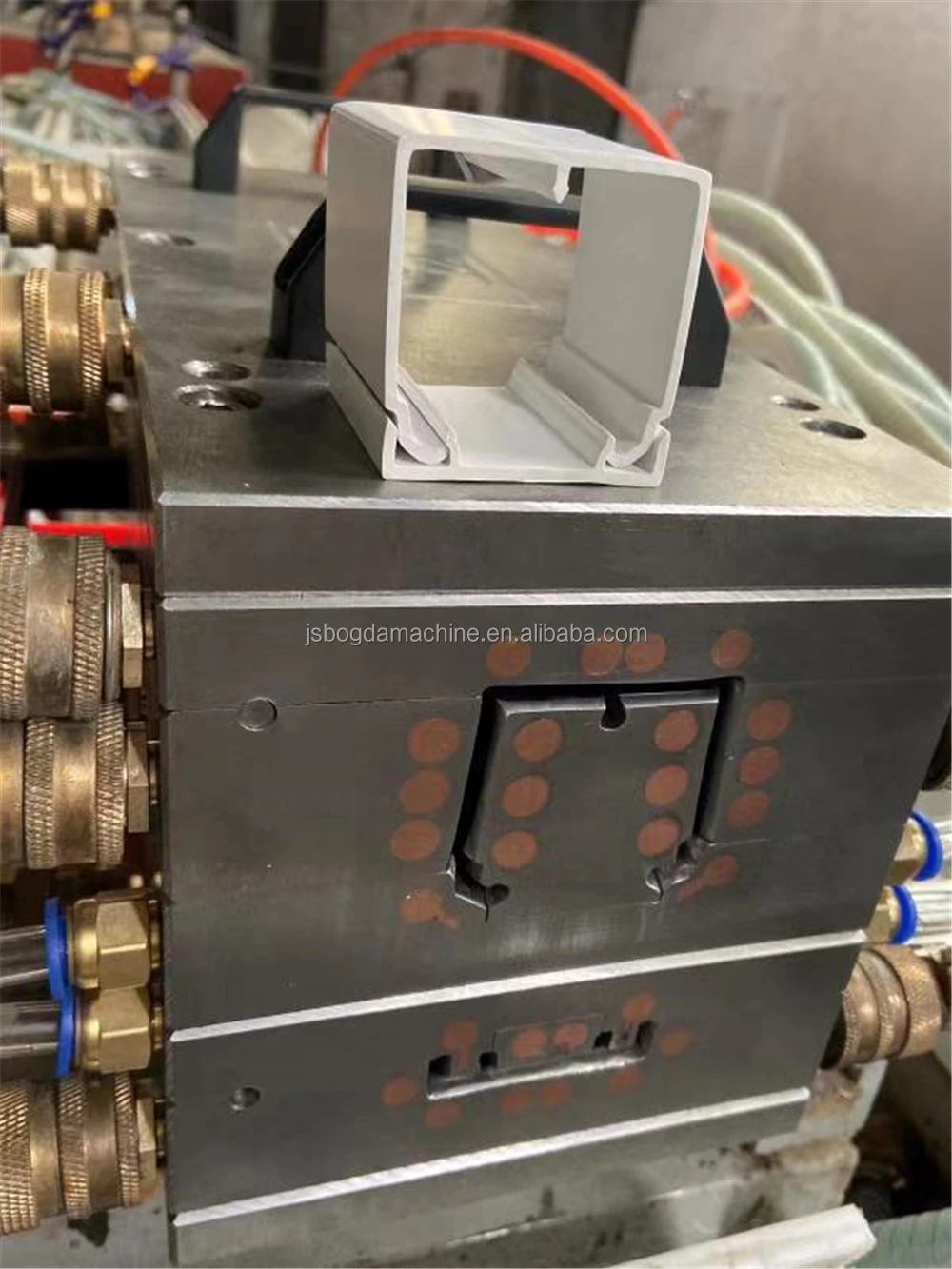

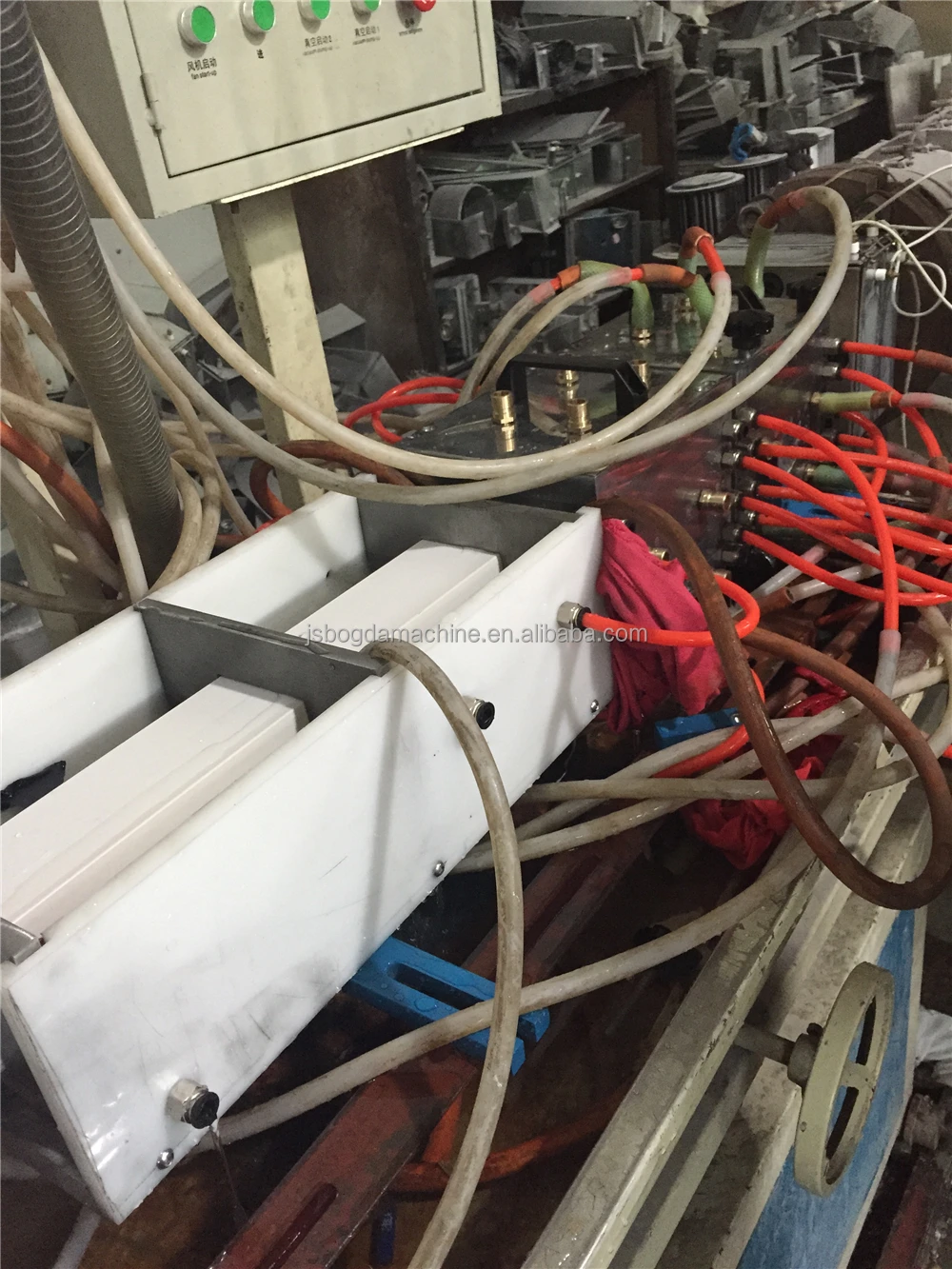

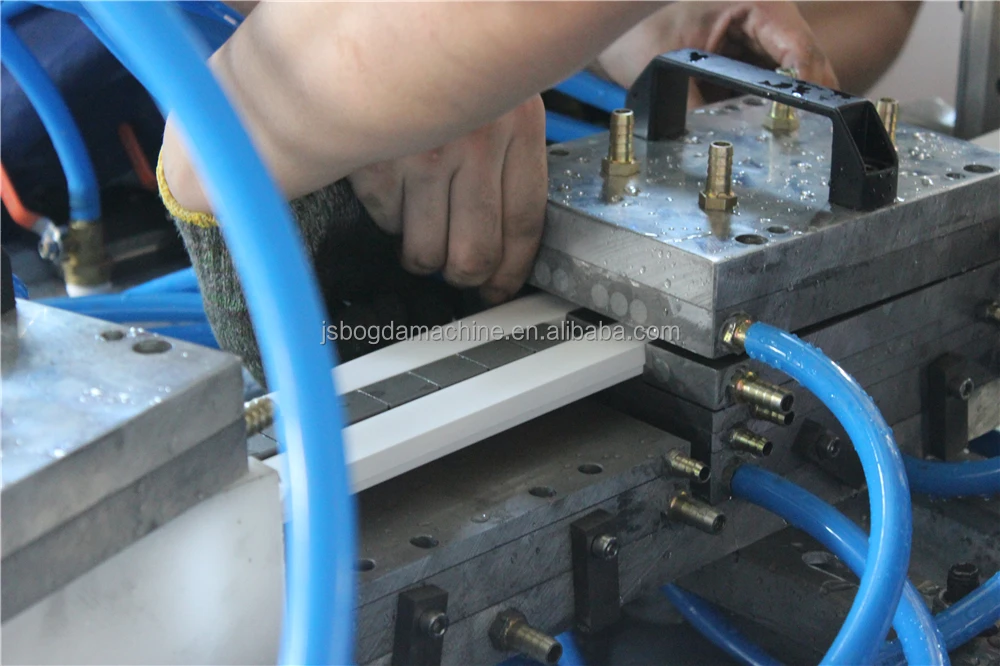

pvc cable trunking extrusion mold and stainless steel vacuum forming table
Dimension: MAX.200x200mm Power of water pump: 3kw
Remarks: The profile production line provided by the factory is specially designed for customer testing, not order equipment. Please ignore the quality of steel frame. All our shipments to our customers are made of stainless steel.

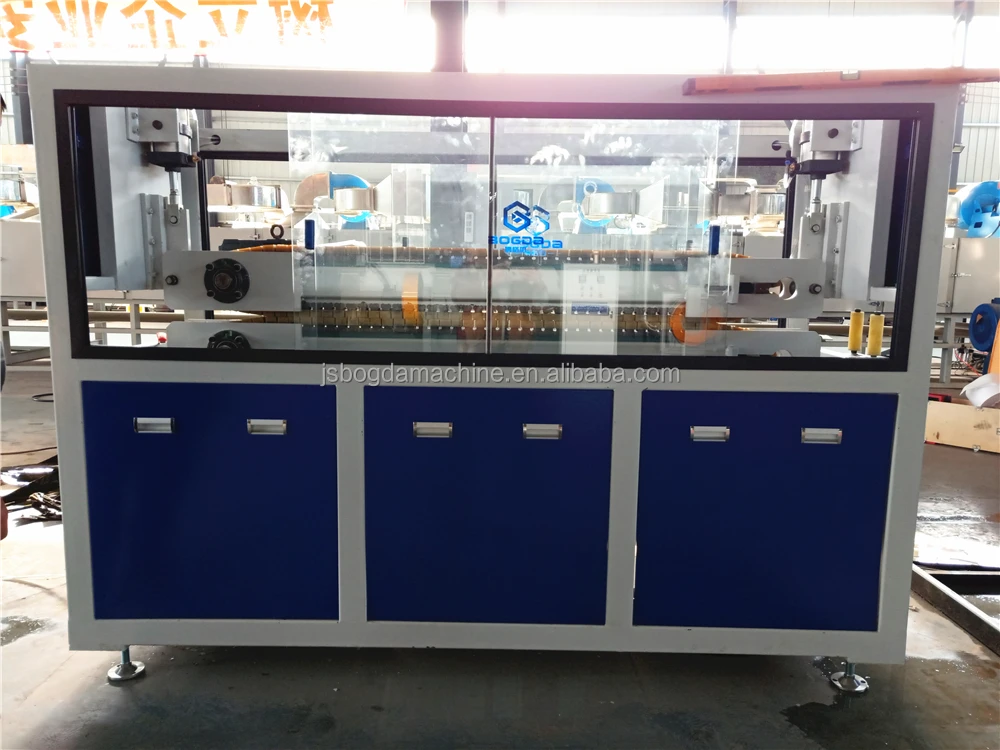

Haul-off machine
Haul-off speed: 3-15m/min Motor power: 2.2kw Center height: 1000mm

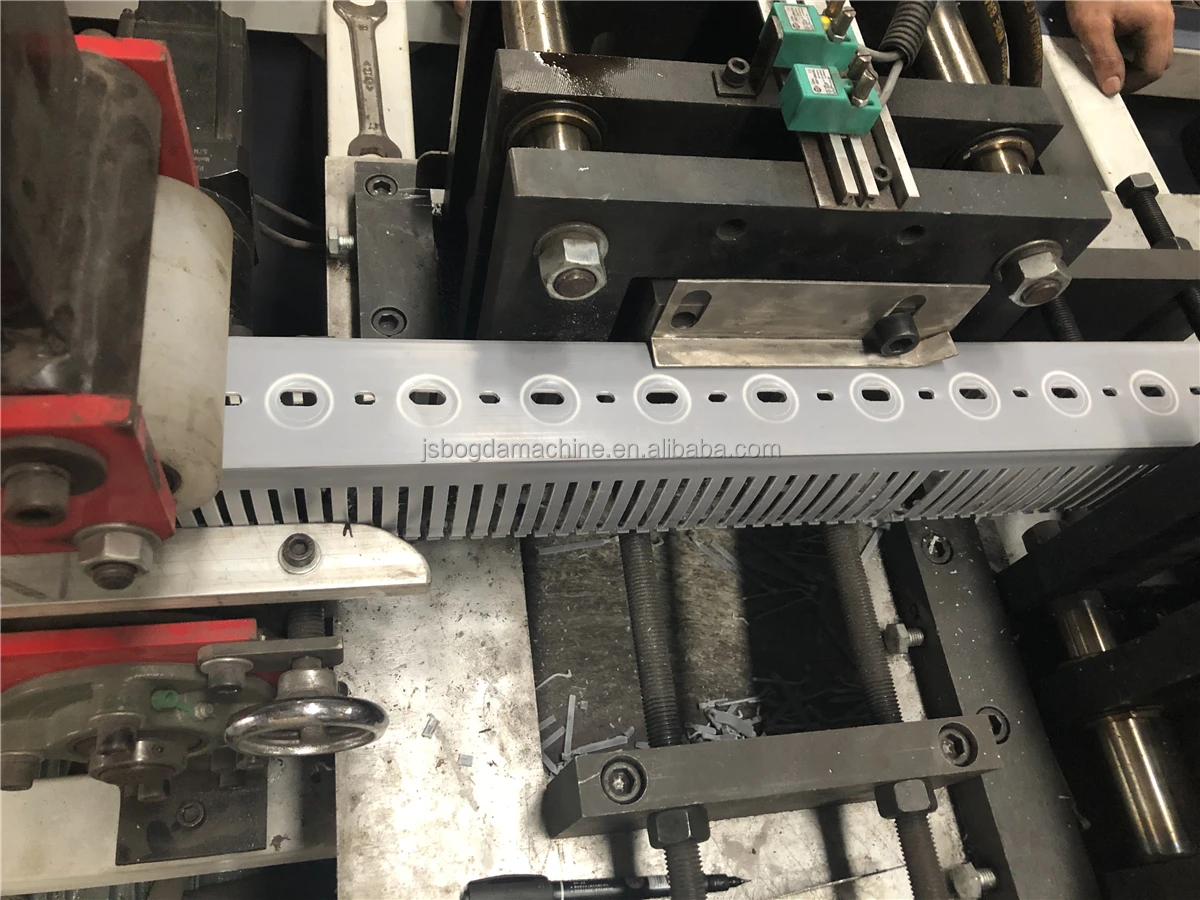

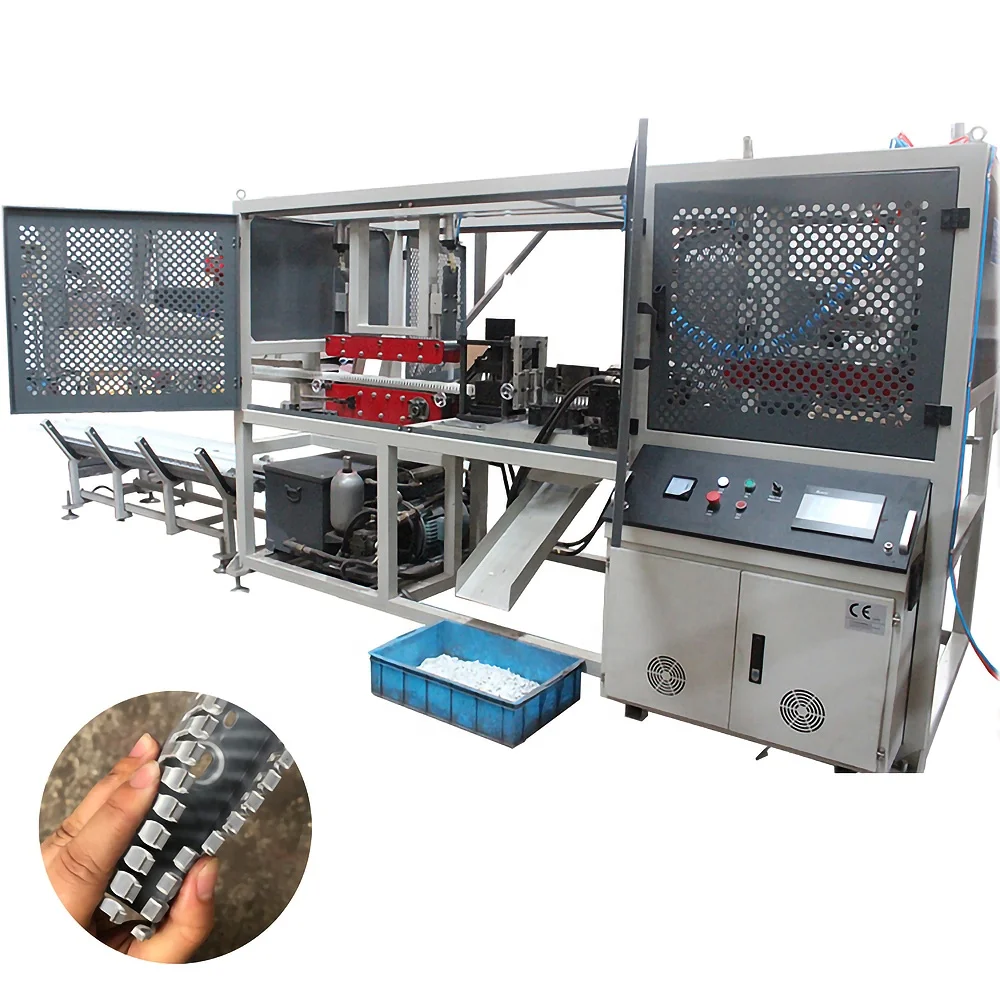

Online or offline PVC trunking punching machine

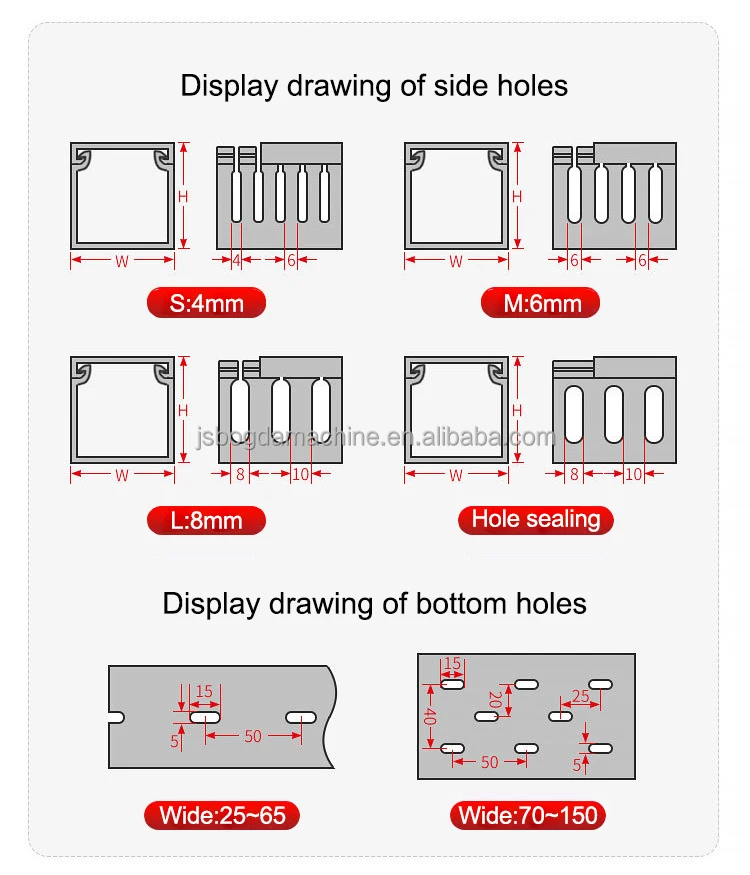

Can punch by side or bottom

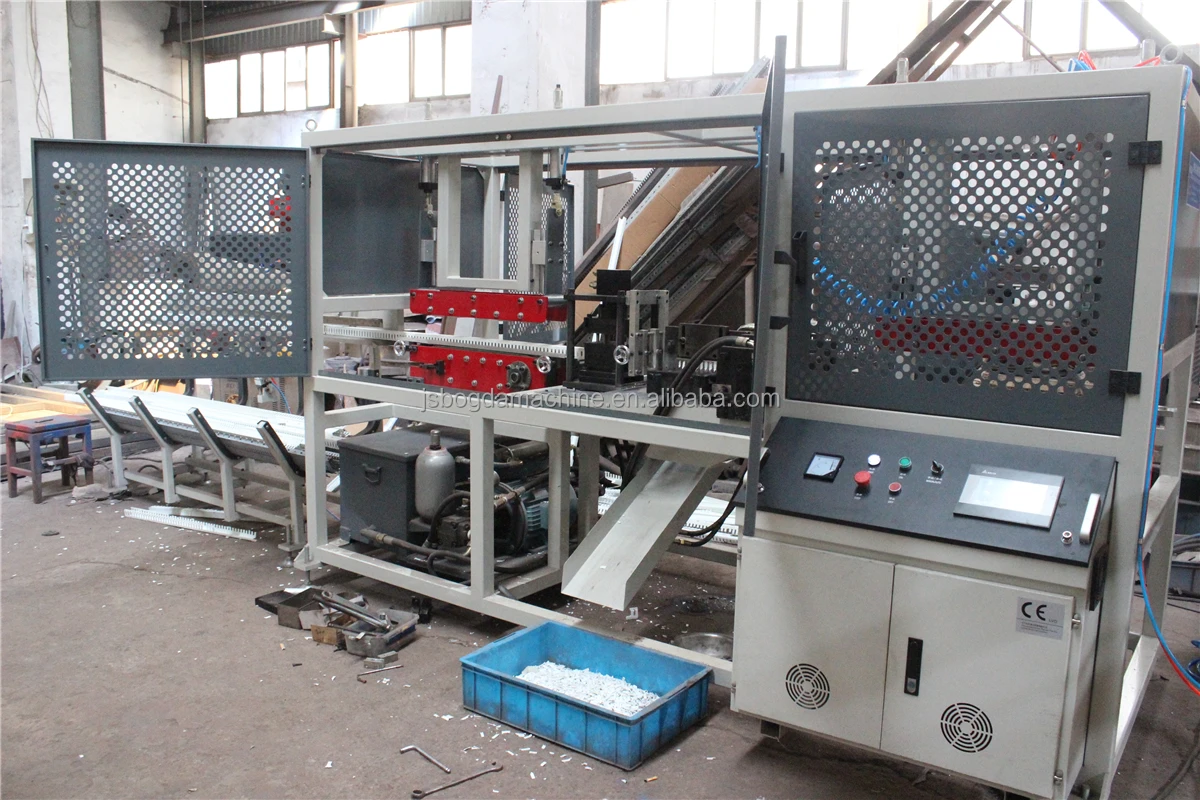

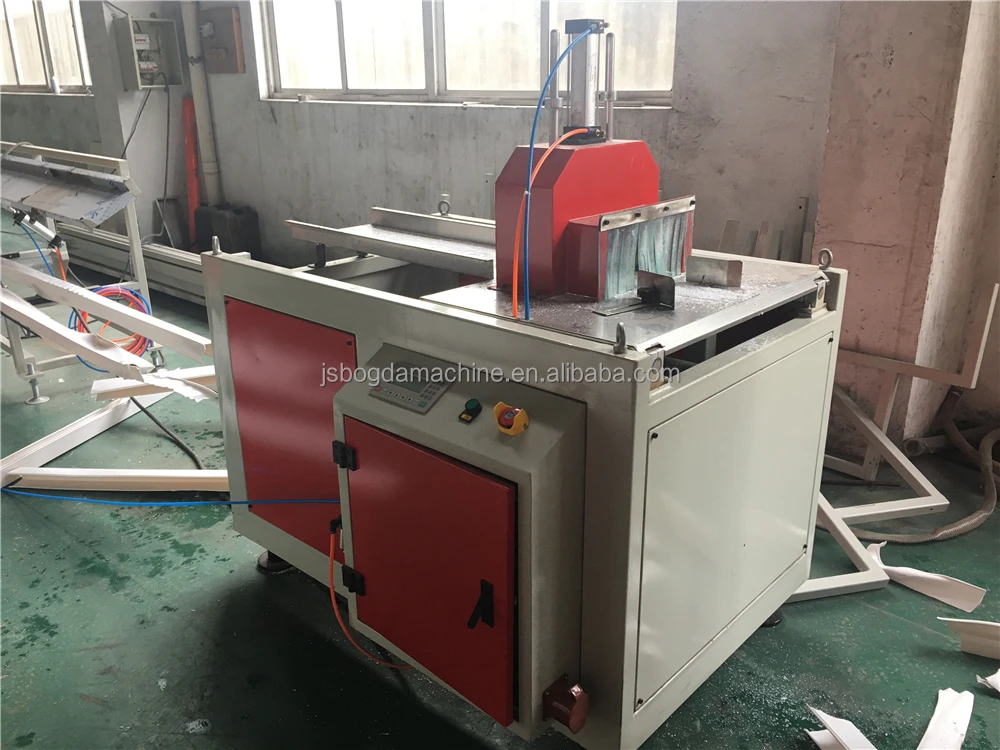

Automatic PVC trunking cutting machine
Motor power: 2.2kw Dimension: 4800x1100x1700mm

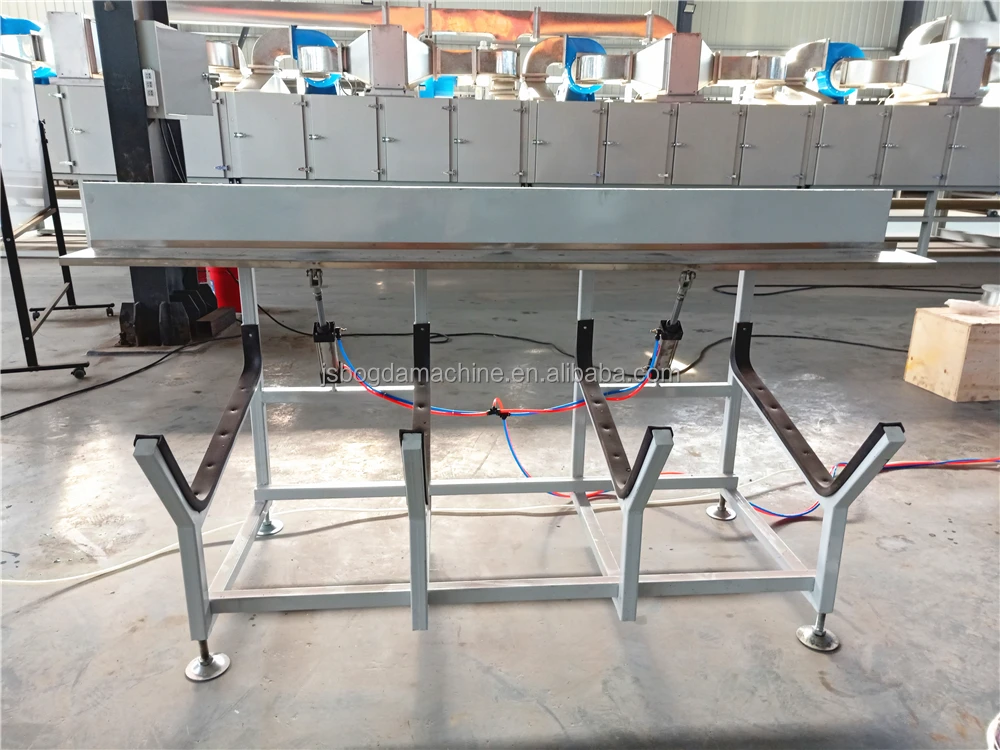

Stacker for pvc trunking
Dimension: 3000x800x1200mm Length: 3m

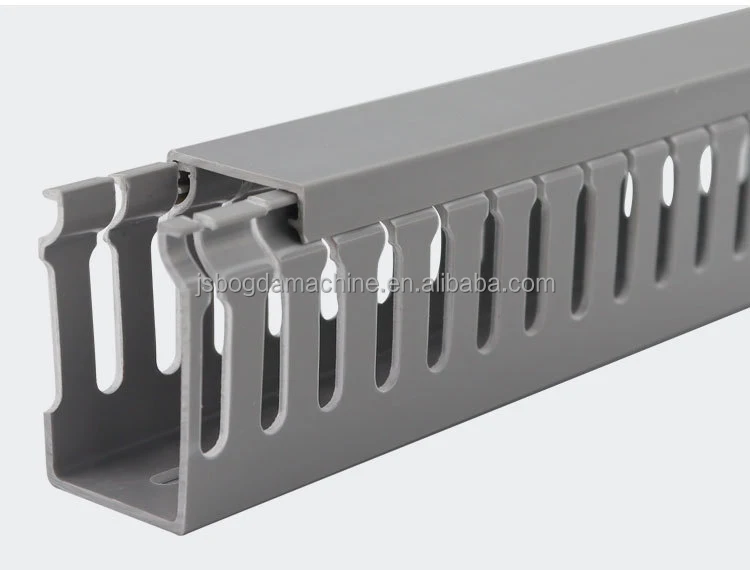

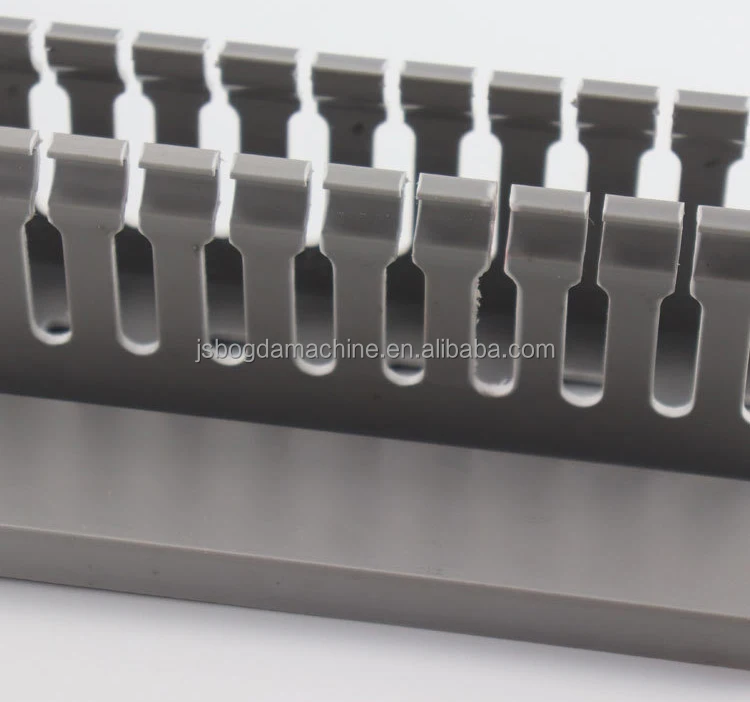

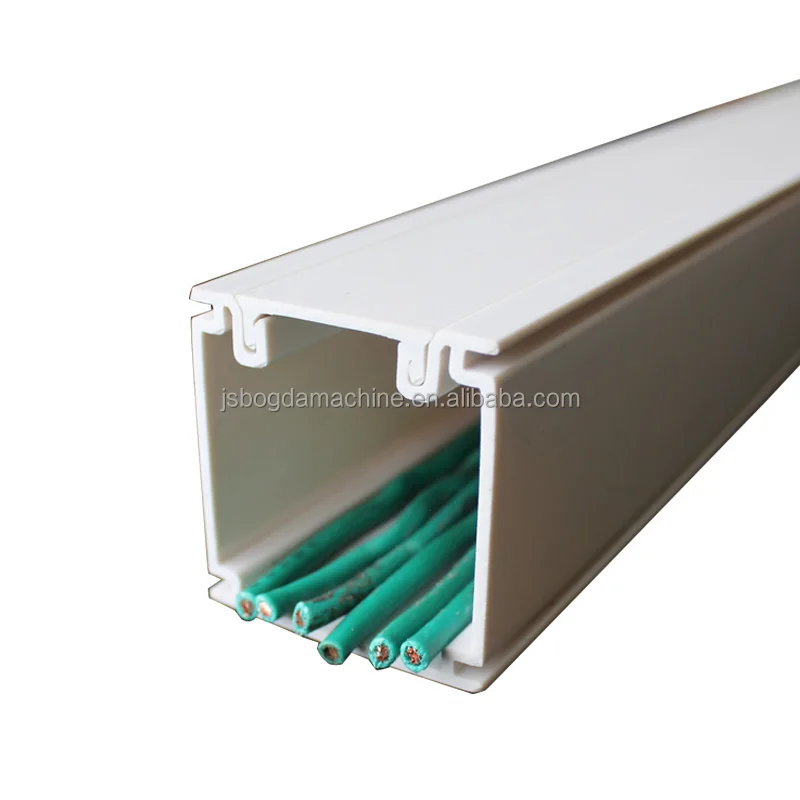

The Final pvc cable trunking and dimension, also can be customised by clients' requirement.
Product Paramenters
Two Cavities Plastic PVC Cable Trunking Extrusion Line With Punching | Product Width (mm) | Product Thickness (mm) | Motor Power (kw) | |||
Model | SJSZ51 | SJSZ55 | SJSZ65 | |||
Screw Size | 51/105 | 55/110 | 65/132 | |||
Motor Power (kw) | 18.5 | 22 | 37 | |||
Capacity (kg/h) | 80-100 | 100-150 | 150-200 | |||
