ck6150 china cnc lathe high precis lathe cnc controller good price
- Category: >>>
- Supplier: Shandong Feifan CNC Equipment Co. Ltd.
Share on (1600260889783):
Product Overview
Description
Product Overview

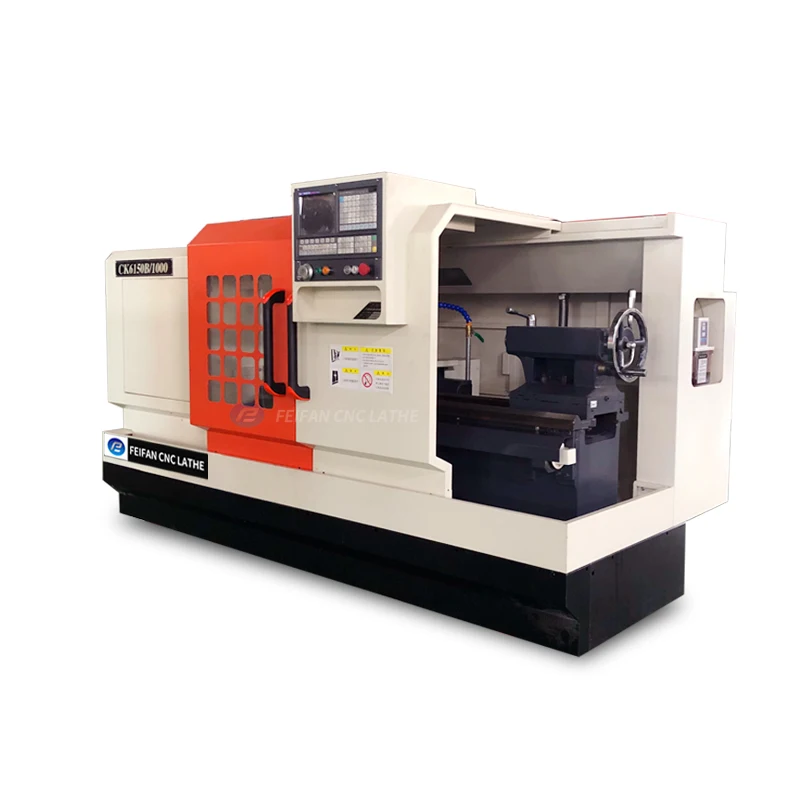

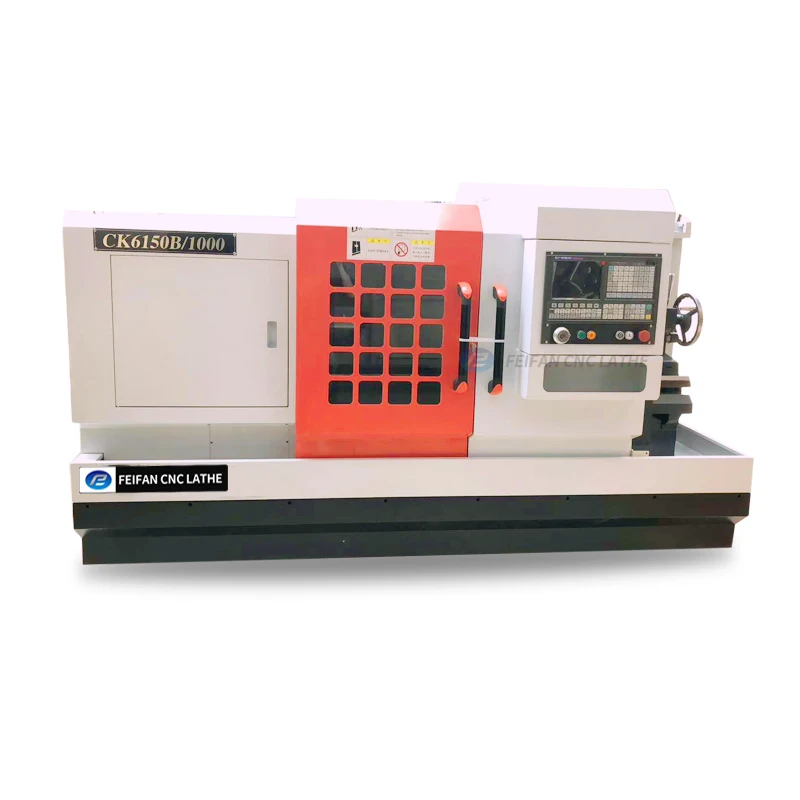

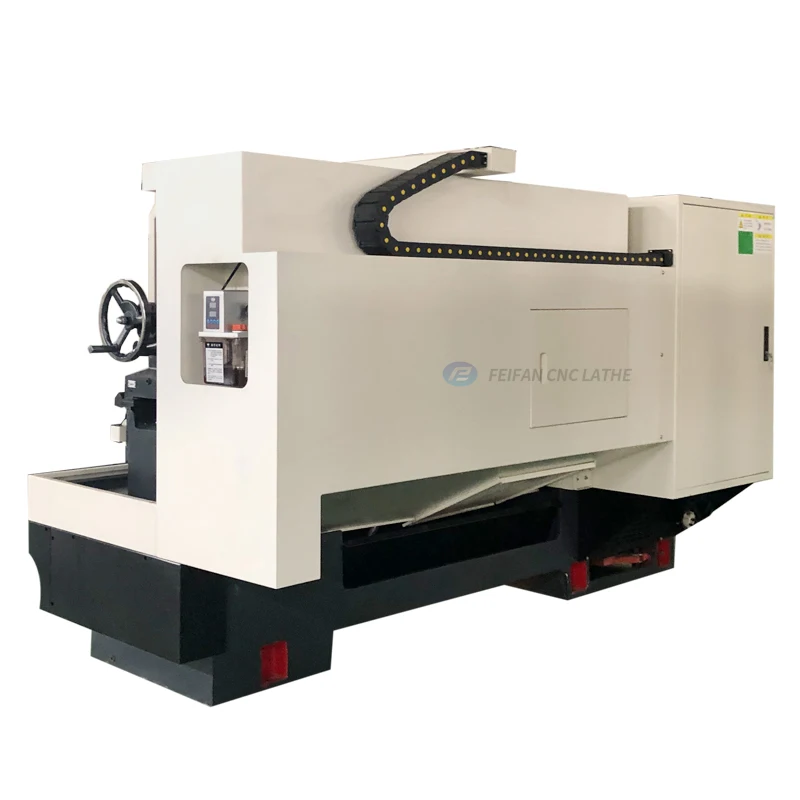

CK6150 series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc. Its main components and structure have been optimized design, and it is the first choice for machining shafts, discs, sleeves, special-shaped surfaces and screw workpieces.
PRODUCT SPECIFICATIONS
parameter: | yes/no |
linear rolling guides and backlash-free rolling screws | yes |
x range move | yes 500mm |
z range move | yes260mm |
range over the bed (over the guide guards) | yes300mm |
range over the crosslide - | yes170mm |
Spindle power | yes3.7kw |
stepless speed range 50-3000 rpm | yes |
stepless drive with angular positioning of the spindle | yes |
4-jaw self-centering hand chuck size 125 mm with manual clamping | yes |
working feeds: range 2-6000 mm / min, rapid feeds: 18 m / min | yes 2-6000 mm / min-18m/min |
6-position automatic tool head and two driven spindles (one coaxial and the other perpendicular to the spindle rotation axis with tool shank in the diameter range of 1-10 mm, power 1 kW, rotation range 0-5000 rpm stepless speed drive, | yes |
servo motors in XZ and C axis (for spindle), with absolute measuring transducers for each | yes |
siemens 828, the latest generation not older than 2 years, typical for the European market of CNC machine tools, 3D continuous control (X, Z + spindle), programming of machining in ISO codes and in the interactive technological overlay programming of turning and milling machining, Transmit and Tracyl functions (milling from the face and side of the cylinder), detection of the remaining allowance, reading DXF graphic files, network communication, Polish language of the control software, | yes |
drive systems for linear axes and spindle - from Siemens. | yes |
the ability to perform machining in the G17, G18 and G19 coordinate systems in one clamping of the workpiece in the machine tool holder and in one program, | yes |
operating mode of the CNC control system of the machine tool, the so-called manual machine (performing one technological operation in the simplified programming mode) of the CNC control system, | yes |
color screen of the control system, min. 10 "with 3D graphics, graphic simulation of machining, | yes |
control system interfaces: Ethernet, USB 2.0, CF card on the control system panel, | yes |
electronic handwheel on the operator panel of the machine, | yes |
lighting of the working space - LED lamp, | yes |
drive overload control system (protection against damage),· | yes |
cover of the working space with a cover lock during processing, | yes |
separate control box with system control (max 24 vdc power supply). - separate control box, i mean we can put him on left or rigth side (and we can change every time we need to change it from left to rigth, or from rigth to left) | yes |
positioning accuracy +/- 0.015 mm | yes |
resolution 0.001 mm | yes |
weight 650 kg | yes |
power supply -1 phase, 230 VAC, 16 A | yes |
dimensions of the machine allows to install and delivery machine through the doors with 900 mm width | yes |
price | 21600 dollars FOB |
delivery time | 70 DAYS |
Details Images
Product configuration
The standard list | Optional list |
Product packaging
Company Profile
Customer Photos
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: CK6180 cnc lathe machine products can be customized?
A: of course, if our product can't meet your needs, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: CK6180 cnc lathe machine products can be customized?
A: of course, if our product can't meet your needs, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
