Outdoor Full Color 960 x 960mm Cabinet Size Wall mounted Fixed Advertising LED Display P4 P5 P8 P10
- Category: >>>
- Supplier: Shenzhen Longcheng Photoelectric Technology Co. Ltd.
Share on (1600260907720):
Product Overview
Description
Outdoor Full Color 960 x 960mm Cabinet Size Wall-mounted Fixed Advertising LED Display P4 P5 P8 P10
Item | P3 | P4 | P5 | P6 | P8 | P10 | |||||

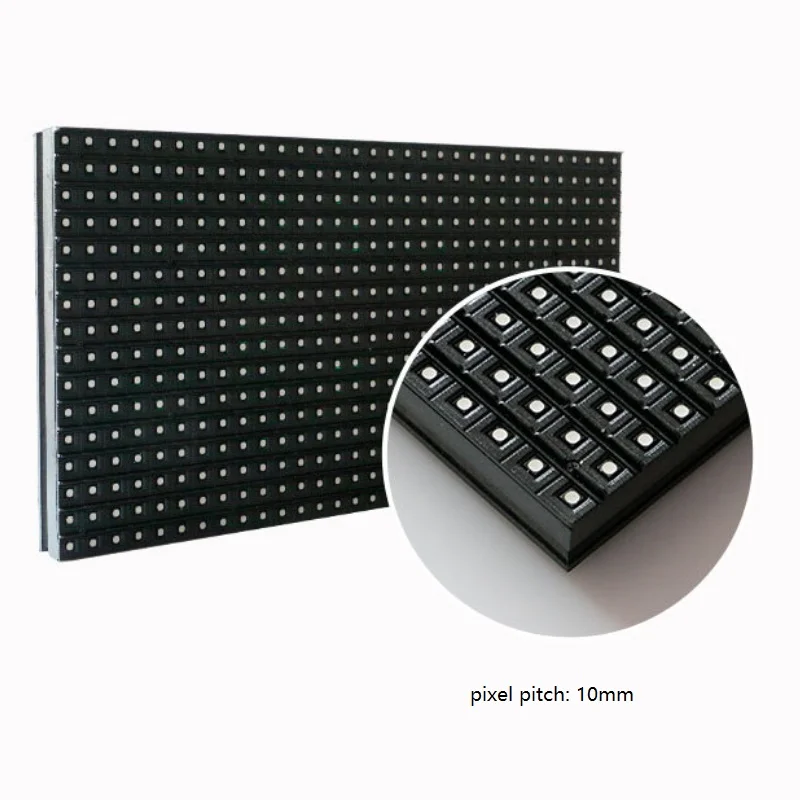

Pixel pitch (mm) | 3 | 4 | 5 | 6 | 8 | 10 | |||||
Pixel density (dots/sqm.) | 111111 | 62500 | 40000 | 27777 | 15625 | 10000 | |||||
LED type | SMD1921 | SMD2525 | SMD2525 | SMD3535 | SMD3535 | SMD3535 | |||||
Brightness (nits) | 4500 | 5000 | 5000 | 5500 | 6000 | 6500 | |||||
Scan mode | 1/16 | 1/8 | 1/8 | 1/8 | 1/4 | 1/2 | |||||
Module size (mm) | 192*192 | 256*128 | 320*160 | 192*192 | 256*128 | 320*160 | |||||
Module resolution (dots) | 64*64 | 64*64 | 64*32 | 32*32 | 32*16 | 32*16 | |||||
Cabinet size (mm) | 960*960 | 1024*1024 | 960*960 | 960*960 | 1024*1024 | 960*960 | |||||
Cabinet resolution (dots) | 320*320 | 256*256 | 192*192 | 160*160 | 128*128 | 96*96 | |||||
Power consumption (Max./Avg./w/sqm.) | 700/1800 | 600/1500 | 400/1000 | 400/800 | 400/800 | 400/800 | |||||
Service access | Front / Rear | Front/Rear | |||||||||
Refresh rate | 1920Hz | ≥1920 | |||||||||
Grey level | 16 bit | 16 | |||||||||
Viewing angle (H/V) | 140/140 | 140/140 | |||||||||
IP grade | IP65 | IP65 | |||||||||
Input voltage (AC) | 110-220V | 110V/220V | |||||||||
System Diagram：

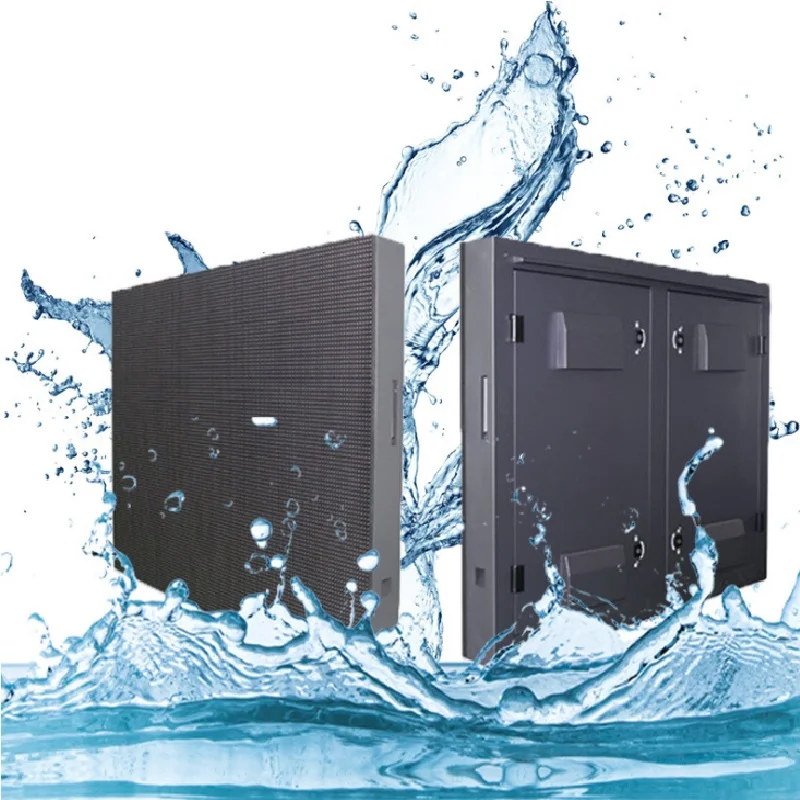

Ultra High / Low Temperature
Special design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.
SMD Performance and View Angle
Better contrast ratio and viewing performance Wide viewing angle increasing its value by covering more viewing
Auto Brightness
Auto brightness saving energy besides protecting people eyes in night time.
Pillar / Pole LED Display
Wall Mounted LED Display
Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc.
LOSCEN supplies more design and more solutions.
LOSCEN supplies more design and more solutions.
