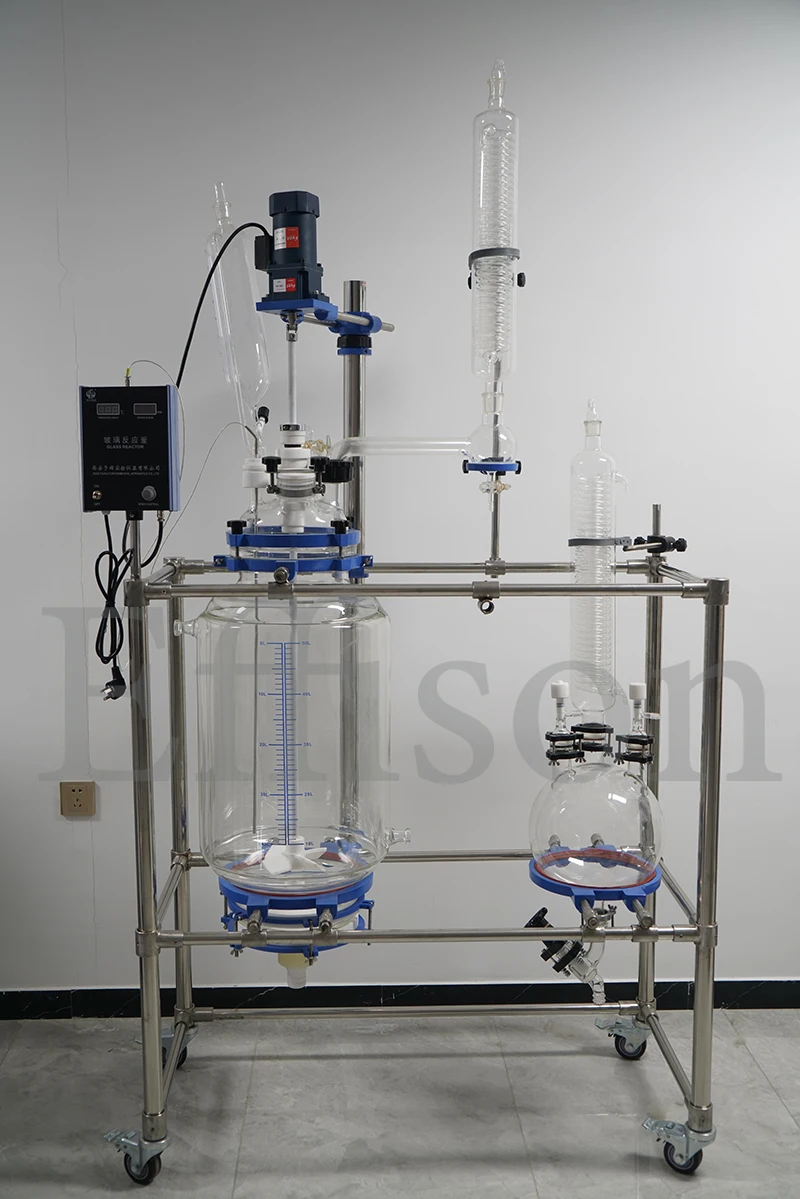

Accurate Temperature Control Chemical Stirring Jacket Reactor Nutsche Filter
The filter glass reactor 50l is a commonly used biochemical instrument, which combines the functions of the reactor and the filter. It is mainly used in modern fine chemicals, bio-pharmaceuticals, scientific research experiments, etc. It can make crystallization concentration, distillation, reflux, separation and purification which is an ideal instrument for teaching, lab test, pilot test and production.

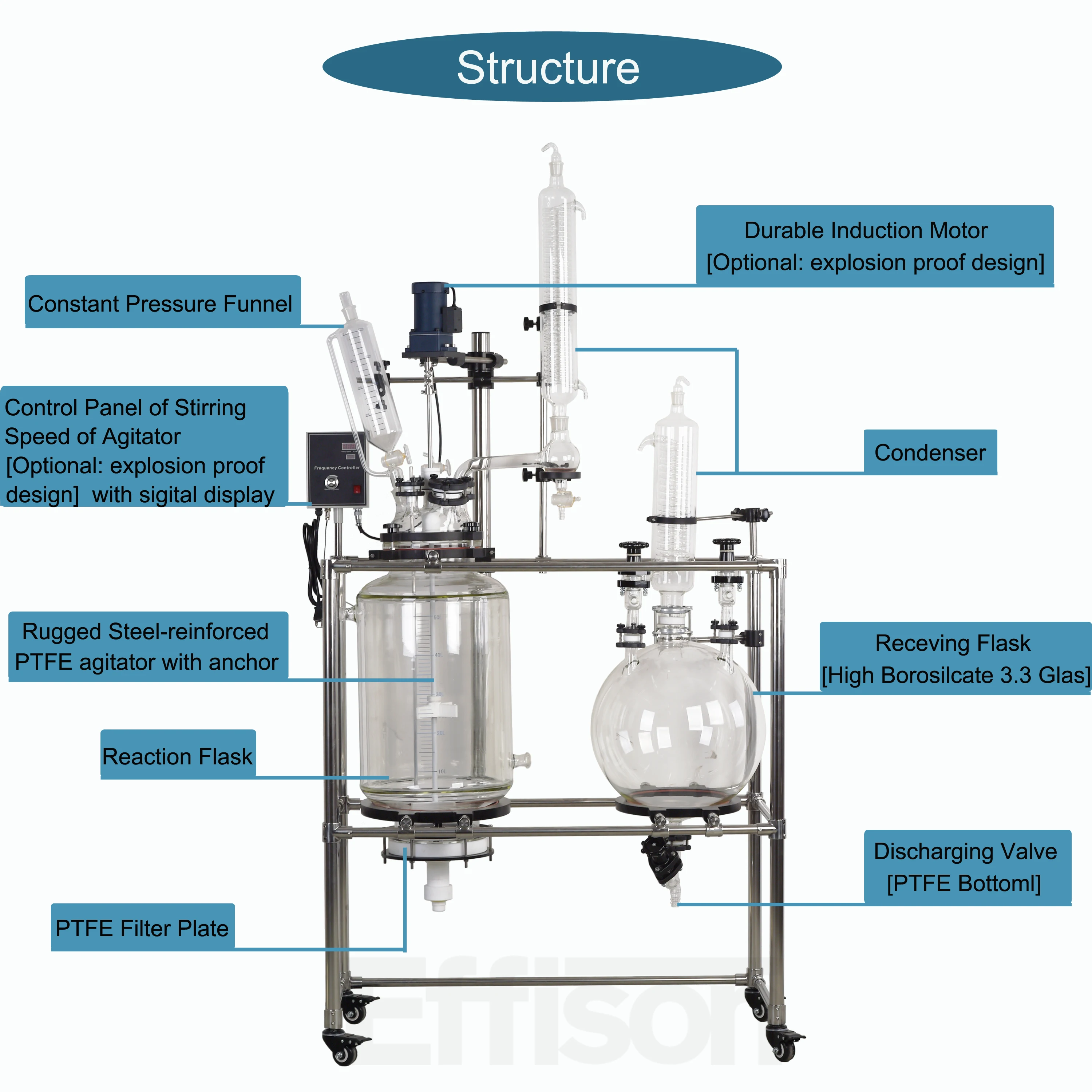

Features of 50L Jacketed filter reactor:
1. Patented PTFE stirring rod bearing for reliable and quiet operation.
2. Wide range of temperature operations, from -110°F to 400°F.
3. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
4. Easily visual operation with digital speed and temperature displays.

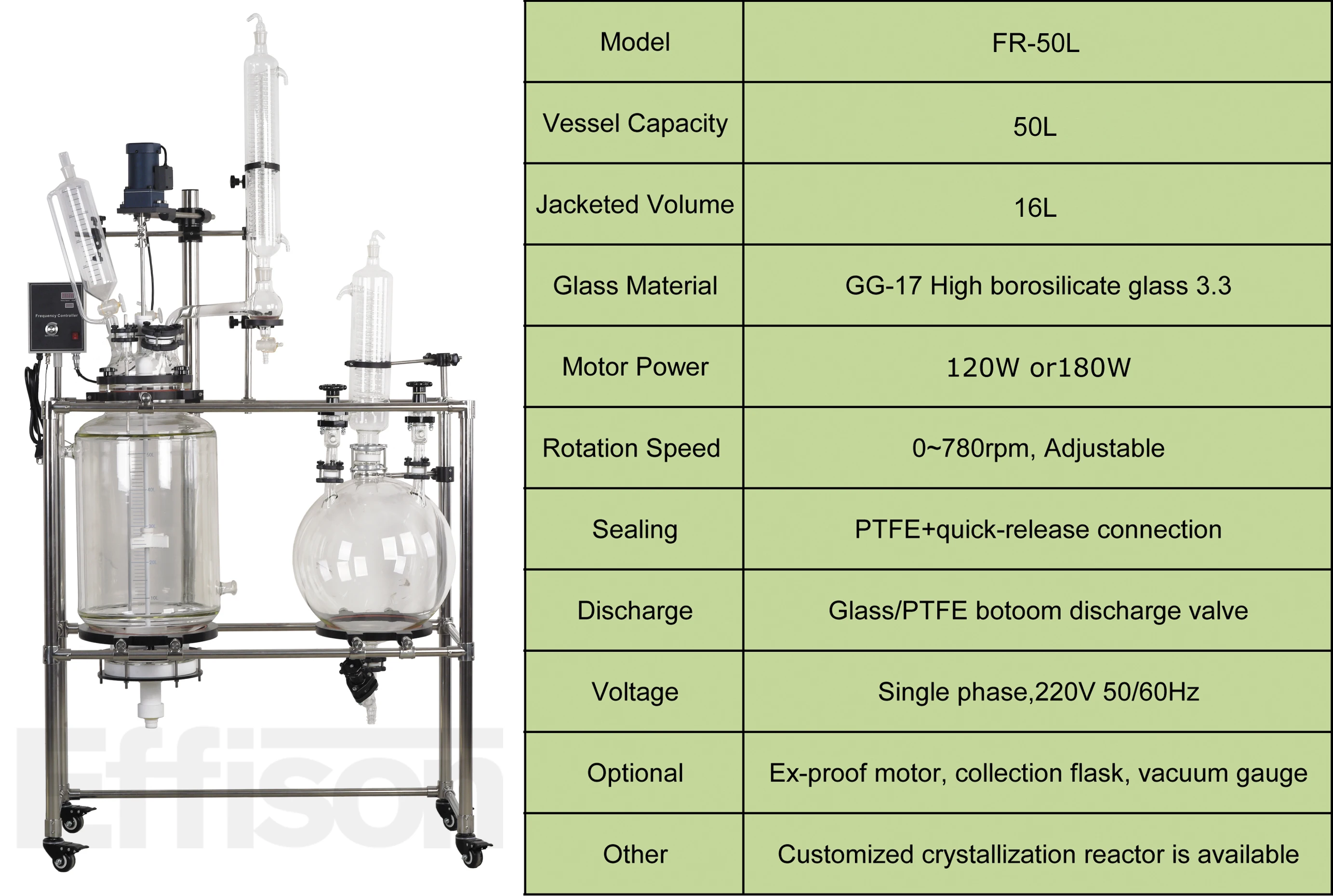

Specifications of Jacketed filter reactor:
| Model | RF-10L | RF-20L | RF-30L | RF-50L | RF-100L |
| Vessel Capacity | 10L | 20L | 30L | 50L | 100L |
| Jacketed Volume | 3L | 6L | 10L | 16L | 30L |
| Glass Material | GG-17 High borosilicate glass 3.3 | ||||
| Motor Power | 120W or180W | ||||
| Rotation Speed | 0~780rpm, Adjustable | ||||
| Sealing | PTFE+quick-release connection | ||||

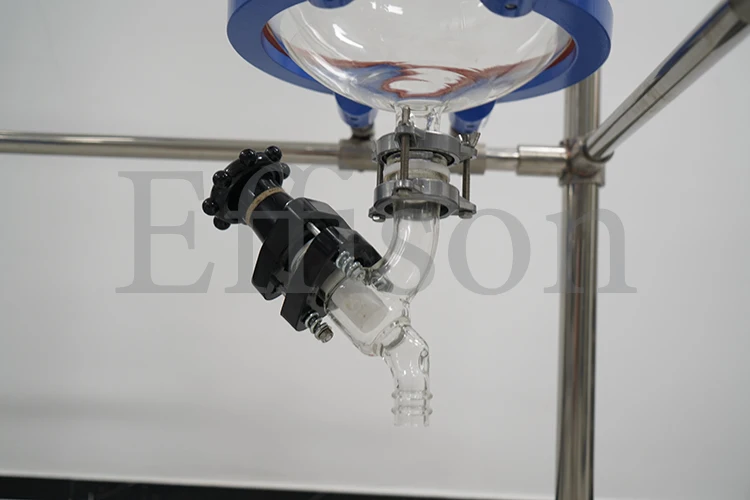

| Discharge | Glass/PTFE botoom discharge valve | ||||
| Voltage | Single phase,220V 50/60Hz | ||||

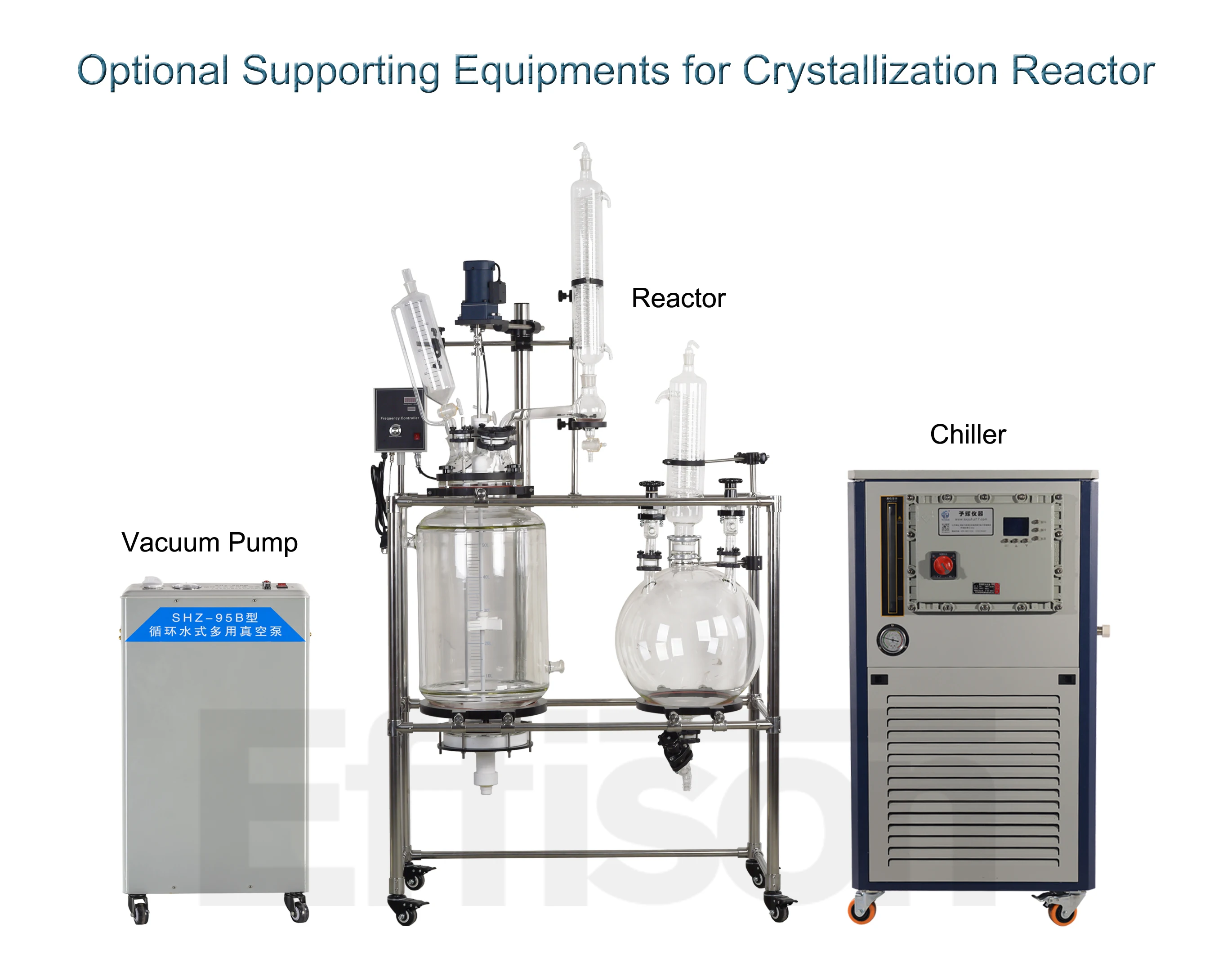

| Optional | Ex-proof motor, collection flask, vacuum gauge | ||||
| Other | Customized crystallization reactor is available | ||||

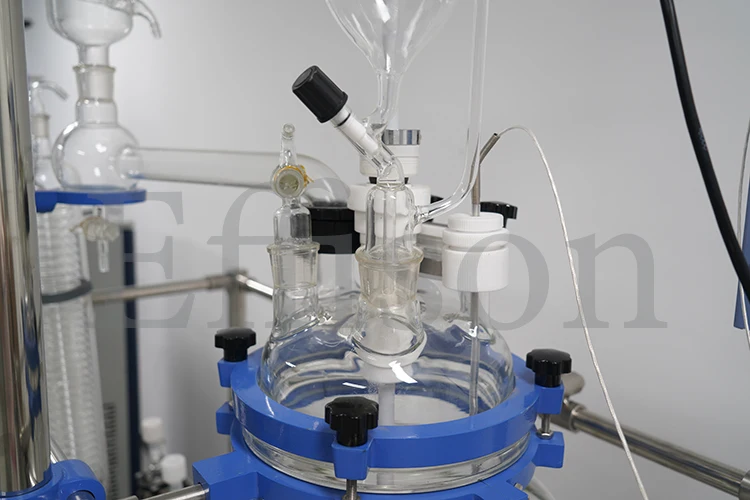

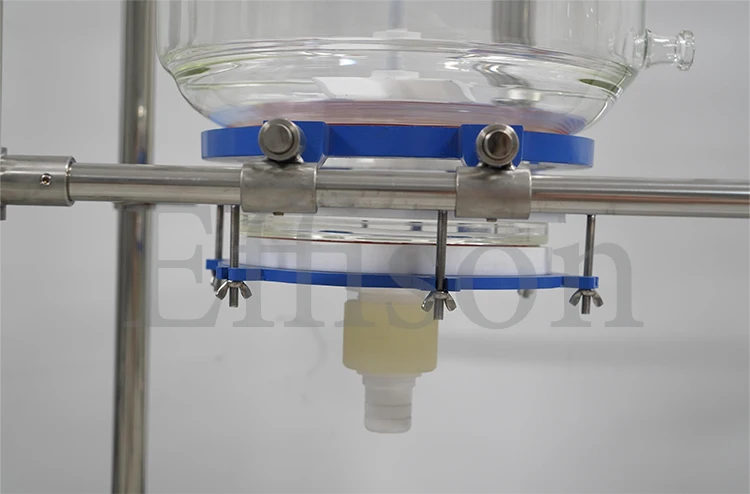

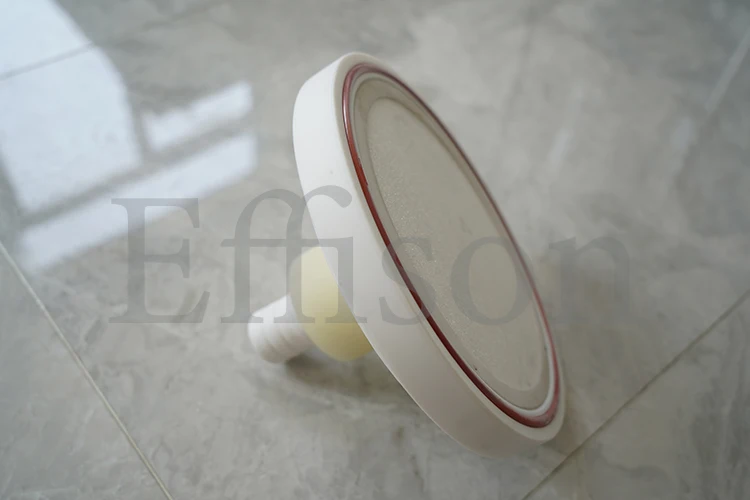

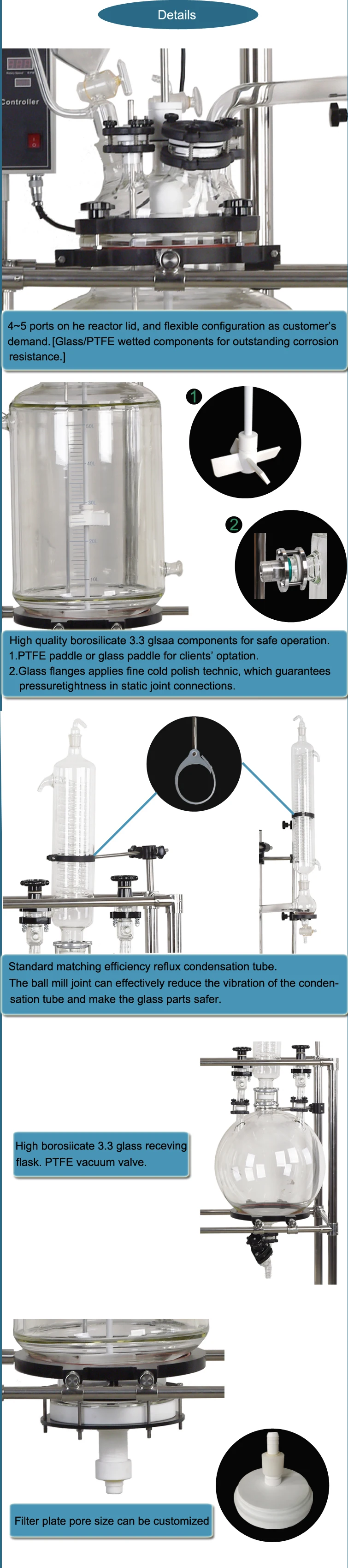

Detailed Images
