Product Overview
Description

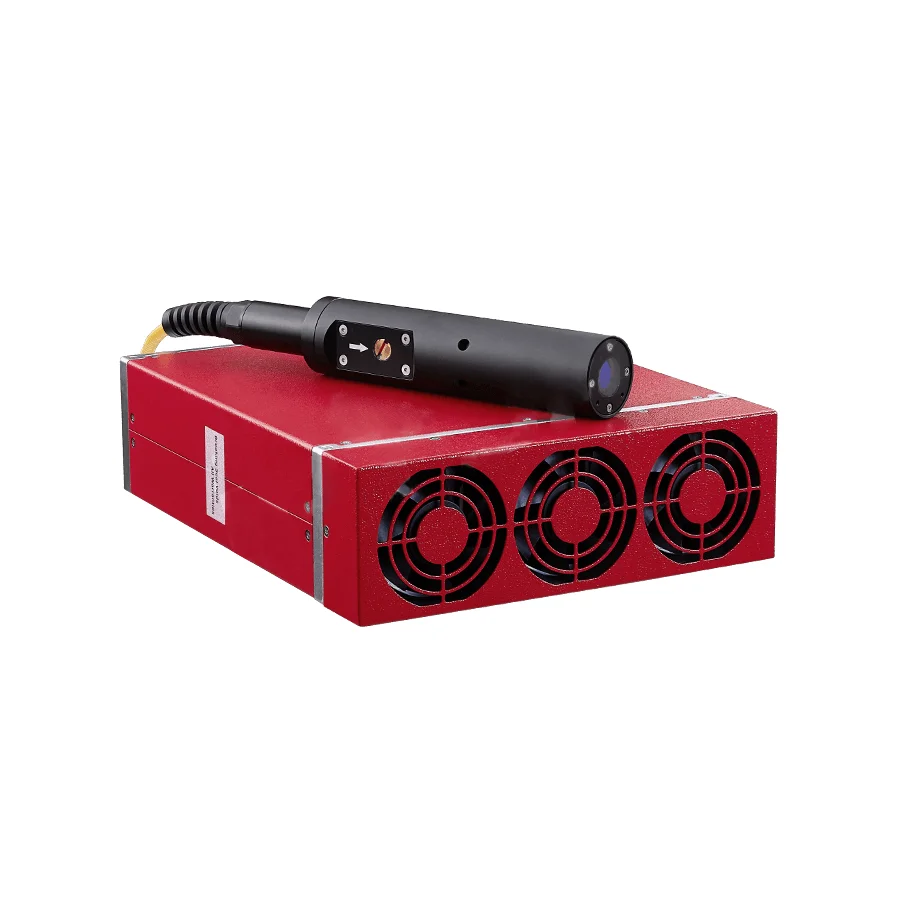

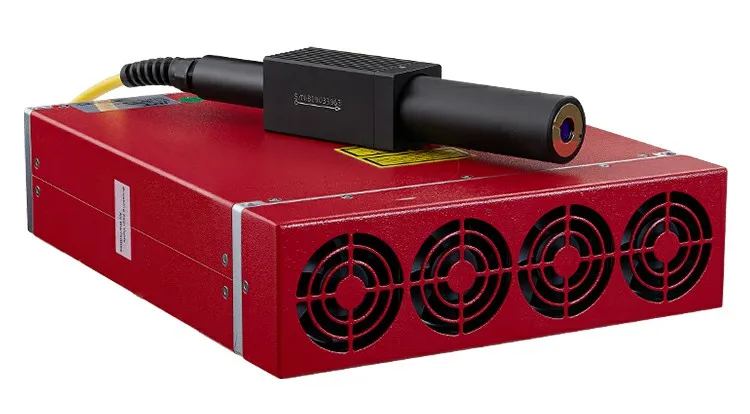

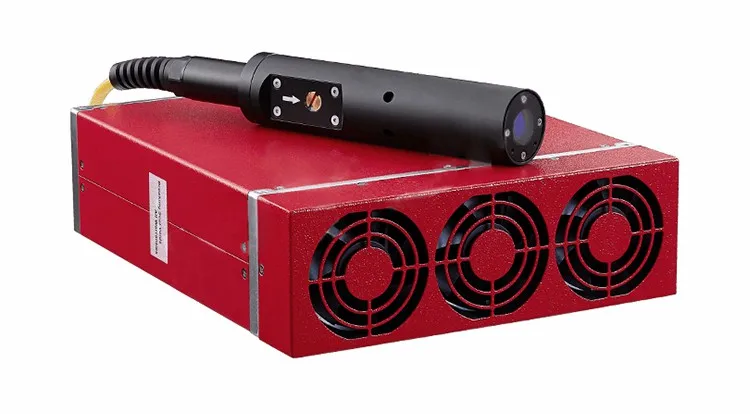

JPT Mopa Laser Fiber Metal Engraving Cutting Lazer Source
Products Descriptions
JPT LP series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration and show excellent laser performance as well as high level of temporal pulse shaping control ability. Compared with Q-switching technology, LP series has greater flexibility，wider frequency range, higher control precision and superior first pulse.
Product Advantages
-Scribing, Drilling
-Marking on fly
-Sheet metal cutting, Welding
-Laser derusting
-Surface treatment
-Metal surface processing, Peeling coating
-Marking on fly
-Sheet metal cutting, Welding
-Laser derusting
-Surface treatment
-Metal surface processing, Peeling coating
Technical Parameters
Item | Unit | Parameter | ||||
Product Model | LP-20 | LP-30 | LP-50 | |||
M2 | < 1.5 | < 1.8 | ||||
Delivery Cable Length | m | 2 | 3 | |||
Nominal Average Output Power | W | > 20 | > 30 | > 50 | ||
Maximum Pulse Energy | mJ | 0.8 | 1.25 | |||
Pulse Repetition Rate Range | kHz | 1 ~ 600 | ||||
Pulse Duration | ns | 200 | ||||
Output Power Stability | % | < 5 | ||||
Cooling Method | Air Cooled | |||||
Supply DC Voltage (VDC) | V | 24 | ||||
Current Consumption | A | <5 | <7 | <10 | ||
Environmental Supply Current | A | >5 | >7 | >10 | ||
Power@20℃ | W | <110 | <150 | <220 | ||
Central Emission Wavelength | nm | 1064 | ||||
Emission Bandwidth@3dB | nm | < 15 | ||||
Polarization | Random | |||||
Output Beam Diameter | mm | 7±0.5 | ||||
Output Power Tuning Range | % | 0 ~ 100 | ||||
Operation Temperature | ℃ | 0 ~ 40 | ||||
Storage Temperature | ℃ | -10 ~ 60 | ||||
N.W | KG | 3.75 | 4.25 | 8.2 | ||

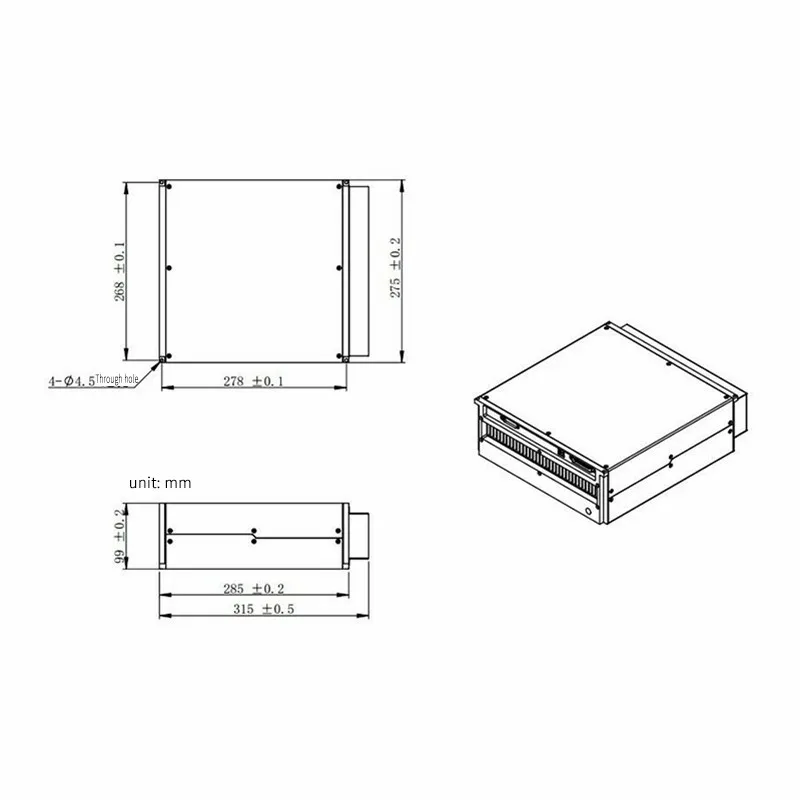

Size(L×W×H) | mm | 245 × 200 × 65 | 245 × 200 × 65 | 325 × 260 × 75 | ||
Unit | Parameter | |||||||
Product Model | M7-60 | M7-80 | M7-100 | M7-120 | ||||
M2 | <1.8 | |||||||
Delivery Cable Length | m | 3 | ||||||
Nominal Average Output Power | W | >60 | >80 | >100 | >120 | |||
Maximum Pulse Energy | mJ | 1.5 | 2.0 | 1.5 | 1.5 | |||
Pulse Repetition Rate Range | kHz | 1 ~ 4000 | ||||||
Pulse Duration | ns | 2~500 | ||||||
Output Power Stability | % | <5 | ||||||
Cooling Method | Air Cooled | |||||||
Supply DC Voltage (VDC) | V | 48 | ||||||
Current Consumption | A | <6 | <7 | <8 | <9 | |||
Environmental Supply Current | A | >6 | >7 | >8 | >9 | |||
Power@20℃ | W | <260 | <300 | <400 | <450 | |||
Central Emission Wavelength | nm | 1064 | ||||||
Emission Bandwidth@3dB | nm | <15 | ||||||
Polarization | Random | |||||||
Output Beam Diameter | mm | 7±0.5 | ||||||
Output Power Tuning Range | % | 0 ~ 100 | ||||||
Operation Temperature | ℃ | 0 ~ 40 | ||||||
Storage Temperature | ℃ | -10 ~ 60 | ||||||
N.W | KG | 8.5 | 13.2 | |||||
Size(L×W×H) | mm | 325 × 260 × 75 | 350 × 280 × 112 | |||||
Applications & Samples
Applicable Industries
✦Tools
✦Medical instruments
✦Charger
✦Power bank
✦Bearing
✦Hardware
etc.
Applicable Materials
✦Metal:
Stainless steel, Carbon steel,
Aluminium,
Titanium,
Platinum,
Gold,
Silver,
Copper,
Brass,
Zinc...
✦Non-metal: ABS, PVC...
Samples
