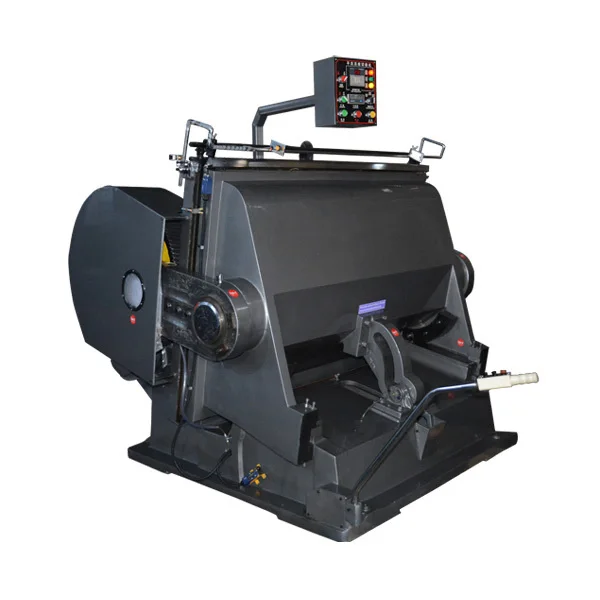

ML 1200 semi automatic paper plate die cutting machine corrugated carton box die cutting punching machine
- Category: >>>
- Supplier: Cangzhou Liqiang Packaging Machinery Co. Ltd.
Share on (1600261035014):
Product Overview
Description
Products Description
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

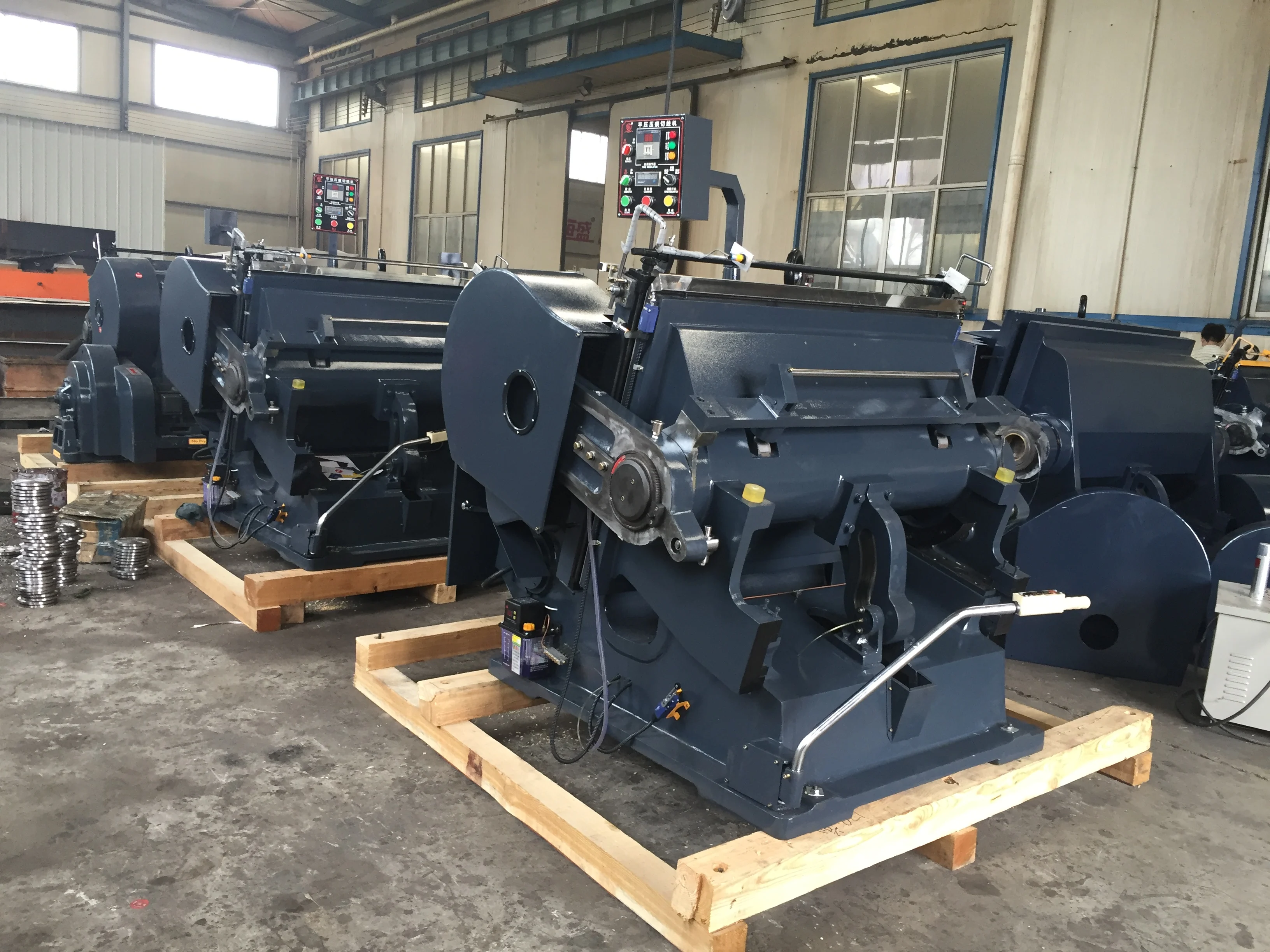

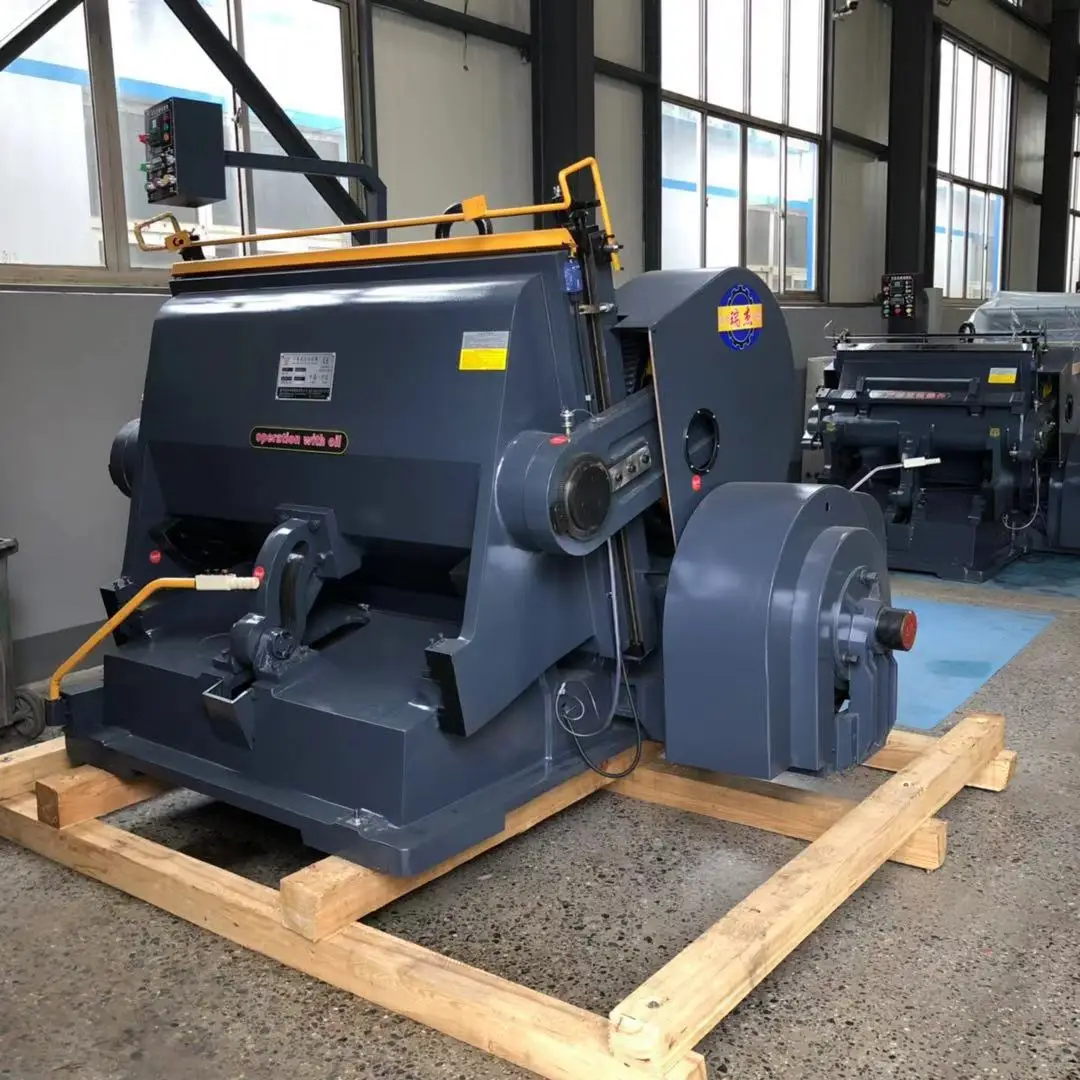

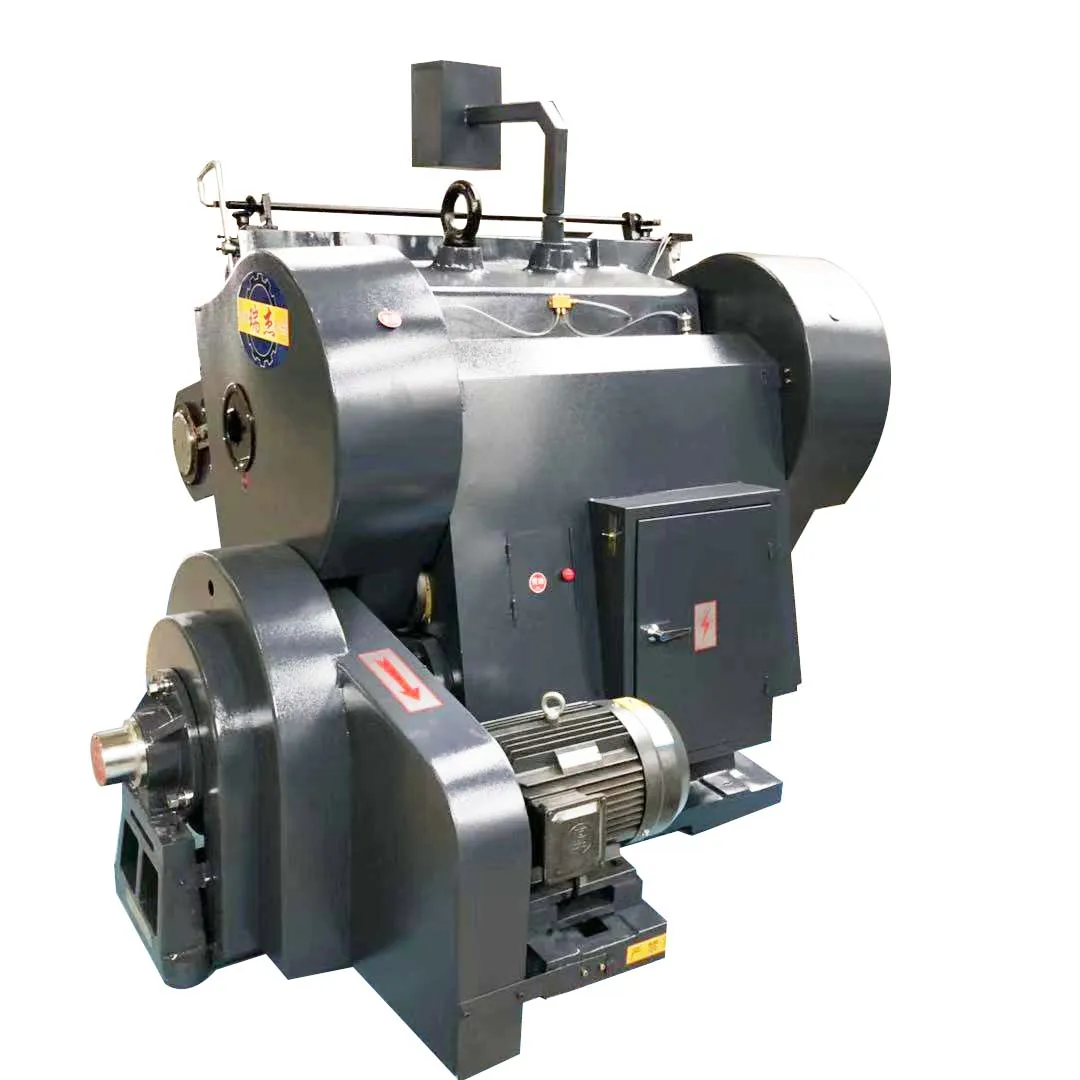

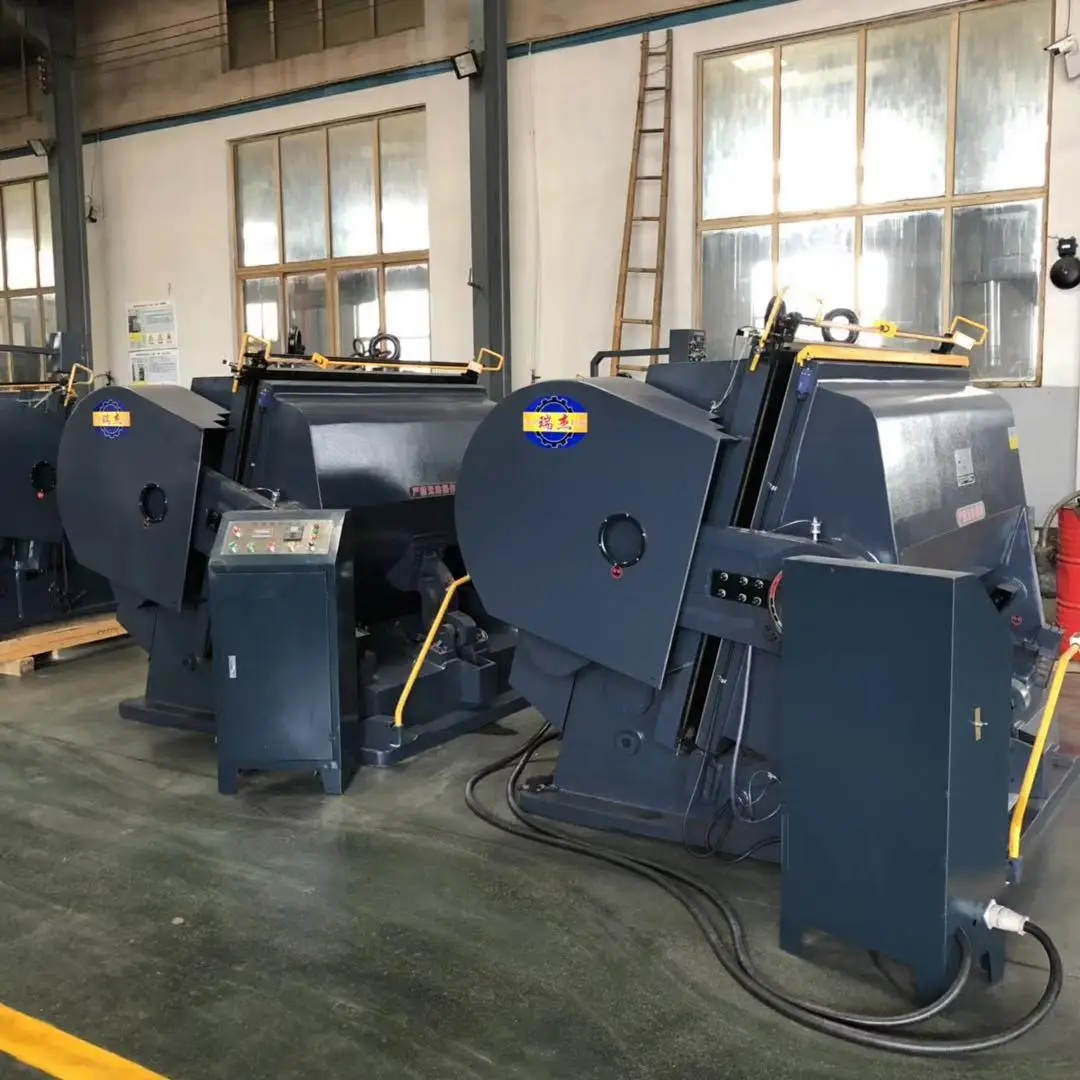

ML 1200 semi-automatic die-cutting punching machine
Instruction:
1. The four safety protection system for gate, triangle, handle, light-operated, it is more safety.
2. Four functions: single cutting, continuous cutting, working in delay time and counting.
3. Single plate electromagnetic clutch is sensitive and reliable, high safely performance and so on. Adopt adjustable die-plate, easy to upload plate, discharge plate.
4. Standard configuration: Provide oil by hand, centralized or computer automatically. Or frequency speed adjustable.
2. Four functions: single cutting, continuous cutting, working in delay time and counting.
3. Single plate electromagnetic clutch is sensitive and reliable, high safely performance and so on. Adopt adjustable die-plate, easy to upload plate, discharge plate.
4. Standard configuration: Provide oil by hand, centralized or computer automatically. Or frequency speed adjustable.
Product Paramenters
Model | Max effective area | Working speed | WACRULELENGTH | Motor power | Weight |
PYQ203D | 930×670mm | 23±2(strokes/min) | ＜25m | 3.0kw | 3000kg |
ML1100 | 1100×800mm | 20±2(strokes/min) | ＜32m | 4.0kw | 4500kg |
ML1200 | 1200×830mm | 20±2(strokes/min) | ＜35m | 4.0kw | 4800kg |
ML1300 | 1300×920mm | 18±2(strokes/min) | ＜40m | 5.5kw | 6000kg |
ML1400 | 1400×1000mm | 17±2(strokes/min) | ＜45m | 5.5kw | 6800kg |
ML1500 | 1500×1050mm | 16±2(strokes/min) | ＜45m | 5.5kw | 7500kg |
ML1600 | 1600×1250mm | 16±2(strokes/min) | ＜50m | 11kw | 11000kg |
ML1800 | 1800×1300mm | 16±2(strokes/min) | ＜62m | 15kw | 13500kg |
Recommend Products
Packing and delivery
Company Profile

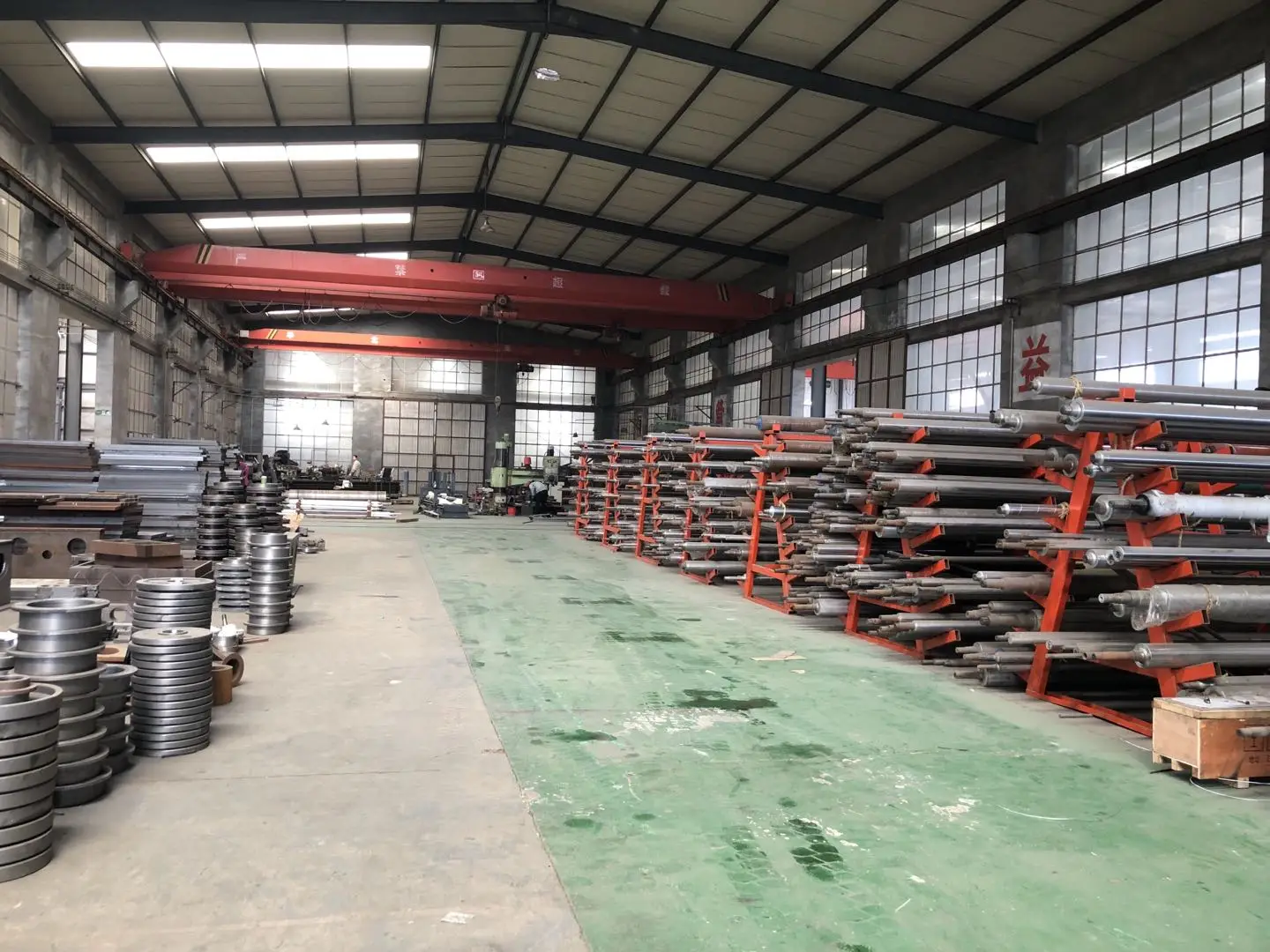

CANGZHOU LIQIANG PACKAGING MACHINE CO.,LTD is a manufacturer of packing machinery. Factory is located in DONGGUANG COUNTY, HEBEI PROVINCE. The factory covers an area of 50000 sqm, include workshop and office house.
Since the company established,we adhere to the “made in heart, for your life career” business philosophy, introduced and train talents, self-design and introduced advanced technology. We already developed a comprehensive enterprise of machine produce, after sale service, and machine parts sale.
Main product include 3ply, 5ply, 7ply corrugated production line, high speed printing machine, semi-automatic printing machine, single facer, rotary die cutter, carton folder gluer and so on. Our machine have been exported to all continents of the world,such as, Canada, Ecudor, Mexico, Germnay, Romania,Russia,Uzbekistan， India, Egypt.Product quality and enterprise reputation get the high praise at home and abroad.
We are willing to cooperate with domestic and foreign insight, strive for innovation, coexit win-win, hand in hand altogether will create package future.
Main product include 3ply, 5ply, 7ply corrugated production line, high speed printing machine, semi-automatic printing machine, single facer, rotary die cutter, carton folder gluer and so on. Our machine have been exported to all continents of the world,such as, Canada, Ecudor, Mexico, Germnay, Romania,Russia,Uzbekistan， India, Egypt.Product quality and enterprise reputation get the high praise at home and abroad.
We are willing to cooperate with domestic and foreign insight, strive for innovation, coexit win-win, hand in hand altogether will create package future.
