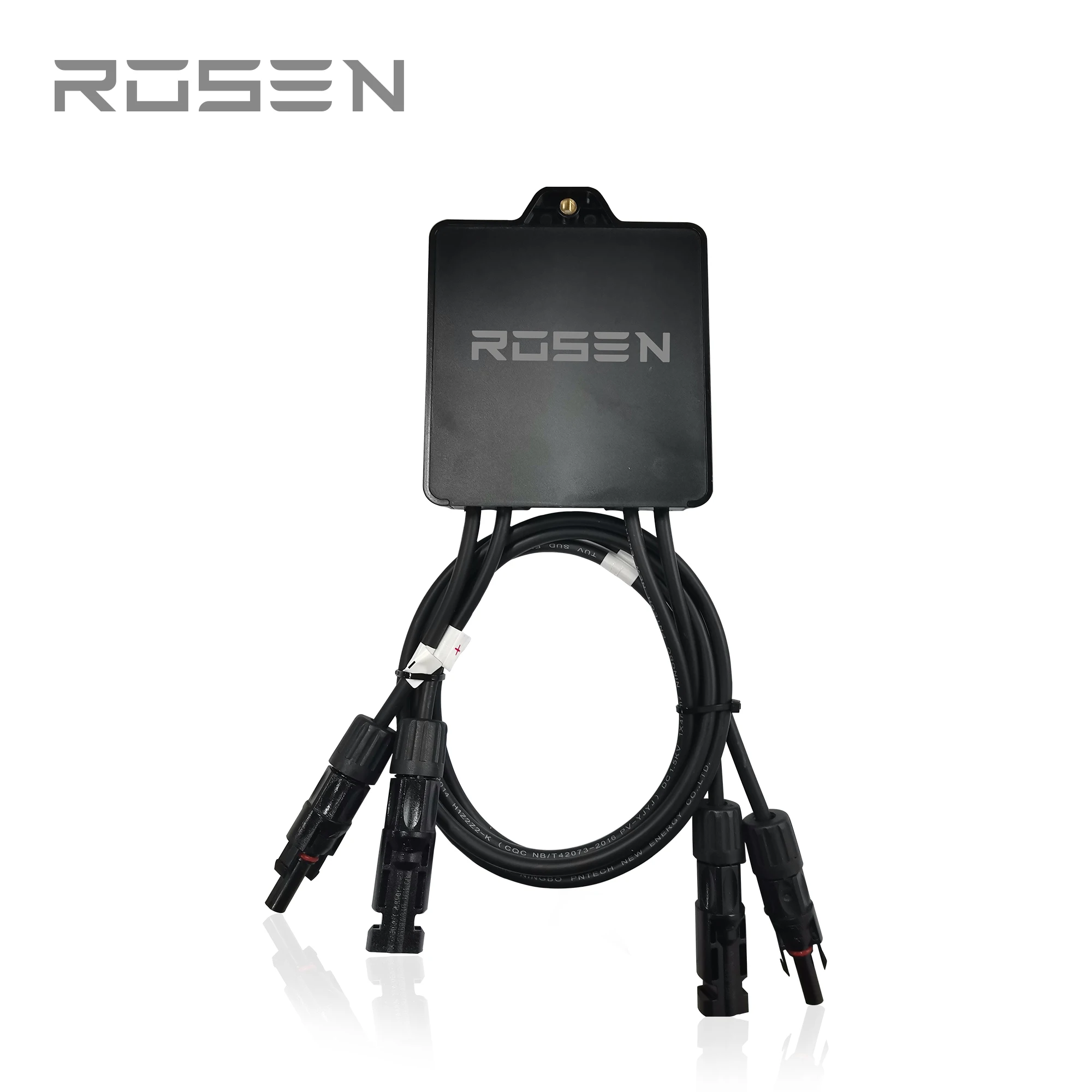

PV Rapid Shutdown Solar DC Optimizer with WIFI Monitoring
PV Rapid Shutdown Solar DC Optimizer with WIFI Monitoring
PV Rapid Shutdown Solar DC Optimizer with WIFI Monitoring
PV Rapid Shutdown Solar DC Optimizer with WIFI Monitoring
PV Rapid Shutdown Solar DC Optimizer with WIFI Monitoring
PV Rapid Shutdown Solar DC Optimizer with WIFI Monitoring
PV Rapid Shutdown Solar DC Optimizer with WIFI Monitoring

PV Rapid Shutdown Solar DC Optimizer with WIFI Monitoring

Share on:


Price:$23.50 - $27.50
Price in USD:Details

Quantity:


Product Overview

Description



Production description






Technical Specification


Power Optimizers
The power optimizer uses a unique software algorithm that can track the maximum power point of a single module in real time. The user can choose different types of products according to the actual operating conditions of the PV system to solve the problem of occlusion or component electrical specifications. Differences caused by the reduction of photovoltaic system power generation, to achieve the maximum power output of a single module and online monitoring, improve system efficiency.


Data Processing Devices
Collect and upload data of power system
components(module, inverter, electricity
meter,temperature detectors, etc.) to the
datacloud center (Honeypot) in real time,
which can safely shut down the power
optimizer or integrated power optimizer
to realize the power plant Intelligent
operation and maintenance management.


Rapid Shutdown Devices
Rapid Shutdown can be used for PV projects of different sizes, installed on the module bracket or module frame, and connected in series with the module. When an emergency happened, you can press the shutdown button of the main controller (or shutdown control box) to quickly shut down the module output within 30 seconds to reduce the string voltage to a safe voltage,which can improve system safety.


Rapid Shutdown Controllers
The faction of rapid shutdown is based on
PLC communication between corollary control equipment and rapid shutdown device.The shutdown controller Beetrans-Master (and Beetrans-Slave) is used for small and medium-scale projects, and shutdown control box Beetrans-Max is used for larger-scale projects. Both are equipped with rapid shutdown devices according to the project scale.Parallel products of different project sizes.


Product Code
RS400W
RS600W
RS800W
RS1200W
INPUT

Max Input Power
450W
600W
900W
1200W
Max Input Voltage
75V
150V
Max Input Current
13A
15A
13A
15A
MPPT Voltage Range
12V~70V
12~75V
13V~140V
13V~150V
OUTPUT
Max Output Power
450W
600W
900W
1200W
Output Voltage Range
0~75V
0~150V
Communication
Wirelss/PLC
System Voltage
1000V/1500V
Max Output Current
13A
15A
13A
15A
EFFICIENCY
Max Conversion Effciency
99.60%
INSTALLATION SPECIFICATION
Size
130.3X109.6X25mm
130x132x24.5mm
Weight
588g
765g
Input（Output）Connector
Compatible with MC4
Working Temperature
-40~85℃
Ingress Protection
0~100%
Relative Humidity
IP68
STANDARD COMPLIANCE
EMC
IEC61000-6-2/IEC61000-6-3
Safety Regulations
IEC62109-1(Class safety)
Overvoltage Category
III
Certification
CE(Intertek)

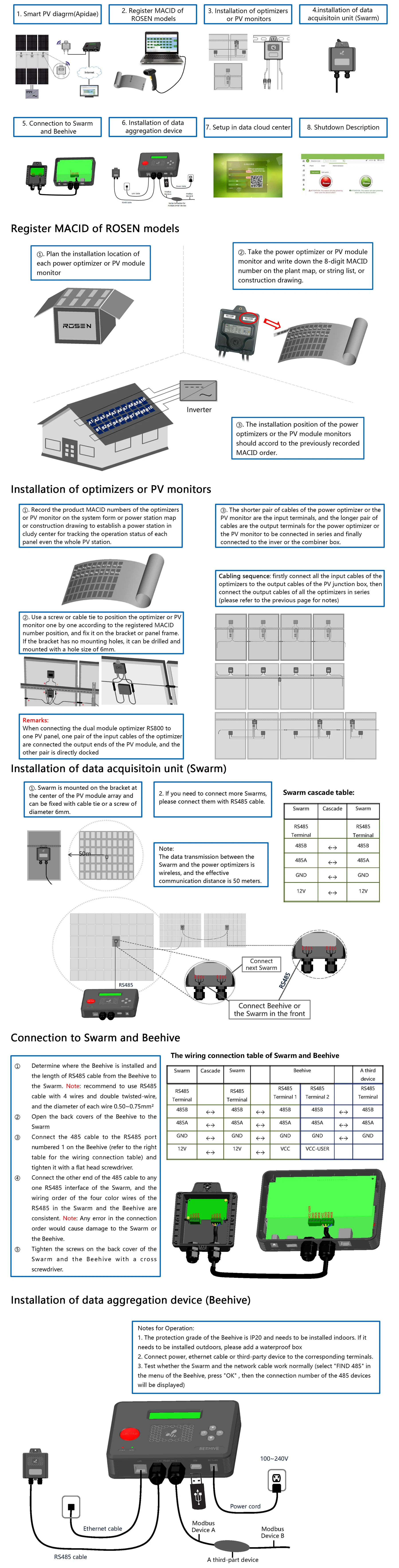

Installation Steps
