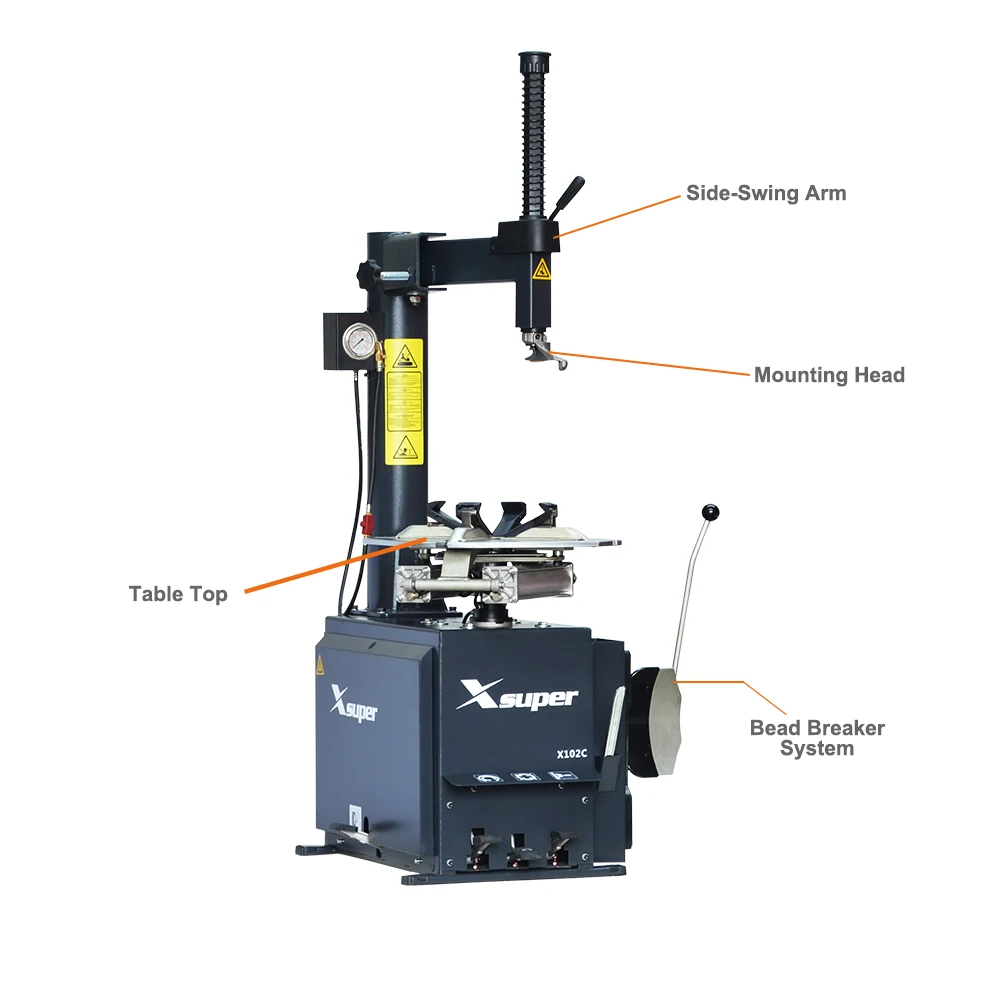

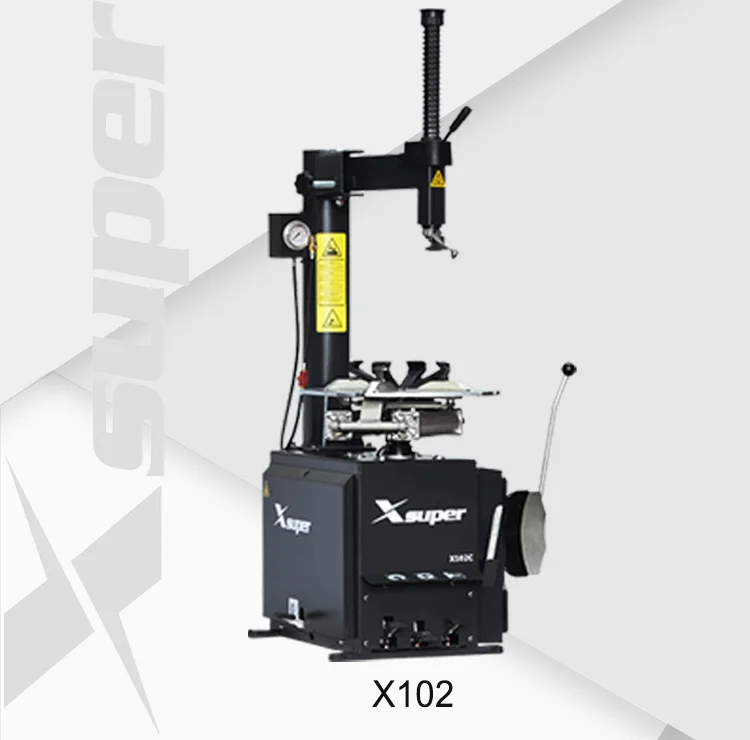

World leading Tyre Mounting Machine for Tyre Repair with Bead Breaking System
- Category: Tire Changers >>>
- Supplier: Lawrence Engineering Company
Share on (1600261160007):
Product Overview
Description

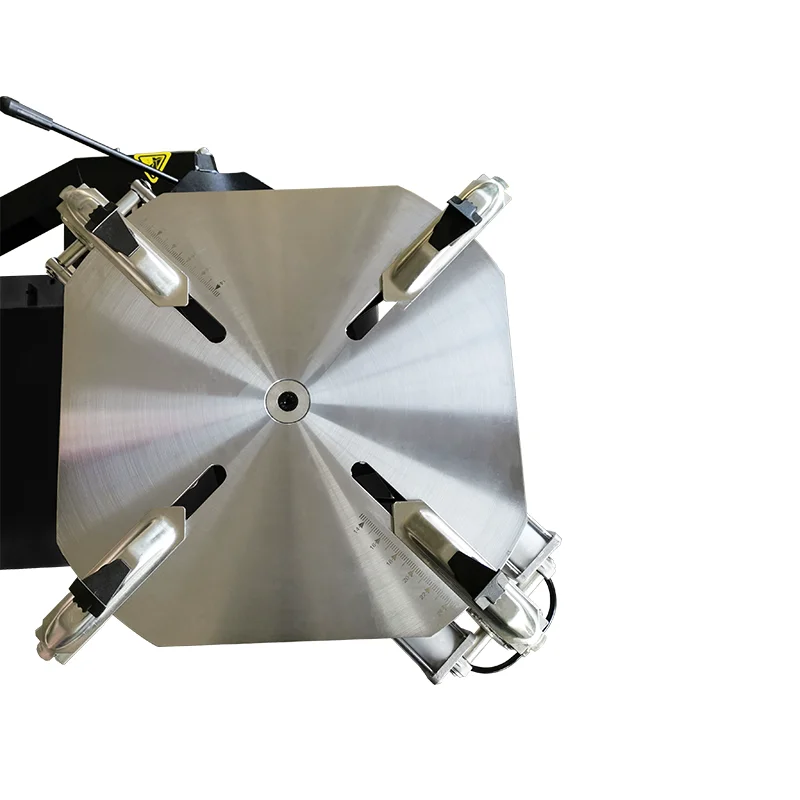

Rim Clamping:11''-21''
Inner Clamping:12''-22''
Max. Wheel Diameter:940mm(37")
Min.Wheel Width:255mm(10'')
Bead-Breaker Cylinder Force at 10 Bar:2500Kg
Operating Pressure: 8-10bar(116-145psi)
Power Supply: 110v/220v/380v(50-60hz)
Motor Power: 0.75kw/1.1kw
Inner Clamping:12''-22''
Max. Wheel Diameter:940mm(37")
Min.Wheel Width:255mm(10'')
Bead-Breaker Cylinder Force at 10 Bar:2500Kg
Operating Pressure: 8-10bar(116-145psi)
Power Supply: 110v/220v/380v(50-60hz)
Motor Power: 0.75kw/1.1kw
Other features

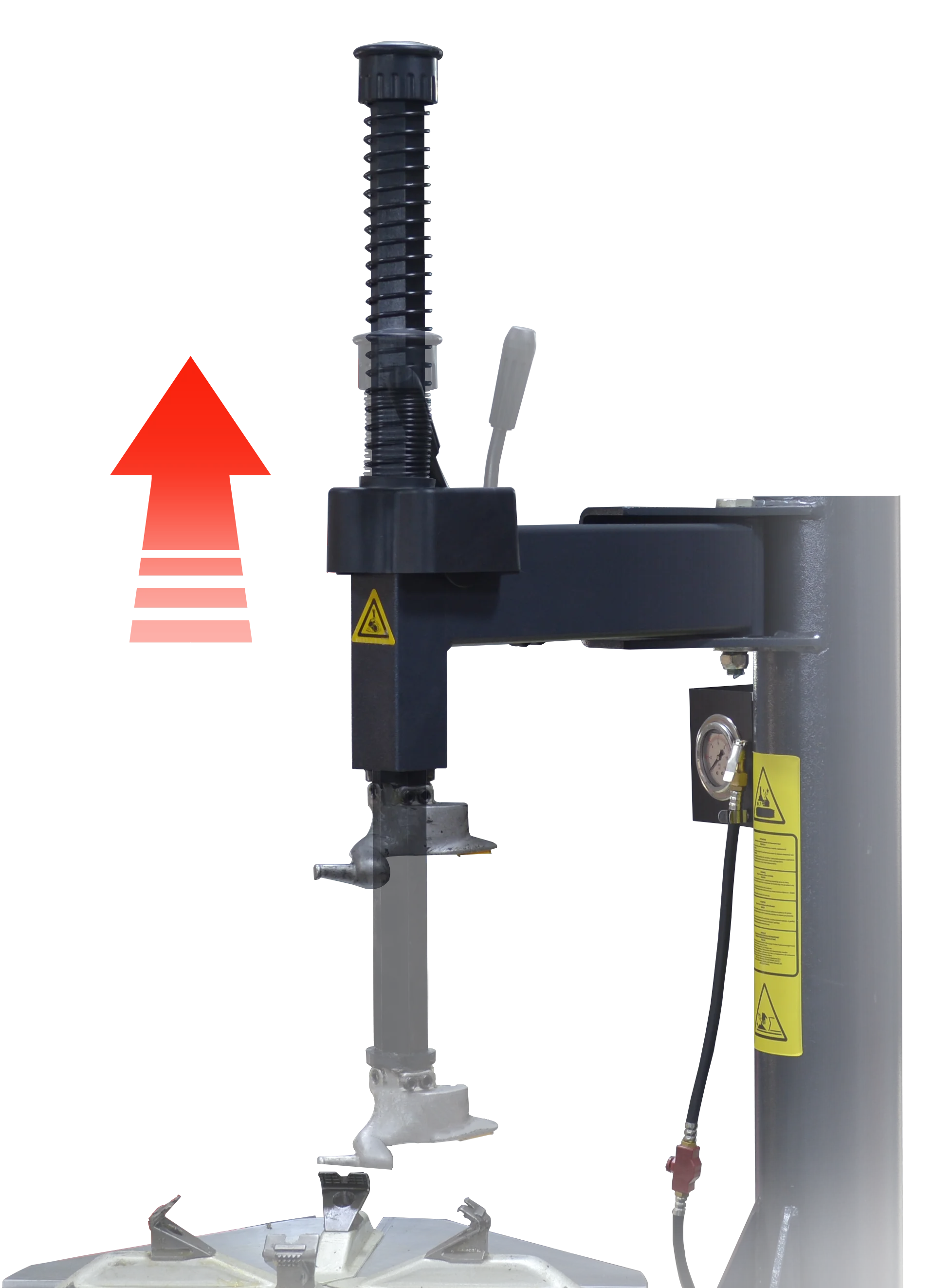

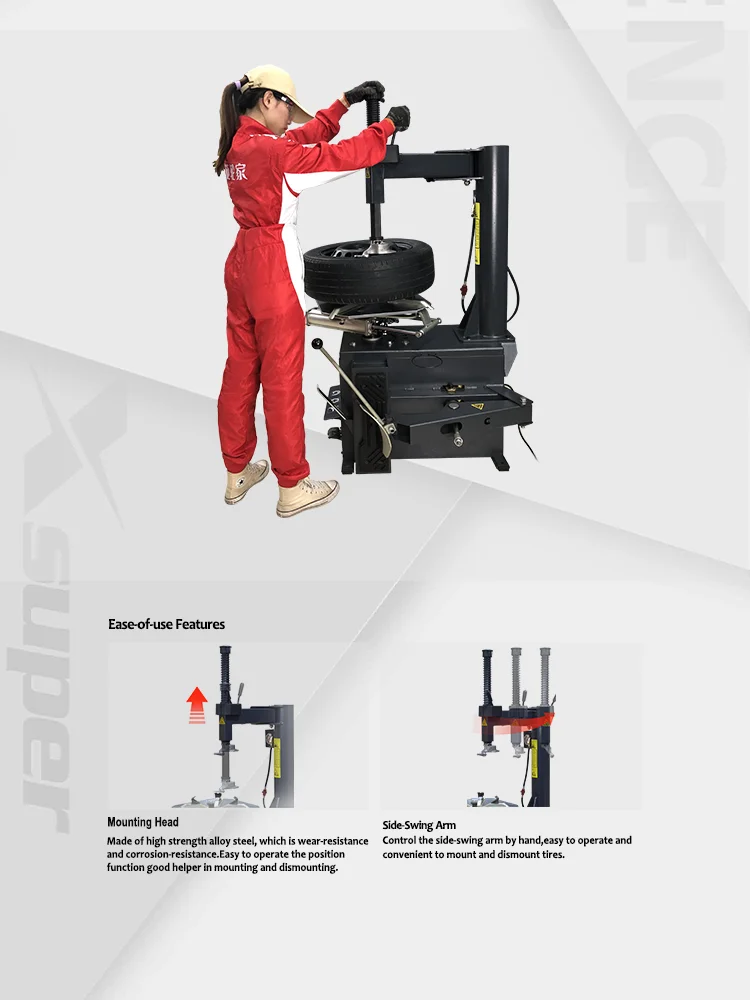

Super-sized cylinders provide tremendous power and control.Assistance with mounting and dismounting.

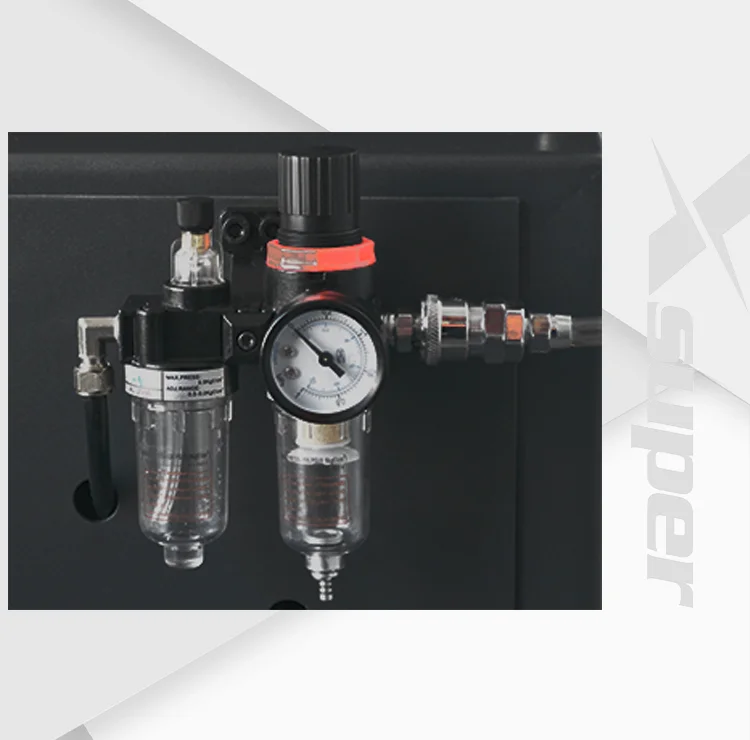

Oil Filter
1.0 Mpa high quality water and oil fliter,which got resistance to high pressure.

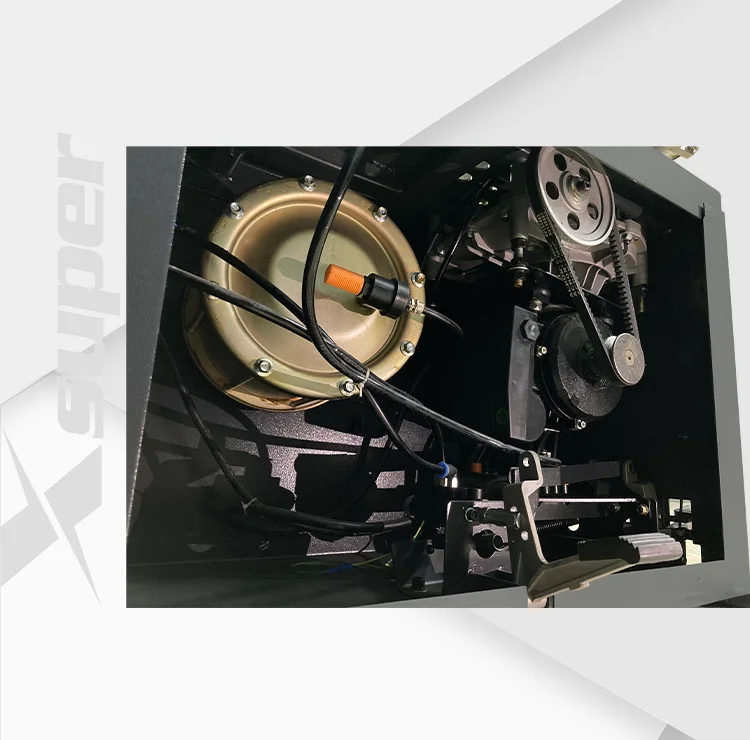

Pure Copper Motor
More durable of the machine and achieve longer service life.
Excellent Structure
Heavier chassis than other brands featuring rubber feet to prevent movement. More rigid design ensures long service life.

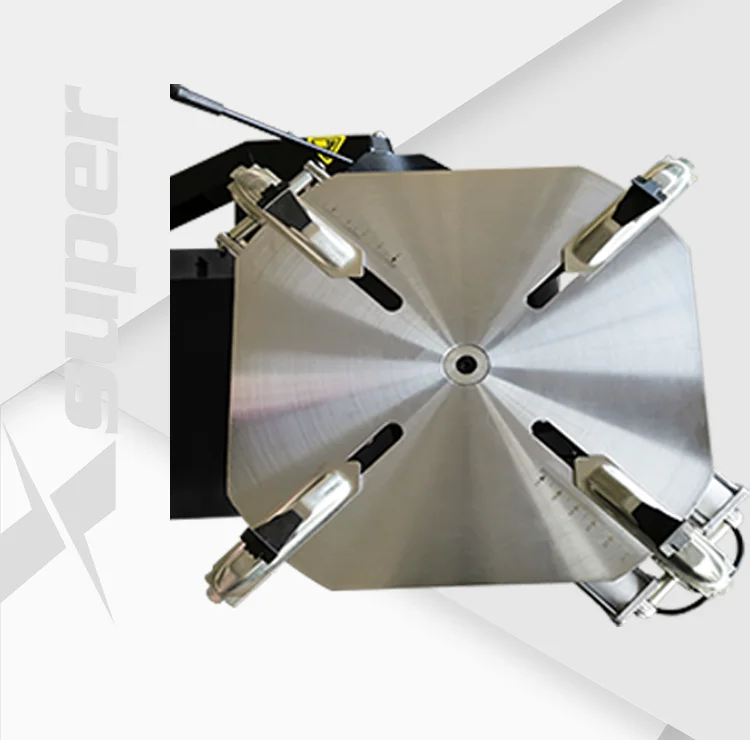

Polished table-top makes cleanup easy. High torque and speed provide power to tough wheels.
X102A | X102B | X102C | x102D | |
Max. Tire Diameter | 37'' | 41'' | 41'' | 41'' |
Box Size | 395 x 800mm | 395 x 800mm | 395 x 800mm | 395 x 860mm |
Net Weight | 160kg | 162kg | 163kg | 163KG |
Motor Power | 1.1kw | 1.1kw | 1.1kw | 1.1KW |
Bead Breaker Cylinder Diamter | 7'' | 7'' | 7'' | 7'' |
Max Rim Clamping | 19'' | 21'' | 21'' | 21'' |
Min Rim Clamping | 10'' | 11'' | 11'' | 11'' |
Max Outer Clamping | 22'' | 24'' | 24'' | 24'' |
Min Outer Clamping | 12'' | 12'' | 12'' | 12'' |
Oil Filter | Common | Common | Common | Top |
Motor Wire Material | Aluminum | Aluminum | Copper | Copper |
Bead Beaker Cylinder Material | Iron | Aluminum | Copper | Metal bucket with hard chromium plating |
WHO WE ARE
More than 20 years of accumulation of four wheel alignment design and development,14 years of development and manufacturing of 3D wheel alignment,over 30 global patent technologies,over 200 technology upgrade. Lawrence provides professional equipment or service to more than 20 thousands customers in the world.
Contact Information:008617727664457
Sale Representative: Christin
Contact Information:008617727664457
Sale Representative: Christin
Our Certifications
Our Exhibitions
Our Customers
Contact us
FAQ
1.Q:Can we use 380V/50HZ as power supply ?
A:Yes,additional cost needed .
2.Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor. Welcome to join Lawrence!
3.Q:Can I get 2 years warranty or longer warranty ?
A:We offer 1 year warranty for free.2 year warranty with extra money.
4.Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax sowe suggest you pay in US dollars.
5.Q:What is delievery time ?
A:2 working days upon receiption of down payment .
6.Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation.
2.Q:Can I be exclusive representative?
A:We are looking for long term exclusive distributor. Welcome to join Lawrence!
3.Q:Can I get 2 years warranty or longer warranty ?
A:We offer 1 year warranty for free.2 year warranty with extra money.
4.Q:Can I pay in RMB currency?
A:Yes, but we need to add extra 20% based on the current price. Because we need to pay more tax sowe suggest you pay in US dollars.
5.Q:What is delievery time ?
A:2 working days upon receiption of down payment .
6.Q:How long is the lifetime of the machine ?
A:At least ten years, under good preservation.
