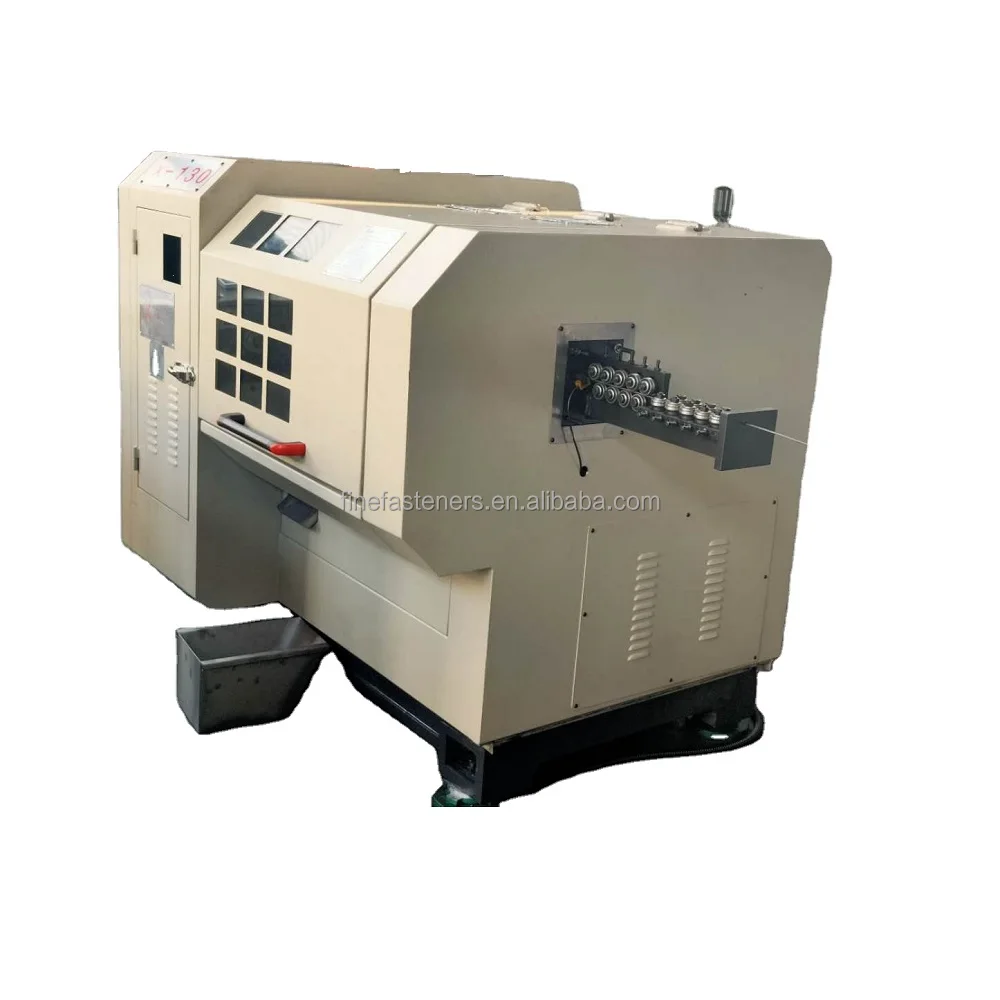

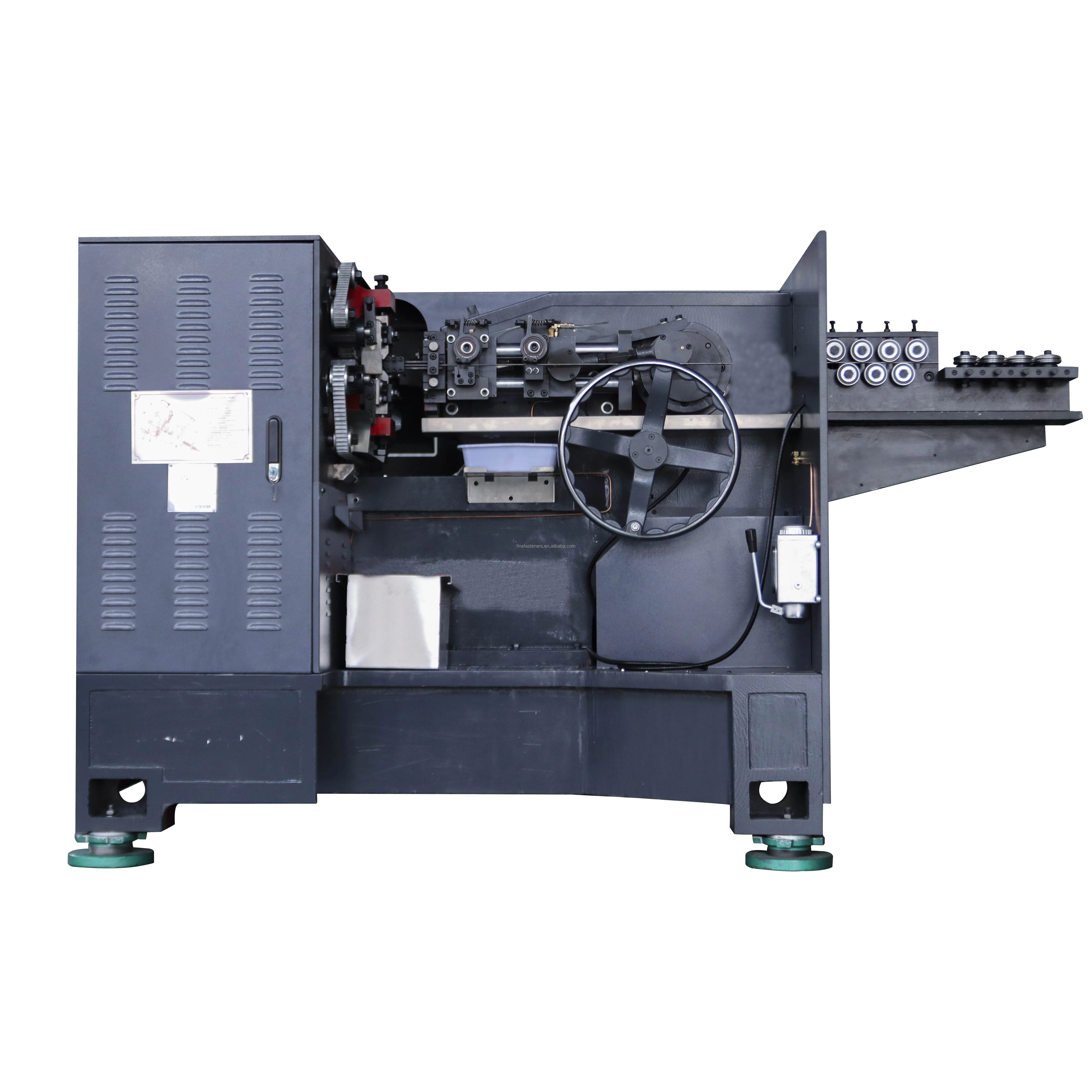

HIGH QUALITY High Speed Nail Cutting Machine Wire Nails Manufacturing Machine
- Category: Nail Making Machines >>>
- Supplier: Fine,Fasteners,Industry,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Characteristics
1.Shorter stroke (12mm), traditional machine around 100mm
a.Stable performance, defective rate less than 1/100000
b.Lower mechanical wear
c.Gripping dies and punches are more durable.
2.The nail length can be well controlled.
a.The machine equipped with sensor for detecting longer or shorter nails
b.Active wire feeding, can ensure straight shank and consistent length, no matter what the wire coil's weight is.
3.Metal scraps can be separated with nails very well
a.Effectively protect the nail conveying belt
b.Ensure the good shape nail head
4. High quality nails: consistent nail head and shank length (tolerance 0.5mm), defective rate 1/100000, which is very good for
coil nail collating and strip nail making.
5. Easy operation and high efficient: the machine is fully automatic and runs stably.
6. Low use-cost and tooling cost.
7. Automatic oiling system with oil pump
8. With seven alarming sensors to protect the machine and ensure the nail quality
9. Low maintenance cost
10. Save energy and labor cost
a.Stable performance, defective rate less than 1/100000
b.Lower mechanical wear
c.Gripping dies and punches are more durable.
2.The nail length can be well controlled.
a.The machine equipped with sensor for detecting longer or shorter nails
b.Active wire feeding, can ensure straight shank and consistent length, no matter what the wire coil's weight is.
3.Metal scraps can be separated with nails very well
a.Effectively protect the nail conveying belt
b.Ensure the good shape nail head
4. High quality nails: consistent nail head and shank length (tolerance 0.5mm), defective rate 1/100000, which is very good for
coil nail collating and strip nail making.
5. Easy operation and high efficient: the machine is fully automatic and runs stably.
6. Low use-cost and tooling cost.
7. Automatic oiling system with oil pump
8. With seven alarming sensors to protect the machine and ensure the nail quality
9. Low maintenance cost
10. Save energy and labor cost
Specification
Model No./Name | Specification | Unit Price FOB Shanghai | ||
FFI-ZDJ-X130B High Speed Nail Making Machine | Nail dia. range | 2.5-4.2mm | USD25800-26000 | |
50-130Nail length range | 45-90mm | |||
Nail making speed | ≤700pcs/min | |||
Rated power | 9kw | |||
Dimensions | 1550*13020*1300 | |||
Weight | 4000kg | |||

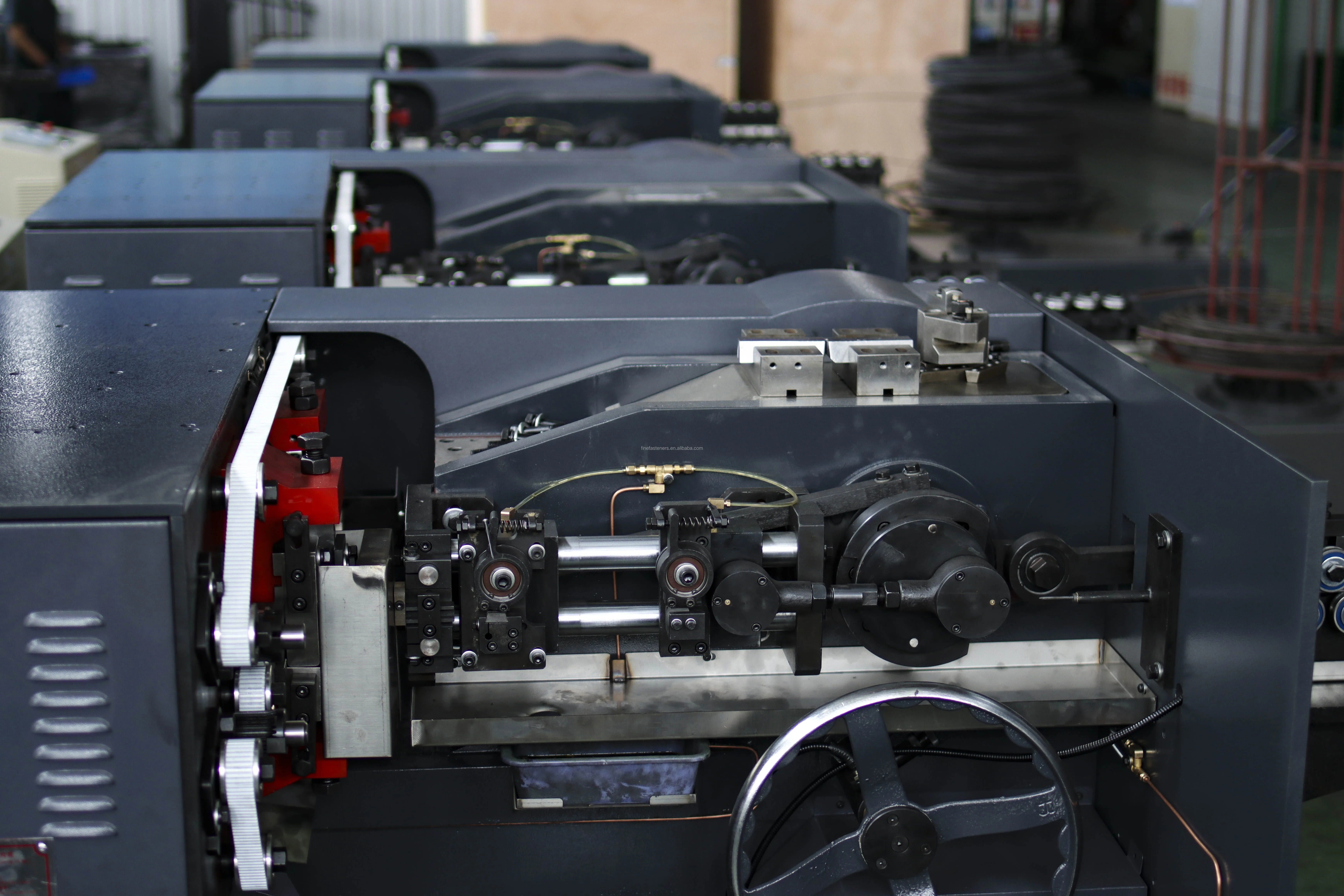

Details Images

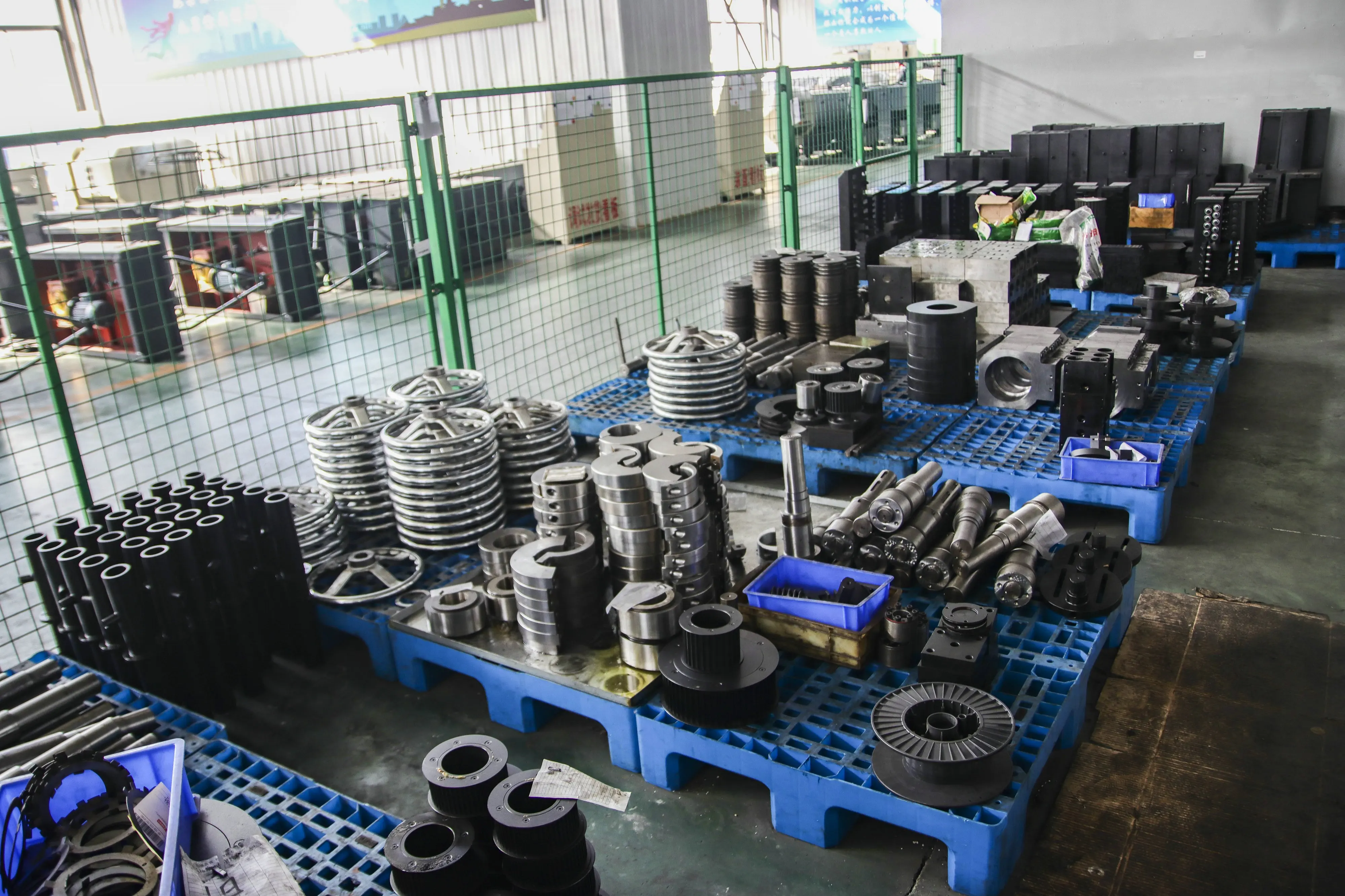

Spares

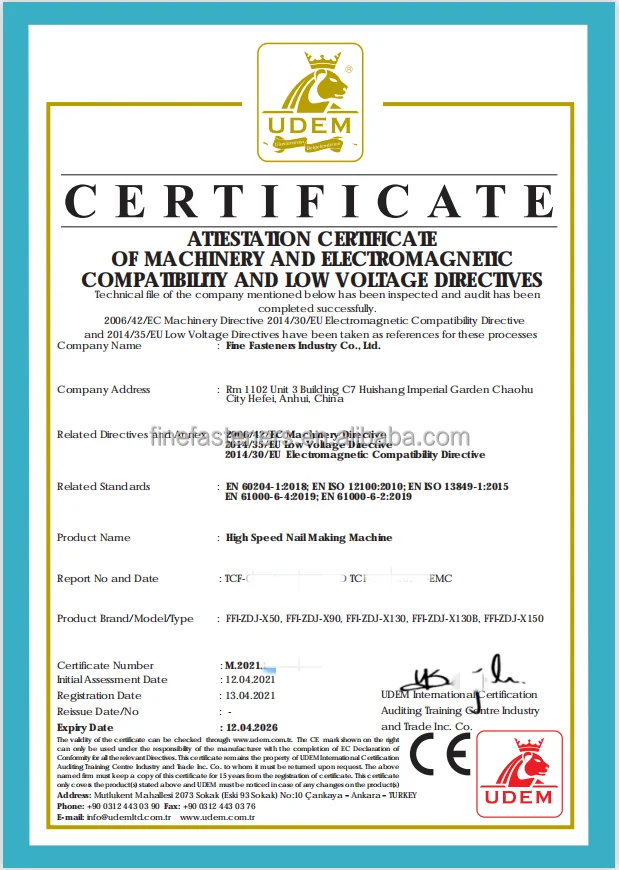

Certifications
Packing & Delivery
Plywood carton with pallet

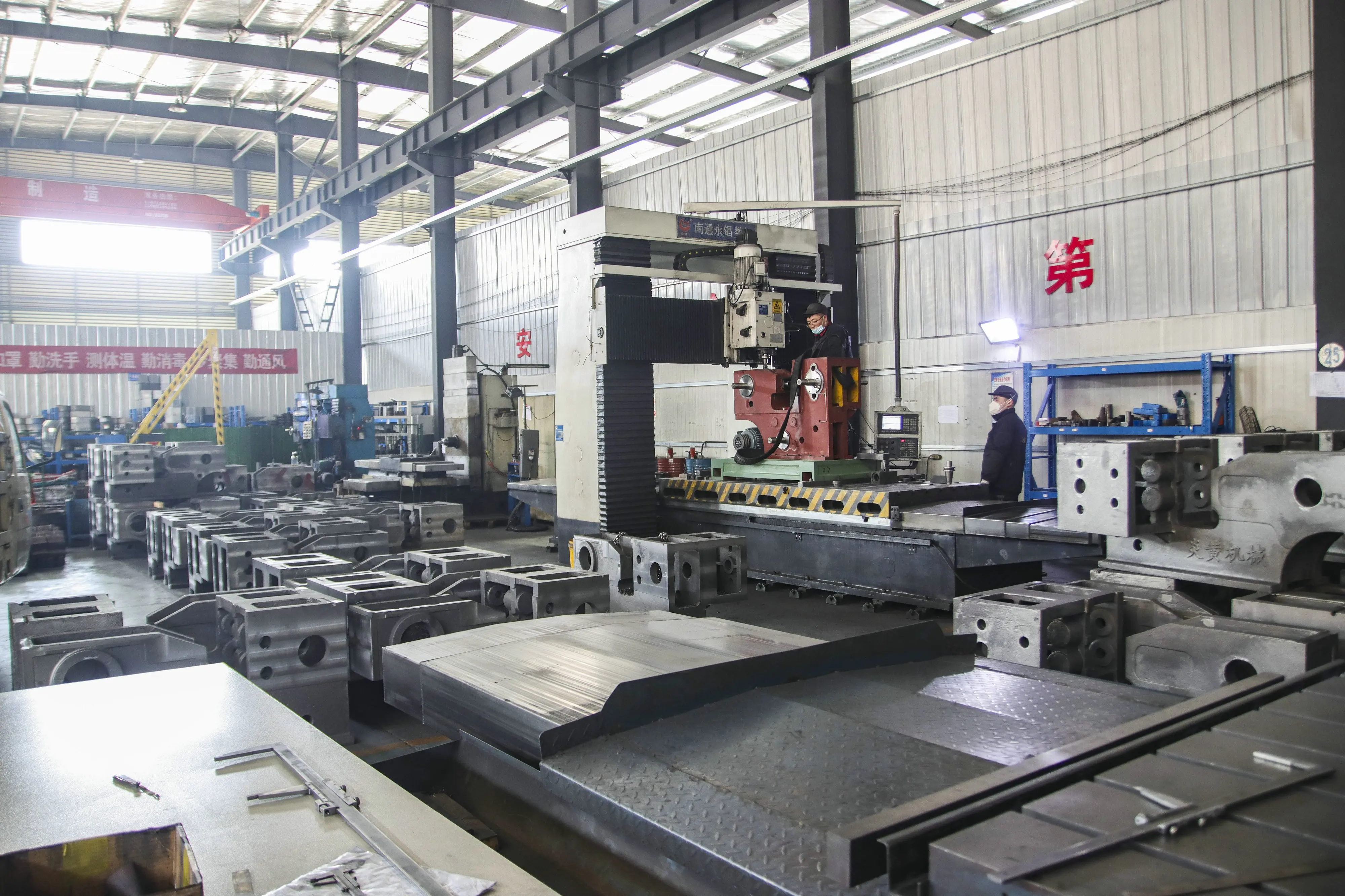

Company Profile
Fine Fasteners Industry Co.,Ltd (FFI) has been a super manufacturer and exporter of nails and the related machines such as all types of wire drawing machine, nail making machine, wire collating machine, plastic and paper tape machine, thread rolling machine.
Up to now our customers are spread in Europe, Asia, Africa, South Africa, Middle East and other countries & regions.
We have become a long-term partner for many nail making and wire making factories and helped a number of nail and wire making plants establish their own production lines in past years.
With our superior quality, competitive price and professional service, we have gained great approval and satisfaction from
customers globally.
We will continuously stick to the core principle of “Fine person, Fine product and Fine service” and offer the best equipment for customers through never-ending research and development.
We are sincerely looking forward to working together with you to create a glorious future.
Up to now our customers are spread in Europe, Asia, Africa, South Africa, Middle East and other countries & regions.
We have become a long-term partner for many nail making and wire making factories and helped a number of nail and wire making plants establish their own production lines in past years.
With our superior quality, competitive price and professional service, we have gained great approval and satisfaction from
customers globally.
We will continuously stick to the core principle of “Fine person, Fine product and Fine service” and offer the best equipment for customers through never-ending research and development.
We are sincerely looking forward to working together with you to create a glorious future.

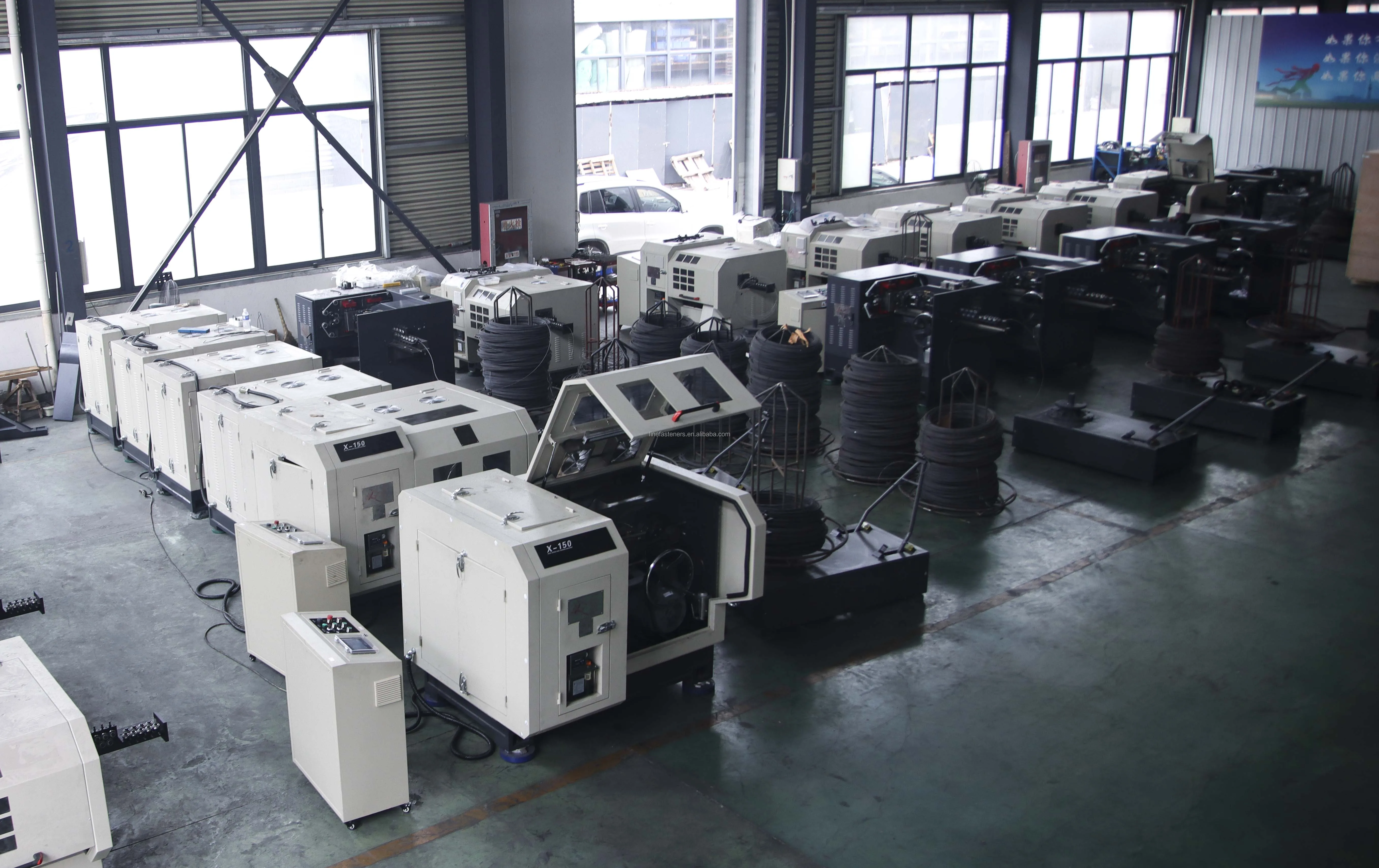

Customer Photos
FAQ
1. Time for changing nail sizes ---->
If only adjust the length of nails and keep the same wire diameter. 3-5 minutes is enough. If the nail diameter also need to be
changed, then around 20 minutes will be needed for adjusting the feeding unit and gripping dies.
2. The lifespan for nail cutters, gripping dies and punches. ---->
Normally two months. It depends on the operator’s proficiency
3. The material for nail cutters, gripping dies and punches. ---->
Tungsten Carbide with alloy steel.
4. If there is some problems during machine running, what technical support can be provided? ---->
Video technical support and online service can be provided.
5. The tolerance for nail length ---->
± 0.25mm.
6. Installation service ---->
We can send engineers to your company for machine installation. The round trip flight tickets, local transportation, local
accommodation should be paid by your company. Engineer service charge is US$100/day.
If only adjust the length of nails and keep the same wire diameter. 3-5 minutes is enough. If the nail diameter also need to be
changed, then around 20 minutes will be needed for adjusting the feeding unit and gripping dies.
2. The lifespan for nail cutters, gripping dies and punches. ---->
Normally two months. It depends on the operator’s proficiency
3. The material for nail cutters, gripping dies and punches. ---->
Tungsten Carbide with alloy steel.
4. If there is some problems during machine running, what technical support can be provided? ---->
Video technical support and online service can be provided.
5. The tolerance for nail length ---->
± 0.25mm.
6. Installation service ---->
We can send engineers to your company for machine installation. The round trip flight tickets, local transportation, local
accommodation should be paid by your company. Engineer service charge is US$100/day.
