ISO20 Spindle Mini VMC Center CNC Vertical Machining Center Machine Price
- Category: >>>
- Supplier: Tengzhou Beta Co. Ltd.
Share on (1600262016489):
Product Overview
Description
Products Description

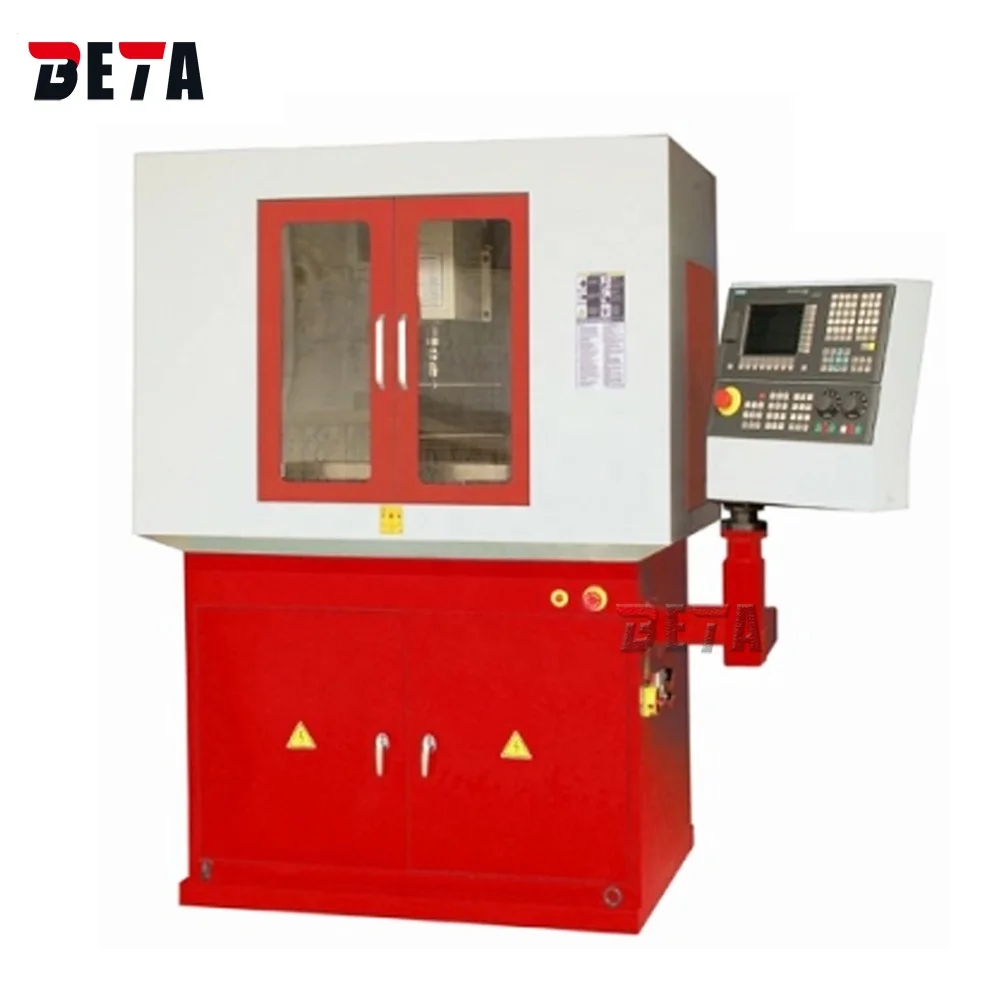

ISO20 Spindle Mini VMC Center CNC Vertical Machining Center Machine Price
Product Parameters
Model | KXS3 | ||
Worktable | Worktable size | 550x160mm | |
T-slot | 3/12/43 | ||
Max.loading capacity | 30kg | ||
Travel | X-axis travel | 270mm | |
Y-axis travel | 152mm | ||
Z-axis travel | 270mm | ||
Distance between spindle nose to table surface | 80-350mm | ||
Distance between spindle centre to guide surface | 215mm | ||
Spindle | Spindle taper | ISO20 | |
Spindle motor | 1000w | ||
Spindle speed | 100-5000r/min | ||
Feeding | X/Y/Z axis rapid feeding | 5000mm/min | |
X/Y/Z axis cutting speed | 1000mm/min | ||
X/Y/Z axis motor torque | X/Y:4Nm Z:6Nm | ||

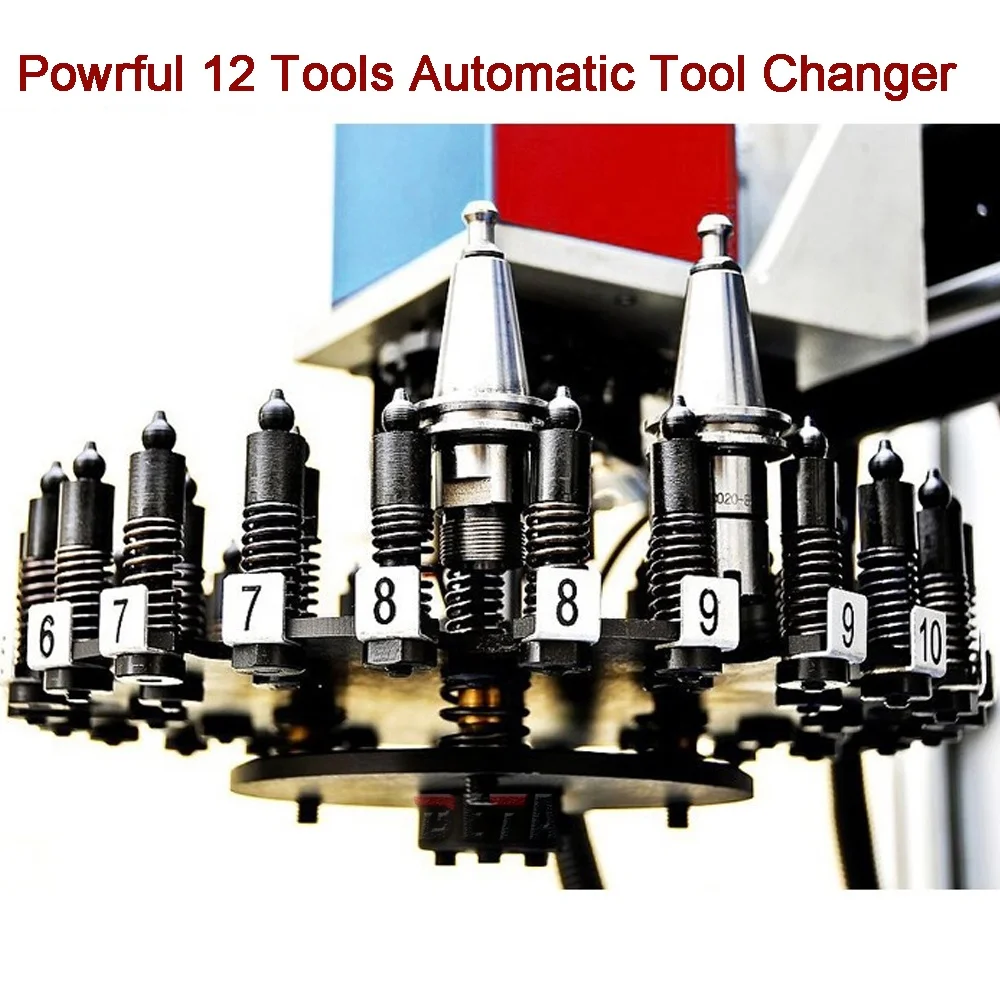

ATC | Quantity of tools | 12 station | |
Max. diameter of tools | 10mm | ||
Max. length of tools | 110mm | ||
Max. weight of tools | 0.5kg | ||
Time of tool changer | 8s | ||
Accuracy | Positioning accuracy | 0.015mm | |
Repeat positioning accuracy | 0.01mm | ||
Other | Voltage | 230/120V | |
N.W./G.W. | 280/340kg | ||

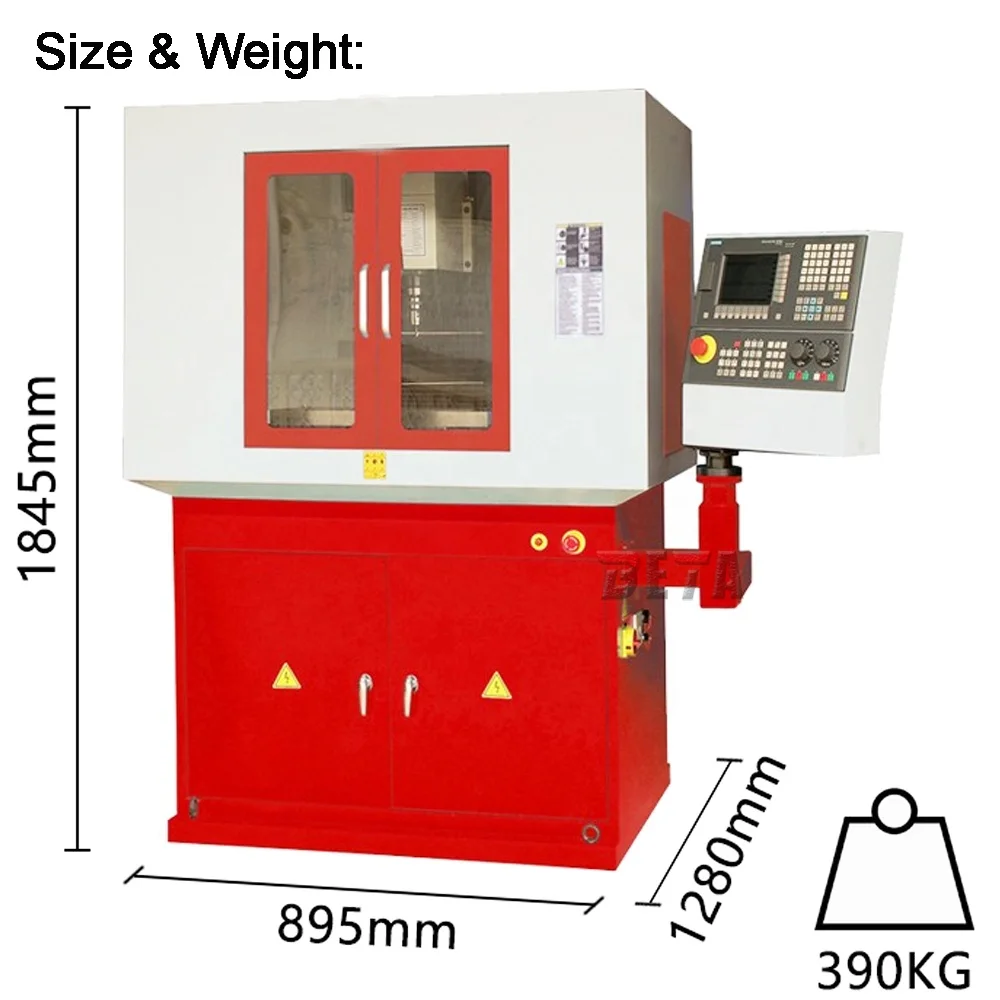

Overall dimension | 1280x895x1845mm | ||
Packing size | 1170x960x1100mm | ||
Details Images
Features:

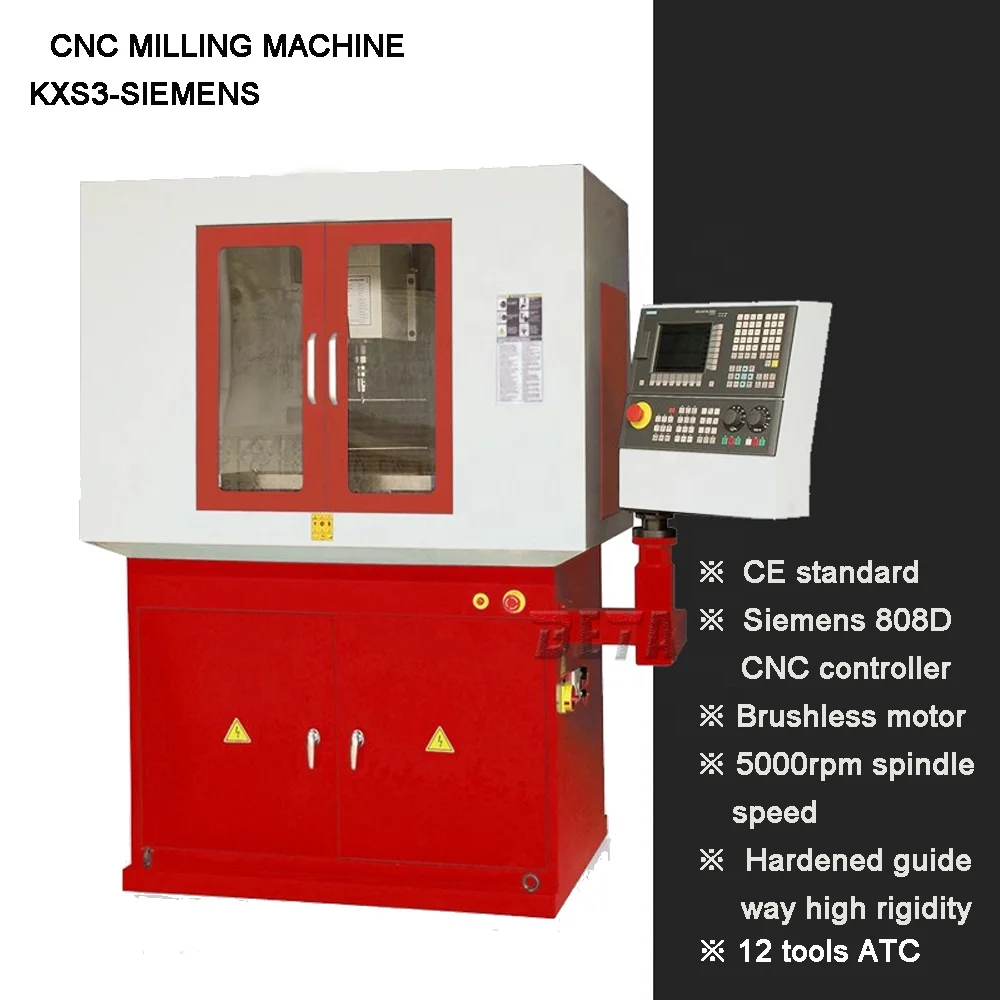

1. KXS3-SIEMENS is used as a template for a small vertical machining center, a powerful 12-station tool magazine, a pneumatic
spindle, a spindle speed of 5000RPM, and a fully transparent/translucent protective cover is optional.
2. The CNC system adopts Siemens 808D ADVANCE advanced controller, matched with Siemens servo axis motor and drive, with high
milling precision, and can process high-quality parts in the shortest time.
3. It is currently the most cost-effective small vertical drilling and milling machine on the market.
spindle, a spindle speed of 5000RPM, and a fully transparent/translucent protective cover is optional.
2. The CNC system adopts Siemens 808D ADVANCE advanced controller, matched with Siemens servo axis motor and drive, with high
milling precision, and can process high-quality parts in the shortest time.
3. It is currently the most cost-effective small vertical drilling and milling machine on the market.
