Product Overview
Description
Product Description for steel core aluminum stranded wire
• Material: 45,65,70,72A,72B,82B.
• Satisfy ASTM Specifications A475 or A363 or ASTM B498 or BS EN 50189;
• Surface Coating: Hot Dip Galvanized or electric galvanized.
• Characteristic: Galvanized steel wire in High tensile strength,small tolerance
Shiny surface, good corrosion prevention.

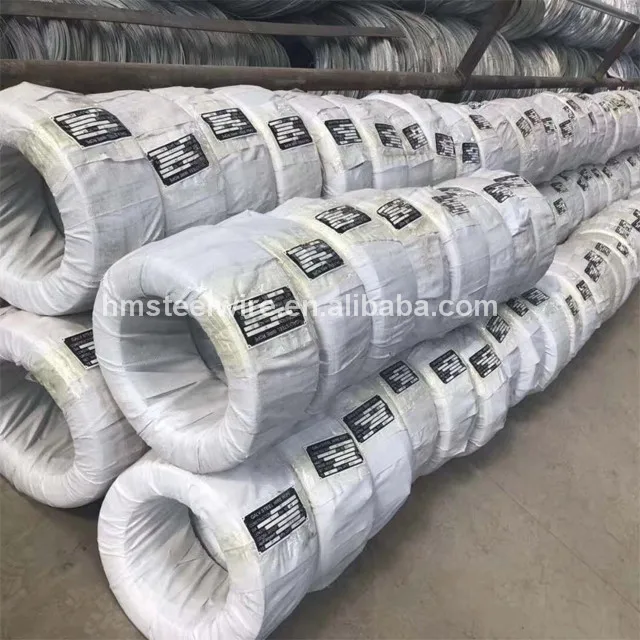

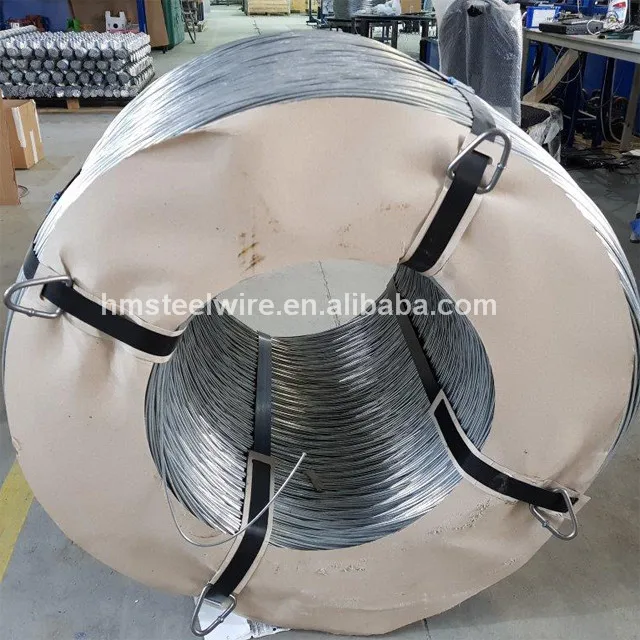

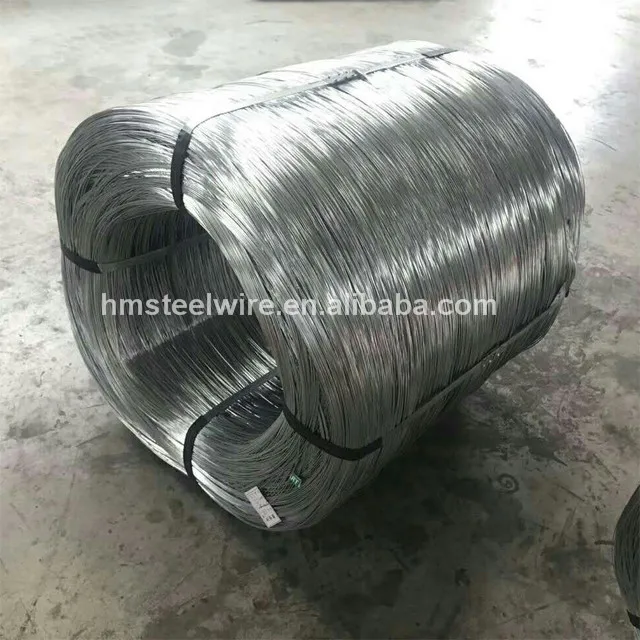

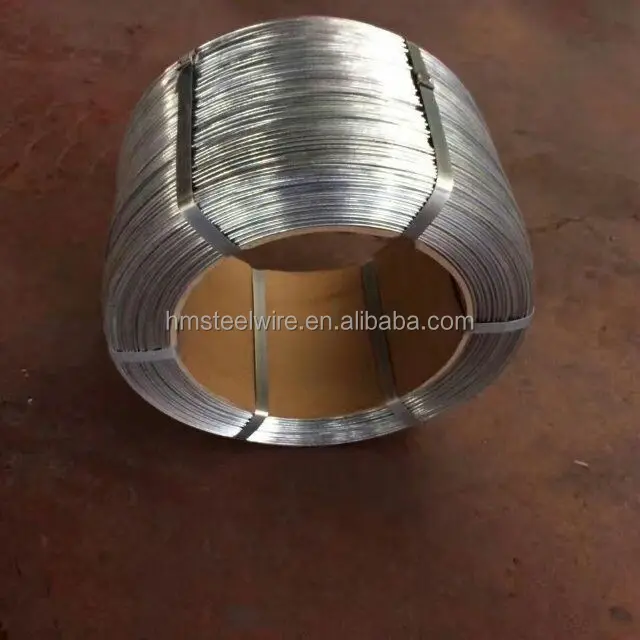

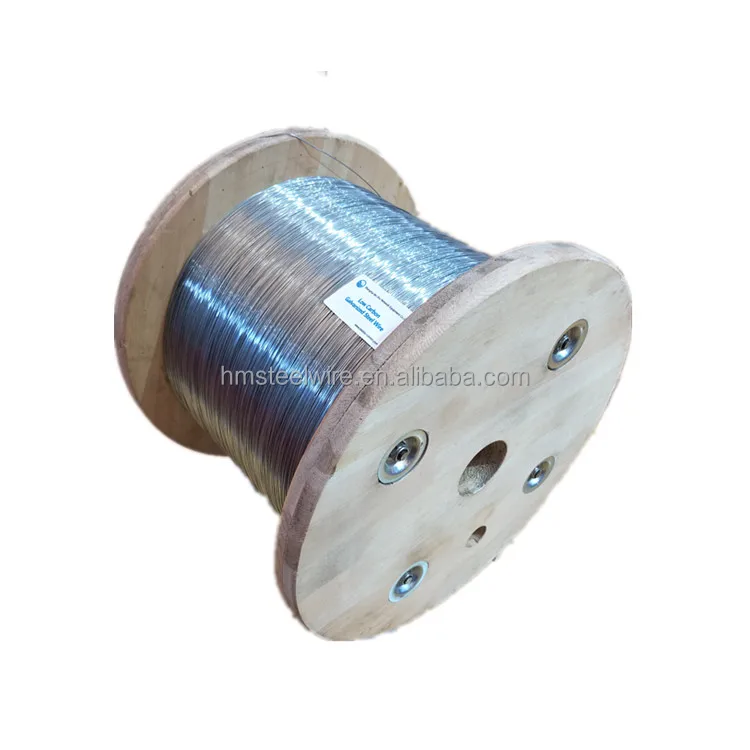

• Packing type:Coil , Z2 packing,reel.
• Application: Galvanized steel wire being used for stranded conductors in
overhead power circuitry, Cotton packaging, hanger.grape wire.
Tip: Pay attention to the direction of galvanized steel wires when paying-off.
Be sure the spools or coilis rotationg freely as to achieve identical tension of all
the steel wires c. In case of batch usage, the remaining should be repacked to
avoid oxidizing of the surface to guarantee coating.
• Characteristic: Galvanized steel wire in High tensile strength,small tolerance
Shiny surface, good corrosion prevention.
• Packing type:Coil , Z2 packing,reel.
• Application: Galvanized steel wire being used for stranded conductors in
overhead power circuitry, Cotton packaging, hanger.grape wire.
Tip: Pay attention to the direction of galvanized steel wires when paying-off.
Be sure the spools or coilis rotationg freely as to achieve identical tension of all
the steel wires c. In case of batch usage, the remaining should be repacked to
avoid oxidizing of the surface to guarantee coating.
Diameter | Tolerance | Cross Section area | Approx | Breaking load KN* | Zn-Coating | ||
wt. | |||||||
Before | Minimum | Number of CuSO4 5H2O dipping test | |||||
stranding | wt. of coating | ||||||
mm | mm | mm2 | kg/km | KN | g/m2 | min | |
0.3 | +/-0.01 | 0.362 | 0.56 | 0.96 | 30 | 1 | |
0.7 | +/-0.02 | 0.823 | 3.03 | 1.20 | 90 | 1 | |
1.0 | +/-0.02 | 1.185 | 6.175 | 2.01 | 100 | 1 | |
1.5 | +/-0.03 | 1.767 | 13.78 | 2.46 | 190 | 2 | |
1.57 | +/-0.03 | 1.936 | 15.1 | 2.7 | 190 | 2 | |
1.96 | +/-0.04 | 3.017 | 23.53 | 4.2 | 210 | 2 | |
2.11 | +/-0.04 | 3.497 | 27.27 | 4.6 | 210 | 2 | |
2.3 | +/-0.05 | 4.155 | 32.41 | 5.46 | 230 | 2-% | |
2.59 | +/-0.05 | 5.269 | 41.09 | 6.92 | 230 | 2-% | |
3 | +/-0.06 | 7.069 | 55.13 | 9.29 | 240 | 3 | |
3.18 | +/-0.06 | 7.942 | 61.95 | 10.43 | 250 | 3 | |
3.35 | +/-0.07 | 8.814 | 68.75 | 11.58 | 250 | 3 | |
3.53 | +/-0.07 | 9.787 | 76.34 | 12.86 | 250 | 3 | |
4.09 | +/-0.08 | 13.14 | 102.48 | 17.27 | 275 | 3-% | |
4.77 | +/-0.09 | 15.21 | 140.49 | 20.21 | 300 | 3 | |
Q1: Are you trading company or manufacturer
A: We are factory. Welcome to visit our factory at any time
Q2: How long is your delivery time?
A: Generally it is 10-15 days as customer requirements
Q3: Do you provide samples is it free or extra
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q4: What is your terms of payment
A: TT payment or LC terms
If you have another question, pls free to contact us
A: We are factory. Welcome to visit our factory at any time
Q2: How long is your delivery time?
A: Generally it is 10-15 days as customer requirements
Q3: Do you provide samples is it free or extra
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q4: What is your terms of payment
A: TT payment or LC terms
If you have another question, pls free to contact us
