Product Overview
Description
Product Description

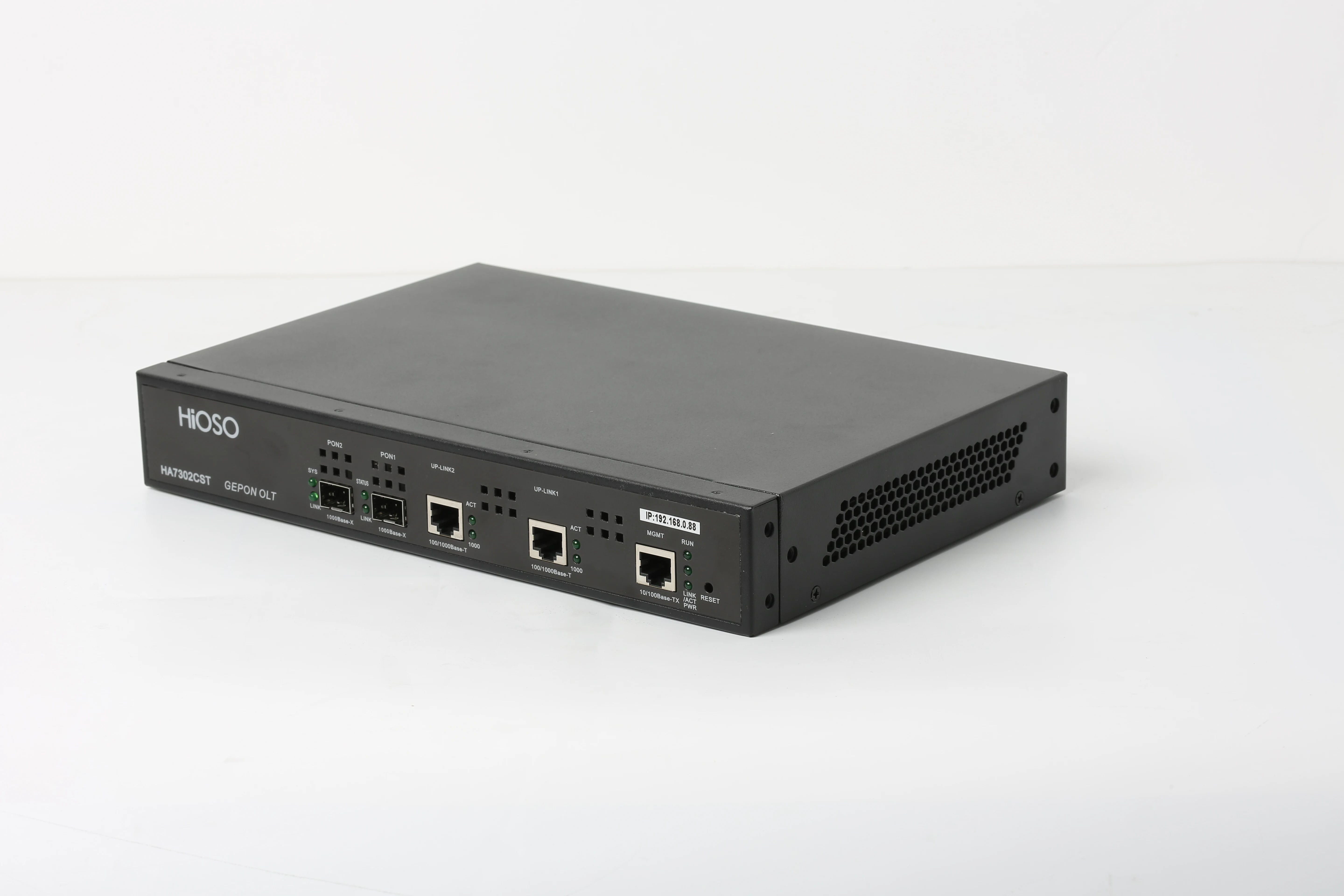

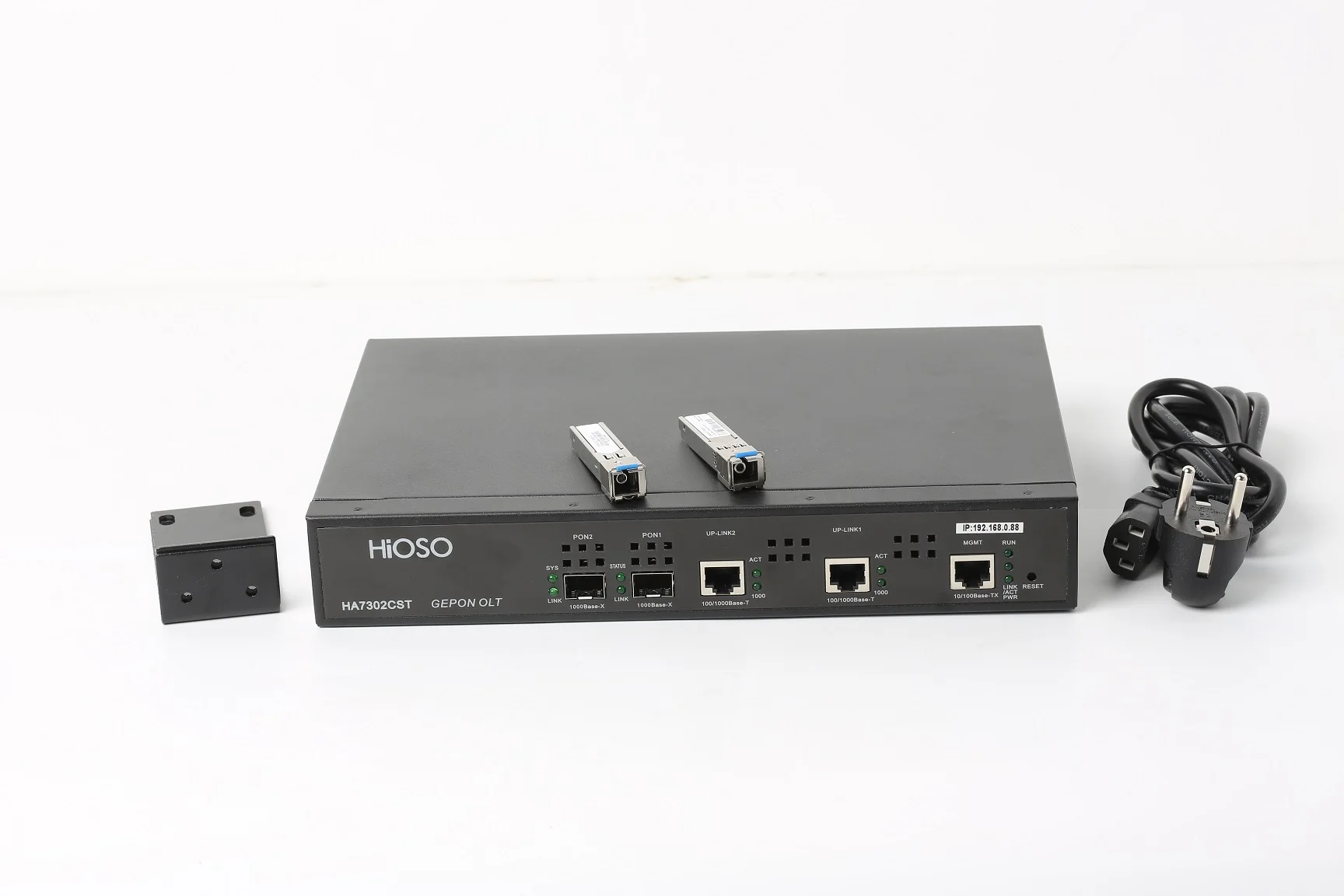

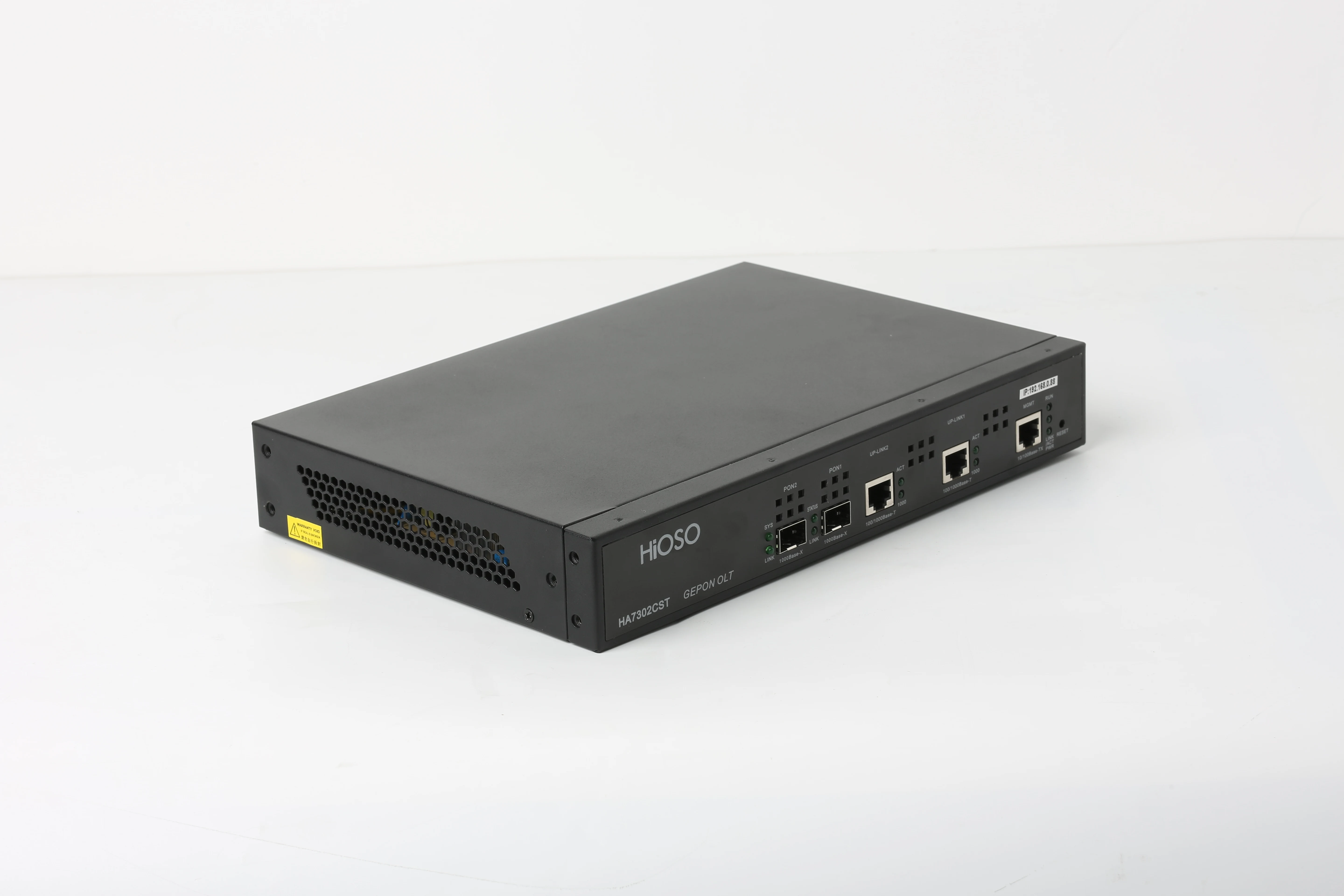

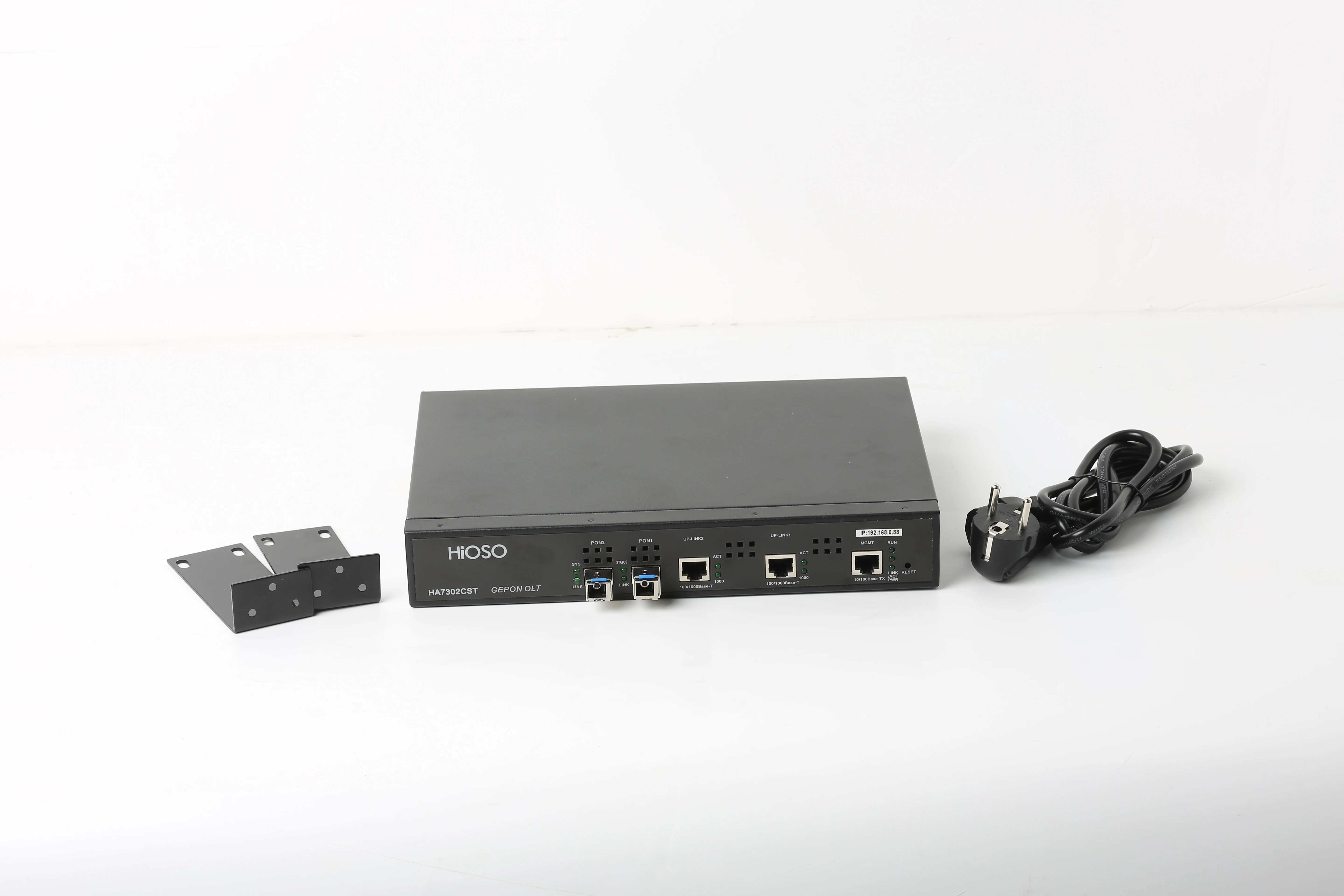

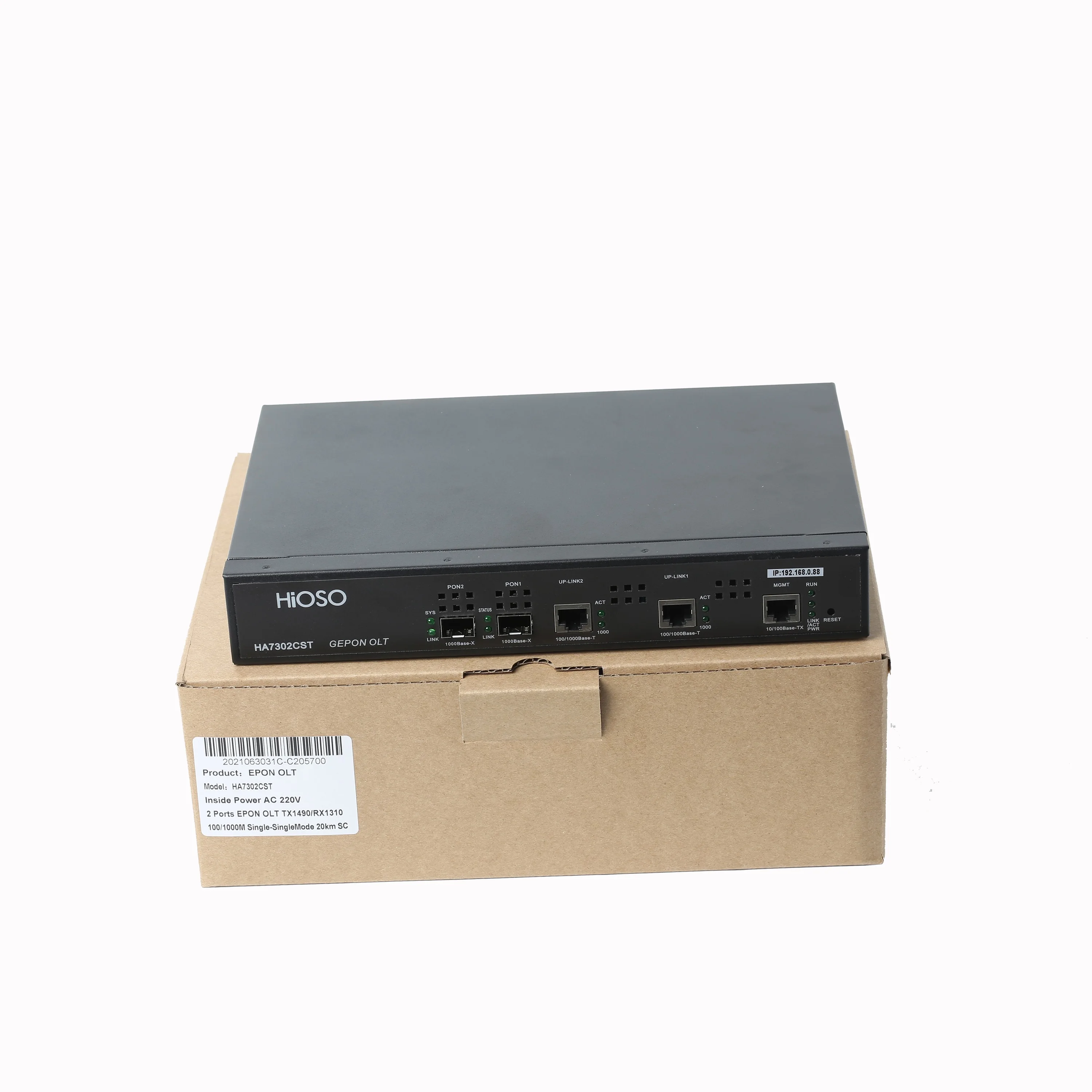

- HA7302CST Standalone Type 2-PON OLT
Feature
✔Supply 2 SFP PON ports, 2 1000M uplink ports,1 MGMT management port
✔Support SNMP management and WEB management
✔Each PON port support 1:64, maximum 128
✔Distance can reach 20km under 1:32 split ratio,maximum 1:64
✔Compatible huawei zte fiber home and other brands EPON XPON ONUS

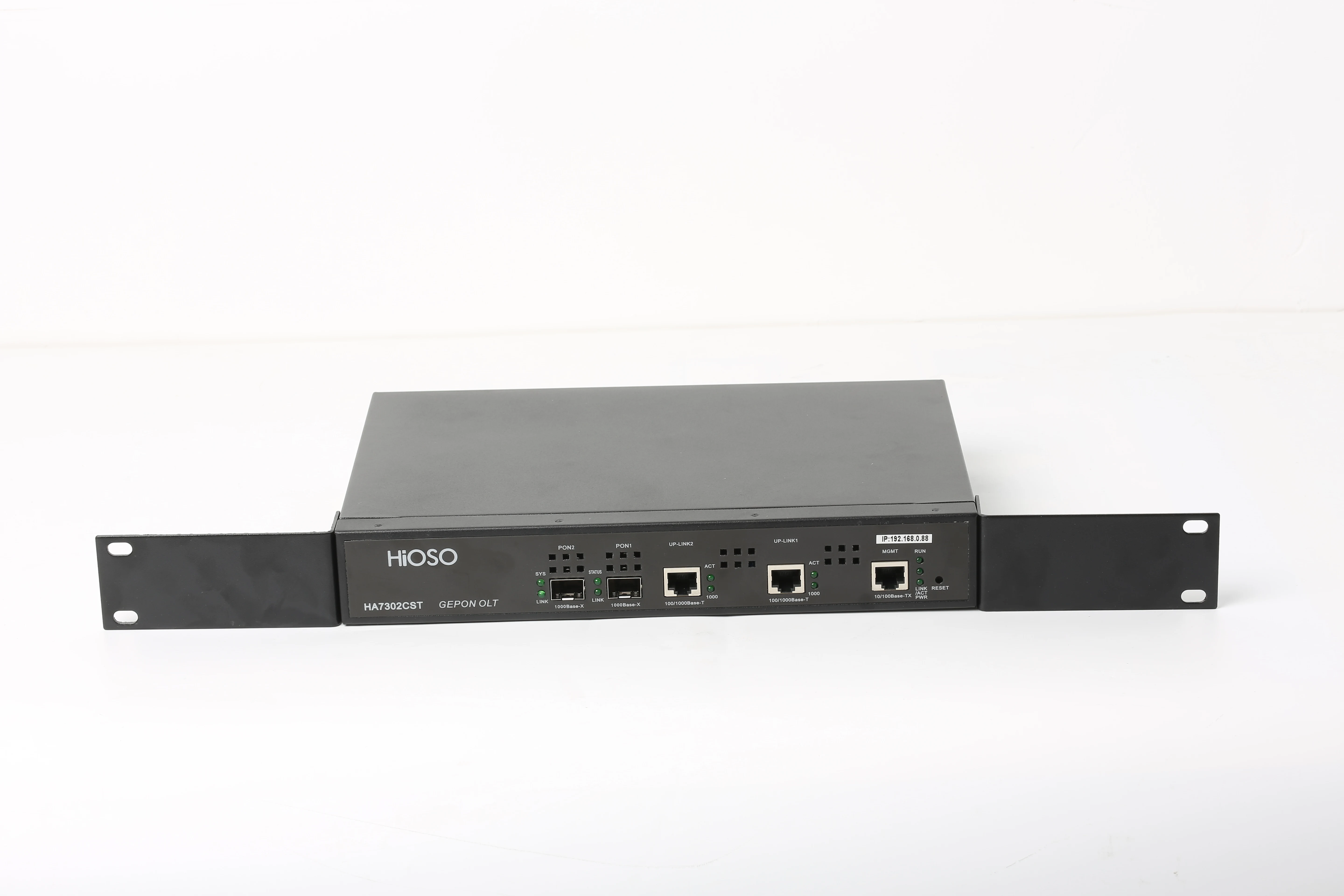

✔Witht wall mount, support hang on 1U rack design, inside fan,better for heat dissipating and reliability operating
✔Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access
Technical Specification | ||
Parameter | Specifications | |
Operating wavelength | 1310（RX）/1490（TX） | |
Optical power | +0 ~ +7dBm | |
Receiving sensitivity | -27dBm | |
Max distance | 20km | |
Max splitter ratio | 1:64 | |
Capacity | 2 PON, standard: 64 maximum:128 ONUs (optional 1:128) | |
MAC | 8K | |
Uplink port | 2 1000M Ethernet RJ45 ports | |
PON port | 2 SFP PON PORTS 1.25G | |
Control port | RJ45 console port, to debug the device | |
MTBF | 100,000 hours | |
Support IEEE802.3ah | ||
Support DBA with minimum1Kbps granularity adjustable | ||
Support 1Gbps up link and down link symmetrical bandwidth | ||
Support AES-128 encryption to each Logical Link Identifier | ||
Support powerful OAM function, implement telnet management, maintenance and upgrade | ||
Support auto discovery and auto register of ONU (real-time operation) | ||
Support IEEE802.3, IEEE802.3u, IEEE802.3ab | ||
Support IEEE802.1Q VLAN | ||
Support IEEE 802.1P QoS | ||
Support 1GMPv1/v2 protocol report, query and leave message mouse | ||
Support ONU remote configure and upgrade | ||
Support real-time alarm detection, accurate fault location | ||
Support the alarm information sent to the mailbox, support SMS alarm | ||
Working Environment | ||

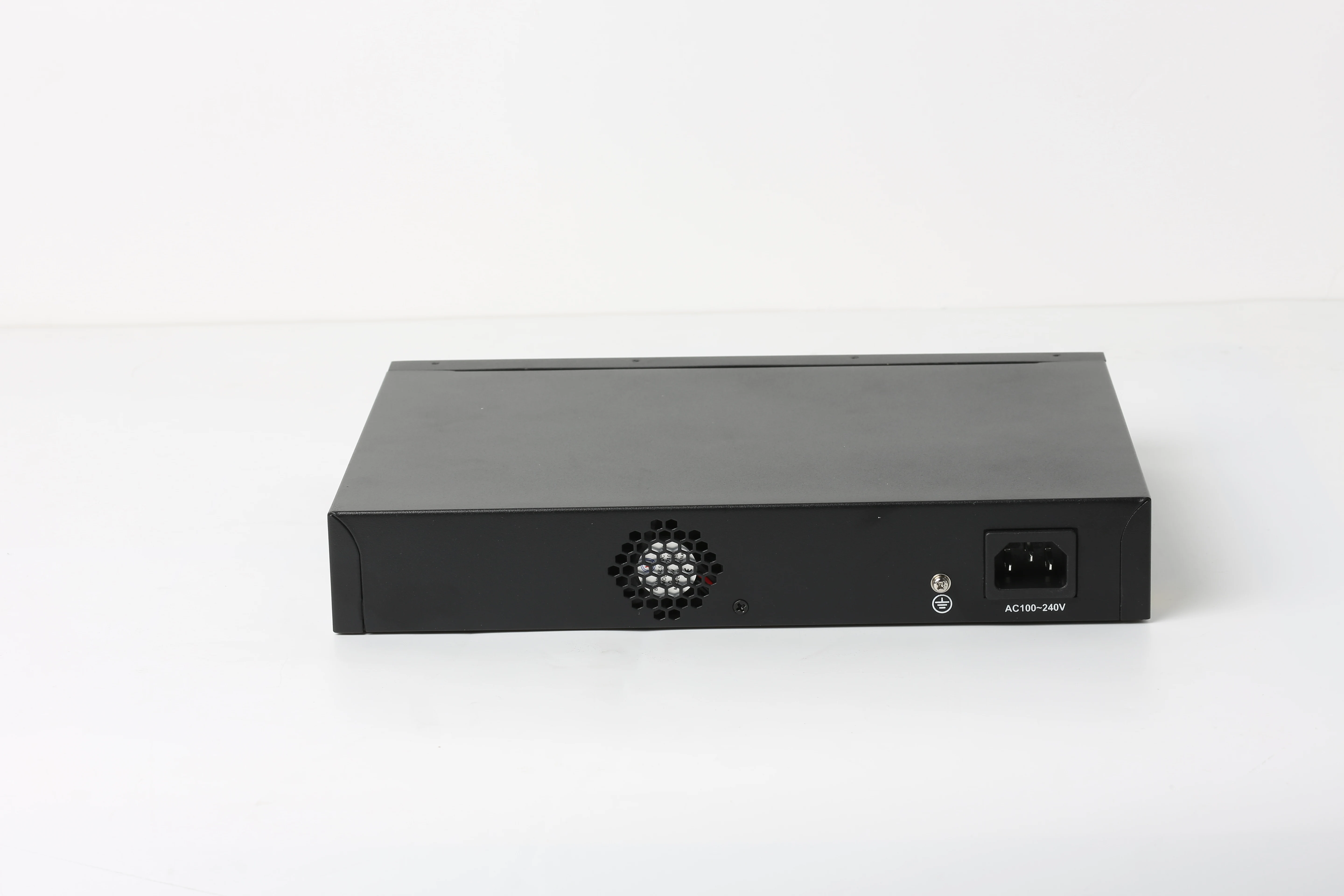

Power supply | AC220V | |
Power consumption | 11W | |
Operating temperature | -10～55℃ | |
Storage temperature | -40～70℃ | |
Humidity | 5%～90% non-condensing | |
Dimension | 276mm(length) ×200mm(width) ×44mm(height) | |
Details Images
2 SFP PON ports

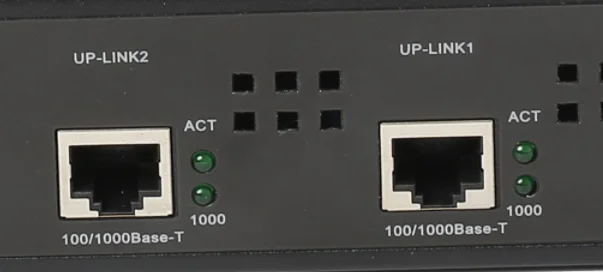

2 Gigabit RJ45 up-link ports
MGMT Management port
