Material: AISI420/440C/302/304/304L/316/316L
Diameter: 0.5mm to 200mm
Grade: G100,G200,G500,G1000
Hardness: See blow chat
Condition: Big size hollow stainless steel ball available
Different shape available upon request
Produce Name

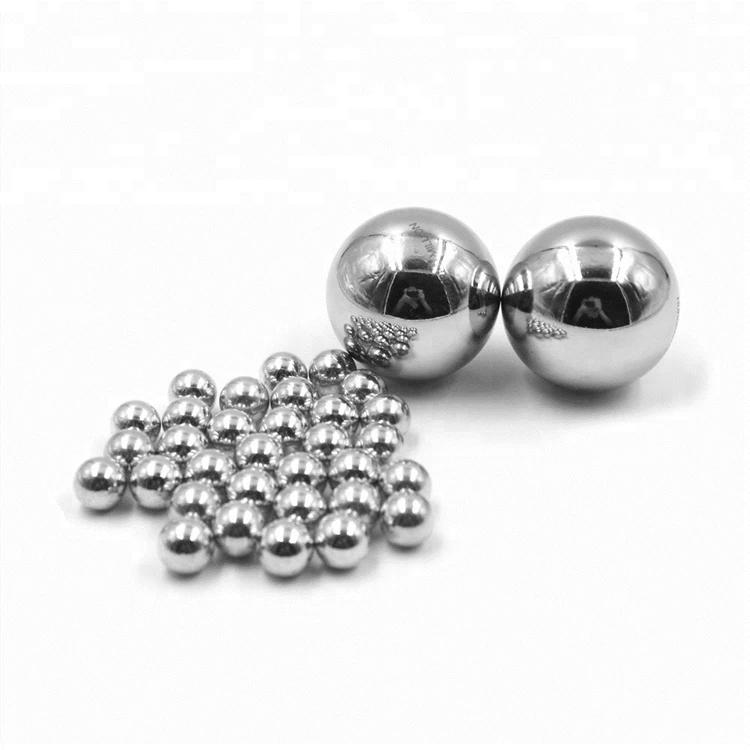

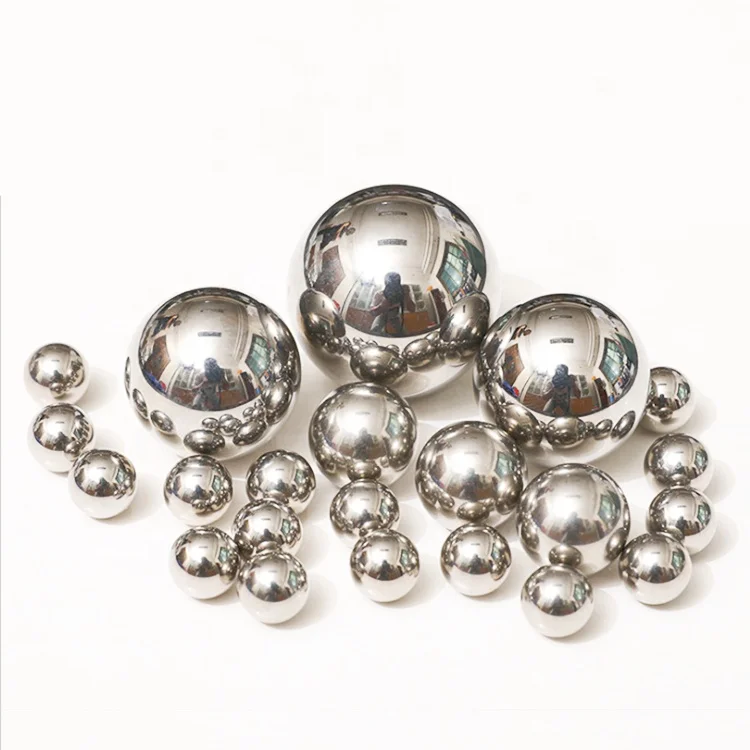

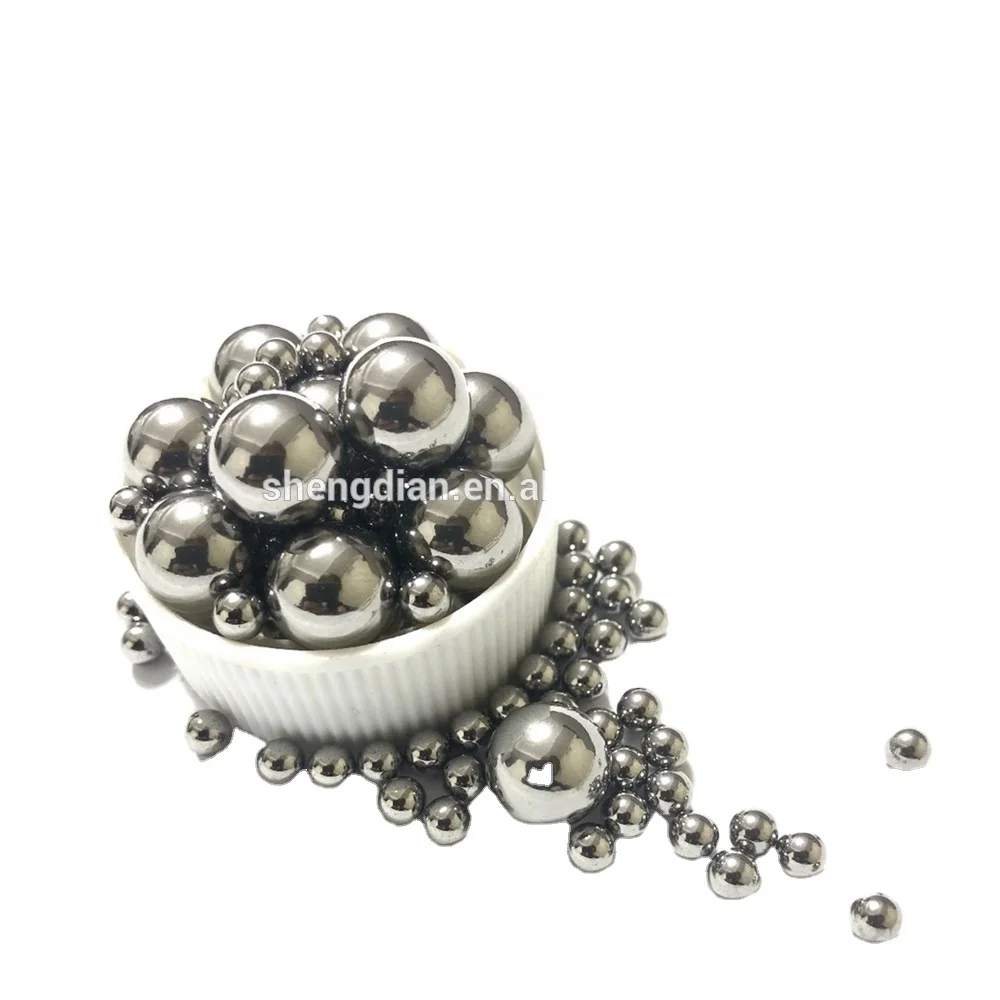

Stainless steel ball Metal ball SS304, SS316, SS420, SS430, SS440
Size Range
0.5mm to 50.8mm
Grade Range
G10 to G1000
Hardness
25-39HRC
Characteristic
(a)Good resistance to corrosion. (b)Apply in where material toughness and resistance to corrosion are more important than hardness. (c)Good corrosion resistance in the food environment, oxidizing solutions and most organic chemicals.
Used for special bearings and valves where Balls requiring a combination of hardness and corrosion resistance
AISI 440C
Magnetic, highest hardness, good corrosion resistance
Used in bearing nozzles and valves where lubrication is poor or absent
AISI 304(L)
Austenitic corrosion resistance, slightly magnetic, however annealing can makes it non - magnetic
Used in valves and relevant application, food products, aerosols, home sprays, perfumes and medical equipment.
AISI 316
Non-magnetic, good corrosion resistance even when exposed to marine atmosphere and sulfuric acid.
Used in presence of sulfuric, phosphoric andacetic acides. mainly used in chemical, paperand textile industries. Applications include aerosol, sprayers, finger pump mechanisms, milk machine blenders, food processing equipment and medical applications
AISI 316L
Characteristics same as 316 with excellent corrosion resistance, Lower carbon content than regular 316
Used in Jewelry, and human implant applications
CARBON STEEL BALL
Carbon steel balls are made from a combination of steel and carbon,they have excellent surface quality ,high hardness and high load bearing capacity as a result of through hardening.According to the different materials can be divided into Low carbon steel ball,Medium carbon steel ball and High carbon steel ball.
(a)Core-hardened (b)Low resistance to corrosive attack (c)Higher Load and longer life than low carbon steel ball
Application
Low quality bearings, bicycles
Lead time
If in stock: within 5 days; Or, 25-35 days

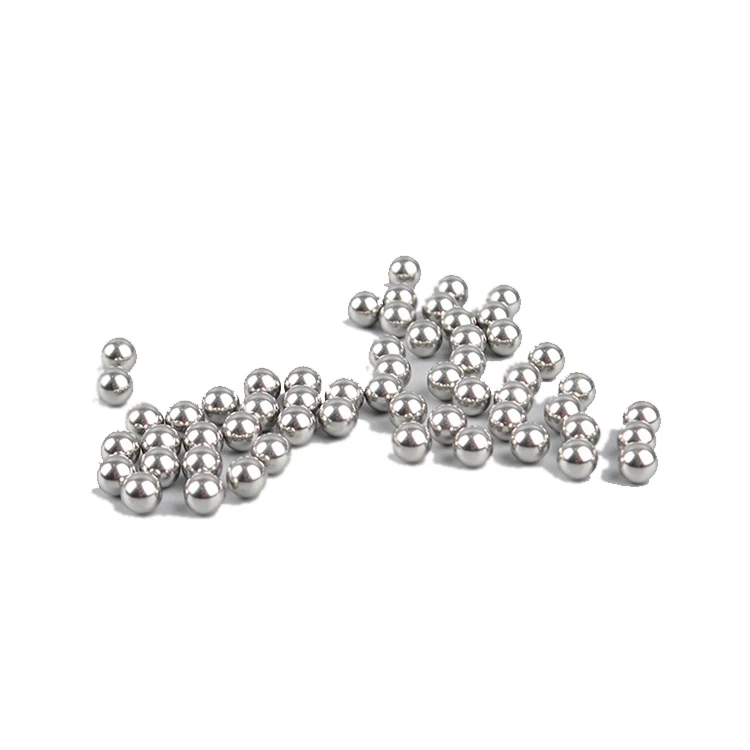

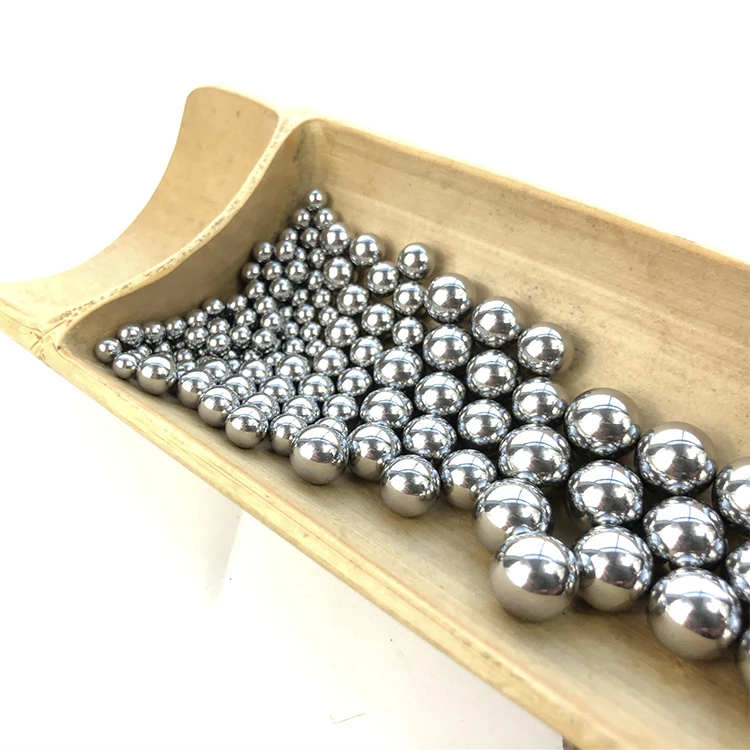

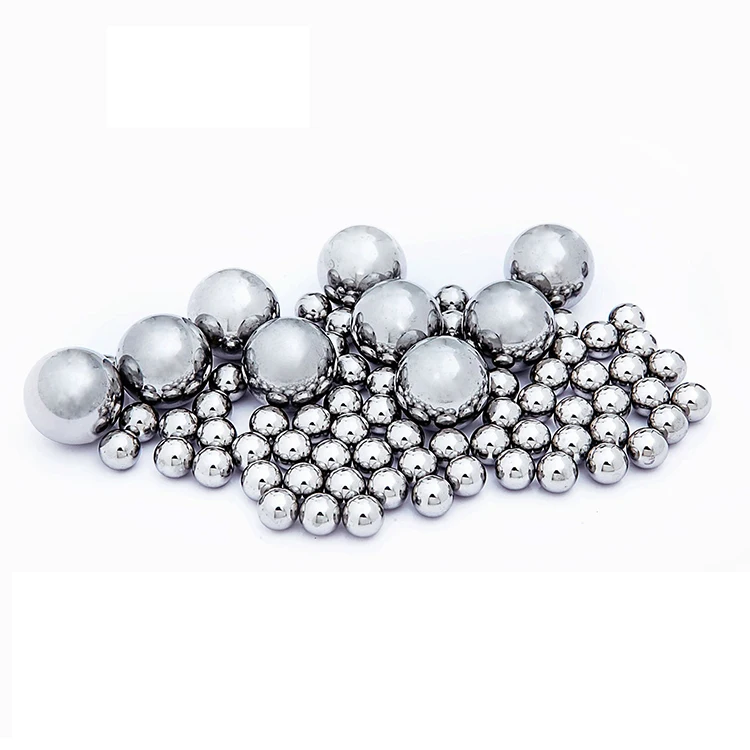

CHROME STEEL BALL

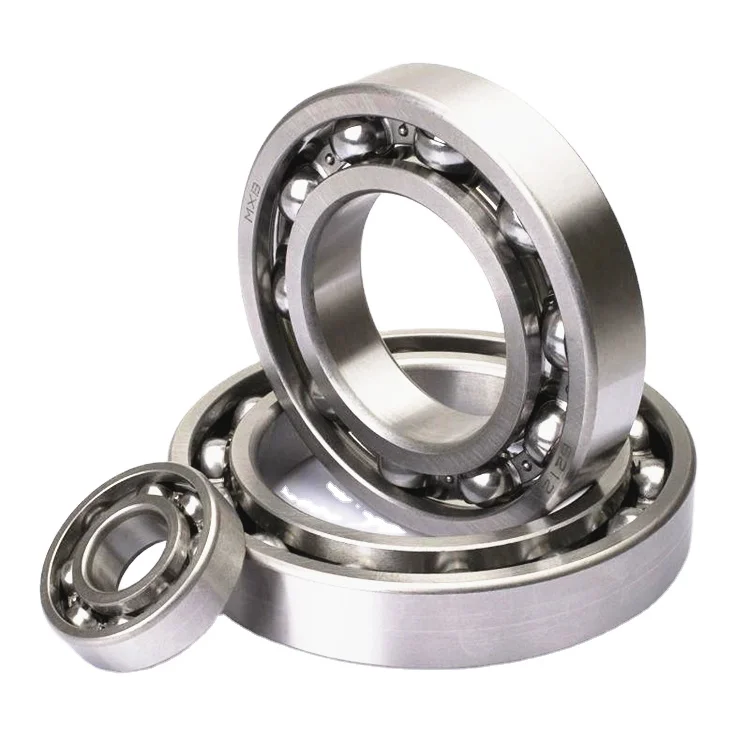

Universal material for ball and roller bearing industry.
Chrome steel balls contain chromium and to through hardening has an excellent surface quality and load bearing.
Bearing Steel Ball Specification
Product Name
Chrome steel ball
Material
AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505
Size Range
0.5mm-120mm
Grade Range
G10-G2000
Surface Treatment
High polished
Hardness
64-68RHC
Magnetic
yes
Characteristic
high hardness, resistance to deformation; excellent wear characteristics
Application
load-bearing applications, and in applications as diverse as food grinding systems, vibratory finishing, plating baths, linear motion components, and check valves.
